Murideo MU-SIX-PAIR-8K-M 8K UHD & HDR 18Gbps SIX-G Generator and SIX-A Analyzer Bundle

ITEM #: MUR-MUSIXPAIR8KM MFG #: MU-SIX-PAIR-8K-M

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$4,495.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MU-SIX-PAIR-8K-M - Overview

The Murideo MU-SIX-PAIR-8K-M is an 8K UHD and HDR ,18Gbps, SIX-G Generator and SIX-A Analyzer Bundle!

Murideo's iconic SIX Series analyzer now benefits from the same 8K upgrade as its legendary partner the 8K-SIX-G generator, identically augmented with increased bandwidth to 40Gbps for benchmark performance unexpected from an instrument of this size and price point. Expanded comprehensive diagnostics are available when using the accompanying PC software.

Display manufacturers have become the engines propelling the resolution race upward as industry entities struggle to keep pace. Flagship, cutting-edge, wholly engaging systems are being requested in educational, medical, and Fortune 500 spaces from avant-garde commercial integrators, who frequently find their designs must incorporate a mixed technology, hybrid resolution solution to address and conquer the challenges of these varied requirements. It is now commonplace to find systems comprised of 1080p LCD Video Walls, 4K laser-based projectors and 8K OLED flat panels residing inside the walls of world commerce leaders. Luxury residential projects share similar design parameters. Indispensable, like its predecessor, the new Murideo 8K SIX-A is certain to eliminate untold frustrating labor hours by rapidly detecting and isolating audio-video issues of all scopes.

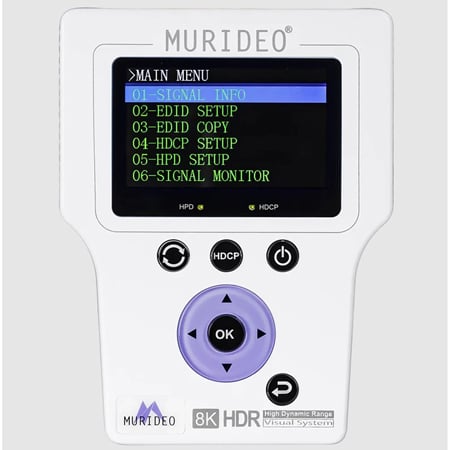

Recently upgraded to a full metal body, this SIX-A is designed to be tough and versatile. Portability made possible from a long-lasting, built-in rechargeable battery plus a bright, three-inch LCD screen, combine for easy endpoint signal validation, EDID conflict resolution, plus monitoring and reporting signal intermittency or dropout. When paired with Murideo's 8K SIX-G to provide pattern generation, the duo work in tandem to create the most versatile, cost effective, feature-rich, point-to-point closed-loop troubleshooting system available.

NextGen 40Gbps Signals
The 8K SIX-A is capable of signal analysis for all HDMI versions, including 2.1a, 40Gbps (8K/60 4:2:0, 10-bit, or 8K/30 4:4:4, 10-bit). FRL-5 four-lane tracking tests NextGen-rated cables plus source devices for full bandwidth throughput.

Time-Determined Signal Dropout Analysis
Intermittent and apparent routine signal interruptions can be detected using the Signal Monitor feature from the 8K SIX-A PC software. Pixel send / receive counts can be monitored for discrepancies, plus complete signal dropout.

Extended Analysis Functions
HDR signal and metadata presence, InfoFrame analysis, EDID copy and emulation, Hot Plug Detect, CEC, plus 2-8 channel audio confidence confirmation are among the testing features the 8K SIX-A will read and report on (PC software use may be required for some functions).

Hand-Held and Battery Operable
The compact form factor with battery power help when troubleshooting in tight spaces, plus lessen the chance for an accident when atop a ladder probing signal failure.

Calibrator Use
Calibrators get called into projects ranging from direct-connection to a single display through large-area complex installations, where video signals traffic through multiple devices such as switchers and extension kits. Often, a calibrator is on site alone and under a prescribed timeline for completion. The 8K SIX-A can isolate a failure point, provide documentable proof of signal interruption, plus eliminate time-consuming costly guesswork.

  • Features:

    • Analyze any HDMI/DVI signals up to 40Gbps (7680x4320P60)
    • Test HDMI/DVI Cables up to 40Gbps, full TMDS testing
    • View up to 40Gbps Video Content and Format Info
    • Analyze & Report HDMI Distribution System over Time (minutes, hours, days) down to the Pixel
    • Audio Confidence Tests (2-Channel & Multichannel)
    • Advanced EDID Analysis & Tools
    • Read, Write EDID
    • Analyze HDR Signals & Metadata
    • Report & Analyze InfoFrames
    • HDCP Tester - 2.3, 2.2, 1.4,

  • Specifications:

    • HDMI Version: HDMI 2.0
    • HDCP Version: HDCP 2.2 and 1.4
    • HDCP ON/OFF: Yes
    • Maximum Clock Rate: 600 Mcsc (594MHz)
    • Maximum Throughput Per Channel: 6.0 Gbits/sec (18 GBP/sec Total)
    • Resolution Timings: All VESA
      - Video Standard with 60, 59.94, 30, 29.97, 24, 23.98fps
      - Video Standard with 50, 25fps
      - SMPTE 4k Timings (4096x2160)
      - UHD 4k Timings (3840x2160)
    • Video Encoding: RGB, YCbCr
    • Video Sampling Models:
      - RGB 4:4:4
      - YUV 4:4:4
      - YUV 4:2:2
      - YUV 4:2:0 HDMI 2.0
    • Color Bit Depth: 8, 10, 12, 16, and AUTO EDID Read
    • Audio Type: LPCM
    • Audio Sampling Rate: 32k, 44.1k, 48k, 88k, 96k, 176k
    • Audio Sampling Bit Size: 16, 20, 24, AUTO
    • Audio Channels: 2
    • Audio Volume: Yes
    • HDMI: Type A
    • Audio (L/R input): 3.5mm Stereo (3-Conductor)
    • RS232: 3.5mm Stereo (3-Conductor)
    • Firmware/Control: Micro USB
    • Operating Temprature: 23°F - 125°F (-5°C - 51°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Humidity Range: 5% - 90% RH (No Condensation)
    • Power: 7.4V 2600mAh Internal Battery or Wall Adapter
    • Power Consumption (Total): 12 watts max
    • Power Supply:
      - Input: AC 100V - 240V ~ 50/60Hz
      - Output: DC 12V, 2A
    • Dimensions (DxWxH)(Unit Only): 1.13" x 4.27" x 5.47" (28.8mm x 108.44mm x 139mm)
