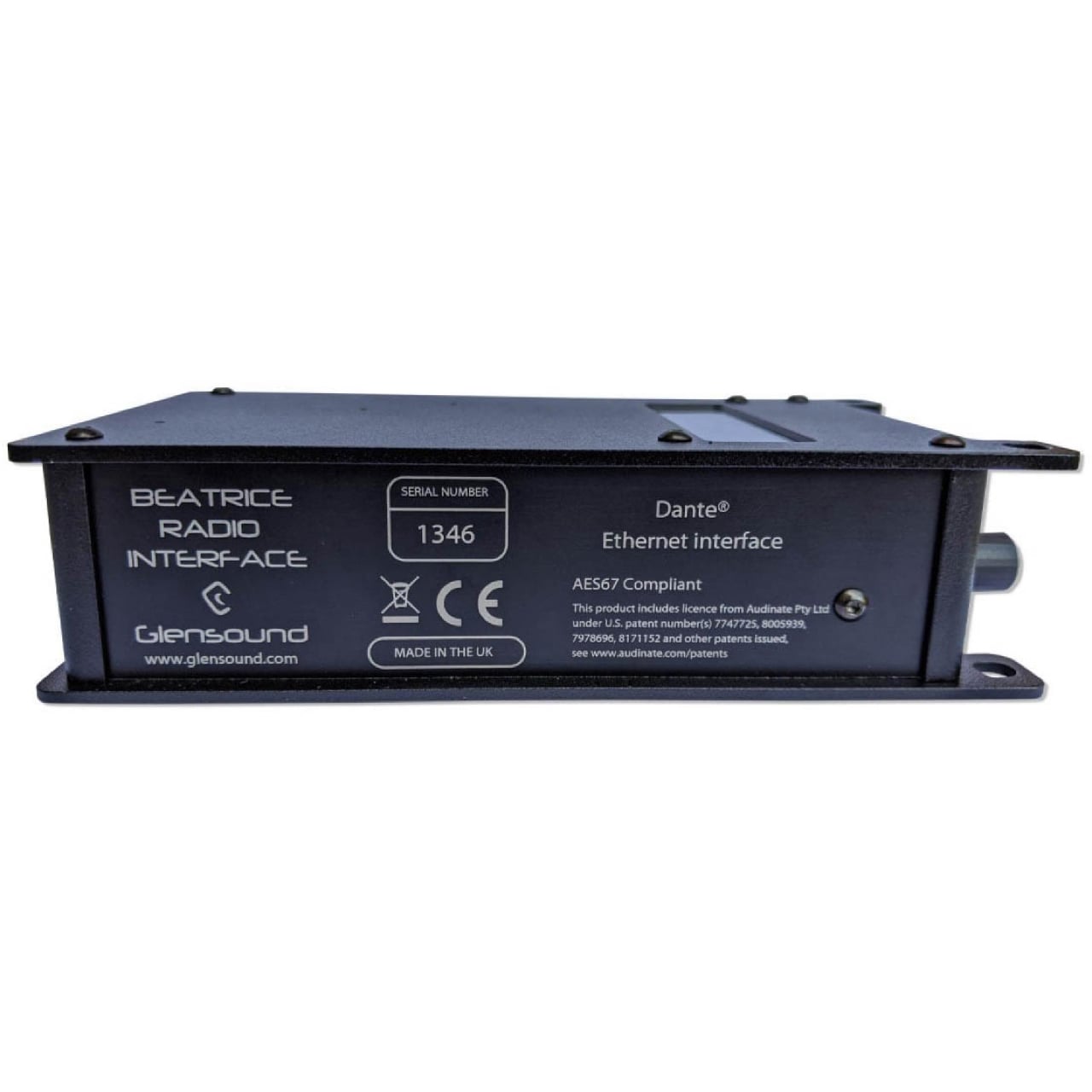

The Glensound Beatrice M1 is a robust interface for connecting wireless radios and walkie-talkies to a Beatrice intercom. It has 4x audio inputs from the network and features crystal-clear audio. It is designed for broadcast, theater and professional audio applications. The M1 is part of the Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real-time distribution of uncompressed audio across standard networks. As such, the BEATRICE M1 is also fully compatible with other manufacturers’ equipment using the Dante protocol.

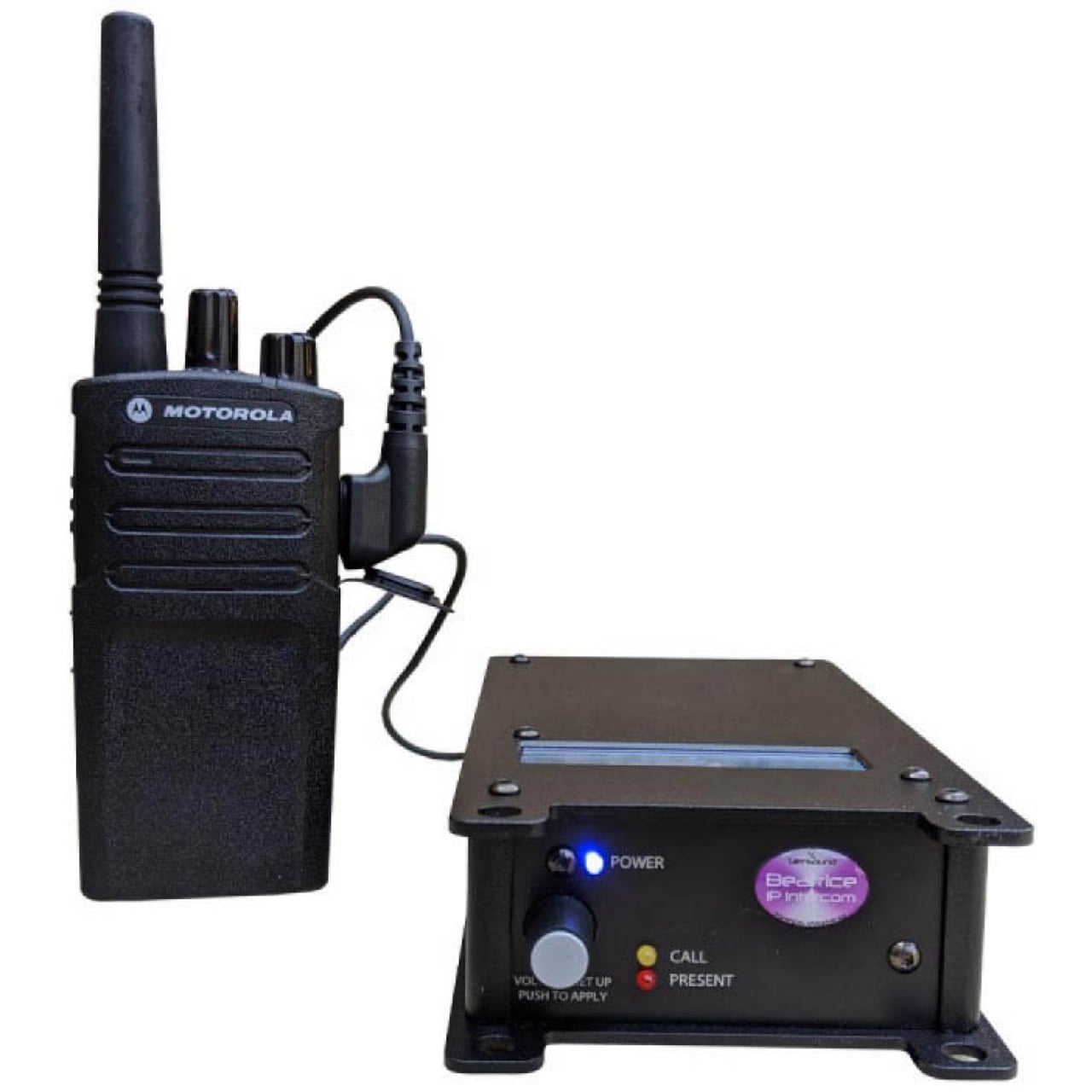

Being able to interface a network audio intercom to low-cost wireless radios and walkie-talkies provides a real benefit to small theatres and studios.
Interfaces To Many Different Radios

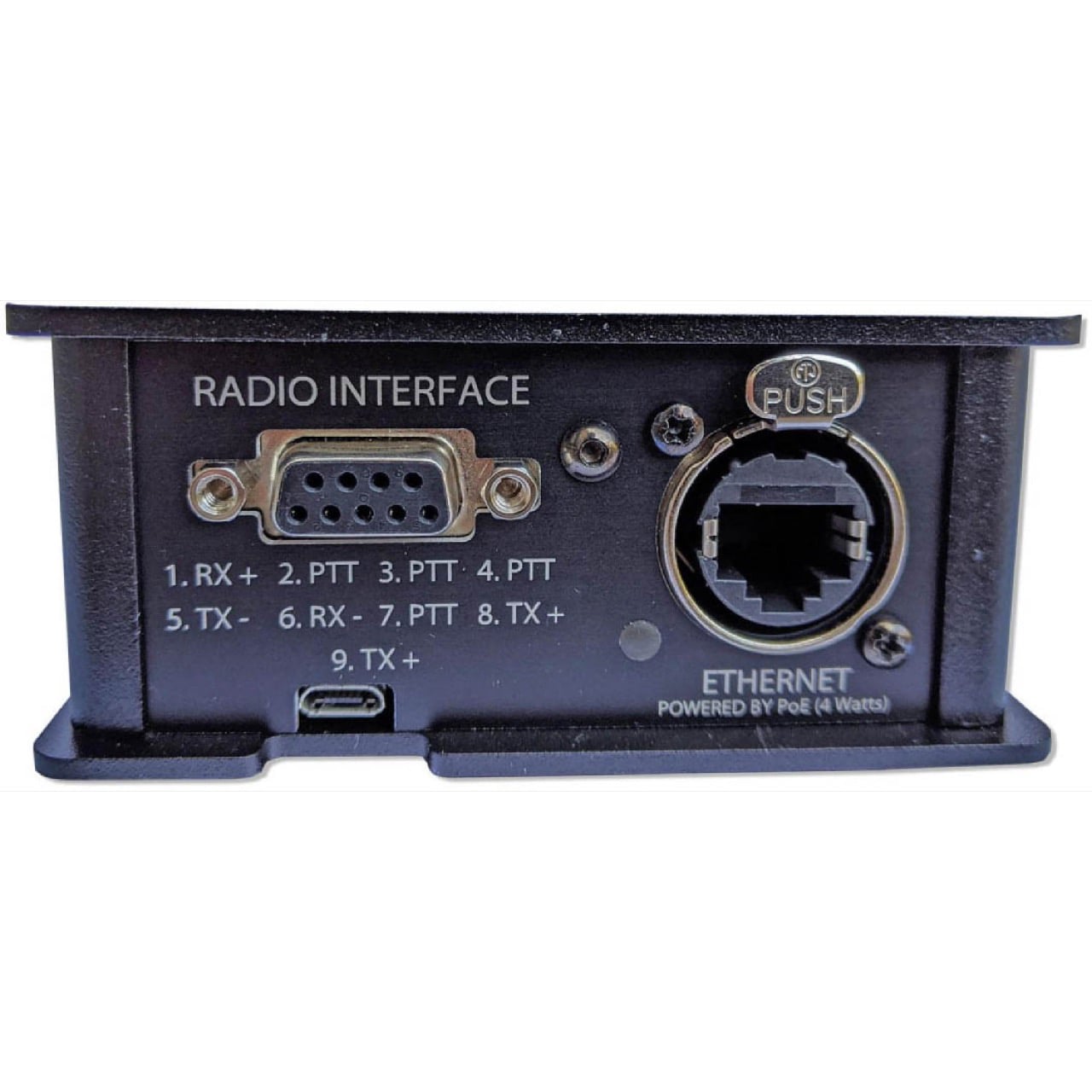

A versatile 9-pin D connector is used for providing bi-directional audio and trigger connectivity to the attached walkie-talkie. This connector is wired to the same format as legacy products from other manufacturers, making a system upgrade simple. Usefully, the wiring of this connector provides both normally open and normally closed relay outputs for triggering the walkie-talkie's talk switch, making interfacing to different manufacturers’ radios easy.
Audio Presence With Delay
The activation of the relay for triggering the radio’s speak switch is done on detection of an incoming audio signal from the network. The threshold and hold time of this activation can be set in the menu system. Importantly and uniquely to the Beatrice M1, a small digital delay is introduced to the audio signal being sent to the walkie-talkie. This prevents the very initial part of a message from being missed as the threshold is detected and the radio's talk switch is triggered.
Input & Output Level Controls

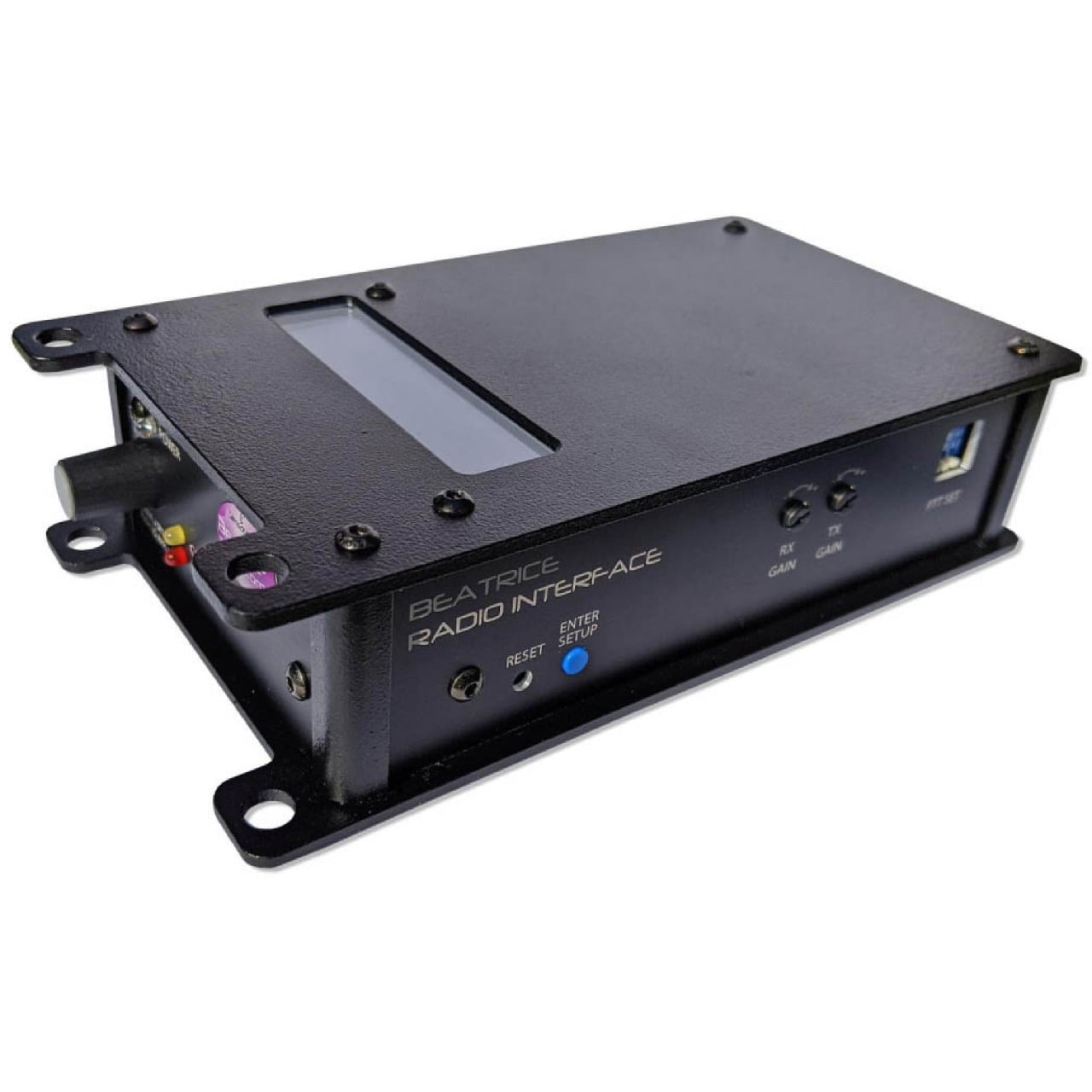

To allow correct system setup and practical interfacing to as many different walkie-talkies as possible, multi-turn preset pots are provided to set up the incoming audio level from the radio and also the outgoing audio level to the radio.
Audio Level Meter
To help with setting up the incoming audio level from the radio and matching it to the Dante network, an audio meter is displayed on the front of the Beatrice M1's screen. This level meter is after the incoming audio preset gain control, making level setup easy.
Transformer Isolated Inputs & Outputs
For extended reliability and to protect the M1's circuits from external radio issues, both the audio inputs and outputs to/ from the radio are transformer isolated.
4x Incoming Audio Circuits
For versatility and to allow more than just one person to communicate with the walkie-talkie interface, the Beatrice M1 can receive 4* incoming audio circuits. These 4 audio circuits are mixed together internally and then sent to the attached radio when audio is present. Being a network audio device, the audio from the radio to the Beatrice intercom network can easily be routed to multiple network points for monitoring.
Preset Switches
Three preset switches are provided on the side of the unit. These are used to allow a wide range of walkie-talkies' microphone inputs to be accommodated.
LCD Screen For Setup
To allow easy setup, the Beatrice M1 has a backlit LCD screen on the top panel. This allows such items as incoming audio detection threshold and also hold times to be set. This LCD screen also provides a visual level indication of the audio being received from the radio.
PoE Powered
For ease of connection and setup, one single network cable provides both bidirectional audio and power to the unit.
