Netgear AV Line M4250 Series GSM4248PX 40-Port Managed Ethernet Switch with Eight 1000/10GBASE-X SFP+ Ports

ITEM #: GSM4248PX-TAANAS MFG #: NET-GSM4248PX-TAANAS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$5,241.36

Our Price:

$3,899.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NET-GSM4248PX-TAANAS - Overview

The Netgear AV Line M4250-40G8XF-PoE+ GSM4248PX is switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

The NETGEAR AV Line of M4250 Switches were developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs. PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio, Dante, Q-SYS, AES67, and AVB profiles are available. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches are used, NETGEAR IGMP Plus brings automation for you to just connect them together, or with M4300 and M4500 switches.

  • Features:

    • Uplink options include 1G for audio installations or standalone video
    • installations as well as 10G uplinks for larger scale video deploymment. Includes 12-port multi-gigabit
    • Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology.
    • Rackmount models designed for a clean integration with traditional,
    • rack-mounted, AV equipment

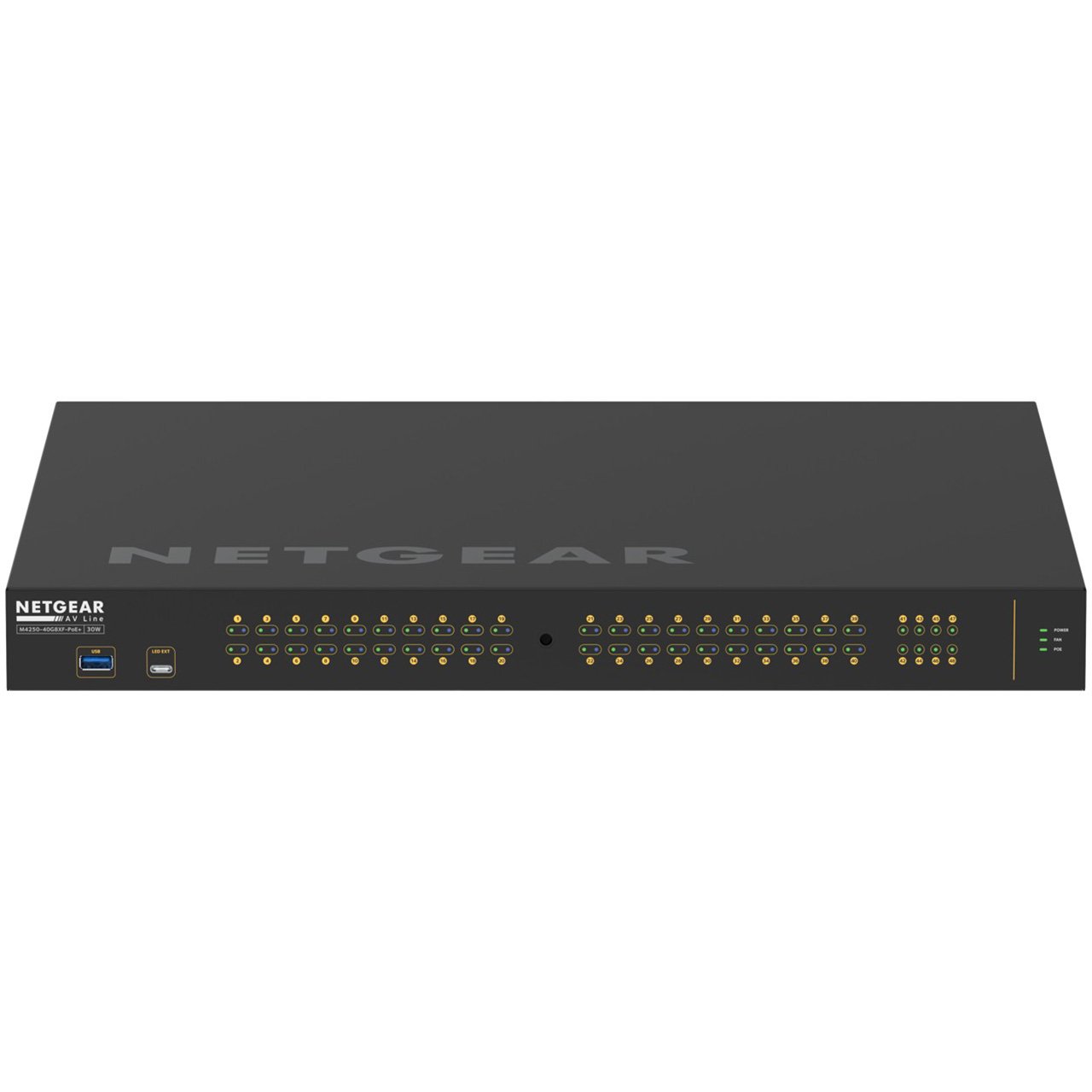

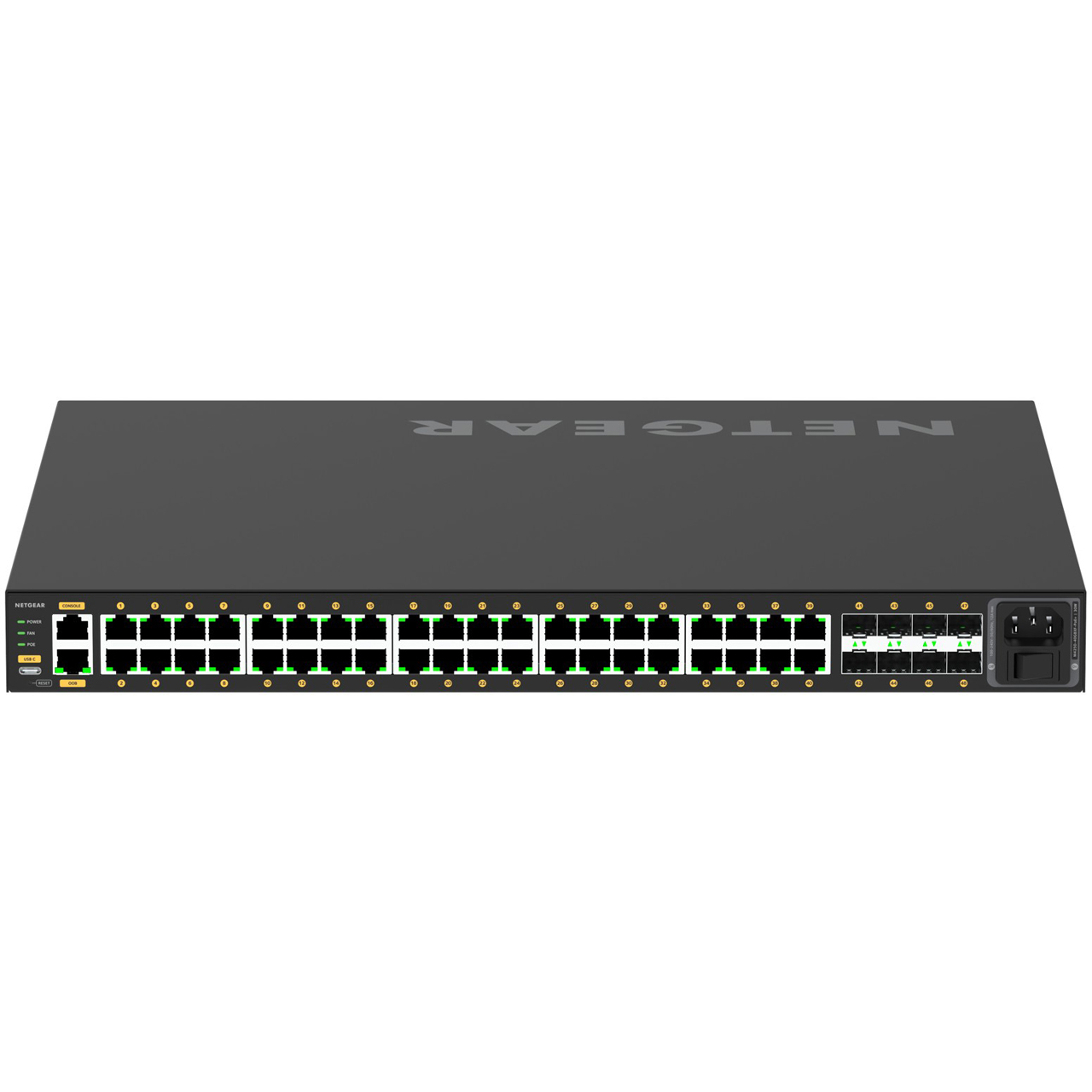

    • The M4250 switches come with a sleek,black display panel with status in front and all cabling plus additional status in the back.
    • Reversed mounting is possible whenports are desired on the front of the rack.
    • A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling.

  • Specifications:

    • Primary Port Speed: 1 Gigabit
    • Number of Ports: 48 (40x 1G PoE+, 8x SFP+)
    • PoE Ports/Budget: 40 PoE+ (30W/port), 960W Budget
    • IGMP Support: Enhanced (NETGEAR IGMP PlusT)
    • Jumbo Frame Support: Yes, up to 12kb
    • AVB Support: Yes. Electronic license required, activation key sent via email (AVB4248PX-10000S).
    • Acoustics: Fanless or 59dB @ 77°F (25°C)
    • Power Consumption:
      - With PoE: 1197W/4086.56Btu/hr
      - Without PoE: 89.2W/304.53Btu/hr
    • Standby without Any Port Connection: 74.5W/254.34Btu/hr
    • Dimensions (WxDxH): 17.32" x 15.75" x 1.70" (440mm x 400mm x 43.2mm)
    • Weight: 13.91lbs (6.31kg)

  • GTIN:

    0606449168761
