Galaxy Audio AS-1100D Wireless Personal In Ear Monitoring System Freq CODE D
  • Galaxy Audio AS-1100D Wireless Personal In Ear Monitoring System Freq CODE D
  • Galaxy Audio AS-1100D Wireless Personal In Ear Monitoring System Freq CODE D

Questions? Ask a Markertek Expert:
800-522-2025 Email

Galaxy Audio AS-1100D Wireless Personal In Ear Monitoring System Freq CODE D

Manufacturer: Galaxy Audio

Item #: GXY-AS-1100D   •   MFG #: AS-1100D



List Price:$559.99
Our Price:$431.99

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

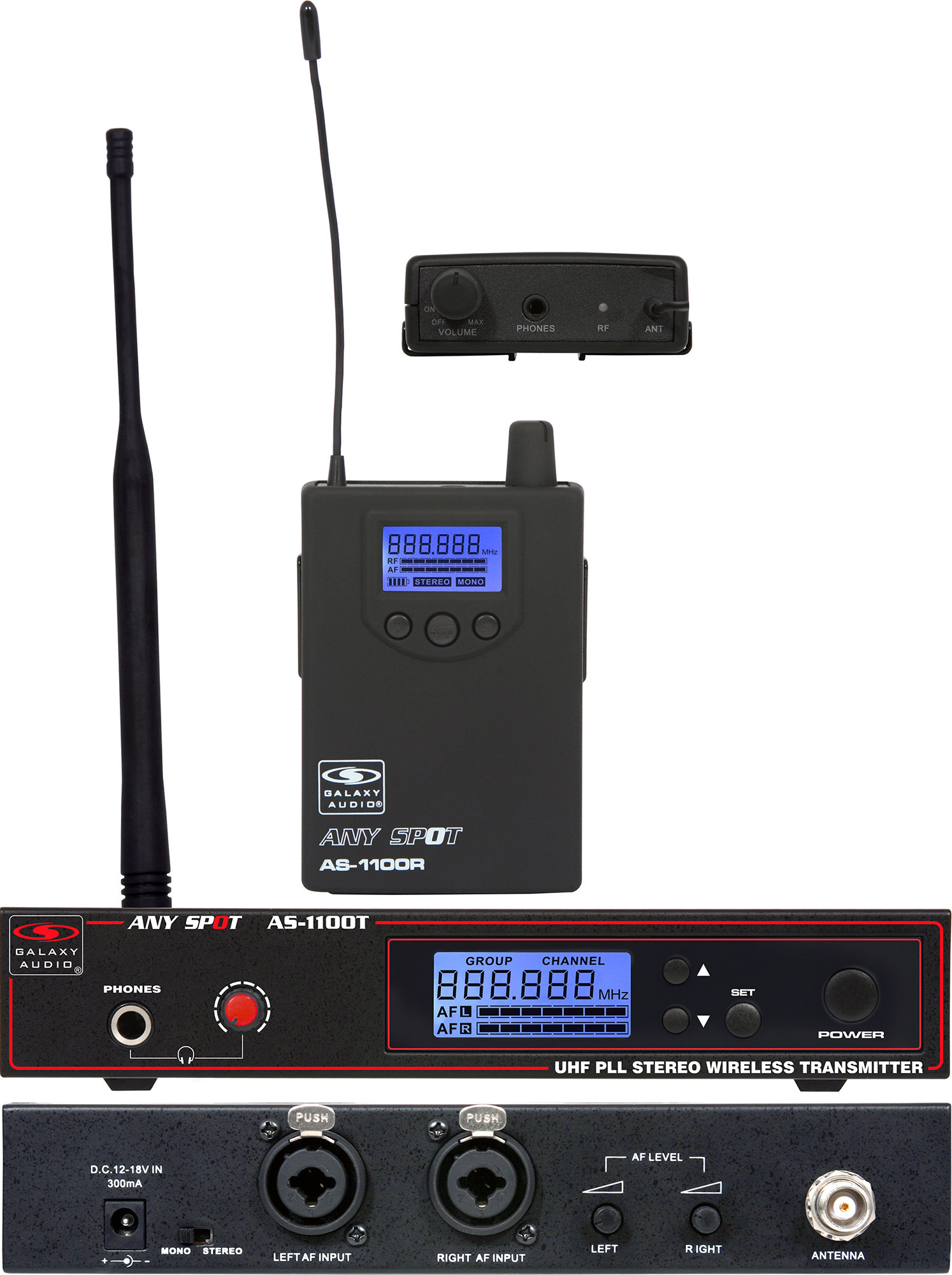

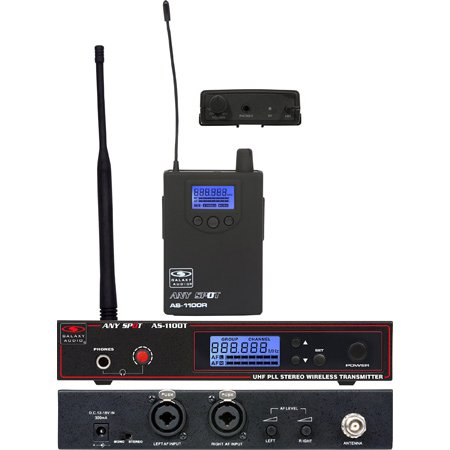

    The AS-1100 packs an amazing punch. The transmitter has stereo XLR/+" inputs, headphone output, and LCD display which displays the channel and input level. The Receiver has an LCD with channel, battery level, and RF/AF indicator. The AS-1100 is perfect for anyone looking for their first system or to upgrade to the next level.

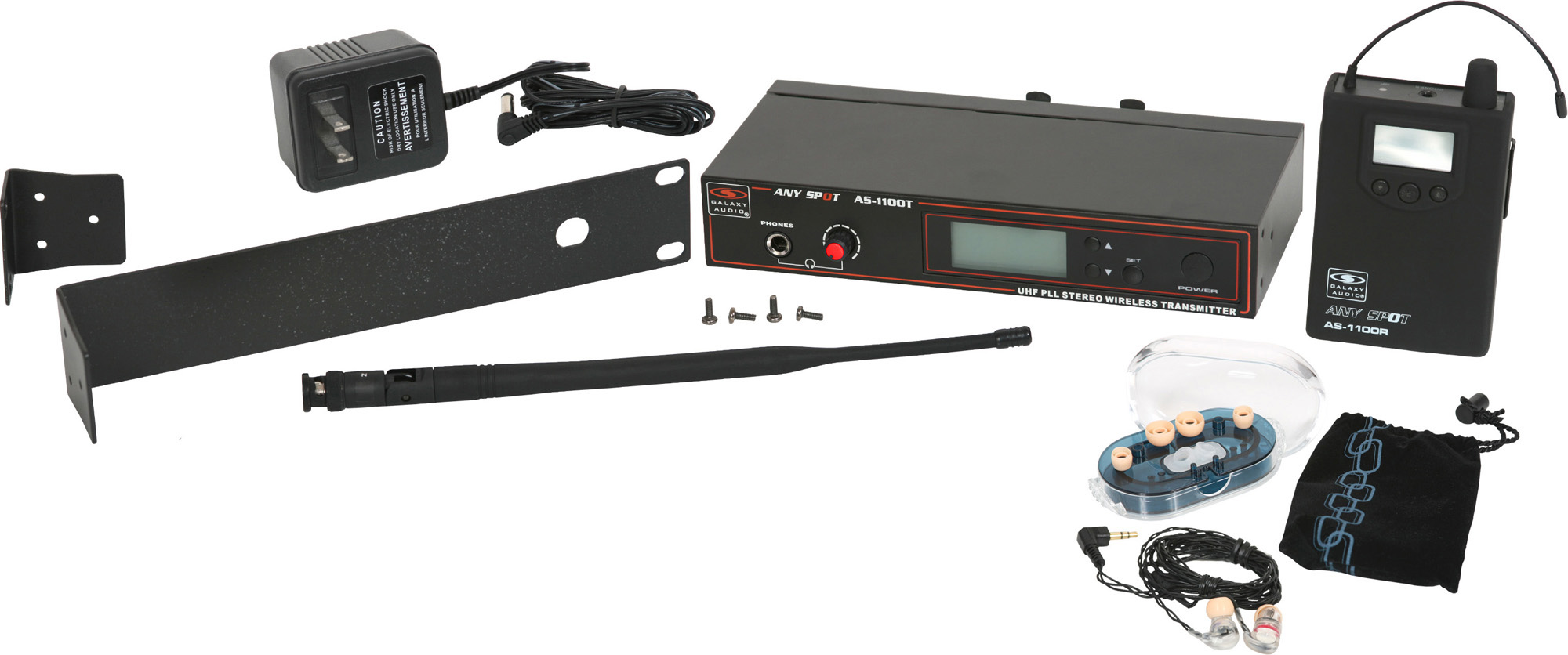

    All AS-1100 systems include the following components:
    AS-1100T Transmitter
    AS-1100R Receiver
    Power Supply
    One Pair EB3 Earbuds
    One Antenna
    Rack Ears
    User Manual


    • Specifications

      • AS-1100 SYSTEM!
      • Band: UHF .
      • Frequency Range: CODE D 584 MHz - 607 MHz, CODE L 655 MHz - 679 MHz, CODE N 518 MHz - 542 MHz.
      • Frequencies: 120 .
      • Transmitter Output Level: 10 mW
      • Operating Range: Under Typical Conditions 300' (92m), Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics.
      • Audio Frequency Response: +/-3dB 70Hz~15KHz.
      • Total Harmonic Distortion: <1% @ 1kHz.
      • Signal to Noise: 85 dBA.
      • Dynamic Range: >90dB A-weighted.
      • Operating Temperature: Range 14§F to 122§F (-10 C§ to +50 C§), Note: battery characteristics may limit this range.
        AS-1100T TRANSMITTER!
        Main Frame Size: EIA STANDARD 1/2 U.
      • Modulation Mode: FM Stereo Modulation.
      • RF Output: 10 mW.
      • Max Audio Input Level: +6 dBV.
      • Gain Adjustment Range: 40dB.
      • Audio Input: Line Level X 2, XLR / 1/4" Combo Jack.
      • XLR input: Impedance balanced, Pin 1: Ground (cable shield), Pin 2: Audio, Pin 3: No Audio.
      • Dimensions: 1.5" x 8.3" x 3.78" (38 x 212 x 96 mm)(HxWxD).
      • Weight: 21oz. (605 g).
      • Power Requirements: 12-18 V dc at 300mA supplied by external power supply .
        AS-1100 RECIEVER!
      • Audio Output Level: 100 mW.
      • Sensitivity: -94 dBm for 30 dB.
      • Stereo Separation: 40 dB (at 1 kHz).
      • Output Connector: 1/8" (3.5 mm) Stereo Earphone Connector.
      • Dimensions: 3.74" x 2.6" x 1" (95 x 65 x 25 mm)(HxWxD).
      • Weight: 3.5oz (100 g) without batteries.
      • Power Requirements: 2 (AA) size alkaline or rechargeable batteries.
      • Battery Life: About 5 hours (alkaline).

    • Item Includes

      • AS-1100T Transmitter
      • AS-1100R Receiver
      • Power Supply
      • One Pair EB3 Earbuds
      • One Antenna
      • Rack Ears
      • User Manual

    • GTIN:

      0691281802911
