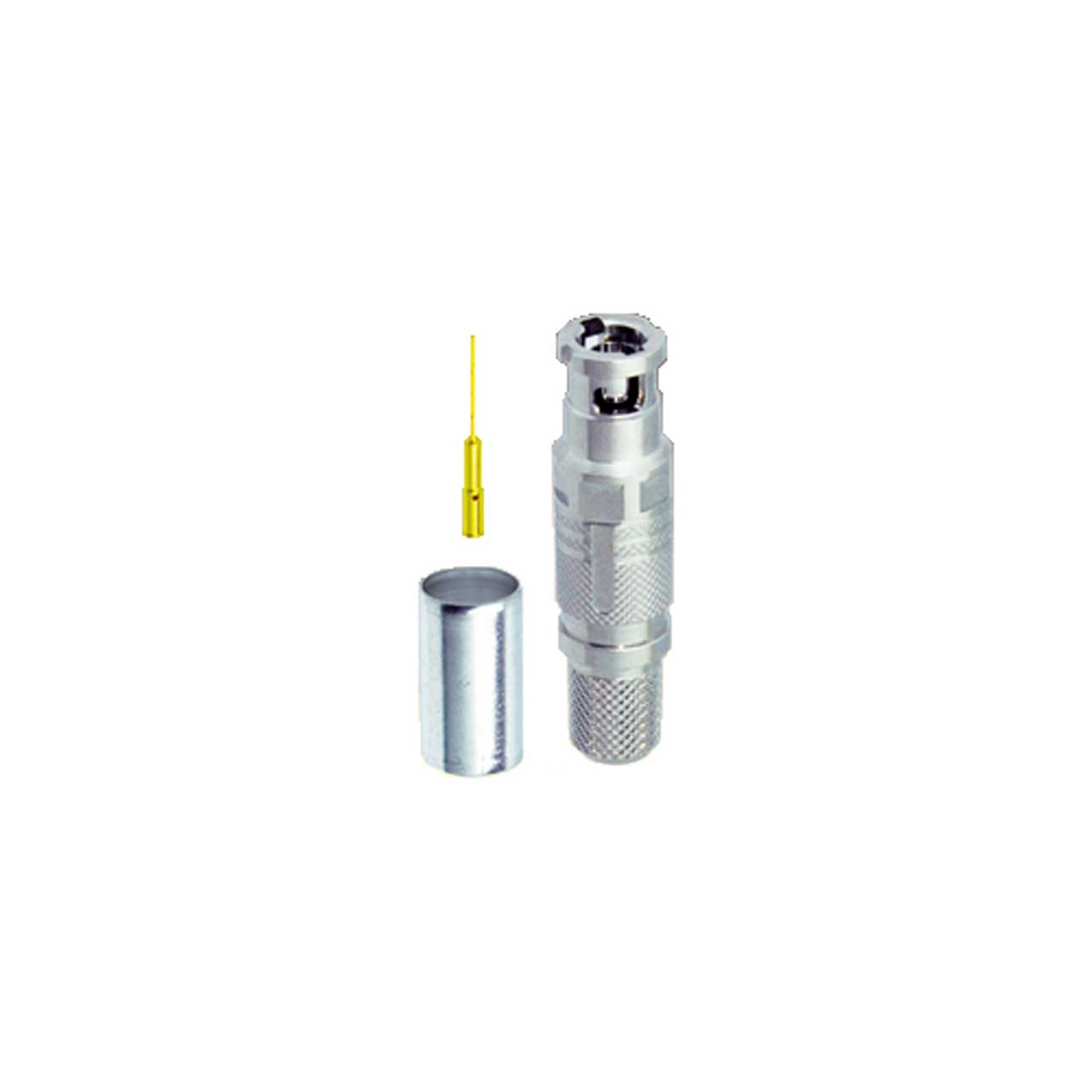

Canare HBCP-D55UHD 12G-SDI Micro BNC Plug for L-5.5CUHD - SMPTE ST-2082-1 Compliant - Each

HBCP-D55UHD - Overview

• Features:

  • Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin.
  • SMPTE ST 2082-1 compliant
  • Canare crimp design ensure quick and reliable installation

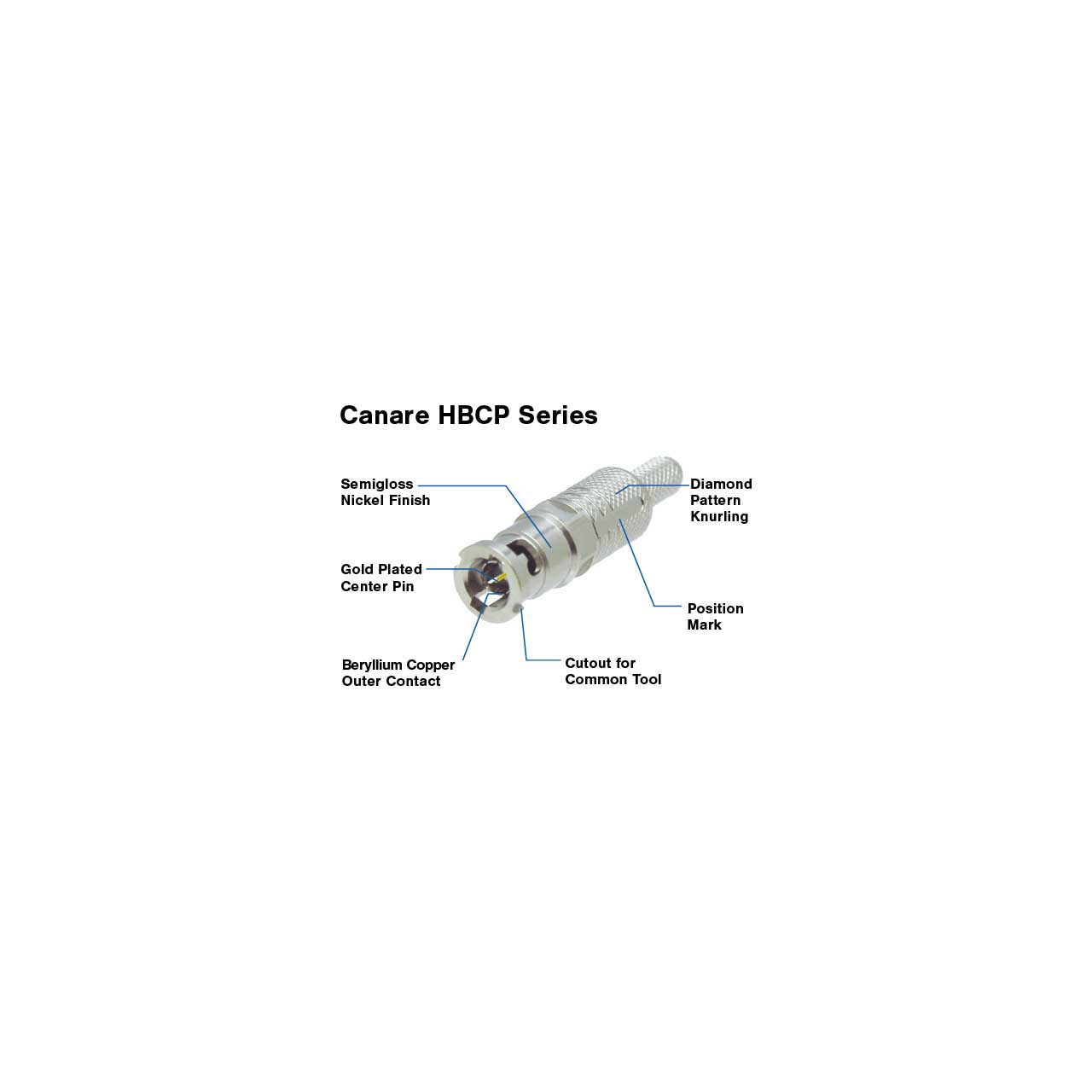

  • Gold plated "snap lock" center pin
  • Compatible with CoaXpress Frame Grabbers
  • Branded Position Marker for Increased Visibility


• Specifications:

  • Nominal Impedance: 75Ω unbalanced
  • Construction: As shown in the drawing (BL613)
  • Weight Approx: 9.0g (Includes center contact, crimp sleeve)
  • Packaging: 20pcs/package (5.9 x 2 x 1.18")
  • Applicable Cable: L-5.5CUHD(CANARE)
  • Crimp Tool Frame: TC-1, Die: TCD-55UHD
    Note: The coupling part is compatible with Canare Micro BNC receptacle.
  • Operating Temperature: -40°C~+85°C
  • Operating Humidity: ~90%
  • Insulation Resistance: 1000MΩ or more
  • Voltage Proof: Without any damage such as electric breakdown etc.
  • Contact Resistance: Between center contacts: 10mΩ or less / Between external contacts: 5mΩ or less
  • Return Loss: 26dB or more (0~ 3GHz), 20dB or more (0~ 6GHz), 15dB or more (0~12GHz)
  • Cable Connecting Force: 200N or more for L-5.5CUHD
  • Mechanical Operation: Contact resistance: 20mΩ or less
