Gigatronix HD Micro BNC Straight Crimp Plug - Nickel Plated for Gigatronix UHD75-6/6XF and Belden 4694R Cables

ITEM #: HD15-1694-C06-Z MFG #: HD15-1694-C06-Z

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Gigatronix Ltd
Free Shipping with $49 Minimum Order

List Price:

$9.95

Our Price:

$7.50

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HD15-1694-C06-Z - Overview

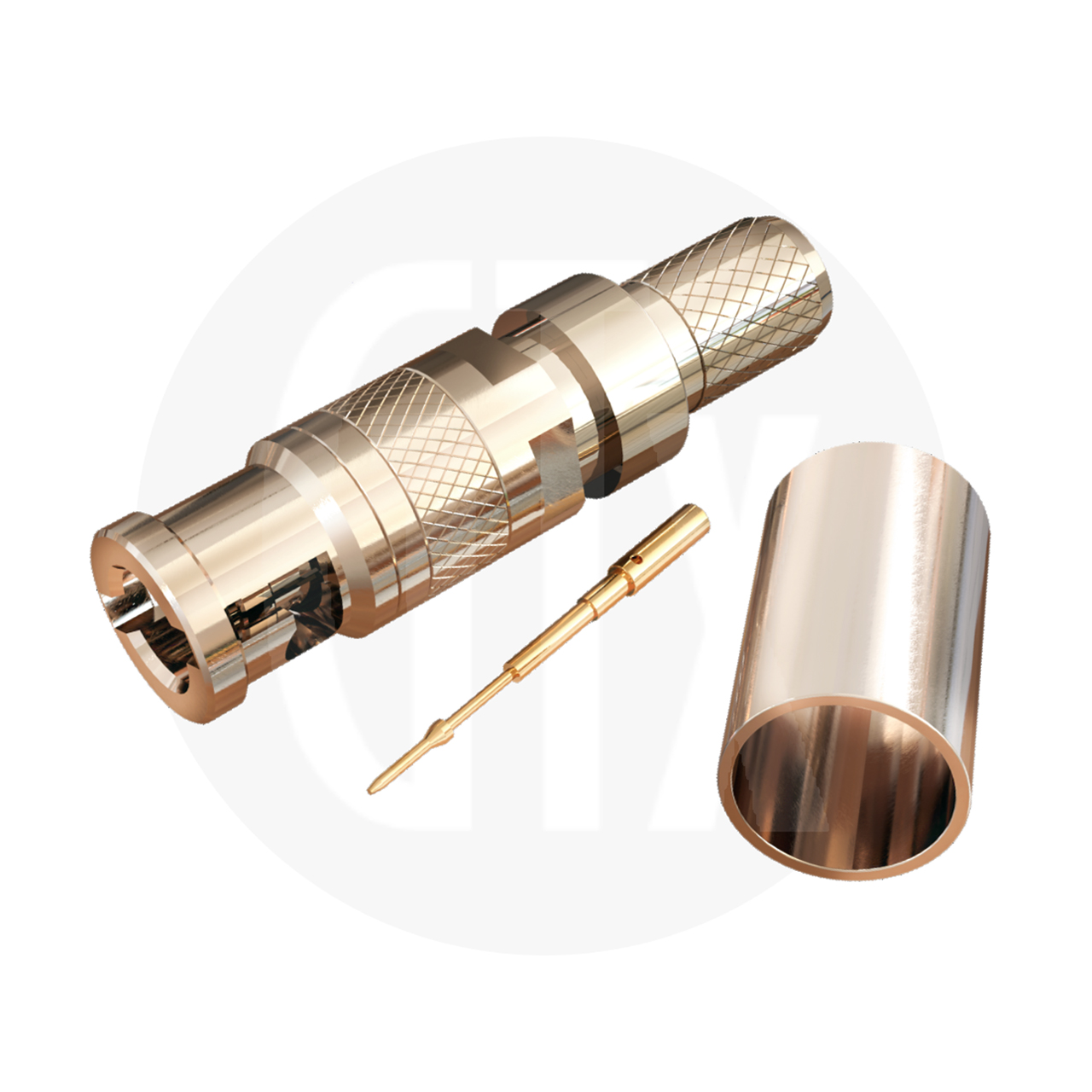

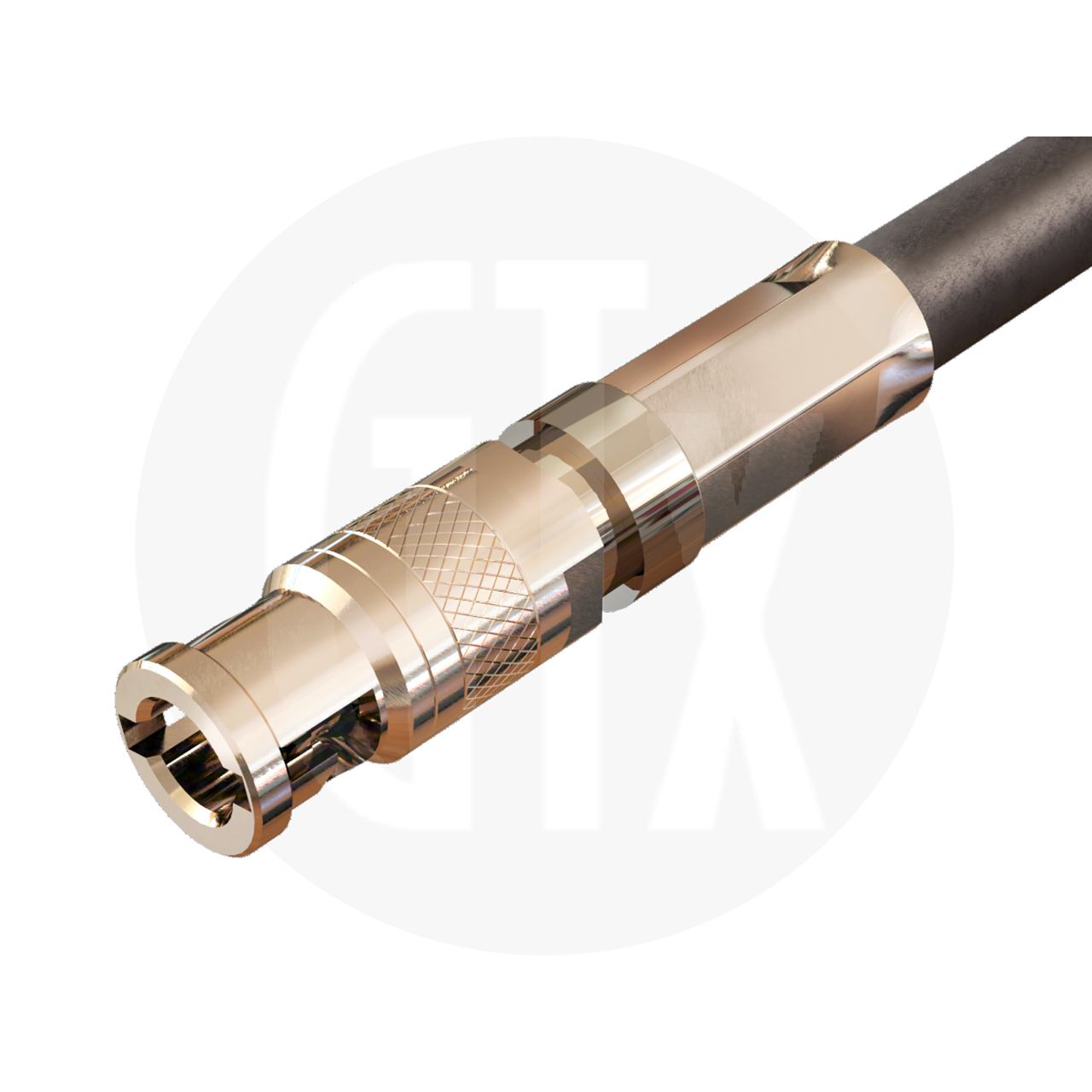

The Gigatronix HD15-1694-C06-Z is a nickel plated HD Micro BNC Straight Crimp Plug. It is designed for use with Gigatronix UHD75-6/6XF and Belden 4694R cables.

  • Specifications:

    • Electrical
    • Dielectric Withstanding: 500V RMS Maximum
    • Impedance: 75Ω
    • Interface Frequency: 12GHz
    • Working Voltage: 500V RMS Maximum

      Environmental
    • RoHS Compliant: Yes
    • Temperature Range: -85°F - 329°F (-65°C - 165°C)

      Material
    • Body: Brass, Nickel Plated
    • Coupling Nut: Brass, Nickel Plated
    • Dielectric: PTFE
    • Ferrule: Brass, Nickel Plated
    • Pin: Beryllium Copper, Gold Plated

      Mechanical
    • Cable Retention: Equal to breaking strain of cable
    • Contact Gender: Male
    • Durability: 500 mating cycles
    • Fixing Method: Crimp
