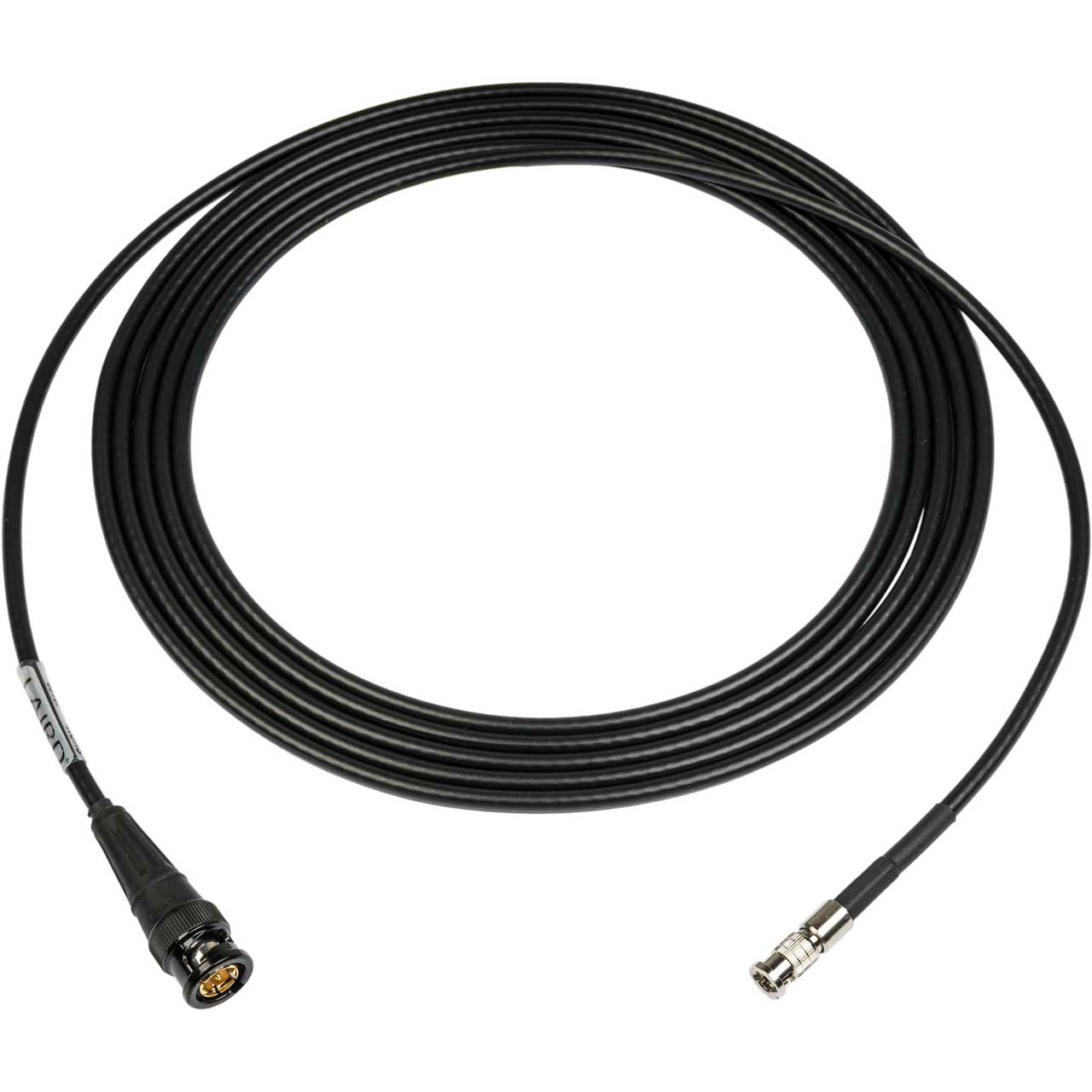

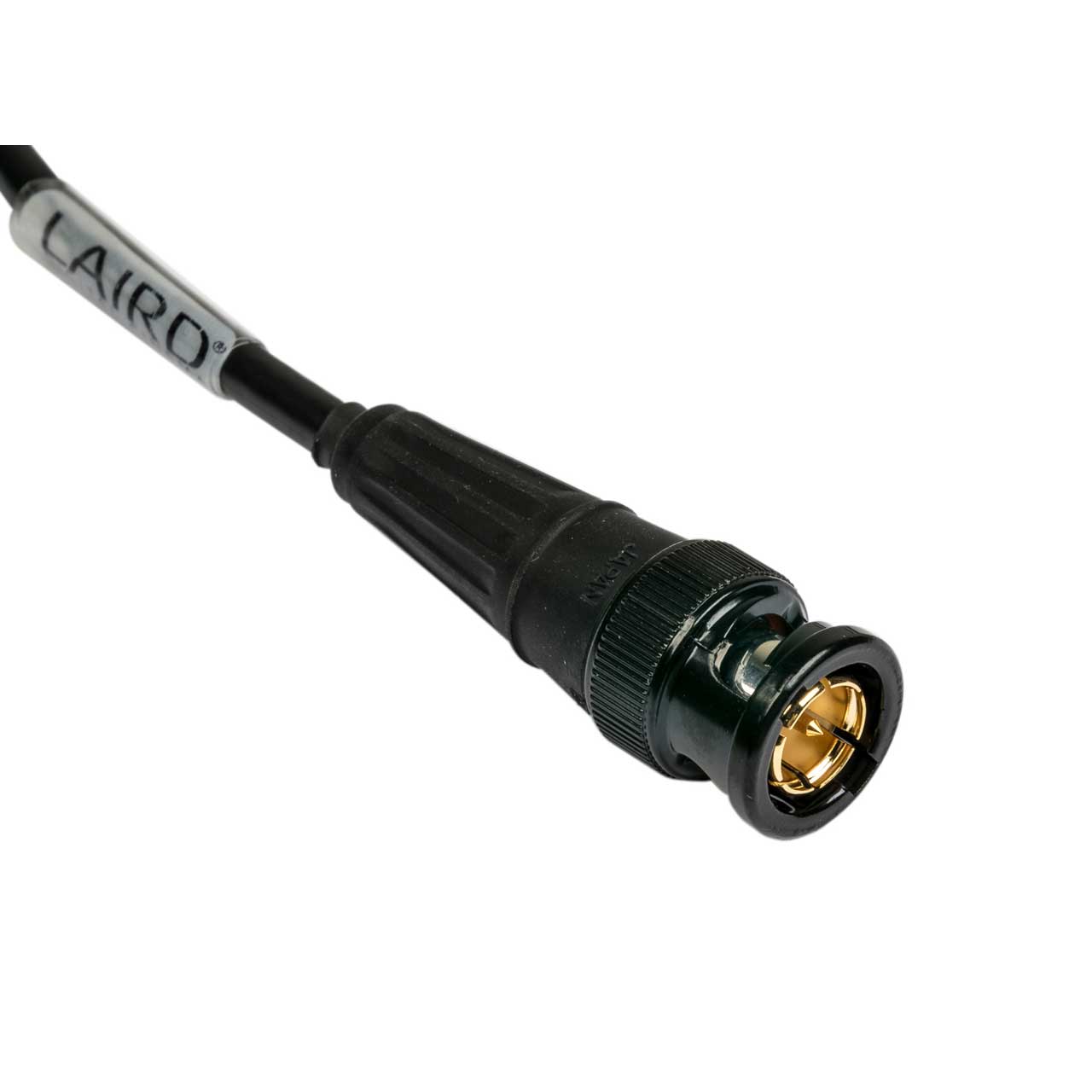

Laird Belden 1855A RG59 HD-BNC Male to BNC Male 6G-SDI Cable - 5 Foot

ITEM #: HDBNC1855-B05 MFG #: HDBNC1855-B05

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$37.49

Our Price:

$32.49

Availability: In Stock
iAvailability Description Popup


    HDBNC1855-B05 - Overview

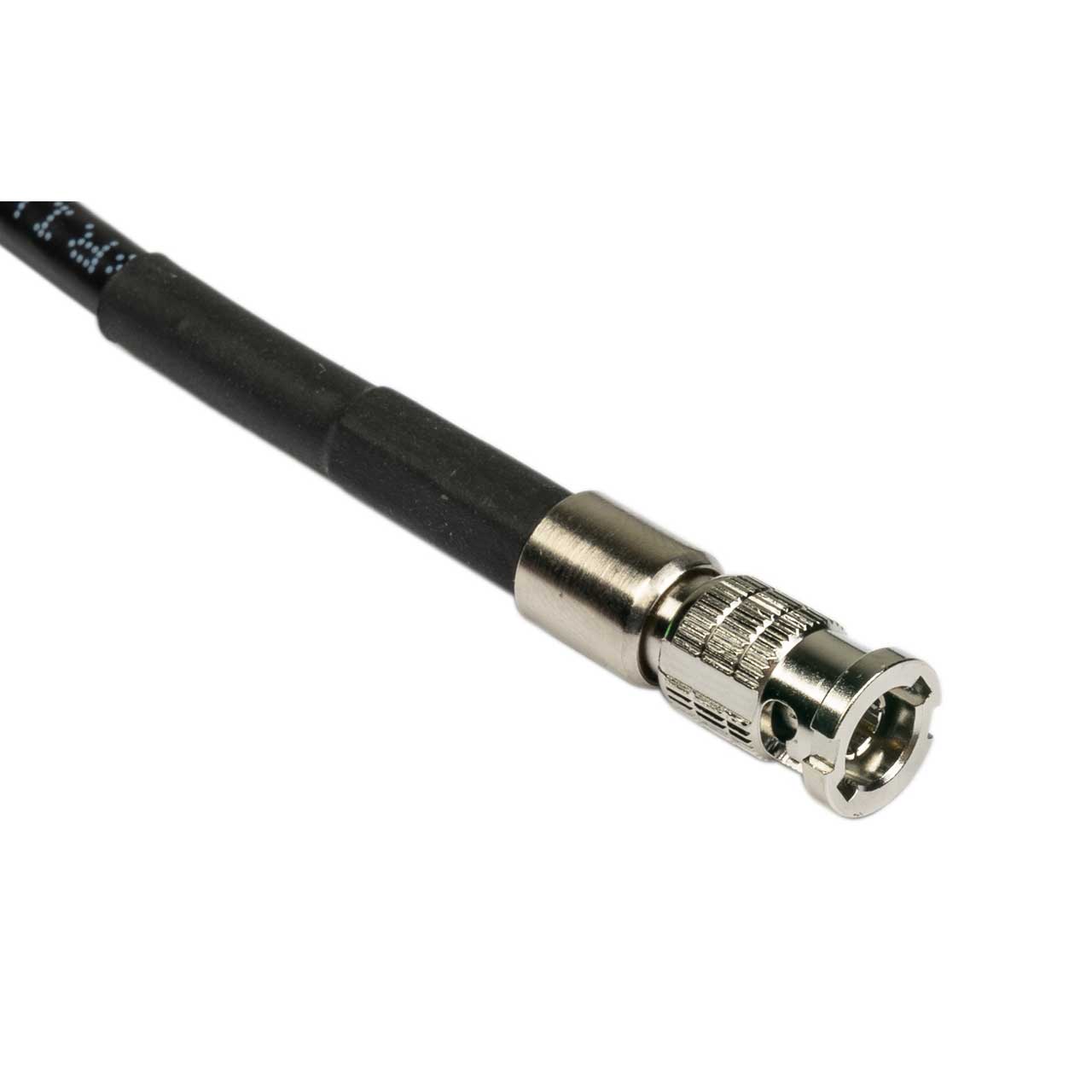

    The HD-BNC (aka Micro-BNC) is fast becoming popular on broadcast routers like the Harris Selenio as well as devices like the Gennum GS3440 Equalizer and GX3290 Crosspoint. HD-BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless. One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. Connectors provide a solid, anti-splay outside diameter to mitigate any "wiggle."

    • Features:

      • Belden 1855A RG59/23 SDI Coaxial Cable Amphenol Connectors

    • Warranty:

      • 1 Year
