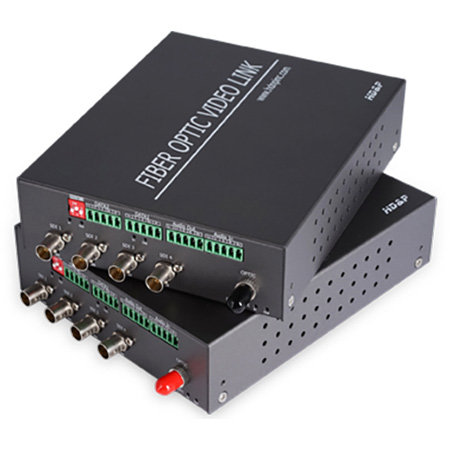

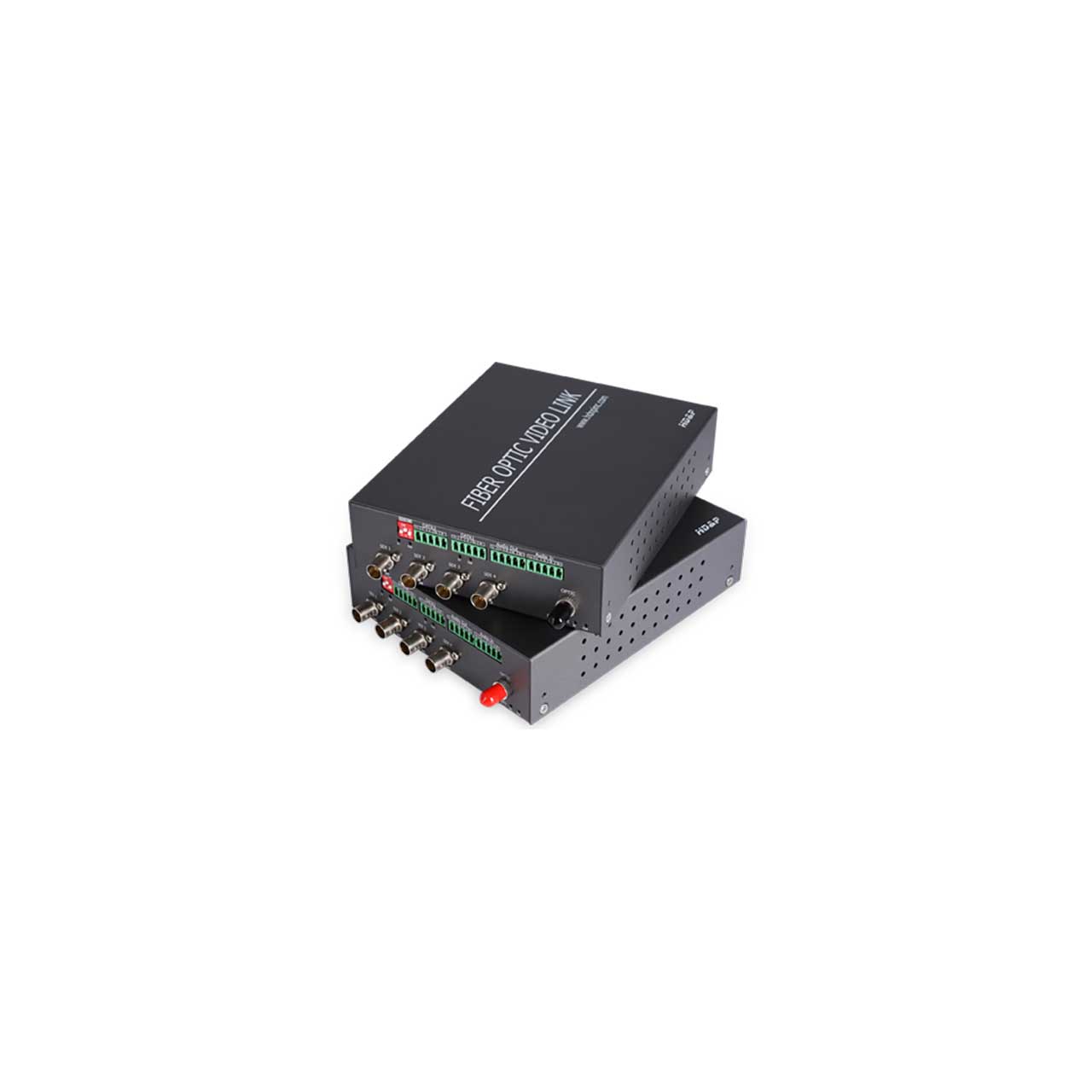

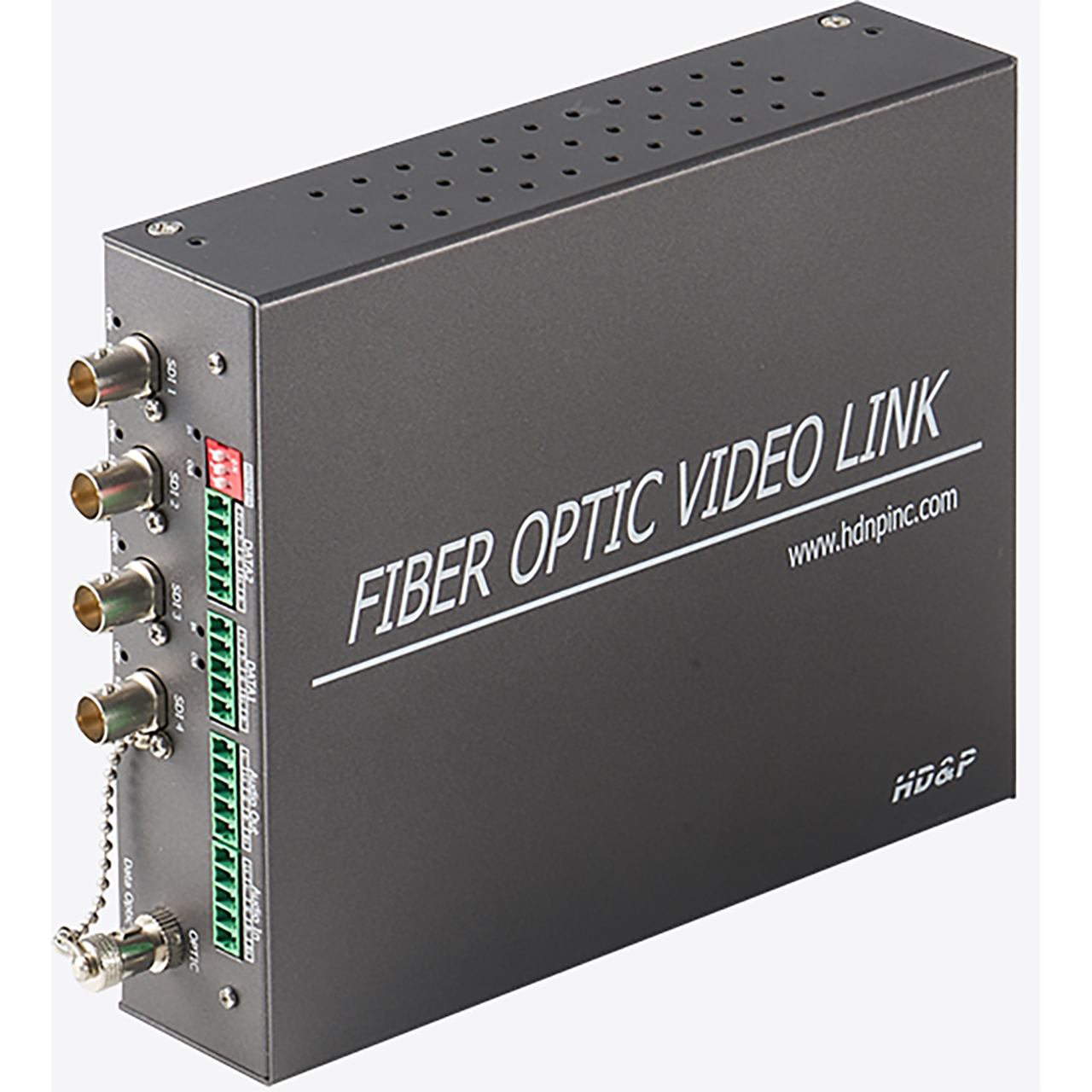

HD&P HDMD 4-Channel 3G-SDI Video + Data & Audio Extender TX / RX Set - ST Fiber Connector

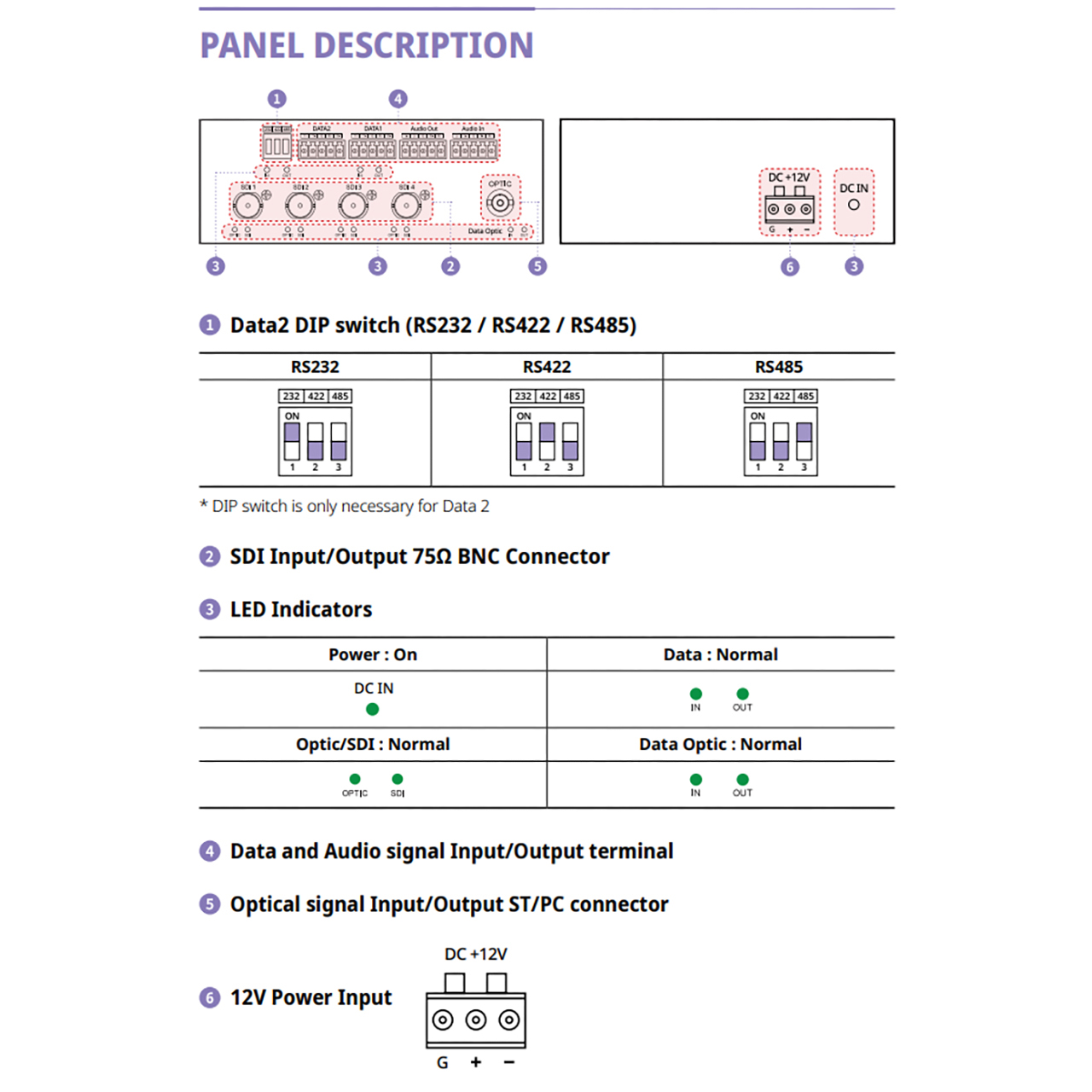

HDMD - Overview

• Features:

  • 4 Channel 3G / HD-SDI in/output
  • RS 485 / 422 / 232
  • Bi-directional balanced audio
  • Power DC 12V
  • Optional 19" Rack to mount for 16 modules (max)


• Specifications:

  Video
  • Signal Format: SMPTE-424M, SMPTE-292M, SMPTE-259M
  • Signal Level: 800 mV Vp-p ±50 mV
  • Data rate: Up to 2.97Gbps
  • Jitter*:
    - < 1.0 UI - Timing Jitter
    - < 0.2 UI - Alignment Jitter
  • Electrical Connector: BNC (75Ω)
    Note: *Total Jitter at the end of Receiver output Maximum value

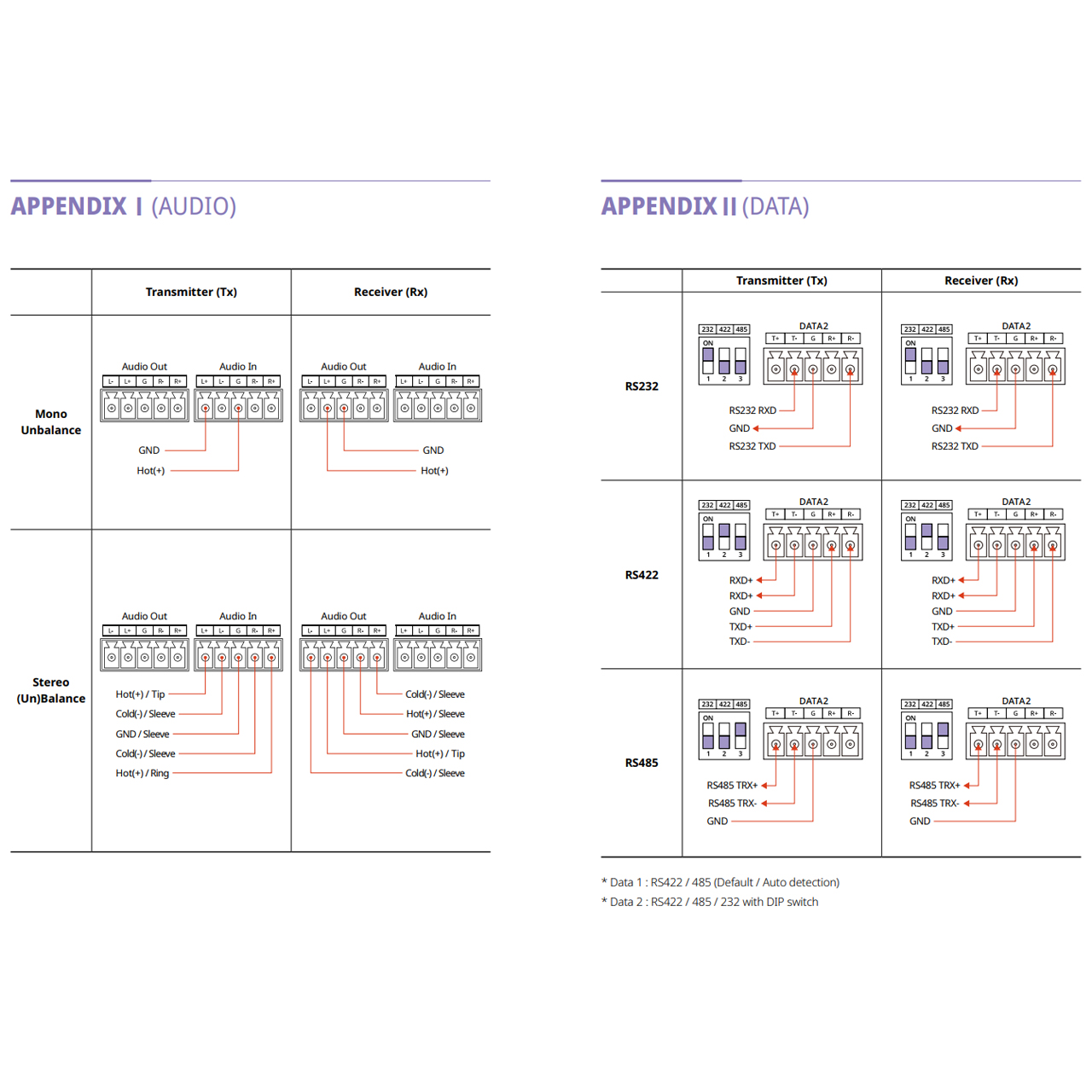

    Data
  • Data rate: DC to 115.2kbps
  • Data Interface:
    - Standard: RS422, RS485
    - Option: RS232, RS422, RS485
  • Connector: Standard Terminal Block

    Audio
  • Bandwidth: 20Hz to 20kHz
  • Signal to noise ratio: > 80dB
  • Connector: Standard Terminal Block

    Optical
  • Wavelength: CWDM wavelength
  • Transmitter:
    - Output power: -3 ~ -0dBm
    - Extinction Ratio 7dB
  • Receiver:
    - Sensitivity -22dBm
    - Maximum Overload 0dBm
  • Distance (Typ.): 30km*
  • Fiber Type: Single mode and Multimode
  • Optical Connector: ST Connector
  • Number of Fibers: 1
    Note: *The maximum distance coverage may be greater than these typical numbers, depending on fiber type, fiber bandwidth, connector, splicing losses, chromatic dispersion, environmental factors, etc.

    Mechanical
  • Power Supply: DC12V, 1.5A Adaptors
  • Operating Temperature: -4° to 167°F (-20° to 75°C)
  • Humidity: 0 to 95% RH, non-condensing
  • Dimensions (WxDxH): 5.81 x 7.11 x 1.79" (147.6 x 180.7 x 45.4mm)


• Item Includes:

  • 1x HD4V converter
  • 1x HDFU convertor
  • 2x DC12V Power supply, 1.5A Adapters
  • 2x Mounting flanges
