    CONVMOF12G - Overview

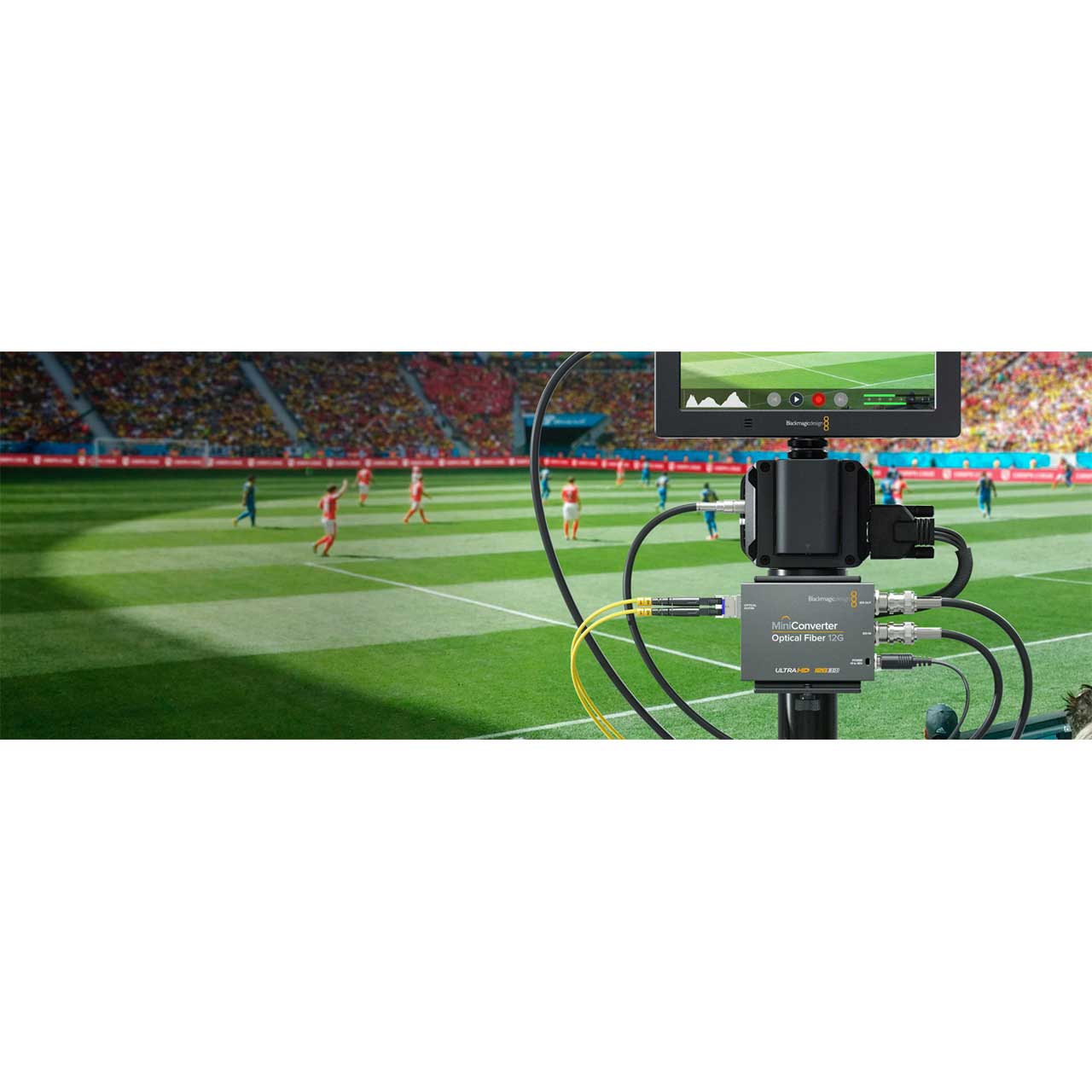

    Now you can extend SDI massive distances up to 10 miles away!

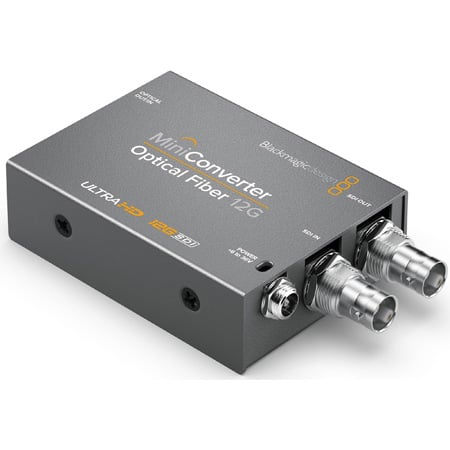

    The Blackmagic Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time! You can even have different video standards going in each direction! The 12G-SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G-SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.

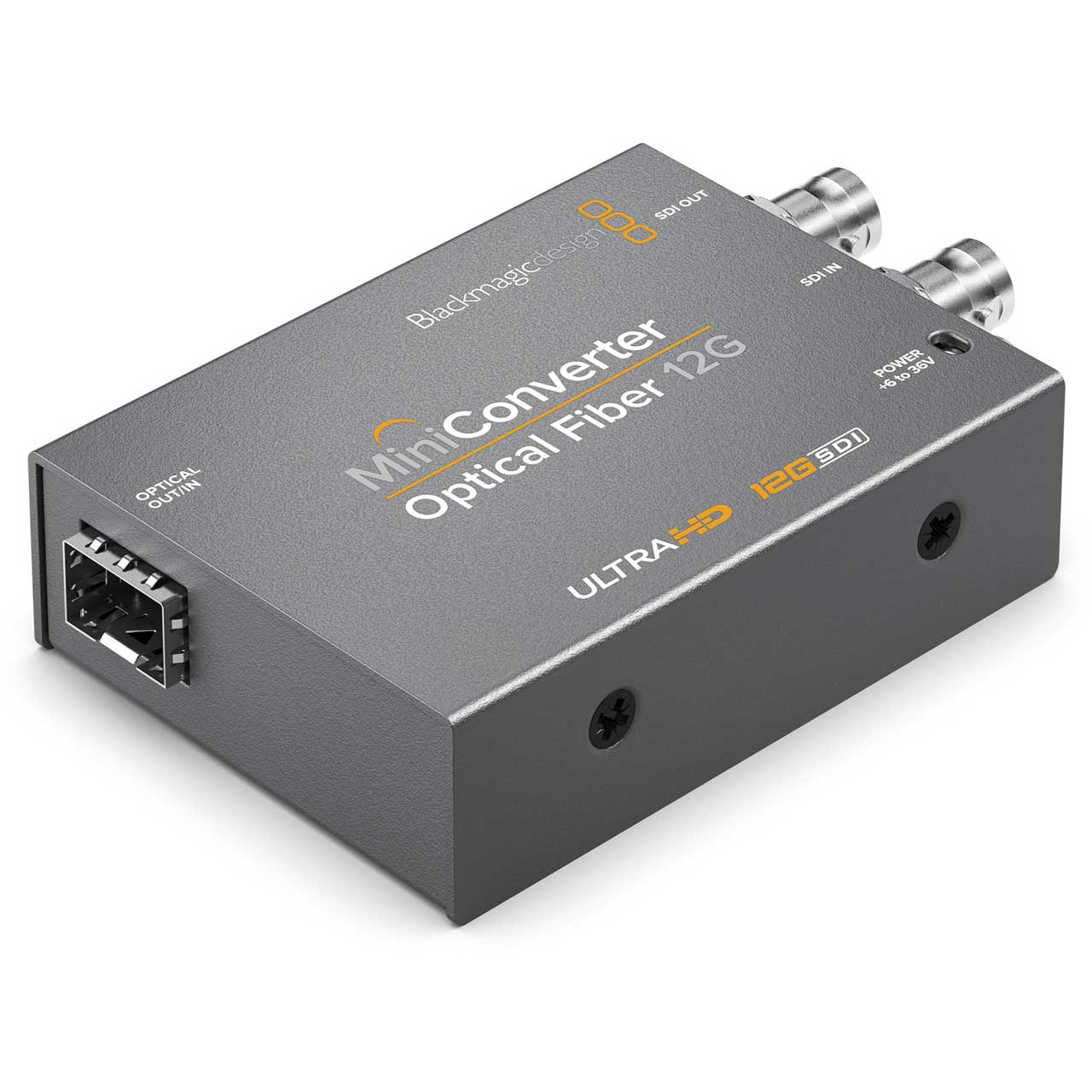

    Mini Converter Optical Fiber 12G features a standard SFP type socket that lets you add any SMPTE compatible 3G, 6G or 12G-SDI SFP module. It also works with the same of low cost optical fiber cables that are commonly used for computer networks. This type of optical fiber cable can be run much longer distances and is much more affordable than copper SDI cable.

    For power, Mini Converter Optical Fiber 12G includes a universal power supply with 4 international socket adapters so it can be used anywhere in the world. It also features a screw lock connector that prevents the power cord from being accidentally disconnected.

    Please note: SFP modules are required and sold separately. SFP "transceivers" are recommended in order to ultilize the full duplex nature of this converter.

    • Features:

      • Integrated broadcast switcher and professional hardware control panel.
      • 8 x 12G-SDI inputs, all with auto re-sync and format and frame rate converters.
      • Supports all video formats from HD to Ultra HD 2160p at 59.94 frames per second.
      • 1 x built in multiview for 8 sources, as well as preview and program.
      • Built in media pool graphics storage for 90 frames of Ultra HD, 360 frames of 1080HD or 1440 frames of 720HD video.
      • Built in DVE with borders and drop shadow.
      • Transitions include cut, mix, dip, SMPTE wipes and more.
      • 1 upstream keyer including chroma keyer plus 2 downstream keyers.
      • 1 auxiliary output with aux switching buttons and LCD screen for viewing.
      • Built in audio mixer live mixes embedded audio from all video inputs and independent audio inputs.
      • Balanced XLR stereo analog audio inputs.
      • Internal sources include black, color bars, two color generators and 2 media player outputs.
      • Ethernet connection for computer connection.
      • Mac and Windows control panel software included.
      • Compatible with all ATEM Broadcast Control Panels.
      • Black Burst and HD-Tri-Sync genlock input for integration into large systems.
    • Specifications:

      • Connections
      • SDI Video Inputs: 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
      • SDI Video Outputs: Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.
      • Optical Fiber Connection (optional) : 1 x SMPTE optical fiber SFP socket. Optical fiber SFP module sold separately.
      • Optical Fiber Video Inputs: 1 x 10 bit SD/HD/12G-SDI switchable.
      • Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI video input.
      • Optical Fiber Audio Inputs: 16 channel embedded.
      • Optical Fiber Audio Outputs: 16 channel embedded.
      • Multi Rate Support: Auto detection of SD, HD or 12G-SDI.
      • Reclocking: Yes

      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425M, SMPTE 424M-B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
      • SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
      • SDI Color Precision: 4:2:2 and 4:4:4
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.
      • ASI Support: Yes

        Operating Systems
      • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

        Settings Control
      • No user controls.

        Power Requirements
      • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
      • Power Consumption: 2 Watts
      • Operational Voltage Range: 6 - 36V DC

        Environmental Specifications
      • Operating temperature: 0° to 40° C (32° to 104° F)
      • Storage temperature: -20° to 45° C (-4° to 113° F)
      • Relative Humidity: 0% to 90% non-condensing
    • Item Includes:

      • Mini Converter Optical Fiber 12G
      • +12V universal power supply with international socket adapters
    • Warranty:

      • 3 Year Limited Manufacturer's Warranty
    • GTIN:
