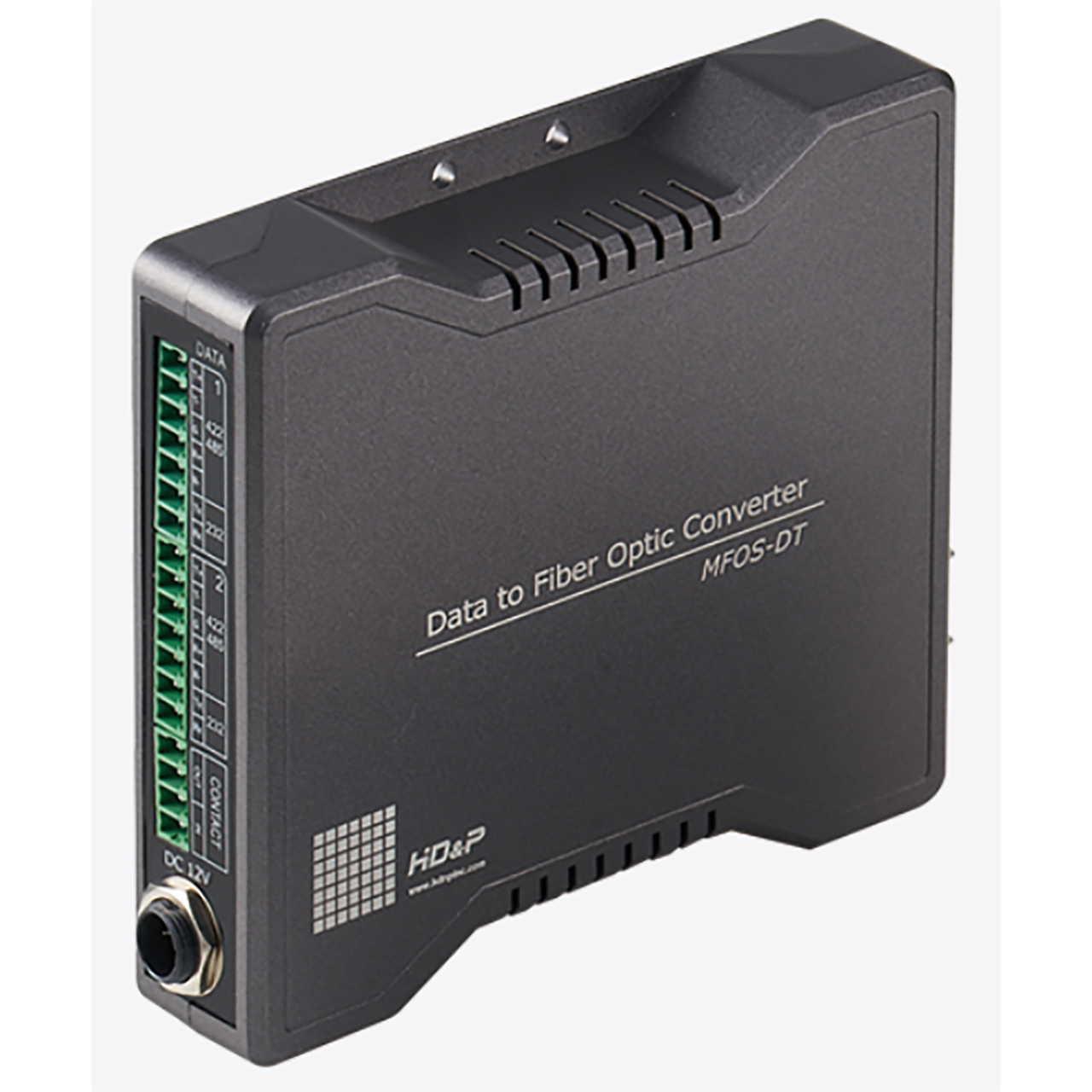

HD&P MFOS-DT 2-Channel RS232 / 422 & 485 Serial Data Single Mode Simplex LC Fiber Video Converter Set

ITEM #: HDP-MFOS-DT MFG #: MFOS-DT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
HDnP
Free Shipping with $49 Minimum Order

List Price:

$838.00

Our Price:

$834.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

MFOS-DT - Overview

HD&P MFOS-DT transmits to fiber optical signal from 2 channel serial data (RS422/485 and RS232) and 1 channel contact closure. The model secures data transmission over EMI resistant fiber in EMI prone environments that can cause corruption of data like industrial plants, warehouse and factory floors. MFOS-DT is typically used in application with PTZ control, access control system, CCTV surveillance, industrial control system and etc.

Applications:
• Broadcasting, surveillance networks and CCTV security system
• Access control systems, Building automation and enviromental control system
• Fire and alarm system

  • Features:

    • 2-channel serial data and 1 channel contact closure communication
    • 2x RS422/485, RS 232
    • 2x 7P terminal block
    • SSR Dry contact, [email protected]
    • 9600kbps baud rate


  • Specifications:

      Serial Data
    • Data rate: DC to 9600kbps
    • Data Interface: 2x RS422/485, RS232
    • Electrical Connector: 2x 7P terminal block

      Contact Closure
    • Signal Input: Wet contact
    • Signal Output: SSR Dry contact, [email protected]
    • Electrical Connector:
      - 1x Signal input: 2P terminal block
      - 1x Signal output: 2P terminal block

      Optical
    • Wavelength: 1470 / 1490nm
    • Distance (Typ.): 20km(Single mode fiber)
    • Fiber Type: Single mode
    • Optical Connector: 1 x SFP : 2 x LC/PC Connector

      General
    • Power Supply: DC 12V, 1A (supports 7 - 16VDC input rage)
    • Electrical Connector: Mini XLR 4pin, male
    • Operating Temperature: 32° to 122°F (0° to 50°C)
    • Storage Temperature: -4° to 158°F (-20° to 70°C)
    • Humidity: 0 to 95% RH, non-condensing
    • Dimensions (WxDxH): 4.92 x 4.33 x 1.16" (125 x 110 x 29.5mm)


  • Item Includes:

    • 2x MFOS-DT
    • 2x DC12V Power supply, 1A Adapters
    • 2x Mounting flanges
