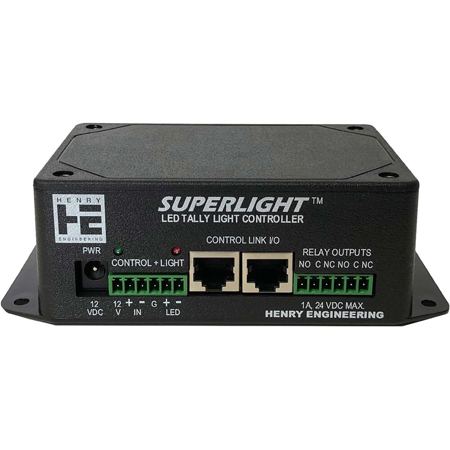

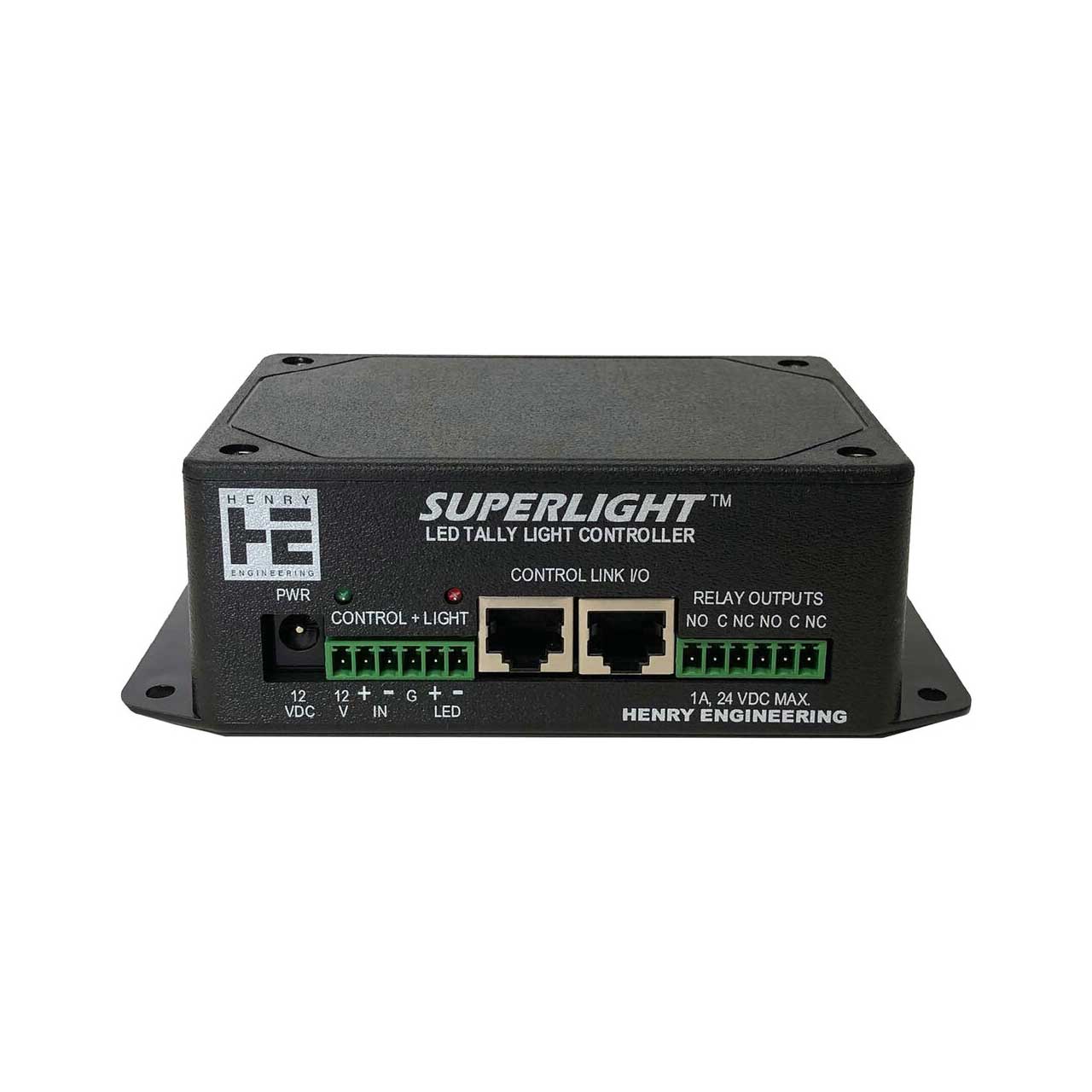

The Henry Engineering Superlight is a logic/control interface for controlling low voltage studio tally lights. It can directly power 12 volt DC LED tally lights that draw up to 500 mA. SuperLight includes a flasher circuit, as well as a DPDT relay output that can be used for any low voltage switching, speaker muting, or other utility use.
The LED output can supply 12 vdc at up to 500 ma; it can also "sink" up to 2 amps if used with an external power source. The LED output can be set to "flash" when ON for use with ON THE AIR warning lights. All control, relay output, and LED output connections are via plug-in euroblock connectors.Two RJ45 connectors are also provided for Control wiring compatibility with WheatNet-IP Blade and similar installations that use cat5/cat6 wiring.
SuperLight can be controlled with a DC voltage or GPI contact closure. Control is via a plug-in euroblock connector. Two RJ45 connectors are also provided for compatibility with network installations that use cat5/ cat6 cabling. Any two wires of the RJ45 input can be user-assigned to control SuperLight with a DC input. Cat5/cat6 cabling can be "looped thru" the unit so that multiple SuperLights can be controlled with one cable. The same or different control wires can be used to control each SuperLight in the system.
SuperLight's Tally output is switched electronically to prevent arcing or switching noise. It can directly power 12 volt tally lights. For lights that require higher voltage and/or current, an external power source up to 30 volts DC at up to 2 amps can be used.
SuperLight can be attached to any convenient surface using the unit's integral mounting flanges. It is shipped with mating euroblock connectors and power supply
