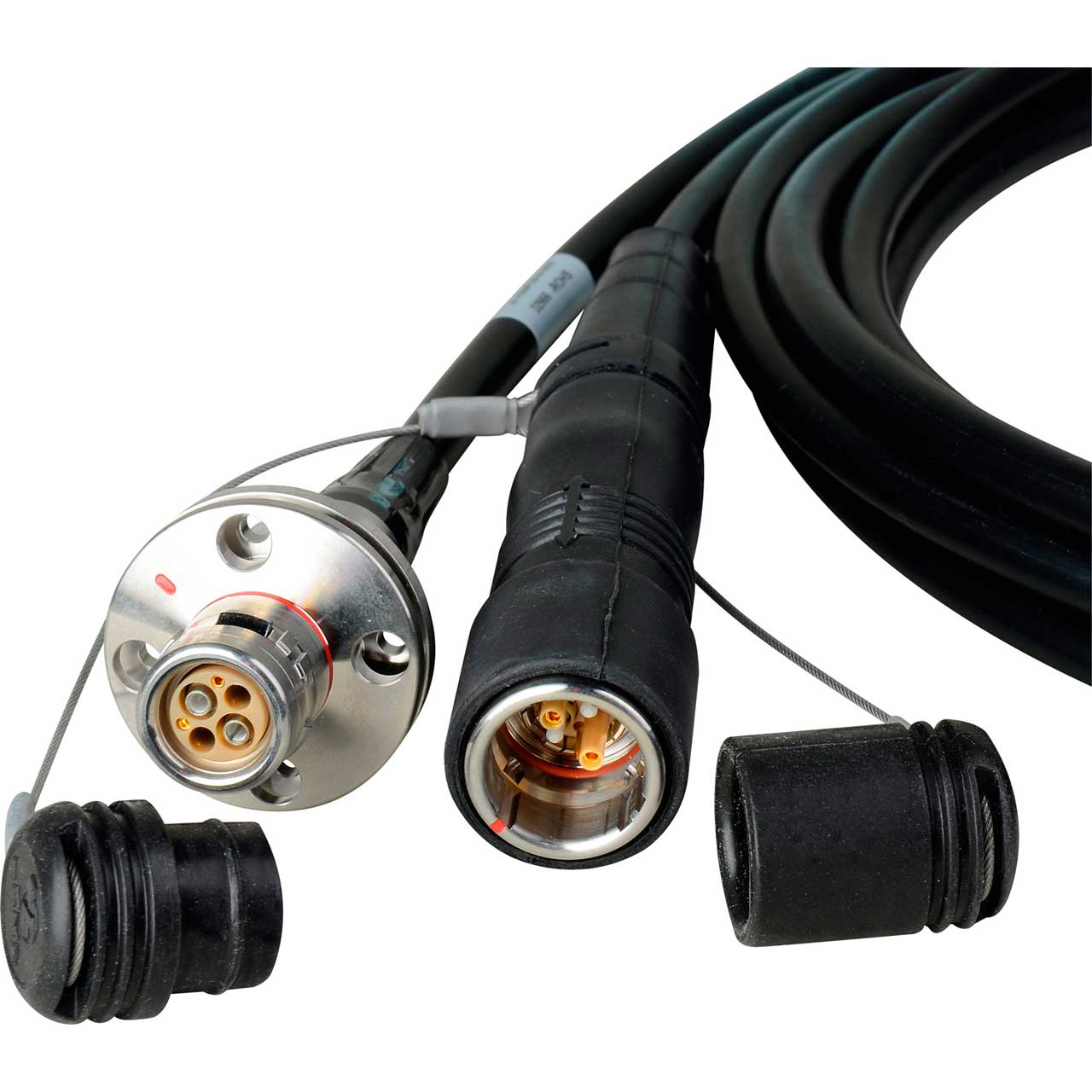

Camplex HF-FMWPUW-M LEMO FMW-PUW Outside Broadcast SMPTE Fiber Optic Camera Cable - 150 Foot

ITEM #: HF-FMWPUW-M-0150 MFG #: HF-FMWPUW-M-0150

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,694.49

Our Price:

$1,609.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-FMWPUW-M-0150 - Overview

Certified Multistage Machine Polished Cables Exceeding SMPTE Specifications !

Featuring ultra-precision LEMO certified machine polished fiber contacts for the most demanding applications for high-speed uncompressed HD video transmissions over long distances. All assemblies multi-stage machine polished and tested for <.55db RL with test results (diagnostics) supplied with each cable. Meets or exceeds SMPTE 304M/311M standards. Built in-house by LEMO trained technicians at our state-of-the-art fiber shop with full repair services available. (custom lengths & configurations always available) Assembled with premium Furukawa US Standard SMPTE harsh evnironment outdside broadcast cable. AWM style & recognized by UL, this composite cable integrates power line for TV camera, control line, and optical fiber for video and audio transmission. The cable is standardized by SMPTE for HDTV Broadcast camera use.

  • Features:

    • Assembled with Premium Furukawa Mobile Broadcast Cable and LEMO Connectors
    • Meets or Exceeds SMPTE 304M/311M Standards
    • Industry Standard Cable Terminations by LEMO Trained Technicians
    • Electrical Assemblies 100% Tested for Continuity and Shorts
    • Fiber Optic Assemblies 100% Tested for Attenuation and Back Reflection
    • Stainless Steel Assemblies
    • Rubber Dust Caps

  • Specifications:

      Furukawa 9.2mm SMPTE 311M Hybrid Cable
    • Fiber Type: Single Mode
    • Core/Cladding Diameter (µm): 9/125
    • Conductor Resistance:
      - Power Line: 37.5Ω/km
      - Control Line: 113Ω/km
    • Insulation Resistance: 10,000MΩúkm
    • Withstand Voltage: AC1,750V/1min.
    • Strength Member Material: Steel wire
    • Shield Material: Tin-plated soft copper wire braid
    • Sheath (PB-Free): Abrasion-Resistant Sheath
    • Finished Outside Diameter: 0.36" (9.2mm)
    • Allowable Tension: 700N
    • Bend Radius: 2.17" (55.2mm)

      LEMO Connectors
    • Number of Contacts (Low Voltage): 2
    • Number of Contacts (High Voltage): 2
    • Number of Contacts (Fiber Optic): 2
    • Rated Current: 10A
    • Vtest Power/Signal (AC): 2250V, 1000V
    • Working Voltage Power/Signal (AC): 600V, 42V
    • IP Rating:
      - FMW: IP50
      - PUW: IP68
    • Lifetime: 2000 Mating Cycles
    • Shielding (min): 95 dB (10 MHz)
    • Shielding (min): 80 dB (1 GHz)
    • Shock Resistance: 100g [6 ms]
    • Vibration Resistance: 15g [10 Hz - 2000 Hz]
