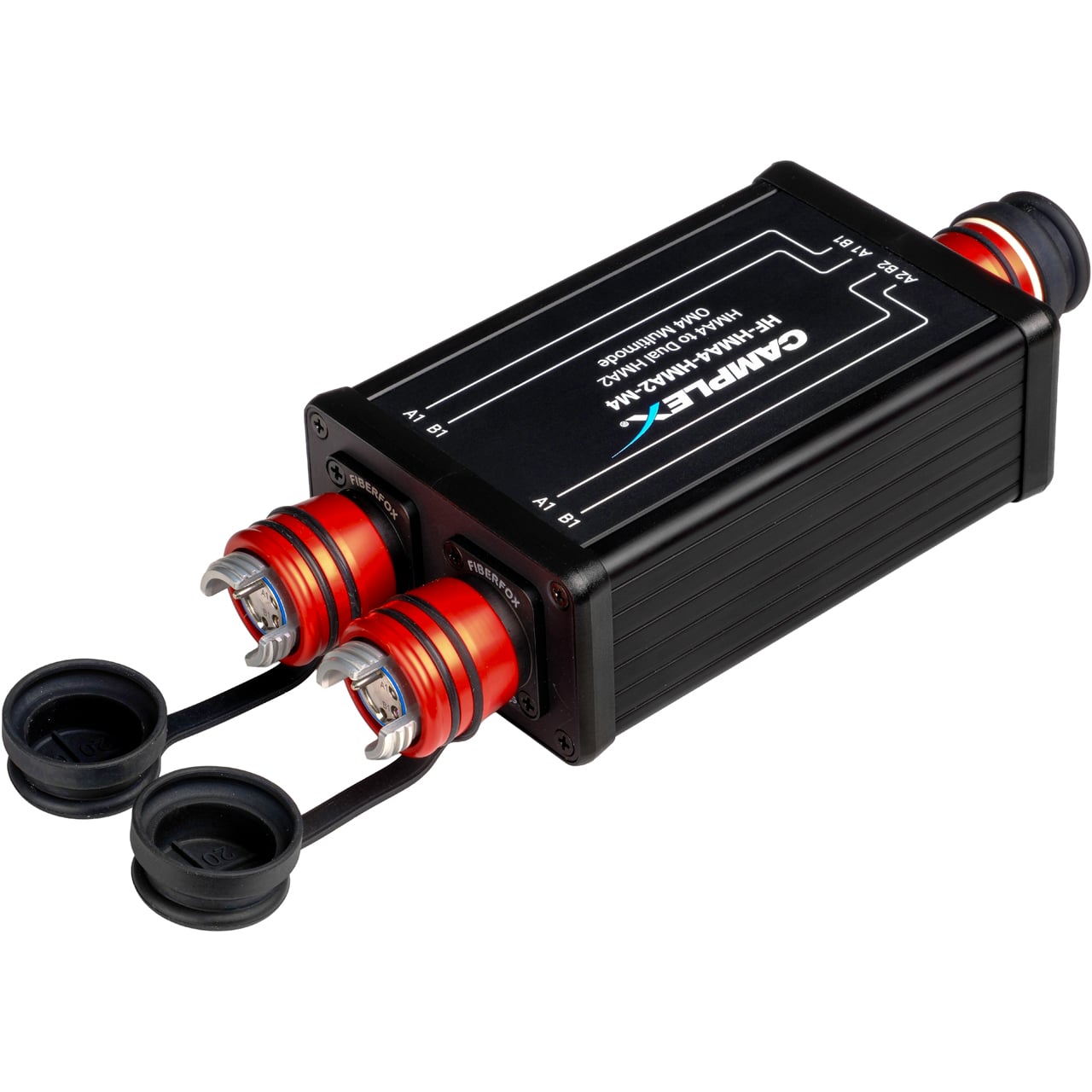

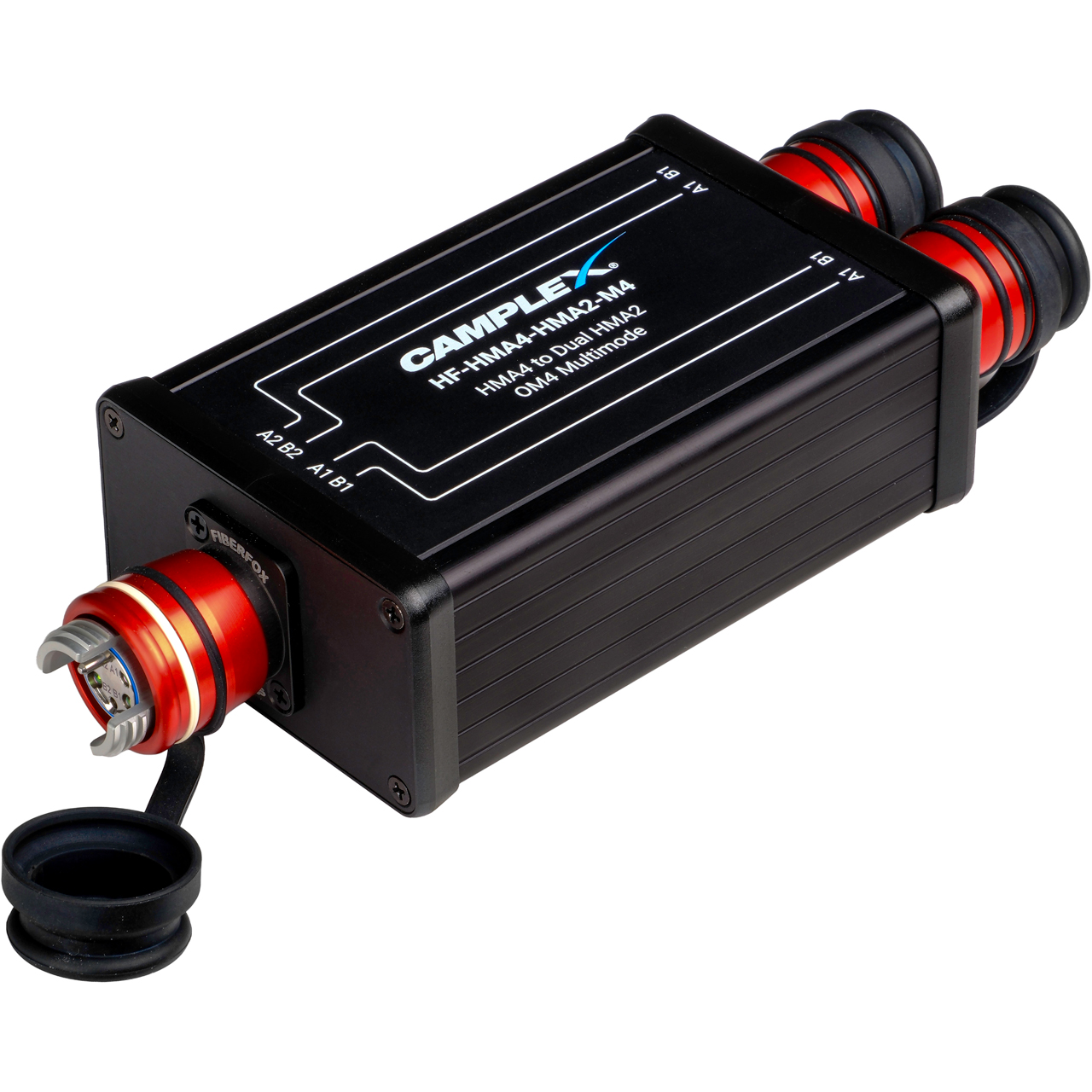

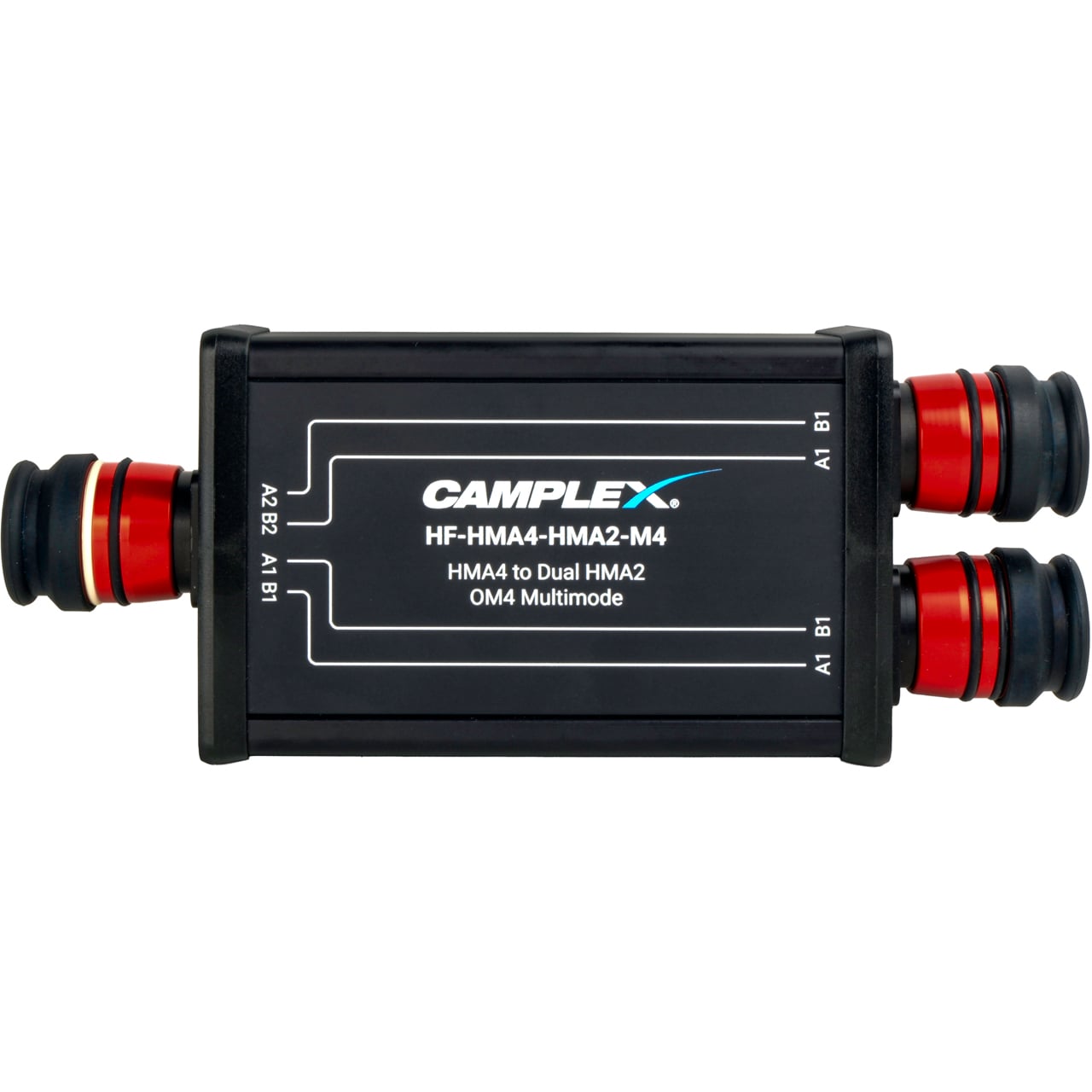

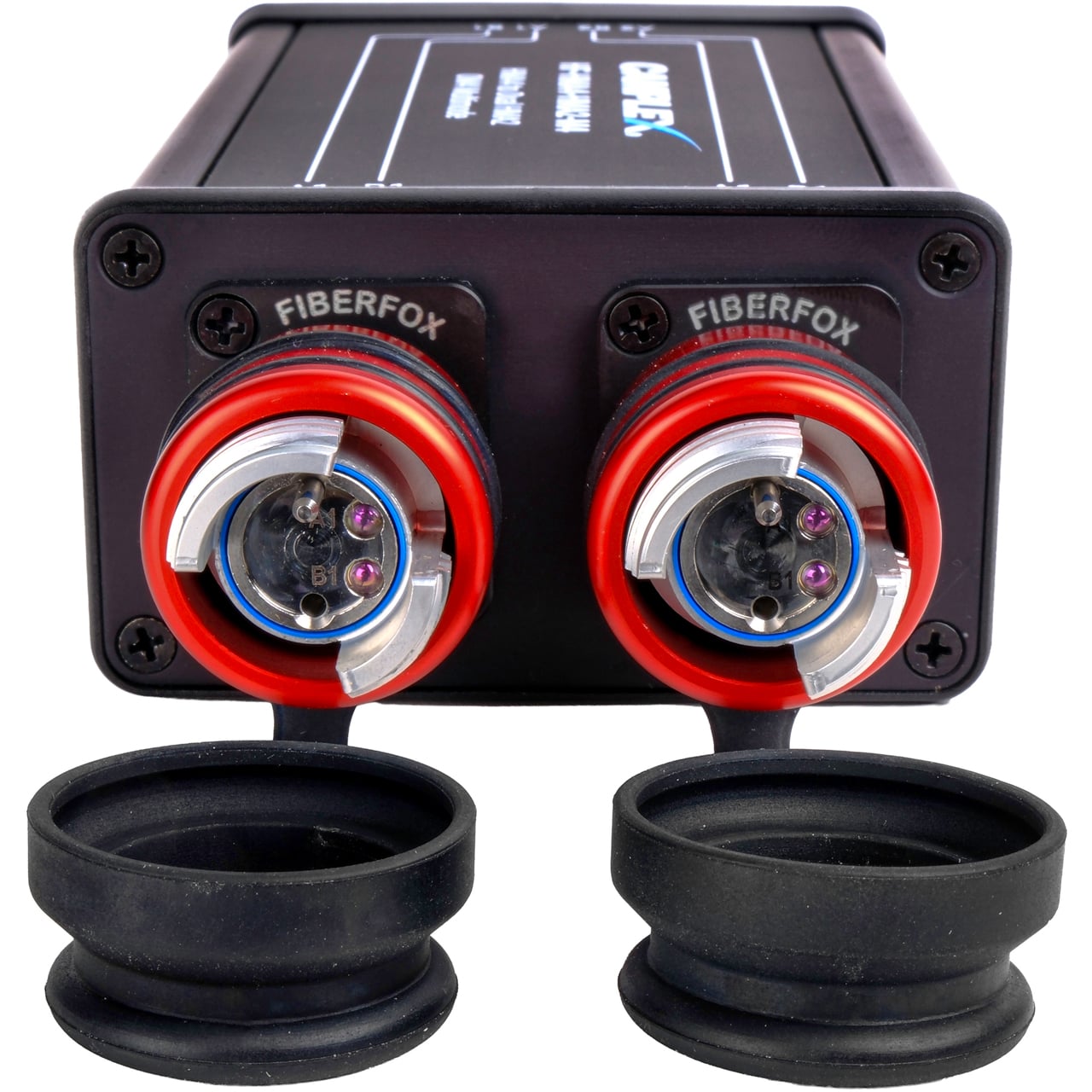

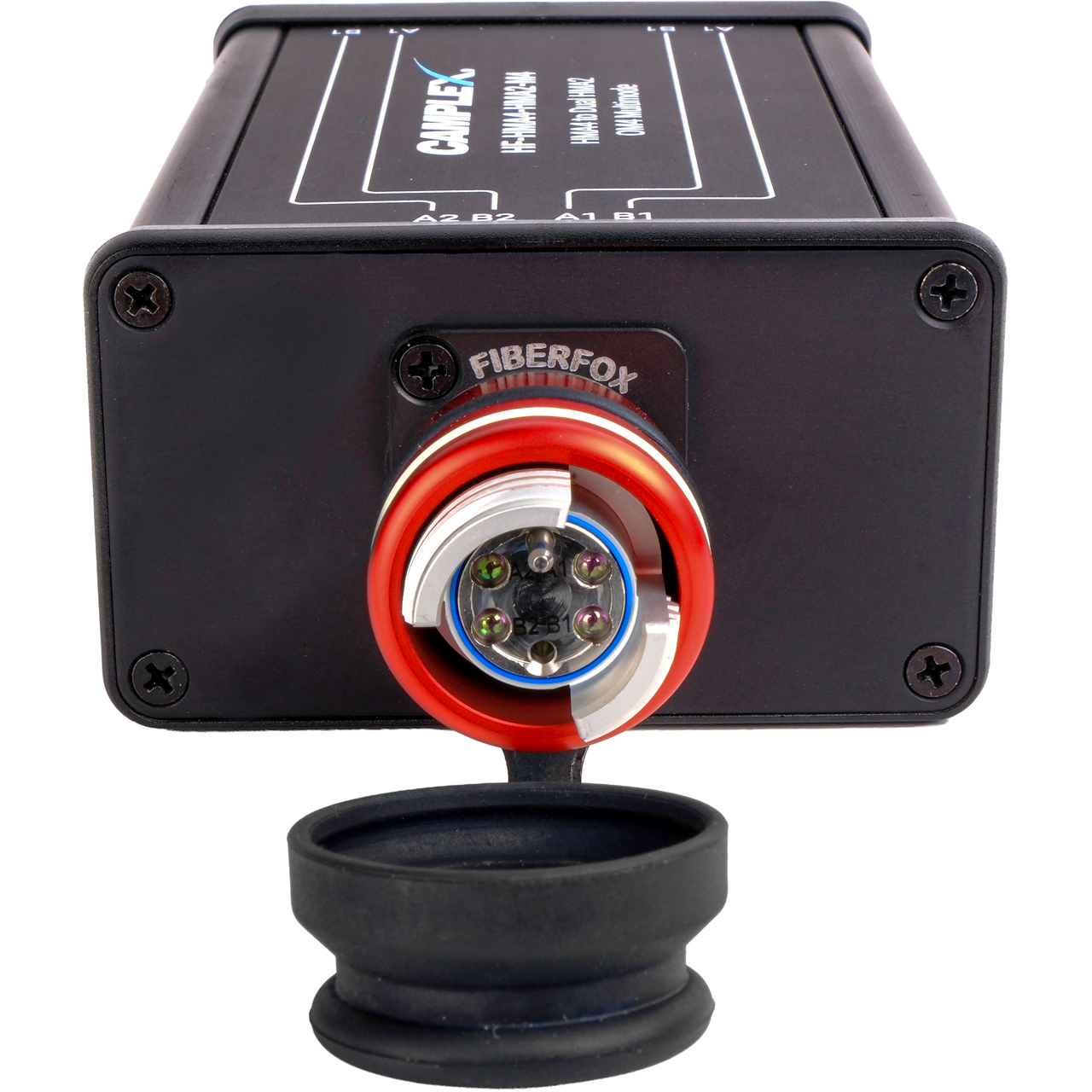

Camplex HF-HMA4-HMA2-M4 4-Channel OM4 Multimode Neutrik FIBERFOX EBC15 briDge to (2) 2-Channel FIBERFOX briDge Adapter

HF-HMA4-HMA2-M4 - Overview

• Features:

  • High-Quality Neutrik FIBERFOX connectors
  • Compatible with FIBERFOX Systems and all MIL-DTL-83526 Systems
  • Rugged Aluminum Housing


• Specifications:

  Overall Specifications
  • Fiber Type: OM4 Multimode
  • Dimensions (W x H x L): 1.69" x 3.07" x 7.66"

    FIBERFOX HMA 2-Channel/4-Channel Connectors
  • Gender: Hermaphroditic
  • Insertion Loss: Typ. 1.5dB per connection / Max. 2.5dB per connection
  • Optical Connector: EBC
  • Optical Wiring: ISO/IEC 11801
  • Lifetime: >10000 mating cycles
  • Locking Device: Screwed
  • Free Fall Resistance: 500 falls onto concrete from 1.2m height
  • Bump Resistance: 4000 bumps @ 40g acceleration
  • Vibrational Sinusoidal: 10-500Hz, 0.75 amplitude @ 10g acceleration
  • Protection Class: IP68 mated and unmated (1m for 60 min)
  • Compatibility: MIL-DTL-83526


• Warranty:

  • Limited Lifetime
