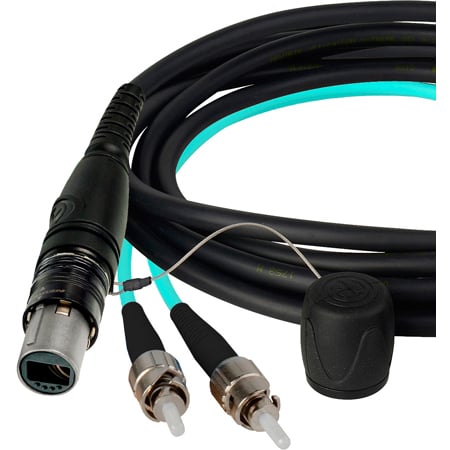

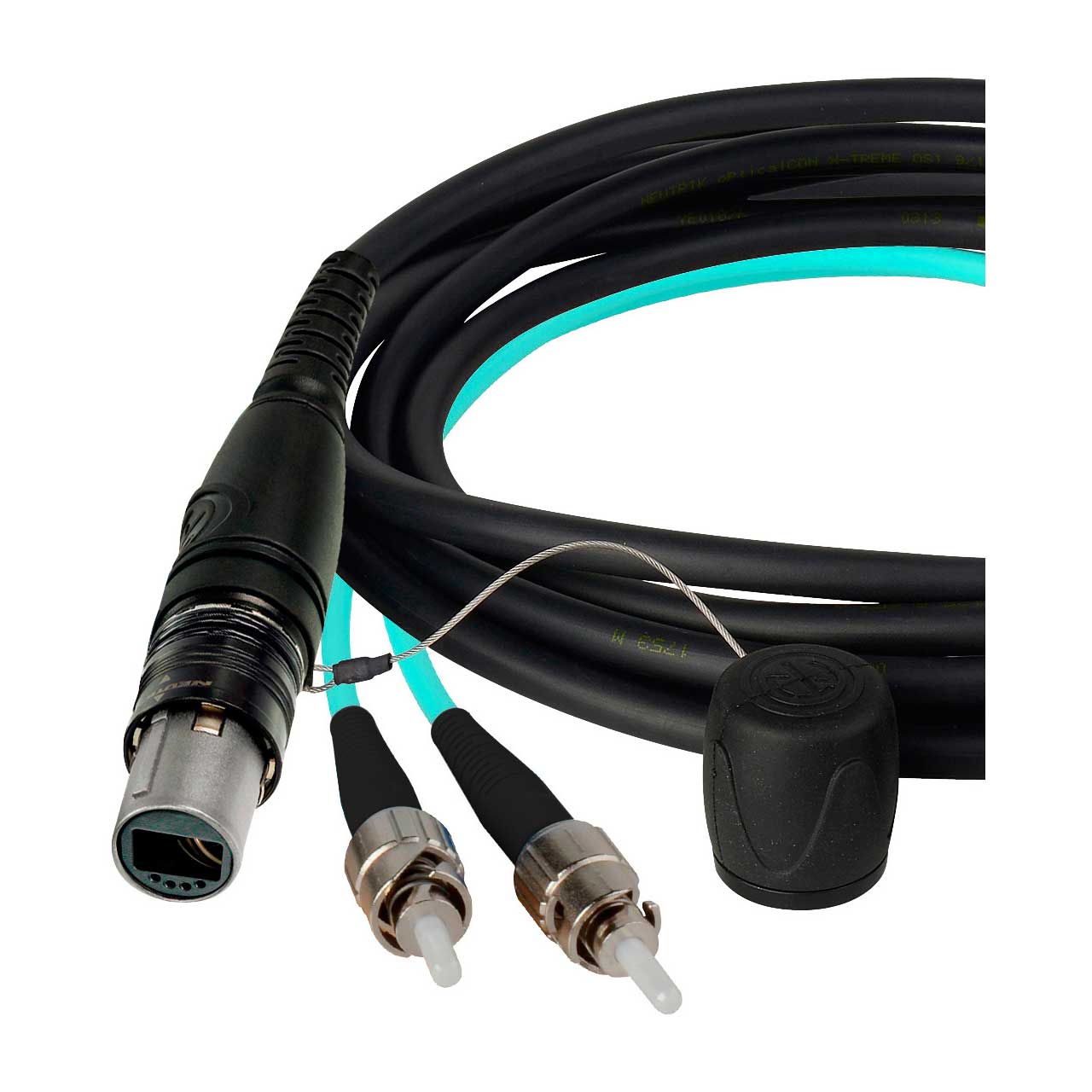

Camplex HF-OC2M-ST opticalCON DUO to Duplex ST Multimode Fiber Optic Breakout - NKO2M-ST-A - 20 Foot

ITEM #: HF-OC2M-ST-0020 MFG #: HF-OC2M-ST-0020

Primary Image
Camplex
Free Shipping with $49 Minimum Order

List Price:

$545.95

Our Price:

$495.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

HF-OC2M-ST-0020 - Overview

opticalCON DUO to Duplex ST multimode Fiber Optic Breakout Cables. Two Fibers only, no electrical conductors. Designed for Broadcast & Pro-Audio Applications! Ruggedized opticalCON DUO fiber optic cables designed for internal wiring of racks and patch panels. Quickly adapt opticalCON DUO equipment to standard ST fiber systems. opticalCON assemblies are COCA factory terminated and machine polished. Cables are assembled with lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomically cable strain relief improves the cable protection and water resistance in long-term use. Custom Lengths & Configurations Always Available!

  • Features:

    • High Quality Neutrik opticalCON DUO connectors 2-channel OM3 Multimode cable Aramid Yarn Strength Member provides strength and crush resistance No Electrical conductors - Fiber only Tactical Tight-Buffered PUR cable jacket


  • Specifications:

      Fiber Specifications: Fiber Type: Bend Tolerant OM3 Multimode Core/Cladding Diameter (µm): 50/125 Numerical Aperture: 0.20 Wavelength (m): 850/1310 Gigabit Ethernet Distance (m): 1000/600 10-Gigabit Ethernet Distance (m): 300/300 Max Cabled Attenuation (dB/km): 3.5/1.5 Min Laser EMB Bandwidth: 2000/500 Min OFL LED Bandwidth: 1500/500 Primary Coating Diameter (µm): 245 Secondary Coating Diameter (µm): 900 Proof Test Level: 100 Jacket Material: Polyurethane Buffer Material: Hard Elastomeric Cable Diameter: 0.20in (5.0mm) Impact Resistance: 1,500 Impacts Crush Resistance: 1,800 N/cm Max Tensile Load: •Installation: 400lbs (1800 N) •Operating: 130lbs (600 N) Min Bend Radius: •Installation: 2.0in (5.0cm) •Operating: 1.0 in (2.5cm) Temperature: •Operating: -40++F to 185++F (-40++C to +85++C) •Storage: -94++F to 185++F (-70++C to +85++C) Neutrik opticalCON DUO Connector: Type: Duplex LC-UPC Insertion Loss: < 0.5 dB / connection Lifetime: 5000 mating cycles Locking Device: Push-Pull Senko Connectors: Typical Insertion Loss (dB): 0.15 Max. Insertion Loss (dB): 0.20 Typical Return Loss (dB): >25
