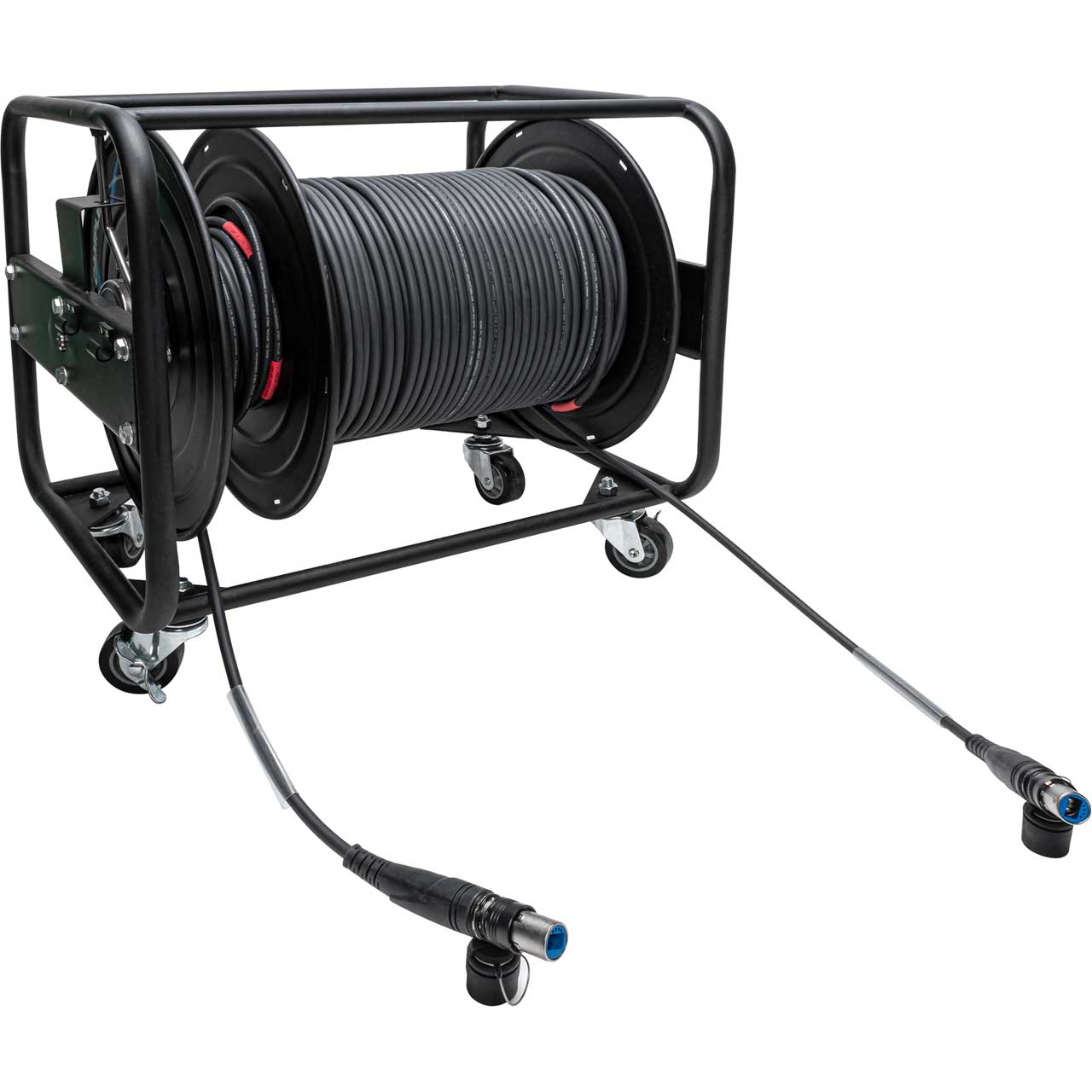

Camplex HF-TROCSMPTT0750 opticalCON DUO SMPTE 311M Single Mode Fiber Optic Tactical Cable on Reel - 750 Foot


Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    HF-TROCSMPTT0750 - Overview

    OpticalCON DUO NO2SX to NO2SX Single Mode Hybrid SMPTE 311M Tactical Broadcast Cable. OpticalCON assemblies are COCA factory terminated and machine polished in our state-of-the-art Fiber Optic Lab. Neutrik OpticalCON assemblies are made with tactical broadcast SMPTE 311M cable rated for ruggedized applications and field deployment in commercial and professional broadcast AV applications.

    Machine polishing processes provide exceptionally low return loss and insertion loss. OpticalCON features a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end-face contamination. SMPTE cable with 2 Single Mode fiber UPC, 2 x AWG24 and 2 x AWG16 or (2x17AWG) stranded copper power conductors, overall copper braided shield and stainless-steel strength member.

    Our cables are exclusively assembled using the Neutrik opticalCON ADVANCED system. opticalCON ADVANCED further enhances the original opticalCON making it more robust by adding lockable and waterproofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomic cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding.

    • Features:

      • OpticalCON Assemblies are Interferometrically Tested to GR-326-CORE Endface Standards
      • Tactical SMPTE Cable for Rugged Field Use
      • Machine Polished and Tested End Faces
      • Optical Shutter Mechanism for Added Protection
      • Typical Back Reflection <-55db
      • Heavy Duty Tactical Reel with Side Reel Flange (TR Version Only)
      • Ruggedized and Dirt Protected 2 Channel Fiber Optic Connection System
      • Waterproof Acc. to IP65 in Mated Condition
      • Accommodates Standard Optical LC-Duplex Connectors
      • Cable Connector Features Rugged all Metal Housing and Heavy Duty Cable Retention
      • Excellent Dust and Dirt Protection Due to Automatic Sealing Shutter with Silicone Gasket
      • Reliable Push-Pull Locking Mechanism
      • Easy to Clean, No Tools Required
    • Specifications:

      • Neutrik OpticalCON DUO, NO2SX
      • OB SMPTE 311M, Polyurethane Jacket, 9.2mm diameter, Black
      • Nickel Finish Connector Body
      • Cable Retention Force = 500N
      • Lifetime >1000 Cycles
      • Insertion/Withdrawal Force < 45N
      • Operating Temperature -25°C to +75°C
        OCC SMPTE Tactical Cable
      • Core/Cladding Diameter (µm): 9/125
      • Wavelength (nm): 1310/1550
      • Maximum Cable Attenuation (dB/km): 0.5/0.5
      • Primary Coating Diameter (µm): 500
      • Secondary Buffer Diameter (µm): 900
      • Zero Dispersion Slope (ps/nm2-km): 0.092
      • Proof Test Level (kpsi): 100
      • Jacket Material: Polyurethane
      • Cable Weight: 144 kg/km (97 lbs/1000')
      • Cable Diameter: 9.2 mm (0.36in)
      • Strength Member: 16 AWG Galvanized Steel, Polyurethane Insulated -Purple

    HF-TROCSMPTT0750 - Required Accessories
