Hollyland Astra P1 UHD 4K60 30x Optical Zoom PTZ Camera with NDI / HX3 Support and AI Auto Tracking

ITEM #: HL-ASTRA-P1 MFG #: ASTRA P1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ASTRA P1 - Overview

Professional Precision. Effortless Motion.

The Hollyland Astra P1 is a 4K automatic pan-tilt-zoom (PTZ) camera designed for professional live streaming and recording in churches, auditoriums, or other large production environments. Built for spaces where long shooting distances, changing light, and limited camera operators can make high-quality capture difficult, the Astra P1 combines UHD 4K60 imaging, Face Detection AE, 30x optical zoom, AI auto-tracking, built-in NDI|HX3, and browser-based control in a single professional solution.

Exposure That Stays with the Subject
One of the Astra P1's core strengths is its ability to ensure correct exposure when shooting in dynamic lighting conditions. In large indoor venues, traditional PTZ cameras often determine exposure based on the background light. But this can cause people's faces to appear too dark or overexposed when presenters move through low-light or backlit areas. The Astra P1's face-locked AE solves this problem by instead using a person's face as the exposure reference point, helping keep the brightness stable even when lighting conditions shift. For large-scale live productions, this results in more consistent, more professional-looking footage as the subject moves.

Long-Range Clarity with Smarter Tracking
The Astra P1 is built for the practical realities of large venues, where camera placement is often restricted, and close access to the subject is not always possible. Its 30x optical zoom and aperture of up to f/1.6 are designed to deliver clear long-distance close-ups while maintaining 4K detail. Combined with 16x digital zoom and 0.1° preset accuracy, the camera gives production teams greater flexibility when covering large churches, halls, stages, and event spaces from rear or fixed camera positions.

AI Auto Tracking Modes
To further reduce manual workloads, the Astra P1 includes two modes of AI auto tracking. The first, Presenter Tracking, uses human-based logic, including posture and motion recognition, to follow the speaker and distinguish the subject from the background. The second, Zone Tracking, allows users to set up to four key areas in a venue for smooth, automated transitions as the target moves. Together, these features are designed to help a single operator cover large spaces more efficiently while reducing the need for constant manual adjustment.

Pristine Image Quality
Image quality remains central to the Astra P1. The camera's UHD 4K, 60fps imaging system and 1/1.8" sensor can deliver sharp image quality, even in limited or uneven lighting conditions that are common in live venues such as concert halls, churches, and large stages.

  • Features:

    • UHD 4K60
    • Face Detection AE
    • 30x Optical Zoom
    • AI Auto Tracking
    • Presenter Tracking
    • NDI|HX3 Support
    • Optional PTZ Controller
    • Ease of Use
    • Web Control

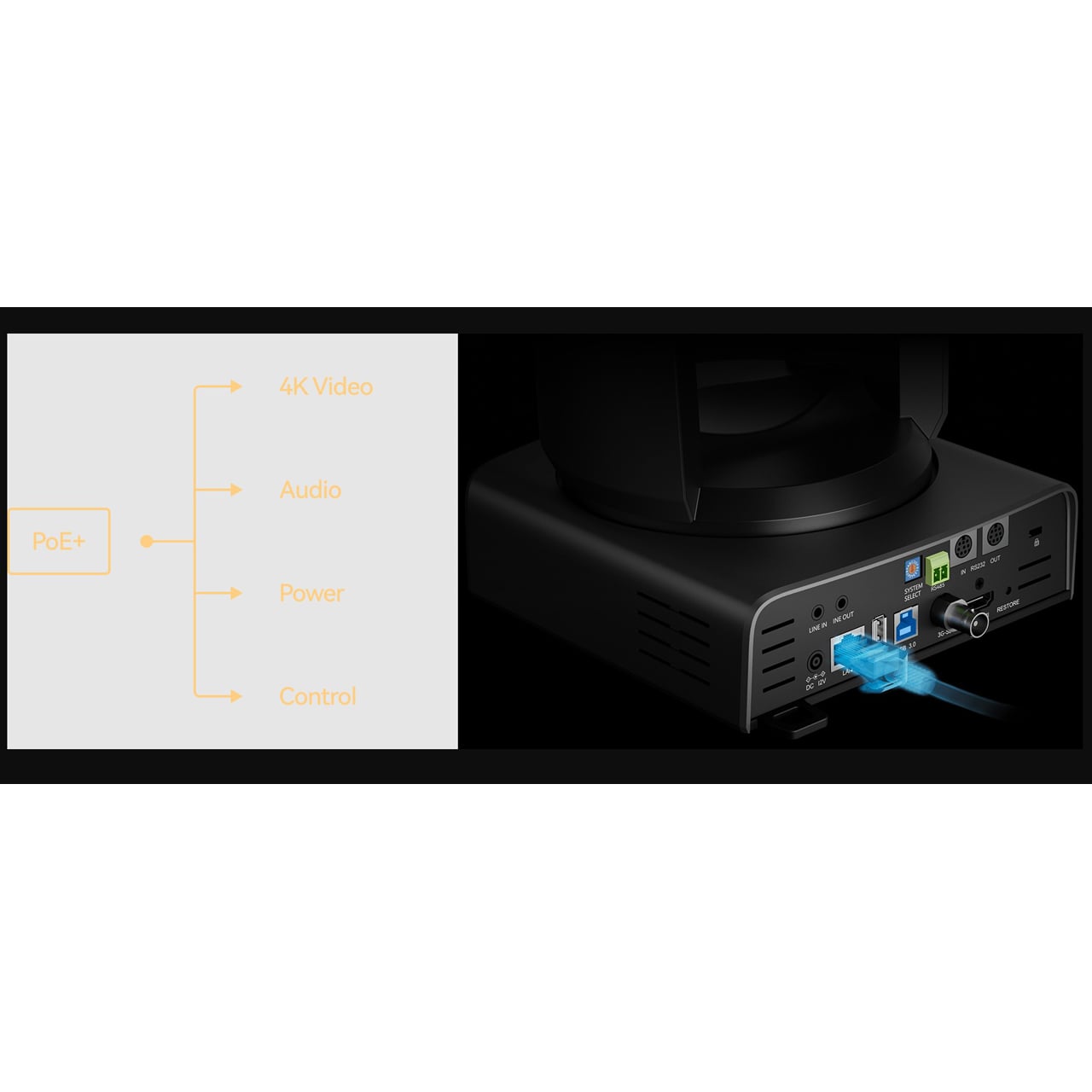

    • A Single PoE+ Cable Delivers 4K Video, Audio, Power, and Control

  • Specifications:

      Camera
    • Image Sensor: 1/1.8" High-quality CMOS Sensor
    • Effective Pixels: 8.42 Megapixels (16:9 aspect ratio)
    • Optical Zoom: 30x Zoom (f = 7.1mm - 210mm)
    • Digital Zoom: 16x
    • Video Format:
      - HDMI: 2160p60, 2160p50, 2160p30, 2160p25, 2160p59.94, 2160p29.97, 1080p60, 1080p50, 1080p59.94, 1080p30, 1080p29.97, 1080i60, 1080i50, 1080i59.94, 720p60, 720p59.94
      - 3G-SDI: 1080p60, 1080p50, 1080p30, 1080p29.97, 1080p59.94, 1080p25, 1080i60, 1080i50, 1080i59.94, 720p60, 720p59.94
    • Aperture Range: F1.61 - F5.19
    • Field of View (H/V):
      - Horizontal: 59.2° - 2.5°
      - Vertical: 34.6° - 1.4°
    • Minimum Illumination: 0.5 Lux (F1.8, AGC ON)
    • Shutter Speed: 1/30s - 1/10000s
    • Signal-to-Noise Ratio (SNR): =55dB

      PTZ Performance
    • Rotation Range:
      - Pan: ±170°
      - Tilt: -30° - +90°
    • Rotation Speed:
      - Pan: 1.7°/s - 100°/s
      - Tilt: 1.7°/s - 69.9°/s
    • Preset Positions: 255 Positions (Accuracy: 0.1°)

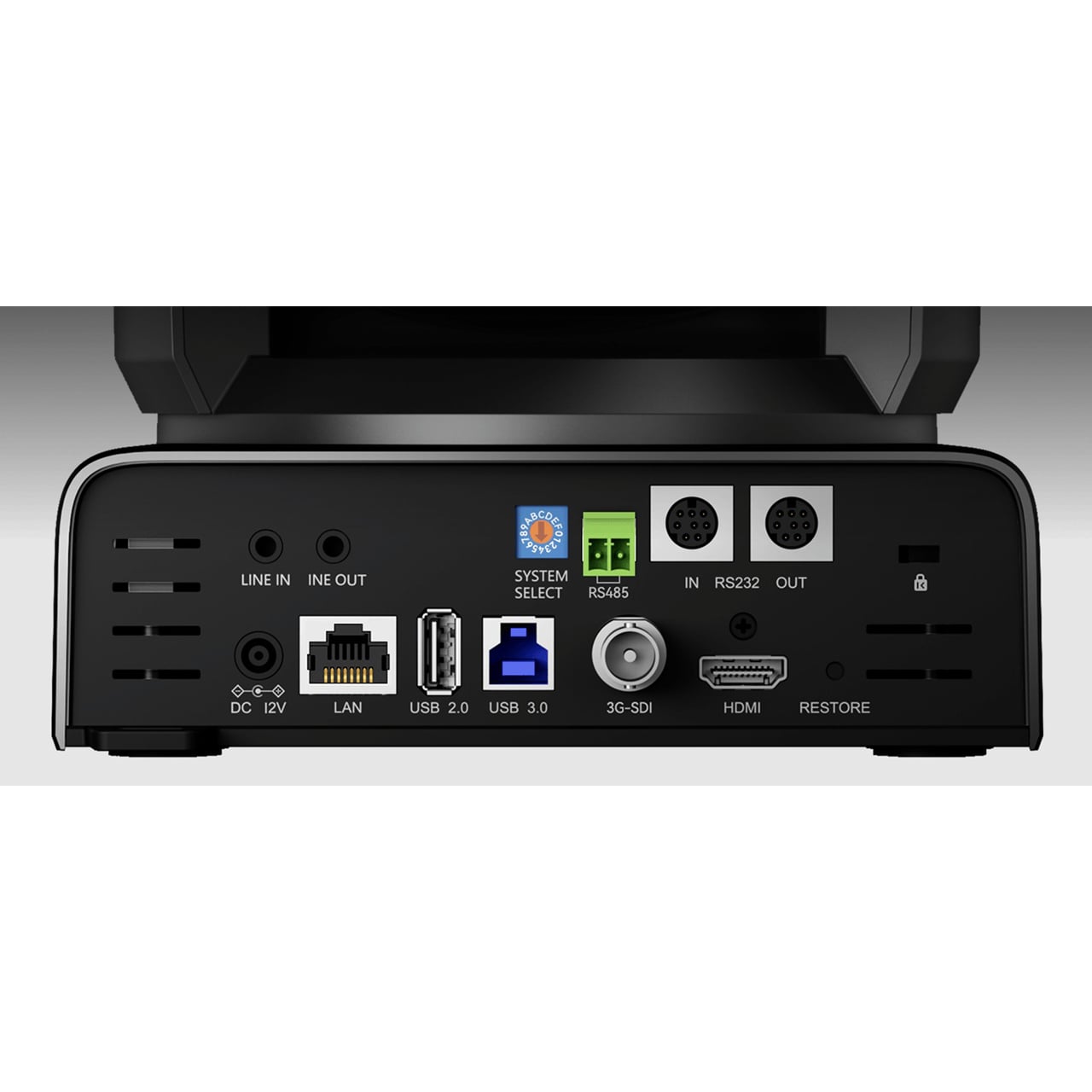

      I/O Interface
    • Audio:
      - 1x 3.5mm LINE In
      - 1x 3.5mm LINE Out
    • Communication:
      - 1x RS485 (2-pin Phoenix Terminal)
      - 1x RS232 IN (8-pin Mini-DIN)
    • Network: 1x RJ45 10M/100M/1000M Adaptive Ethernet
    • USB:
      - 1x USB 2.0 Type-A
      - 1x USB 3.0 Type-B
    • Video:
      - 1x 3G-SDI
      - 1x HDMI 2.0
    • Power: DC 12V (JEITA Type)

      USB Features
    • Operating System: Windows 7/8/10, Mac OS , Linux, Android
    • Color System/Compression: YUY2/H.264/H.265/MJPEG
    • USB 3.0 Video Format:
      - YUY2: 1080p30fps (Max.)
      - H.264 AVC: 4K@30fps (Max.)
      - H.265 HEVC: 4K@30fps (Max.)
      - MJPEG: 4K@30fps (Max.)
    • USB 2.0 Video Format:
      - YUY2: 1080p5 (Max.)
      - H.264 AVC: 4K@30fps (Max.)
      - H.265 HEVC: 4K@30fps (Max.)
      - MJPEG: 4K@30fps (Max.)
    • USB Audio: Yes
    • USB Video: Yes
    • Protocol: UVC 1.1 - UVC 1.5
    • UVC PTZ: Yes

      Network Features
    • Video Compression: H.264/H.265/MJPEG
    • Video Streams: Main Stream (First Stream), Sub Stream (Second Stream)
    • Main Stream Resolution: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
    • Sub Stream Resolution: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240
    • Video Bit Rate:
      - Main Stream: 32 - 51200kbps
      - Sub Stream: 32 - 20480kbps
      Bit Rate Control CBR, VBR
    • Frame Rate:
      - 50Hz: 1 - 50fps
      - 60Hz: 1 - 60fps
    • Audio Compression: AAC
    • Audio Bit Rate: 96kbps, 128kbps
    • Supported Protocols: NDI|HX3, TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc.

      General
    • Input Voltage DC 12V/PoE+
    • Input Current: 2A (Max.)
    • Power Consumption: 18W (Max.)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -40°F - 140°F (-40°C - 60°C)
    • Dimensions (LxWxH): 6.6" x 7.4" x 8.9" (169mm x 188mm x 226mm)
    • Net Weight: Approx. 5.1lbs (2.3kg)

  • Item Includes:

    • 1x PTZ Camera
    • 1x Remote Controller
    • 1x Power Adapter
    • 1x RS232 Cable
    • 1x USB-B to USB-A Cable
    • 1x Wall Mount Bracket
    • 1x Ceiling Mount Bracket
    • 1x Quick Guide/Warranty Card
    • 1x Compliance Information

  • Warranty:

    • 1 Year Limited Warranty
