Hollyland Pyro S 2.4 GHz and 5 GHz Dual Band HDMI/SDI 4k30 Low Latency Video Transmission System - Up to 1300ft

ITEM #: HL-PYRO-S MFG #: PYRO S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$699.00

Availability: In Stock
iAvailability Description Popup


    PYRO S - Overview

    The Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S's magnesium alloy shell makes it easier to carry and handle. It's ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.

    4 Receivers. Not an Issue.

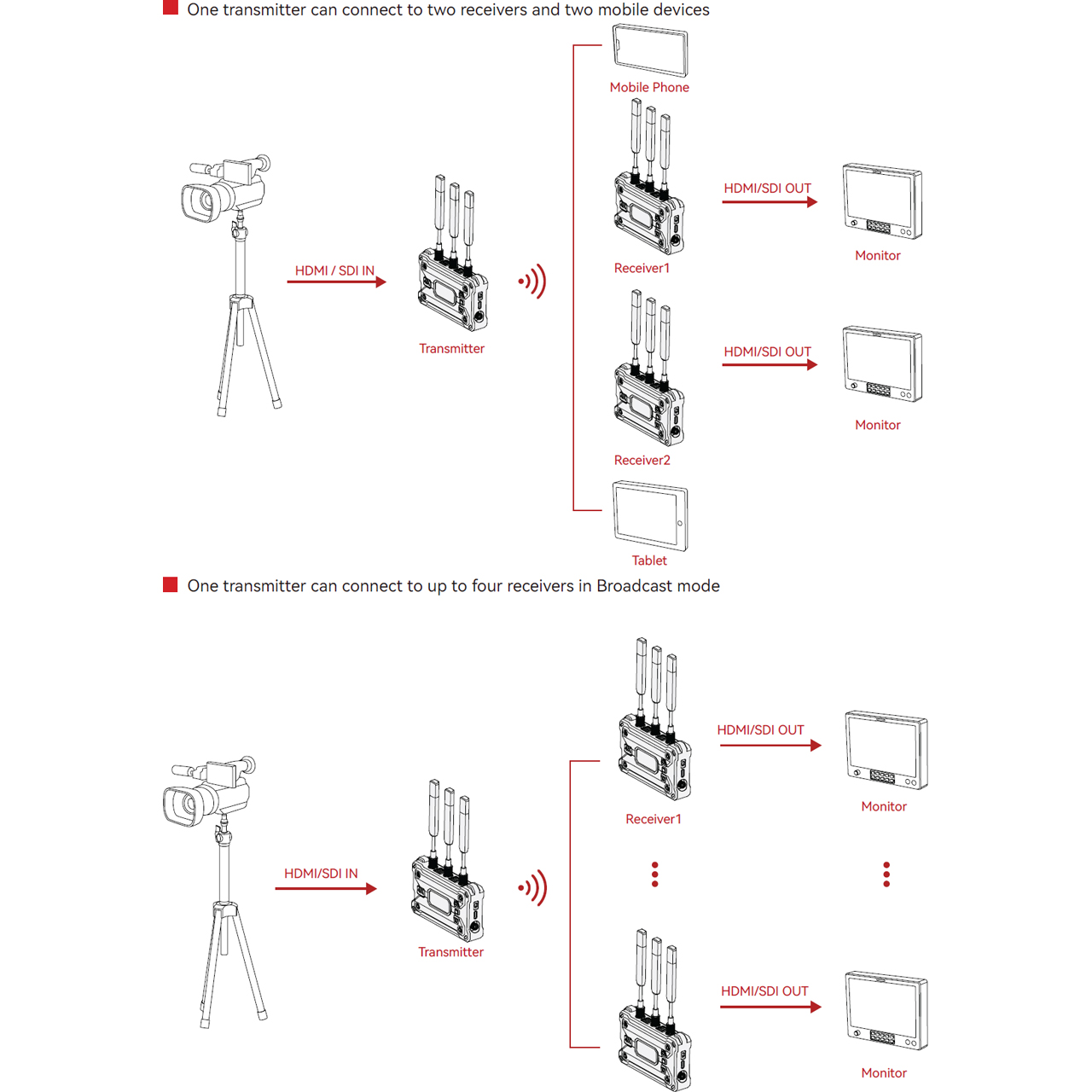

    Pyro S's WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

    *When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.

    Faster. Longer. Stronger.
    With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro S features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 50ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

    Dual Boost: From Delay to Distant Stability
    Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.

    You can select these two modes according to your application needs:
    - Smooth Mode: The bitrate dynamically adjusts in this mode to achieve the lowest 50ms latency for ultra-long-distance transmission.
    - HD Mode: Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).

    *The transmission range is LOS (line-of-sight) range based on interference-free laboratory measurements.

    *When Broadcast mode is activated, the LOS range reaches up to 650ft (200m). When Broadcast mode is deactivated, the LOS range extends up to 1,300ft (400m).

    Auto Dual-Band Hopping (ADH)
    With our developed Auto Dual-Band Hopping (ADH) technology, Pyro S operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video
    transmission.

    2.4 GHz & 5 GHz Dual Band
    Pyro S offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro S, you won't have to worry about video drop issues anymore.

    Auto Frequency Hopping
    Pyro S is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

    Both HDMI and SDI Input/Output

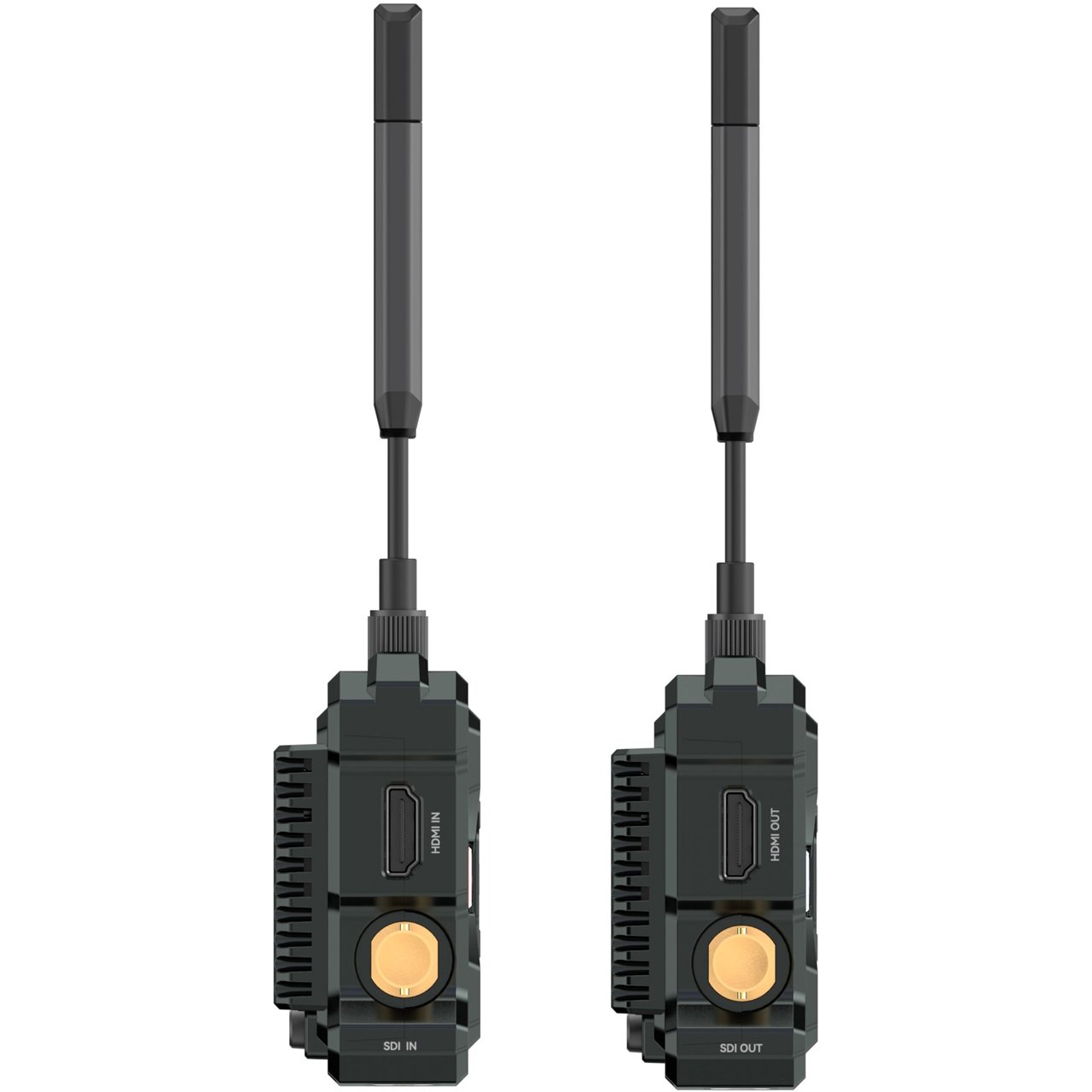

    Pyro S is the perfect solution for professional shooting and smaller commercial projects. The transmitter features one HDMI input and one SDI input, while the receiver provides one SDI output and one HDMI output.

    4K. Crisp and Sharp
    With 4k/30fps transmission capabilities, Pyro S presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.

    UVC Streaming
    UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring capture cards or software installations.

    • Features:

      • 1 Transmitter to 4 Receivers
      • Up to 1,300ft (400m)
      • 0.05s Low Latency
      • 2.4 GHz & 5 GHz Dual Band
      • Auto Frequency Hopping
      • HDMI & SDI Flexible power supply options, including DC (locking) and NP-F batteries.
      • UVC Streaming
      • 4K30 Transmission
      • Ready Out of the Box

    • Specifications:

      • TX
        - DC Input: 2.0mm Core Socket
        - HDMI Input: HDMI 1.4b
        - SDI Input: 3G SDI
        - USB-C: USB 2.0 OTG
        - Antenna: SMA Male
      • RX
        - DC Input: 2.0mm Core Socket
        - HDMI Output: HDMI 1.4b
        - SDI Output: 3G SDI
        - USB-C: USB 2.0 OTG
        - Antenna: SMA Male

        Power
      • Battery Voltage Range: 6.8 - 8.4V
      • DC Voltage Range: 6 - 16V
      • Power Consumption: TX - <11W / RX - <8W

        Operating Frequencies
      • 5 GHz Frequency Band TX: 5.150 - 5.250 GHz, 5.250 - 5.350 GHz, 5.470 - 5.725 GHz, 5.725 - 5.850 GHz
      • 2.4 GHz Frequency Band RX: 2.412 - 2.484 GHz

      • Transmit Power: <23 dBm
      • Receiver Sensitivity: -85 dBm (Broadcast: -80 dBm)
      • Latency: as low as 50ms
      • Bandwidth: 20 MHz (Broadcast: 40 MHz)

        Resolutions
      • HDMI Input: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 3840*2160 30/25/24/29.97/23.98
      • HDMI Output: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 3840*2160 30/25/24/29.97/23.98, 1080p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 720p50/59.94/60, 1080p23.98/24, 1080i50/59.94/60
      • SDI Input: 1080p60/59.94/50, 1080i60/59.94/50, 1080p30/29.97/25/24/23.98, 720p60/59.94/50, 1080psf23.98/24, 1080psf25/29.97/30
      • SDI Output: 1080p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 720p50/59.94/60, 1080p23.98/24, 1080i50/59.94/60, 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 1080p30/25/24/29.97/23.98

        Physical
      • Weight: 0.45lbs
      • Dimensions: 4.4" x 2.8" x 1.3"
      • Temperature:
        - Working: 14°F - 113°F (-10°C - 45°C)
        - Storage: -40°F - 140°F (-40°C - 60°C)

    • Item Includes:

      • 1x Pyro S Wireless Video Transmitter
      • 1x Pyro S Wireless Video Receiver
      • 7x Paddle Antenna (2.4 GHz & 5 GHz)
      • 1x Rotatable Cold Shoe Mount
      • 1x USB-C OTG Adapter
      • 1x User Manual
      • 1x Packing List Card
      • 1x Warranty Card
      • 1x 12V/2A DC Power Adapter
      • 1x Compliance Information
      • 1x Hollyland Ecosystem Leaflet

    • GTIN:

      0191460006081
