Hollyland Solidcom ANT01 Antenna for Solidcom H1 Intercom System with 4x Fiberglass Antenna and XLR Network Cable

ITEM #: HL-SOLIDCOMANT01 MFG #: SOLIDCOM ANT01

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,999.00

Availability: In Stock
iAvailability Description Popup


SOLIDCOM ANT01 - Overview

The Hollyland Solidcom H1 ANT01 Antenna is designed to deliver stable, wide-area coverage for Hollyland's Solidcom H1 wireless intercom system. Supporting productions of any size, the H1 system can operate up to 30 beltpacks without a central station-or scale to 80 beltpacks when paired with the Geo Central Station, all with no license fees required.

With a 1640 foot line-of-sight range and seamless roaming, the ANT01 ensures clear communication across large venues, stages, or production sites. Rated IP54 for dust and water resistance, it's ready for both indoor and outdoor use, keeping teams connected in challenging conditions.

The ANT01 works seamlessly within the Solidcom H1 ecosystem, supporting up to 12 independent groups on its own, or up to 100 groups when paired with the Geo Central Station. Features like smart app control, cloud communication, and Dante compatibility ensure simple setup and flexible operation.

  • Features:

    • Solidcom H1 Intercom System Antenna
    • 1640 Foot Line-of-Sight Coverage Range
    • Seamless Roaming Across Zones
    • Supports up to 20 Beltpacks
    • Smart App Control Capability
    • Cloud Communication Support

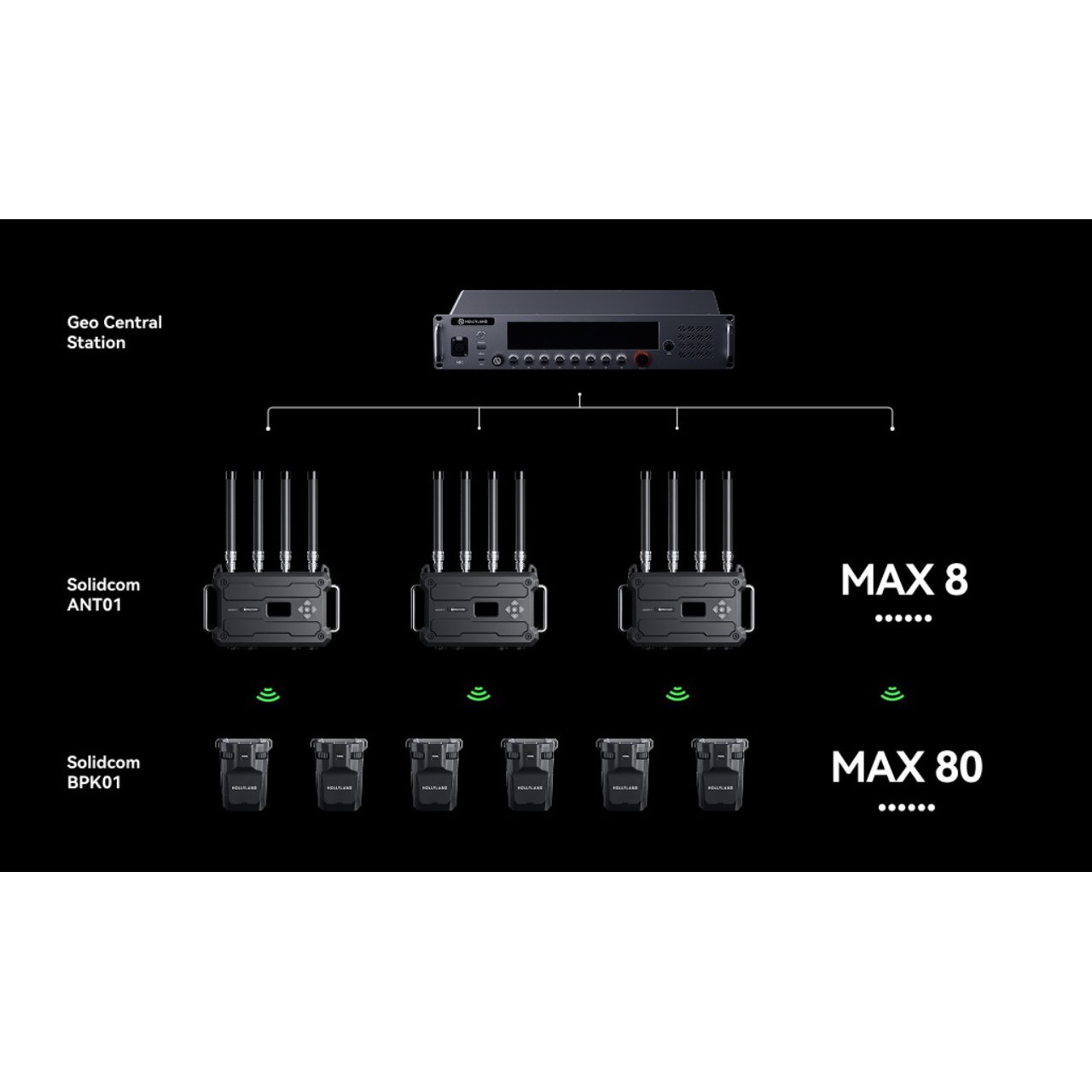

    • 3 ANT01 Units Support up to 30 Beltpacks
    • Supports up to 80 Beltpacks when used with Geo Central Station
    • 12 Groups Standard, 100 with Geo Central Station
    • Comprehensive Interfaces, Dante Support
    • IP54 Dust and Water Resistance
    • PoE Power Support

  • Specifications:

      Physical
    • Dimensions: 11.9" x 7.42" x 2.5" (302mm x 188.56mm x 64.6mm)
    • Weight: 4.4lbs (1987g)
    • Color: Black
    • Environmental Resistance: Dust/Water-Resistant (IP54)
    • Operating Conditions: 14°F - 113°F (-10°C - 45°C)
    • Storage Conditions: -4°F - 140°F (-20°C - 60°C)

      Power
    • Power Source: PoE, Battery (Not Included)
    • Battery Type: 1x V-Mount
    • DC Input Power: 9V - 30VDC
    • Power Consumption: 15.5W

      Wireless
    • Wireless: Wi-Fi/Bluetooth/DECT
    • Mobile App Compatible: Yes (Android & iOS)

  • Item Includes:

    • 1x Solidcom ANT01 Antenna
    • 4x Fiberglass Antenna
    • 1x XLR Network Cable
    • 1x PoE Power Adapter

  • Warranty:

    • 1 Year Limited Warranty
