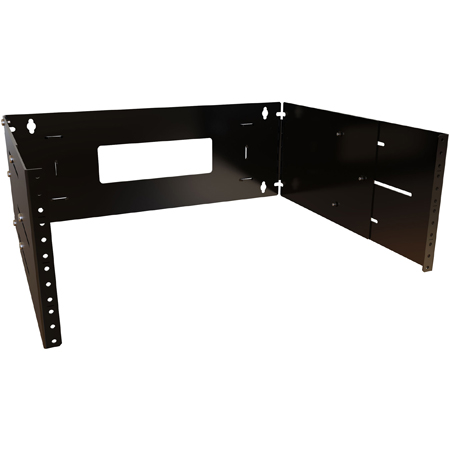

Hammond APB19007BK1 4RU Adjustable Depth Wall Rack

APB19007BK1 - Overview

• Features:

  • Available in 4U, 6U, 8U and 12U mounting heights.
  • Hinged for easy rear access.
  • Adjusts in depth from 12" to 18" with ease so there is no need to disassemble the whole rack to adjust the depth.
  • Rear cable access with multiple tie points for cable management.
  • Knockdown design ships unassembled for easy handling, reduced freight cost and shipping protection.
  • Constructed in 14-gauge steel.
  • Tapped 10-32 19" mounting rails are constructed in 14-gauge steel and include rack unit indicators. SCREW1032-25, 25-pack of 10-32 mounting hardware included.
  • Load rated for up to 100 lbs (45 kg). Swing weight is rated for 1.5 lbs (0.68 kg) per rack unit, evenly distributed.
  • Finished in smooth black powder paint.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.


• Specifications:

  • Size H x W x D: 6.98 in x 19.25 in x 18 in
  • Shipping Weight: 10.3 lbs (4.67 kg)
  • Rack Units: 4
  • Rack Type: Wall Mount
  • Paint Color: Black
  • Rail Type: Tapped 10-32


• Item Includes:

  • 1x Hammond APB19007BK1 4RU Adjustable Depth Wall Rack


• GTIN:

  0623980525044
