RB-SW12 - Overview

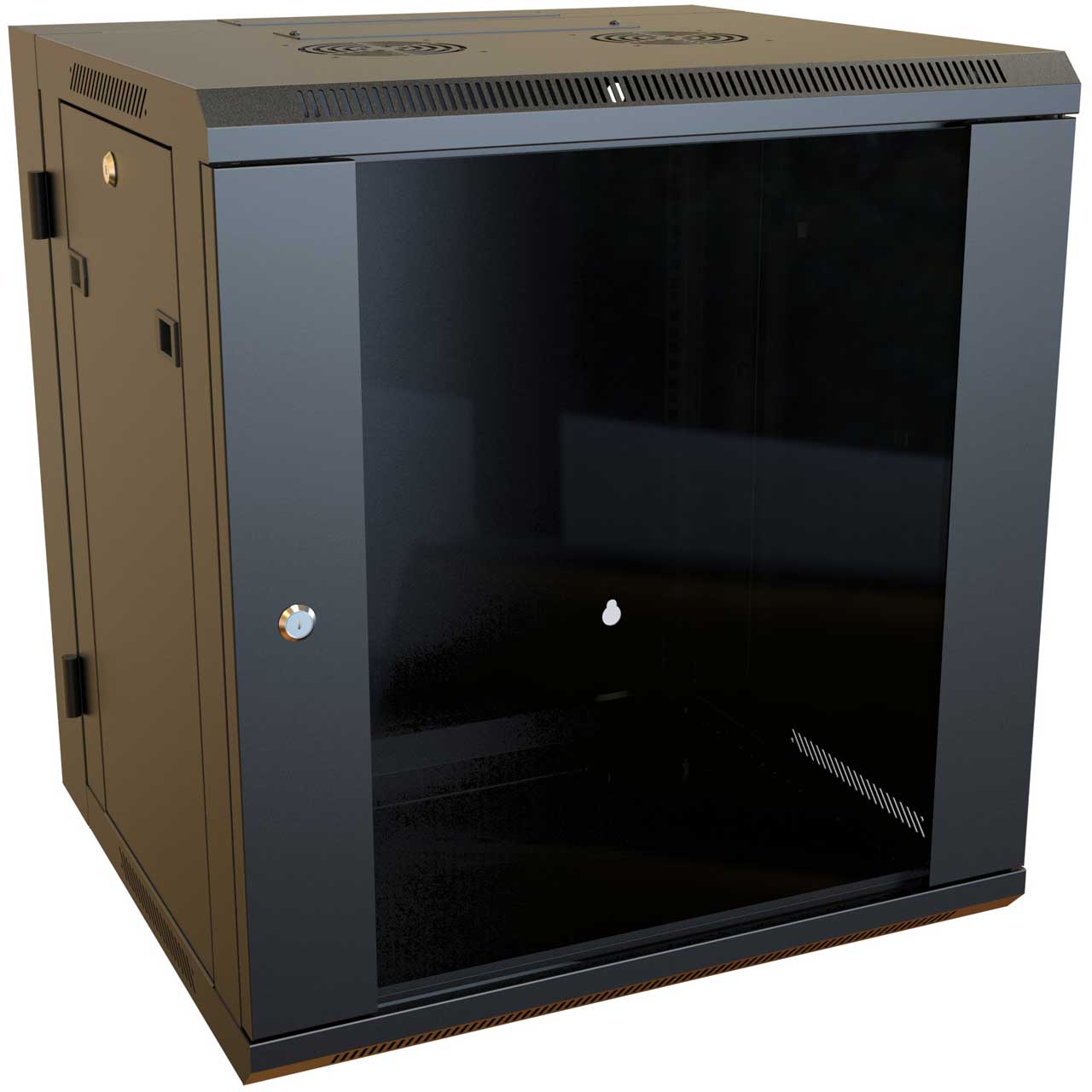

The Hammond RB-SW12 is a 12RU Economy swing-out wall mount cabinet. Includes locking side panels, square hole rails, glass front door, top fan cutouts and top/bottom cable entry panels. Ships assembled. Suggested load capacity of 130 lbs.

  • Features:

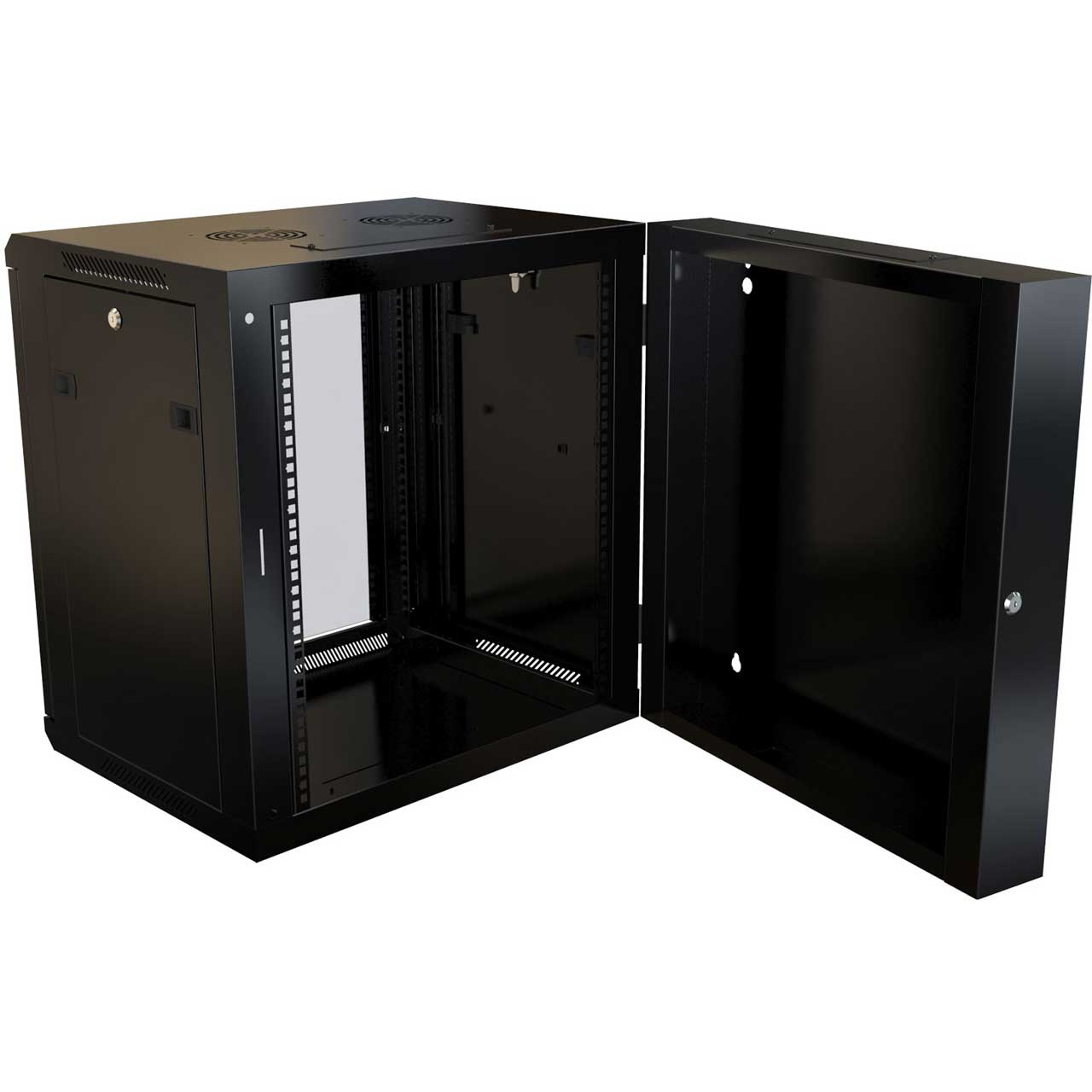

    • Double-hinged for easy rear access (body swings open to 120°).
    • Constructed in light-duty 16-gauge steel.
    • Includes two (2) pairs of EIA compliant square hole punched rails with 19" mounting.
    • Starter pack of (25) M6 screws and cage nuts included.
    • For 10-32 hardware, see our CAGKIT Series.
    • Rails are adjustable.
    • Includes one (1) locking lightly smoked tempered glass reversible front door (hinged on the right side as standard).
    • Includes one (1) pair of locking removable side panels.
    • The front and side of the frame include venting for airflow.
    • Top, bottom and rear cable access.
    • Provision for optional fans on the top panel.
    • The middle body section is not reversible and hinges on the left side.
    • Ships assembled - ready to install.
    • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
    • Finished in black powder paint.
    • Tested to 130 lbs (59 kg) of equipment load capacity.
    • RoHS Compliant.
  • Specifications:

    • Height: 25.15
    • Width: 23.62
    • Depth: 21.65
    • Rack Units: 12U
    • Mount Height: 21.00
    • Mount Width: 19.00
    • Mount Depth: 16.13
  • GTIN:
