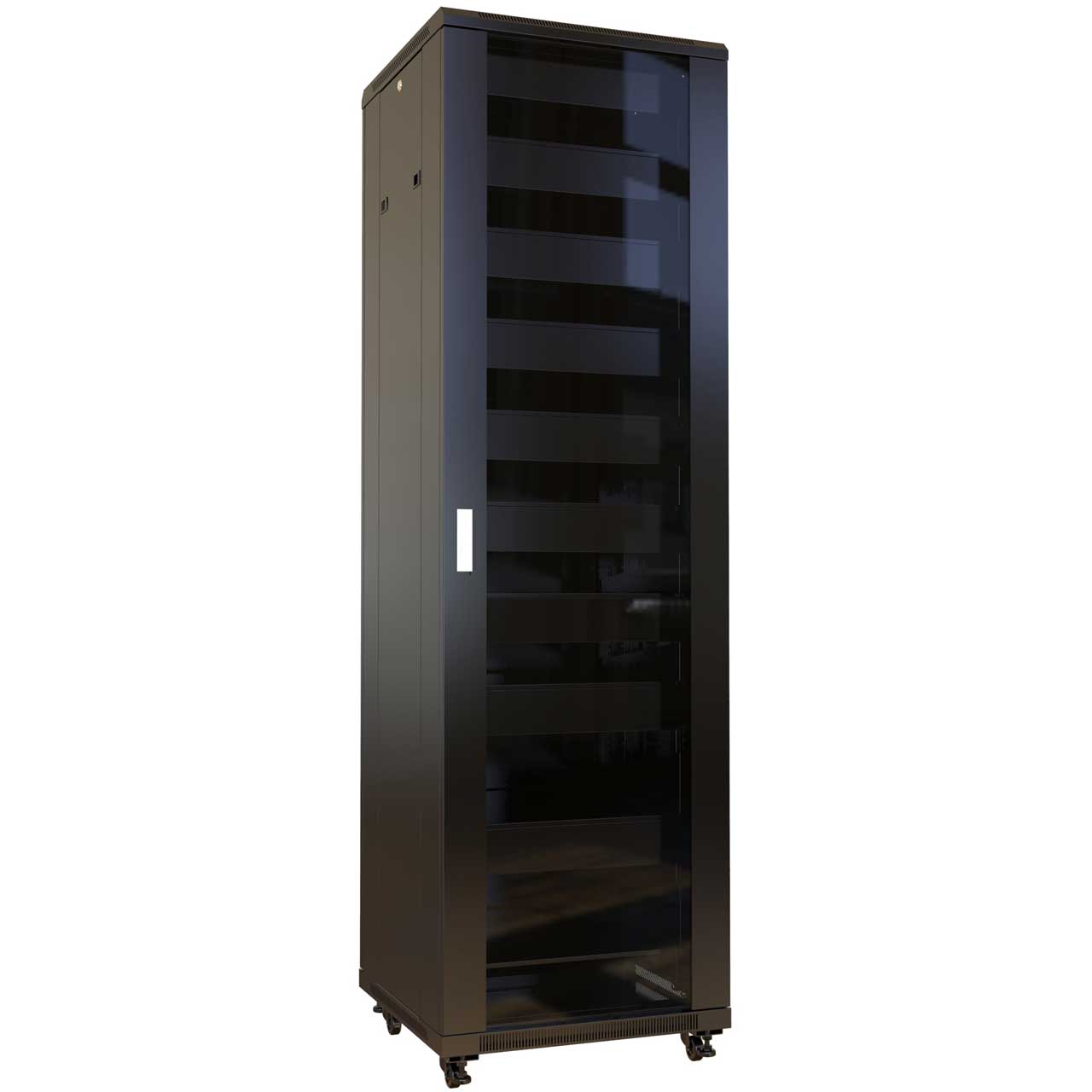

Hammond RB-AV42 42RU 24D Audio-Visual Cabinet w/ 950 lbs Weight Capacity


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.

RB-AV42 - Overview

The Hammond RB-AV Series is a cost-effective rack cabinet that is ideal for A/V and Security applications. Fully assembled, the RB-AV Series includes removable factory-installed shelves, filler panels, casters, levelling feet and tapped 10-32 mounting rails.

  • Features:

    • Available in 18U, 27U, and 42U mounting heights.
    • Available in 23.62" overall width and depth.
    • Passive cooling vents are located on the top, bottom and sides.
    • Includes provision for up to two (2) optional fans on the top panel.
    • Ships fully assembled and ready for installation on-site.
    • Doors can be flipped to hinge from the opposite side.
  • Specifications:

    • Height: 80.91
    • Width: 23.62
    • Depth: 23.62
    • Rack Units: 42U
    • Mount Height: 73.50
    • Mount Width: 19.00
    • Mount Depth: 21.00
  • Item Includes:

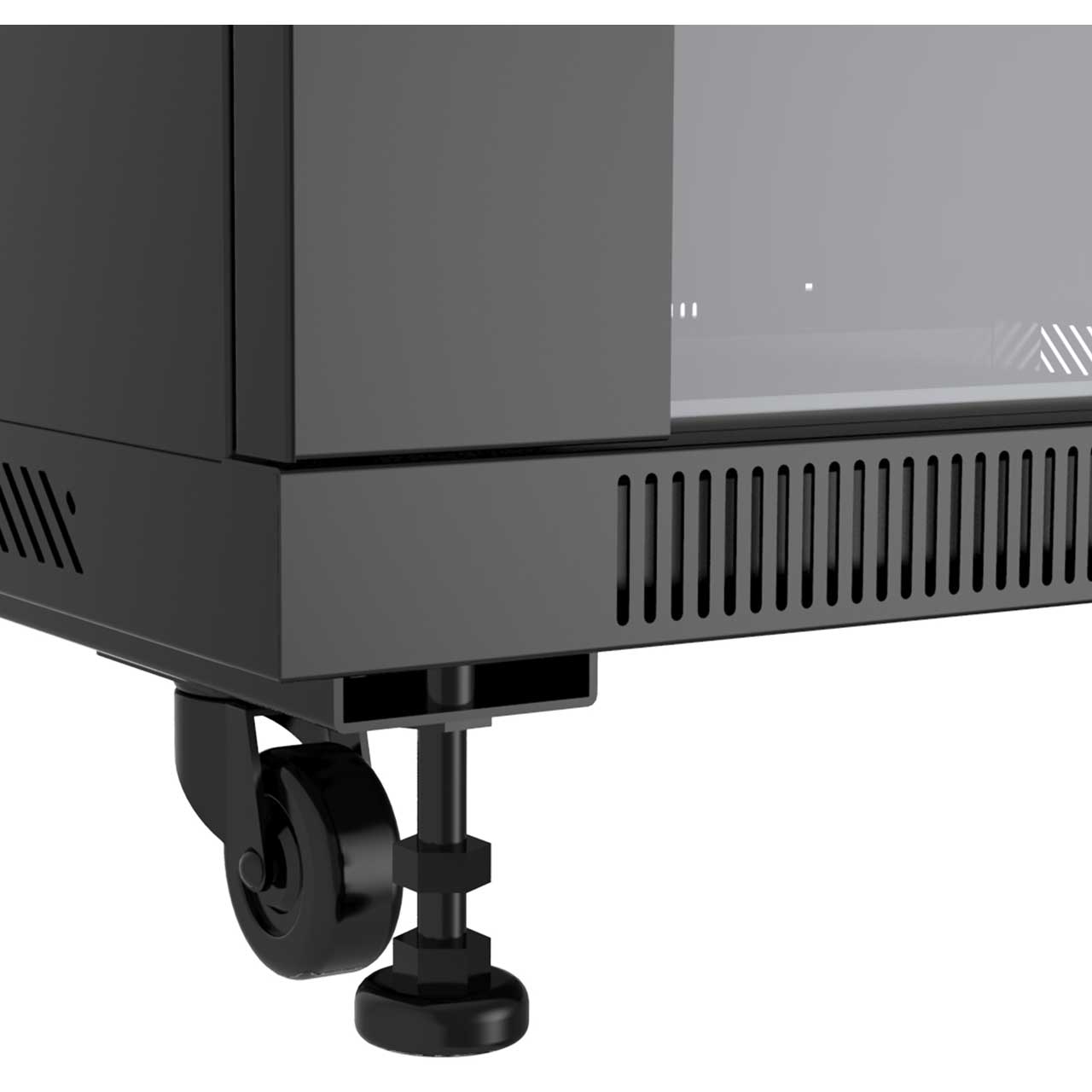

    • 1x Steel frame with factory-installed levelling feet recessed casters and grounding studs.
    • 2x pairs of adjustable depth EIA compliant 10-32 tapped mounting rails.
    • 1x Starter pack of (50) 10-32 screws included.
    • 1x lightly smoked tempered glass front door with a quarter-turn lock.

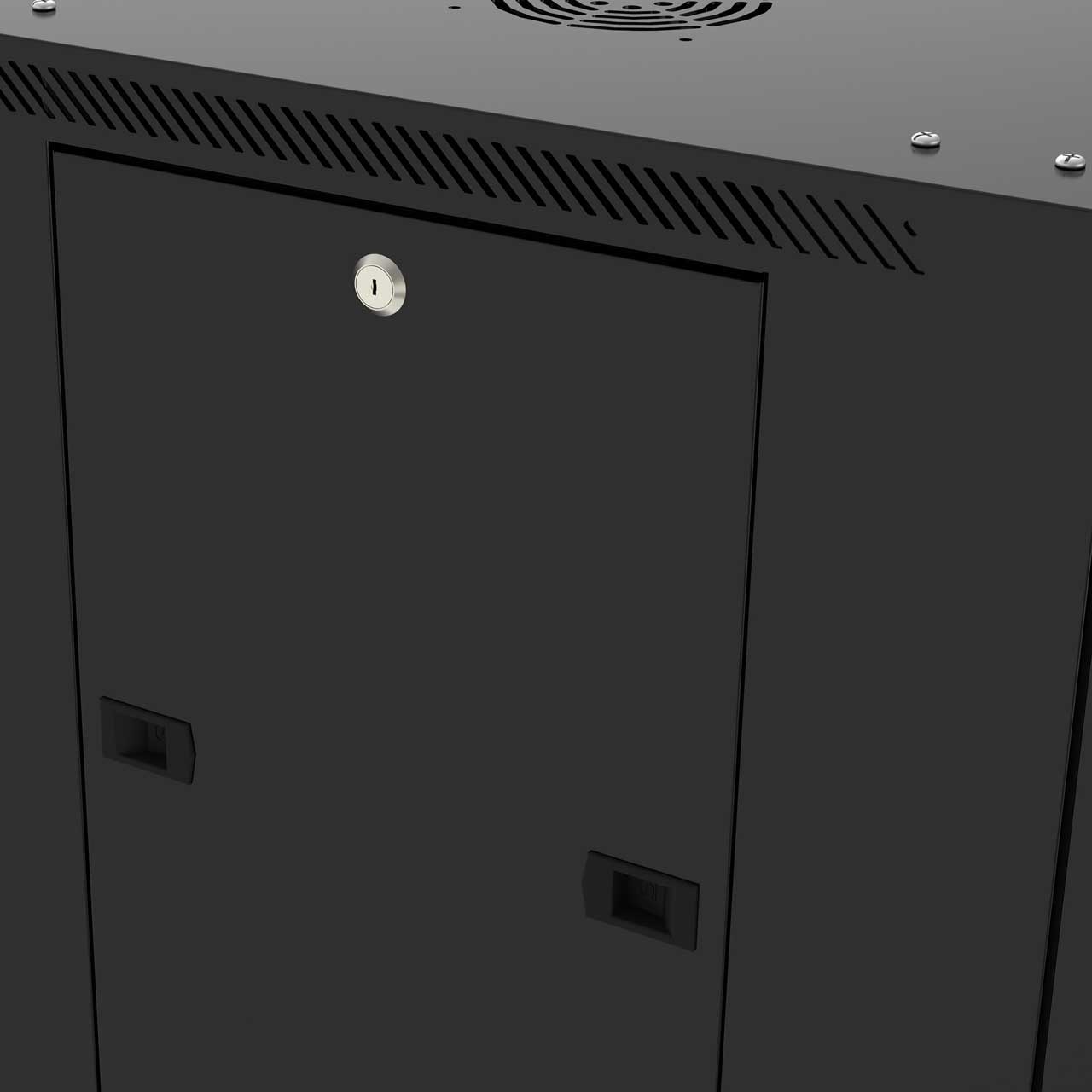

    • 1x solid steel rear door with a quarter-turn lock.
    • 2x solid removable side panels with quarter-turn lock.
    • 1x Removable cable access panels on cabinet top and bottom.
    • 1x Includes factory-installed vented rack shelves and filler/blank panels.
