    RB-SW15 - Overview

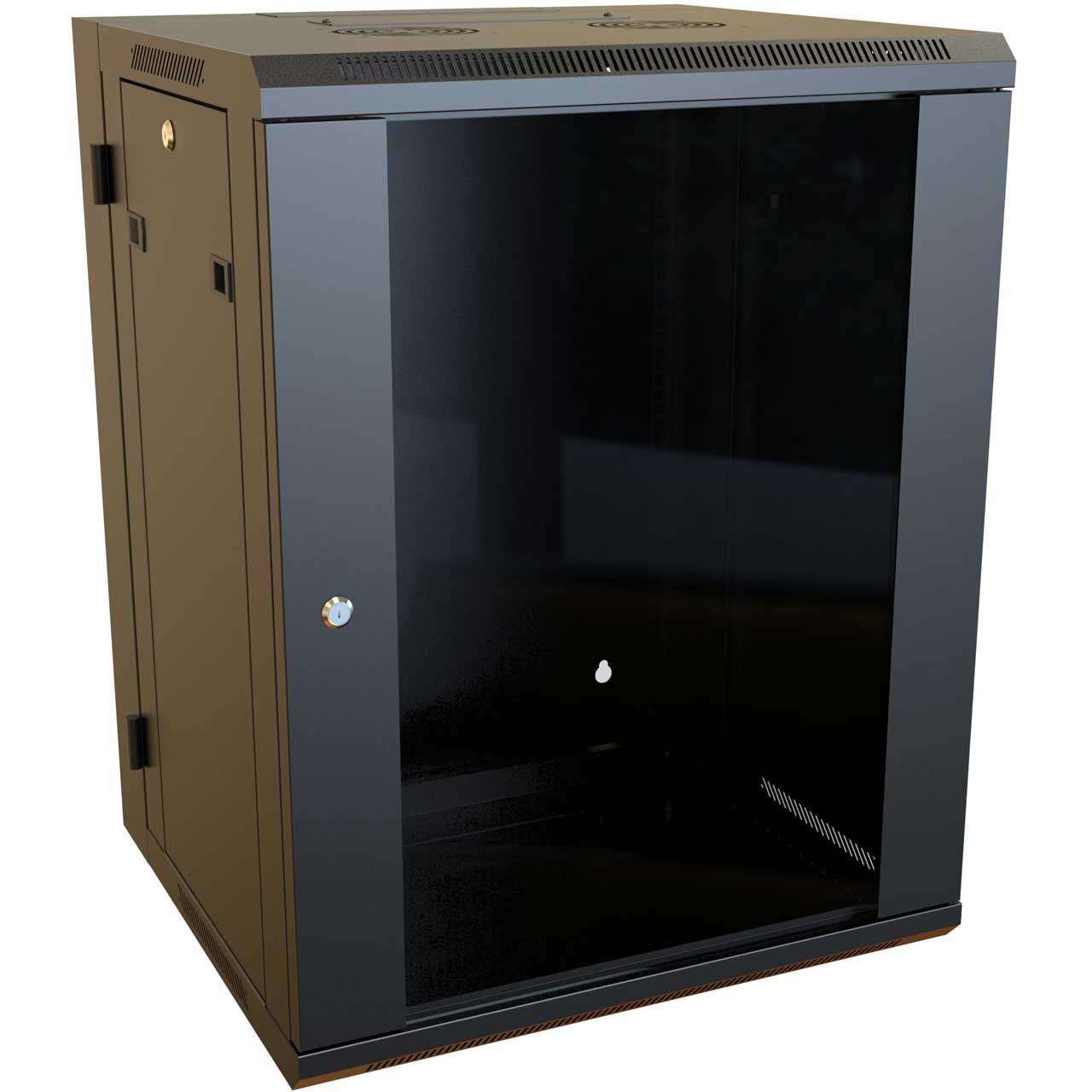

    The Hammond RB-SW15 is a 15RU Economy swing-out wall mount cabinet. Includes locking side panels, square hole rails, glass front door, top fan cutouts and top/bottom cable entry panels. Ships assembled. Suggested load capacity of 130 lbs.

    • Features:

      • Double-hinged for easy rear access (body swings open to 120°).
      • Constructed in light-duty 16-gauge steel.
      • Includes two (2) pairs of EIA compliant square hole punched rails with 19" mounting.
      • Starter pack of (25) M6 screws and cage nuts included.
      • For 10-32 hardware, see our CAGKIT Series.
      • Rails are adjustable.
      • Includes one (1) locking lightly smoked tempered glass reversible front door (hinged on the right side as standard).
      • Includes one (1) pair of locking removable side panels.
      • The front and side of the frame include venting for airflow.
      • Top, bottom and rear cable access.
      • Provision for optional fans on the top panel.
      • The middle body section is not reversible and hinges on the left side.
      • Ships assembled - ready to install.
      • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
      • Finished in black powder paint.
      • Tested to 130 lbs (59 kg) of equipment load capacity.
      • RoHS Compliant.
    • Specifications:

      • Height: 30.40
      • Width: 23.62
      • Depth: 21.65
      • Rack Units: 15U
      • Mount Height: 26.25
      • Mount Width: 19.00
      • Mount Depth: 16.13
    • GTIN:
