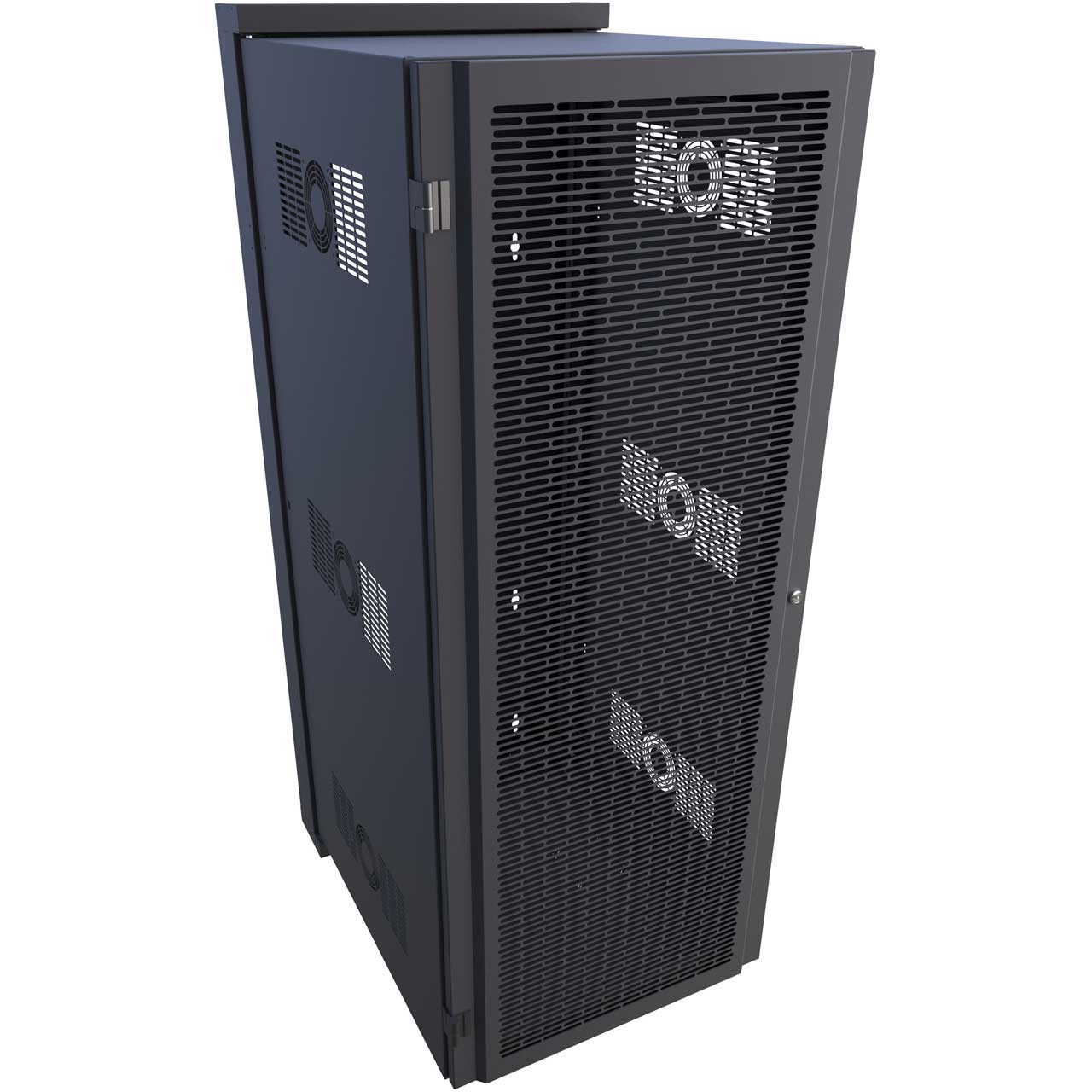

Hammond HWM2432U26BK 32RU 31-Inch Deep Swing-Out Cabinet

HWM2432U26B - Overview

• Features:

  • Available in two (2) depths and four (4) heights.
  • All sizes include either vented 63% perforated front door or smoked window front door.
  • Includes one (1) pair of 10-32 threaded rack rails with support for additional optional rails
  • Starter pack of SCREW1032-50 screws.
  • Center section features: Heavy duty spring-hinge pin for easy installation and removal. Sides that include two (2) vents and fan grill. Can be installed to swing from left-to-right or right-to-left.
  • Rear section features: The side of the rear section includes 2.50" and 2.00" knockouts.
  • The top and bottom of the rear section includes 3.00", 2.00", 1.38" and 1.12" knockouts.
  • Generous cable management lances located on the rear section as well as on mounting rails.
  • Mounting points for outlet strips.
  • Heavy duty keyhole for wall mounting.
  • Large opening in rear for cable access.
  • Front locking door and center section keyed the same (optional key available).
  • 14-gauge welded rear section; 16-gauge center section and doors.
  • EIA compliant adjustable depth mounting rails.
  • Grounding lugs located on top and bottom of the door, center and rear sections.
  • UL Listed 2416 load rated for up to 350 lbs (158 kg). Static Load tested to 1,400 lbs (635 kg).
  • Rugged sand-textured black powder paint which reduces the look of fingerprints and marks.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.


• Specifications:

  • Size H x W x D: 62.75 in x 24.68 in x 31.7 in
  • Shipping Weight: 196 lbs (88.90 kg)
  • Rack Units: 32
  • Rack Type: Wall Mount
  • Paint Color: Black
  • Rail Type: Tapped 10-32


• Item Includes:

  • 1x Hammond HWM2432RU26BK 32RU 31 Inch Deep Swing-out Cabinet


• GTIN:

  0623980777832
