Hall Technologies UV4-S 1x4 VGA Plus Phantom Power Over CAT5 UTP Transmitter

Item #: HRT-UV4-S MFG #: UV4-S

Hall Technologies UV4-S 1x4 VGA Plus Phantom Power Over CAT5 UTP Transmitter
free ship

List Price: $495.00

Our Price: $470.25


Availability: Direct Ship from manufacturer, contact us for availability
i

Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

  • Special Order Item: non-cancelable, non-returnable, non-refundable.

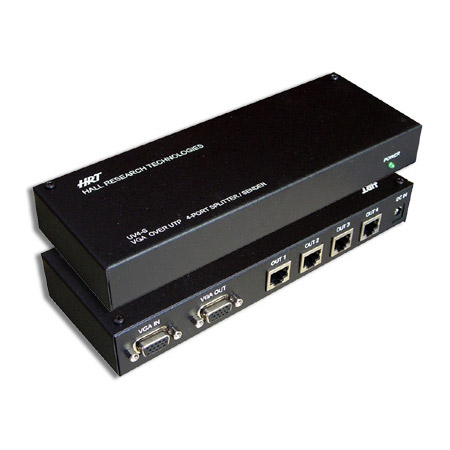

The Model UV4-S is a 4-channel video splitter that can send a VGA or component video signal to multiple displays on Cat-5 cable. This unit features a standard HD15 VGA connector for the input and has 4 RJ45 connectors for the outputs. It also provides an additional VGA output for connection to a local monitor.The UV4-S can drive Cat-5 cables of lengths up to 500 feet. At the remote (receiving) end of the Cat-5 cables a Model UV1-R is required to convert the UTP signal back to VGA for connection to a monitor.In most setups only one power supply is necessary for the entire system. The UV4-S Sender/Splitter comes with a power supply that is capable of powering itself and all the UV1-R receivers. For Cat-5 runs of over 330 feet, the receivers may need their own additional supplies that must be ordered separately (HRT model # 511-GS569). Made in the USA.
