ICM DB1BNCHD RGB 24-26 AWG Double Bubble High Definition BNC

Name: ICM DB1BNCHD RGB 24-26 AWG Double Bubble High Definition BNC
Brand: ICM Corporation
SKU: ICM-DB1BNCHD

ITEM #: ICM-DB1BNCHD MFG #: DB1BNCHD

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ICM-DB1BNCHD

NEUTRIK NBNC75BDD6X 4K/8K 12G-SDI Rear TWIST UHD BNC Connector for Belden 1855AOur Price: $3.65
Canare BCP-B26 75 Ohm 3-Piece Crimp Plug BNC Connector for Belden 1855A CoaxOur Price: $2.68
Belden 4855RBUHD3 12G-SDI 3-Piece UHD BNC Crimp Connector for 4855R/Mini-RG59 Cable - Violet Band - EachOur Price: $3.73
Kings 2065-11-9 75 Ohm 12G BNC Connector for Belden 1855A/4855R Mini-RG59 Coax CableOur Price: $2.70

Required Accessories

Recommended Accessories

DB1BNCHD - Overview

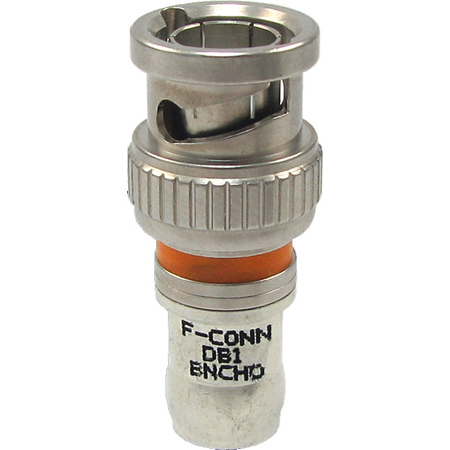

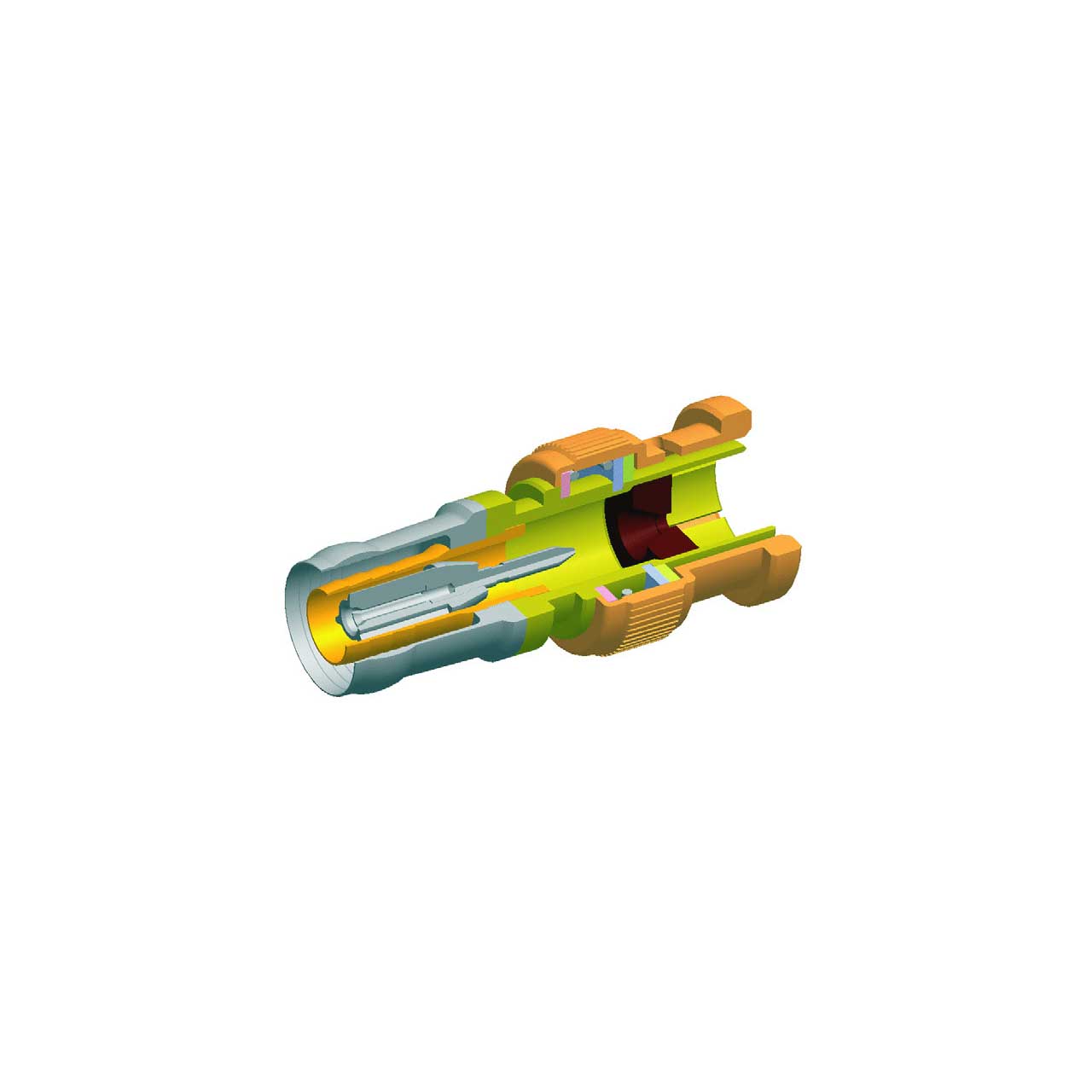

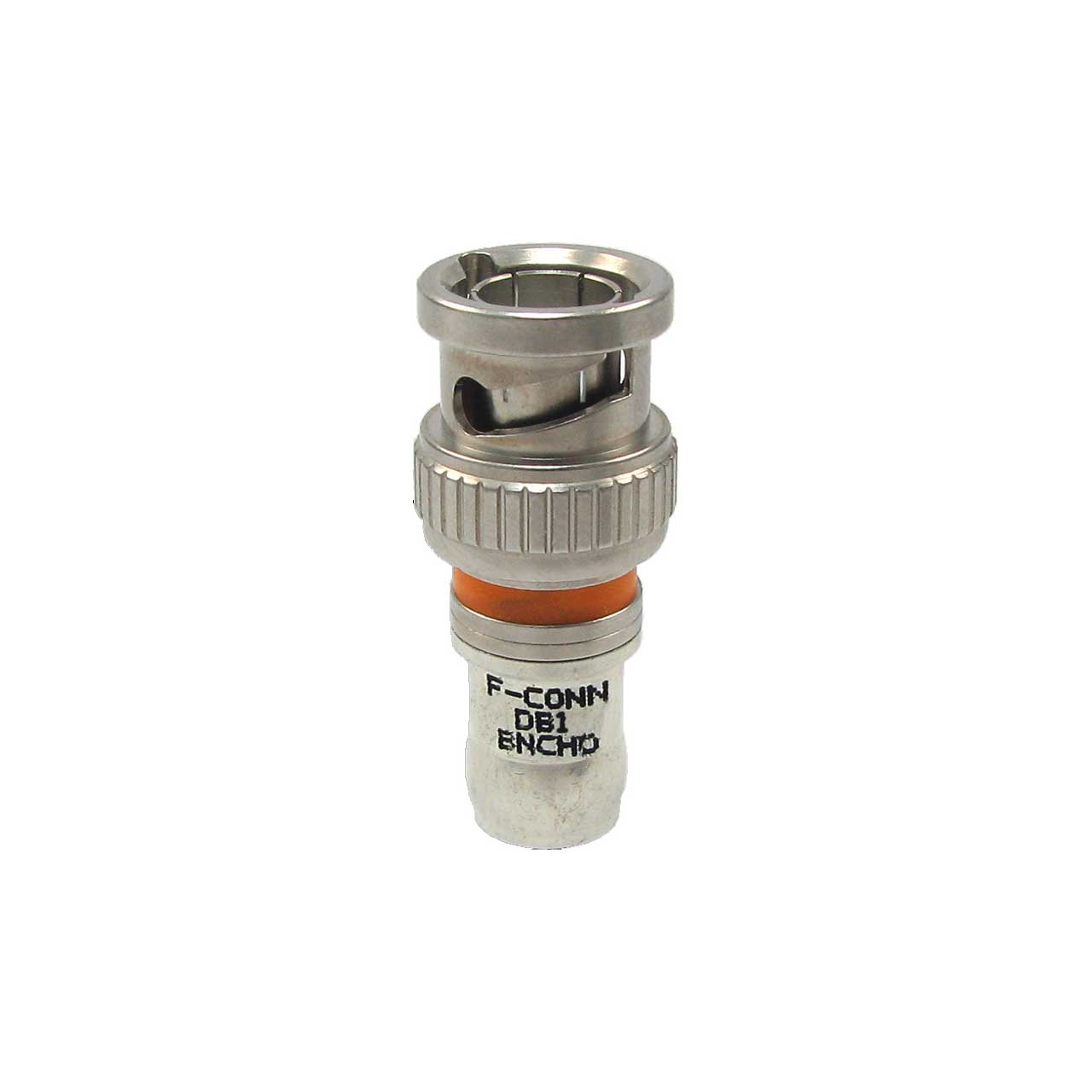

The DB1BNCHD is a one-piece HighDefinition BNC Broadcast compression connector that fits most brands of 24-26AWG RGB/ mini coaxial cable.

This BNC compression connector is compatible with the following Belden cables:
1277P-R
1278P-R
1279P-R
1280P-R
1281R-S3-S4-S5-S6
1282R-S3-S4-S5-S6
1283S3-S5-S6
HC2648R
HC2650R

Specifications:
- 75 Ohm Construction
  DC-1 GHz > -35 dB Return Loss < 1.04 VSWR
  DC-2 GHz > -29 dB Return Loss < 1.07 VSWR
  DC-3 GHz > -32 dB Return Loss < 1.07 VSWR
  Connector holding strength exceeds cabletensile strength
  Body Material Brass
  Body Material (Plating) Nickel
  Coax Sizing (inches) Min ' Max
  Center .015 ' .025
  Dielectric .065 ' .078
  Outer Jacket .095 ' .110
  Coax Sizing (mm) Min ' Max
  Center .38 ' .64
  Dielectric 1.65 ' 1.98
  Outer Jacket 2.41 ' 2.79
GTIN:
0845671005264
