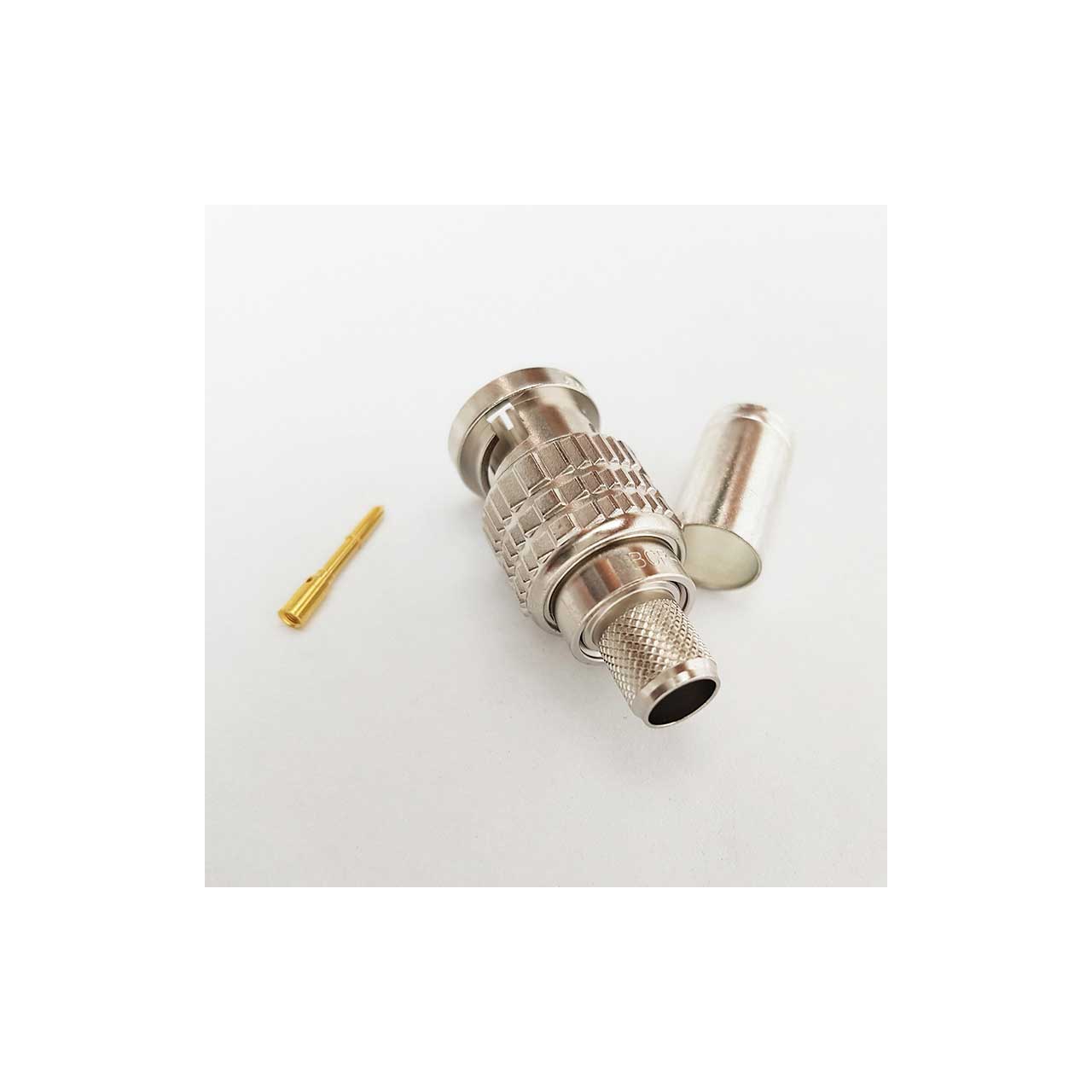

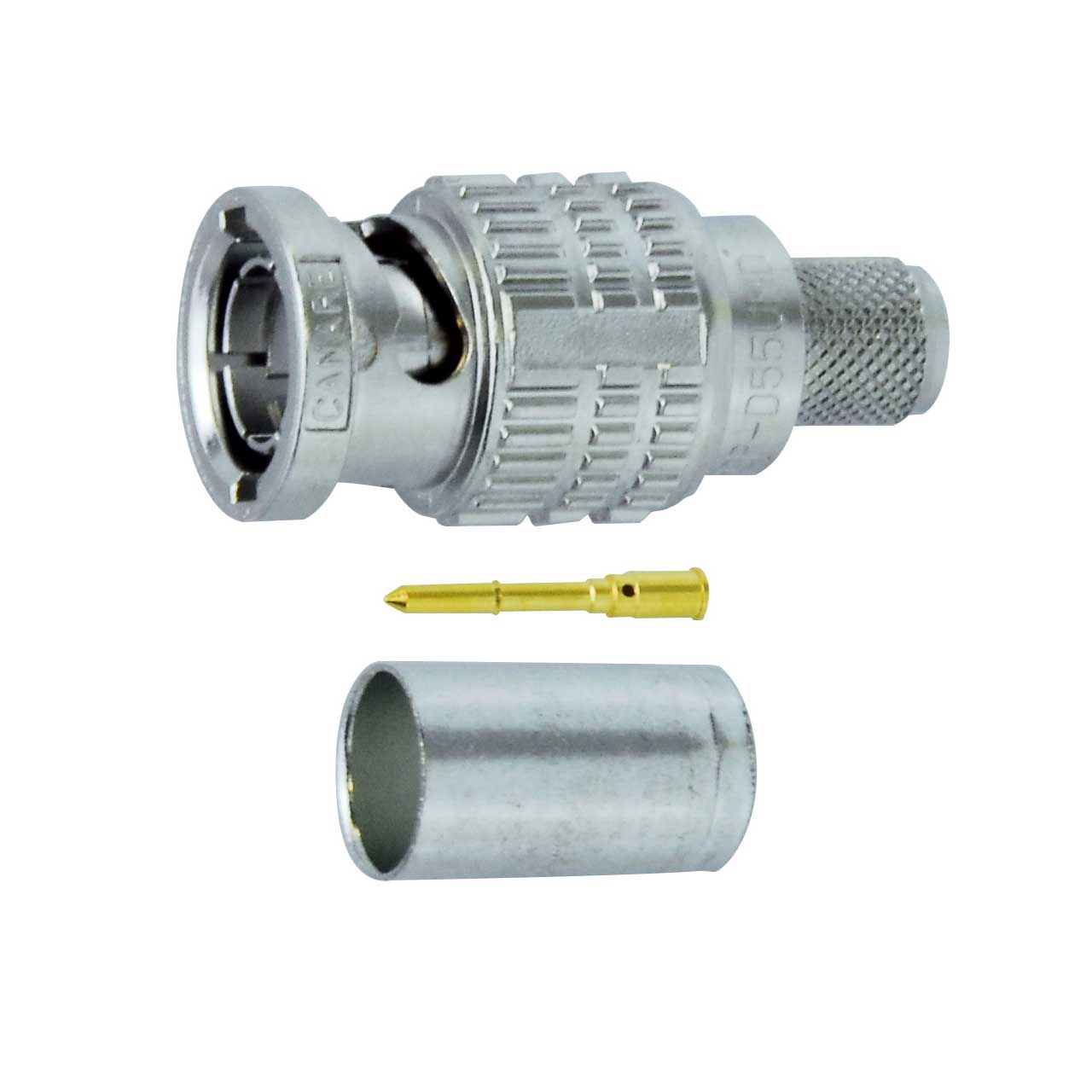

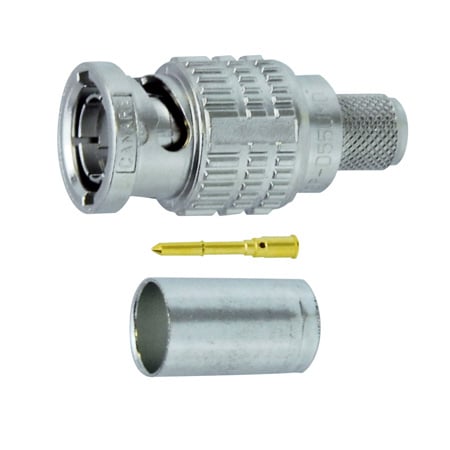

Canare BCP-D55UHD 12G-SDI 4K UHD 75-Ohm Crimp Plug BNC Connector for Canare L-5.5CUHD
  • Canare BCP-D55UHD 12G-SDI 4K UHD 75-Ohm Crimp Plug BNC Connector for Canare L-5.5CUHD
  • Canare BCP-D55UHD 12G-SDI 4K UHD 75-Ohm Crimp Plug BNC Connector for Canare L-5.5CUHD

Questions? Ask a Markertek Expert:
800-522-2025 Email

Canare BCP-D55UHD 12G-SDI 4K UHD 75-Ohm Crimp Plug BNC Connector for Canare L-5.5CUHD

Item #: BCP-D55UHD   •   MFG #: BCP-D55UHD



List Price:$3.72
Our Price:$3.58
Quantity Pricing

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Canare's BCP-D55UHD is their most advanced BNC plug that was developed for use with their 12G-SDI UHD video coax cable the L-5.5CUHD. The return loss at 12 GHz is 15 dB, 26 dB @ 3 GHz and 20 dB @ 6 GHz. The installation work on the cable is a crimp method which enables quick and reliable machining to go along with its Long sleeve shape, insulator locking mechanism, etc.


    • Specifications

      • Electrical Characteristics
      • Insulation resistance: 5000MΩ or more
      • Voltage proof: Without any damage such as electric breakdown etc.
      • Contact resistance - Between external contacts: 3mΩ or less contacts / Between center contacts: 6mΩ or less
      • Return loss-
      • 26.4dB or more (0 ~ 3GHz)
      • 20dB or more (0 ~ 6GHz)
      • 15dB or more (0 ~ 12GHz)

        Mechanical Characteristics
      • Intermatability: To be engaged without any abnormality
      • Fixing force of contact with lock mechanism: No displacement more than 0.5 mm
      • Strength of coupling mechanism: Coupling sleeve shall not be disconnected or no deformation shall be made
      • Cable connecting force: 200N or more for L-5.5CUHD
      • Mechanical operation (repeated) - Contact resistance: 10mΩ or less

        Environmental characteristics
      • Operating temperature -40°C ~ +85°C
      • Operating humidity: ~90%
      • Corrosion resistance (Salt mist)-
      • Appearance: By visual inspection, without noticeable rust.
      • Contact resistance: 50mΩ or less

        General
      • Weight (Approx): 14.5g
      • Crimp tool- Frame: TC-1 / Die: TCD-55UHD
      • Nominal impedance: 75Ω unbalanced
      • Applicable cable: Canare L-5.5CUHD
