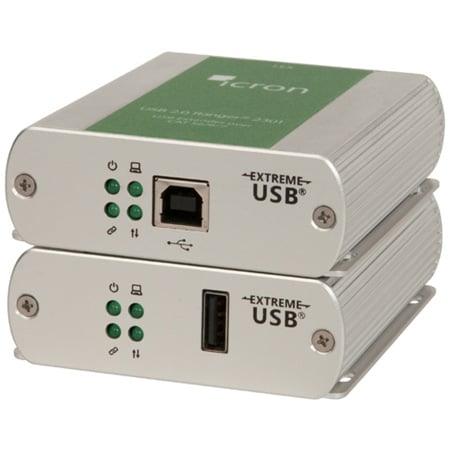

Icron 2301GE-LAN 1-port USB 2.0 Ethernet LAN Extender System

ITEM #: ICR-2301GE-LAN MFG #: 2301GE-LAN

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Icron
Free Shipping with $49 Minimum Order

List Price:

$412.00

Our Price:

$395.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    2301GE-LAN - Overview

    The Icron USB 2.0 Ranger® 2301GE-LAN extends high-speed USB 2.0 connections up to 100m over a GigE Local Area Network (LAN) or directly connect over CAT 5e/6/7 cabling. This 1-port USB 2.0 LAN extender with ExtremeUSB® is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

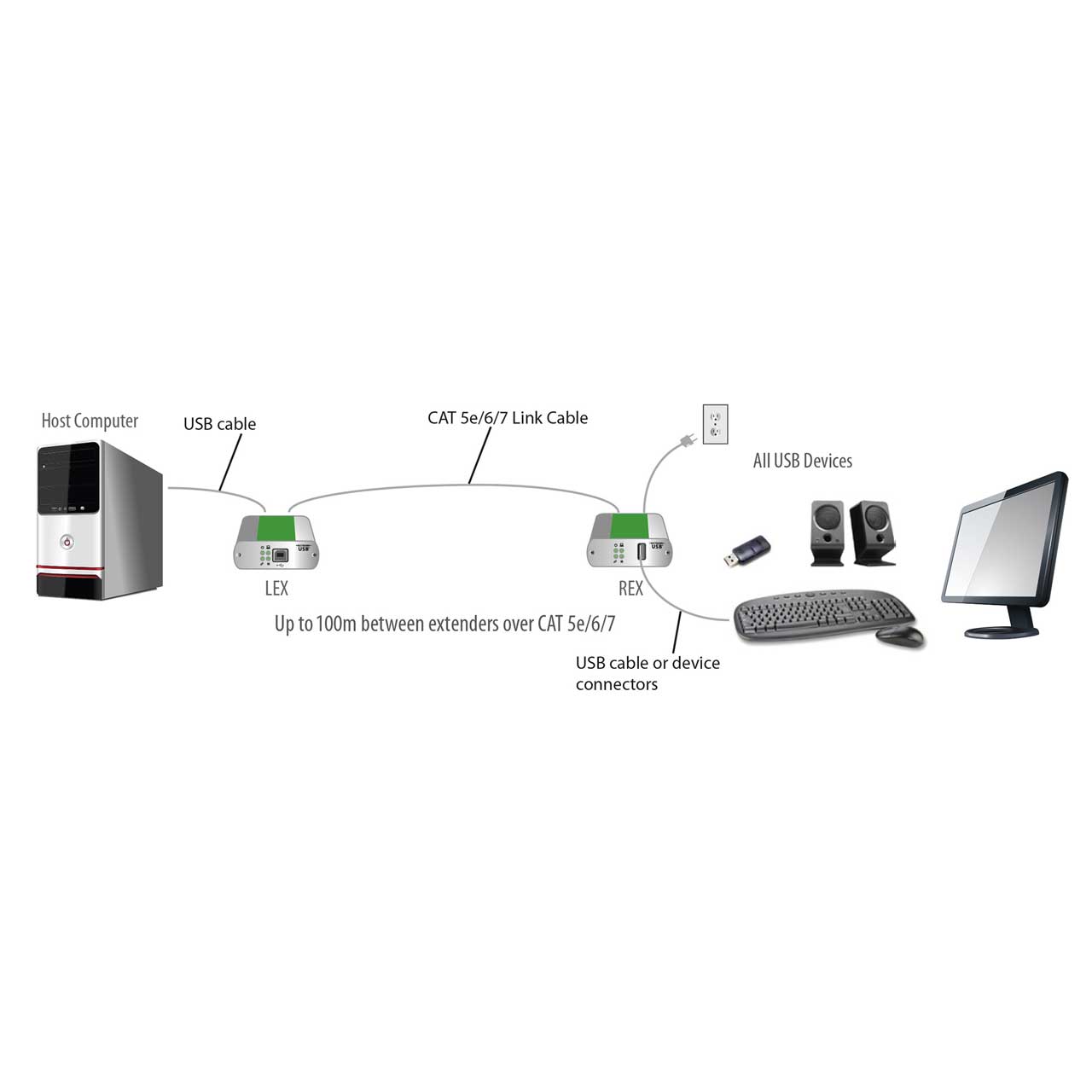

    The USB 2.0 Ranger® 2301GE-LAN allows users to extend USB 2.0/1.1 connections over a GigE LAN or single CAT 5e/6/7 cable up to 100m in point-to-point fashion. Extending over LAN saves on installation time and provides IT visibility.

    This 1-port USB 2.0 LAN extender supports data rates at up to 480 Mbps and is plug and play - no software drivers required - for all major operating systems: Windows®, macOSTM, and Linux®

    Additionally, this ExtremeUSB® based 1-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

    Applications:
    Remote storage
    Security and monitoring
    Professional Audio-Visual
    Keyboard and mouse

    • Features:

      • USB 2.0 throughput up to 480Mbps*
      • Pre-paired networked configuration** for simple installation
      • Supplies up to 1 Amp to USB port
      • Mass Storage Acceleration for USB 2.0 device bulk transfers
      • FCC/CE Class B
      • Includes the ExtremeUSB® suite of features:
        Transparent USB extension
        True plug and play; no software drivers required
        Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™


    • Specifications:

      • Range
      • Direct Connect: Up to 100m (330 ft) over solid core CAT 5e/6/7
      • Network Connect: Up to 100m (330 ft) between switches over solid core CAT 5e/6/7

        USB Device Support
      • Maximum Throughputs: USB 2.0: Up to 480Mbps*; USB 1.1: Up to 12Mbps
      • Traffic Types: All USB 2.0 and 1.1 Traffic Types (Control, Interrupt, Isochronous and Bulk)
      • Device Types: All USB 2.0 and 1.1 Device Types and Classes
      • Maximum Number: Up to 30 devices

        Networking
      • Standards: 1000BASE-T*
      • Data Traffic: Layer 2

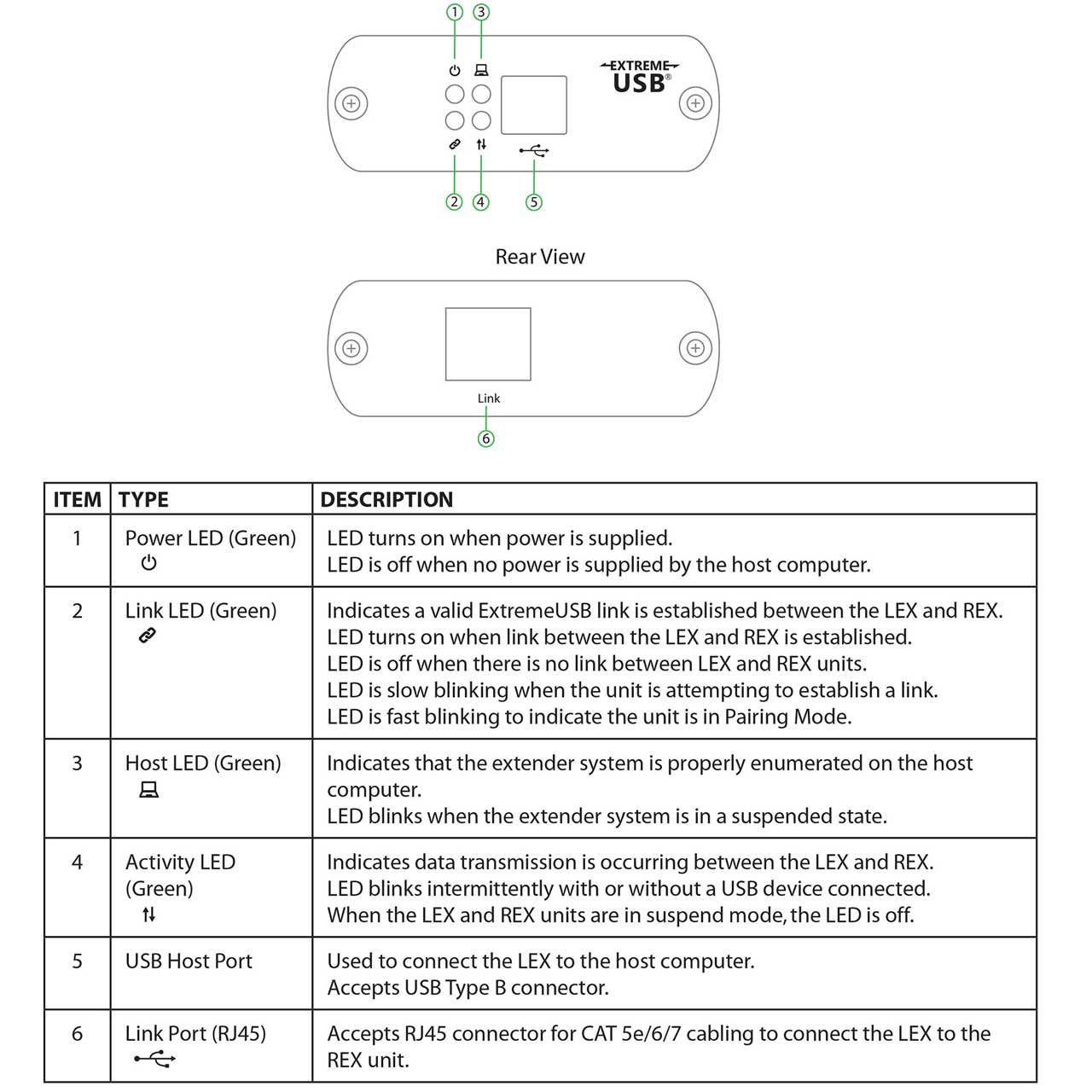

        LEX (Local Extender)
      • USB Connector: 1x USB Type B Receptacle
      • Link Connector: 1x RJ45
      • Dimensions: 86.0 x 75.0 x 26.0mm (3.4 x 3.0 x 1.0")
      • Enclosure Material: Silver Anodized Aluminum

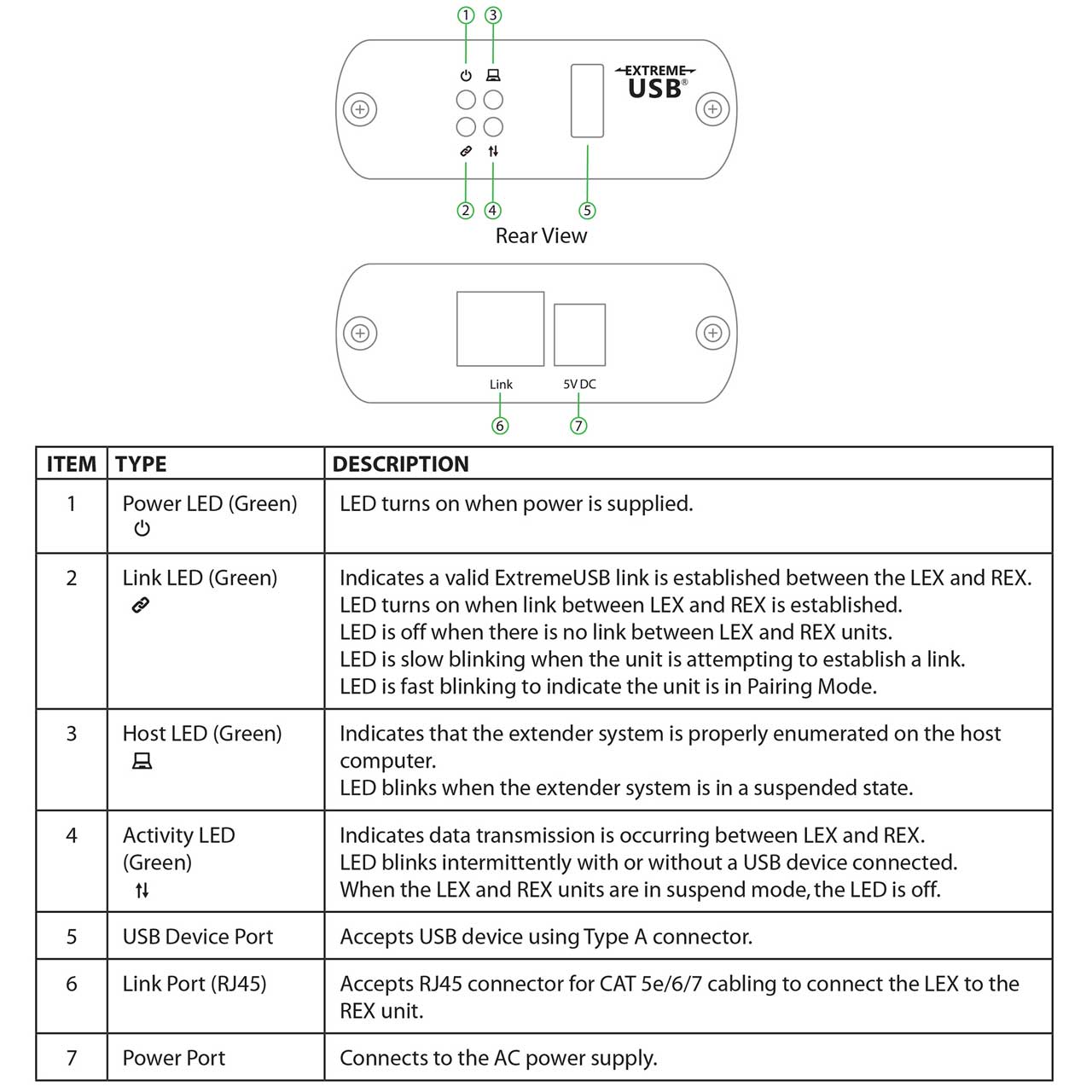

        REX (Remote Extender)
      • USB Connector: 1x USB Type A Receptacle
      • Link Connector: 1x RJ45
      • Dimensions: 86.0 x 75.0 x 26.0mm (3.4 x 3.0 x 1.0")
      • Enclosure Material: Silver Anodized Aluminum
      • Available Current: Up to 1 Amp to USB port
      • Power Supply: 100-240V AC Input, 5V 3A DC Output

        Environmental
      • Operating Temperature: 0°C to 50°C (32°F to 122°F)
      • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
      • Operating Humidity: 20% to 80% relative humidity, non-condensing
      • Storage Humidity: 10% to 90% relative humidity, non-condensing

        Compliance
      • EMC & Environmental: FCC (Class B), CE (Class B), RoHS2 (CE)


    • Item Includes:

      • Local Extender (LEX)
      • Remote Extender (REX)
      • 2 meter USB cable
      • Quick Start Guide
      • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)


    • Warranty:

      • 2 Year Warranty
