Icron Polaris 7044 4x4 USB 3-2-1 Matrix Switch - Supports USB 3.0/2.0/1.1

POLARIS7044 - Overview

• Features:

  • 4x4 (4 Upstream, 4 Downstream) USB Matrix
  • 24 possible configurations
  • Supports USB 3 5Gbps and USB 2.0/1.1
  • 15W of power per USB-C Device Port
  • 6W of power per USB-A Device Port
  • RS232 and Network API
  • RS232, LAN Control with Web GUI interface
  • SSH Secure Login
  • 2 Polaris per single 19" rack space


• Specifications:

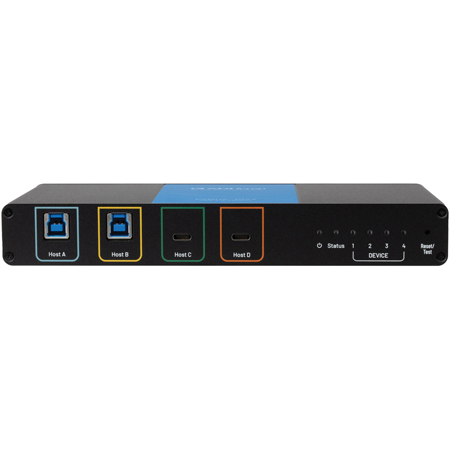

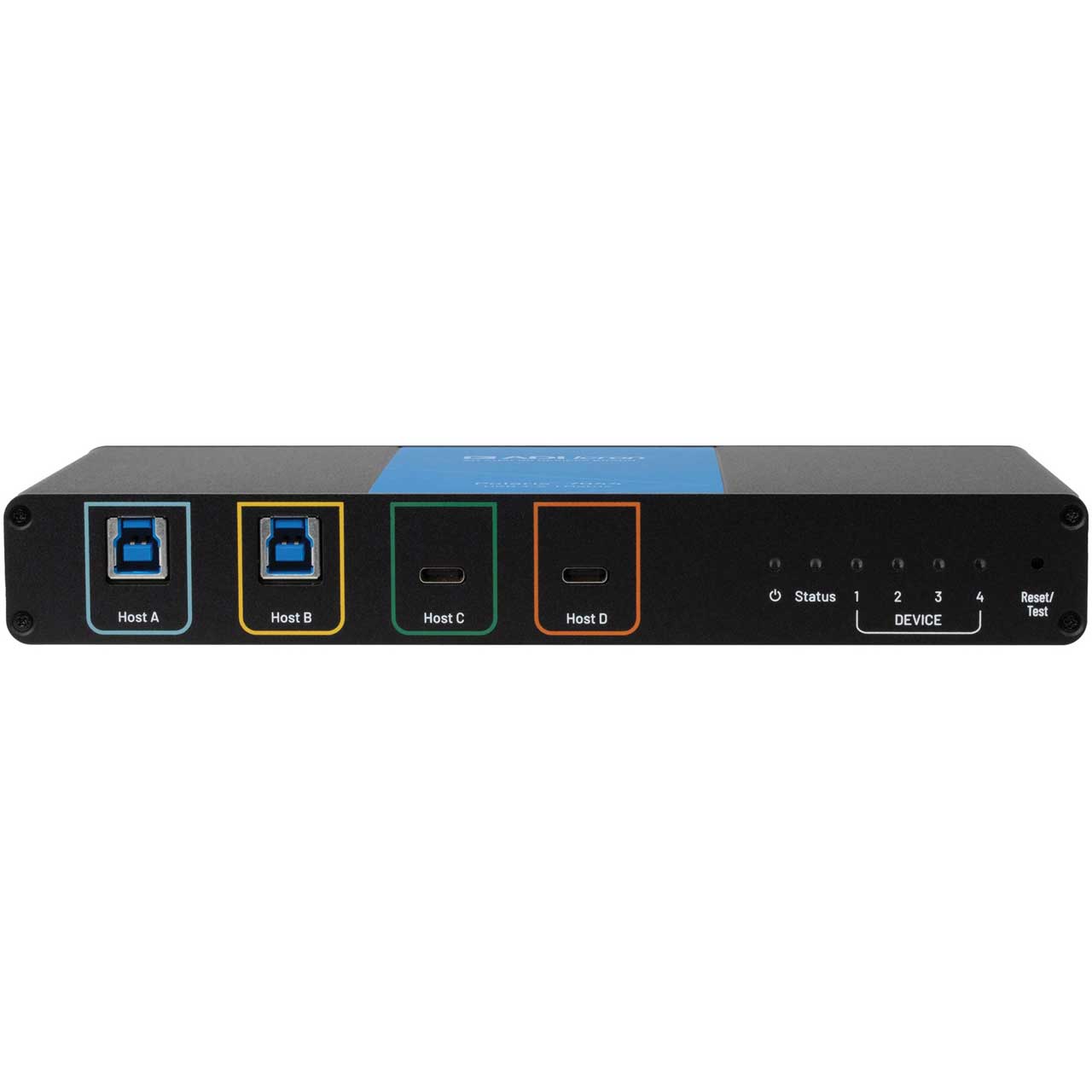

  • Host Upstream Ports: 2x USB-B Ports, 2x USB-C Ports

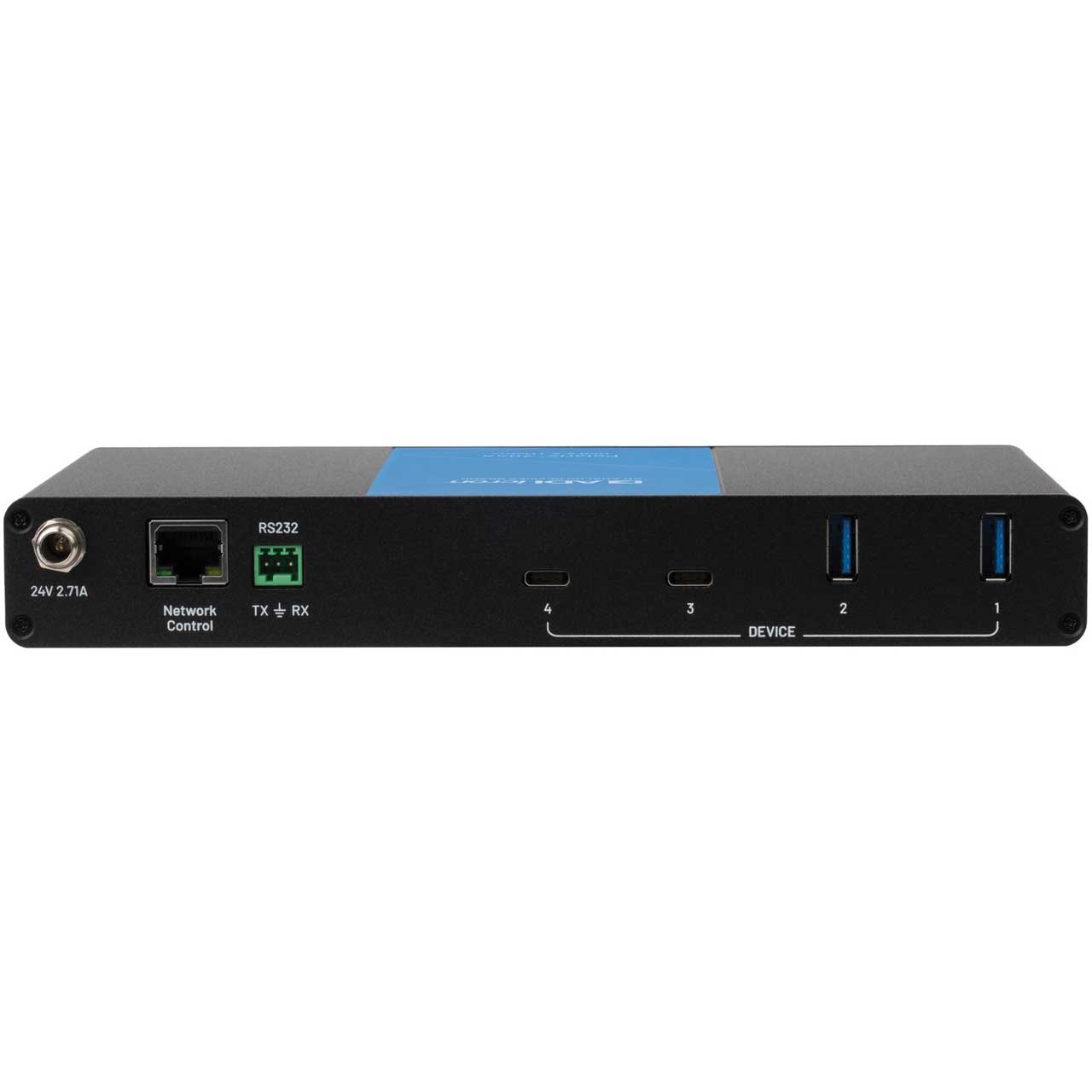

  • Device Downstream Ports: 2x USB-A Ports, 2x USB-C Ports
  • Traffic Types: Supports all USB Traffic Types
  • Device Types: Supports all USB Device Types
  • Available Power: 15W per USB-C Port, 6W per USB-A Port
  • Hub Tiers Used: 1
  • Network: 100BASE-T
  • Control: 1x RJ45, 1x 3-Pin RS232
  • Power Supply: 100-240V AC Input, 24V 2.71A DC Output
  • Enclosure Material: Black Anodized Aluminum
  • Dimensions (W x D x H): 212.5mm x 125mm x 30mm / 8.37" x 4.92" x 1.18"
  • Weight: 2.4 lbs (1.08 kg)
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -4°F to 158°F (-20°C to 70°C)


• Item Includes:

  • 1x Polaris 7044 Matrix
  • 1x 24V 2.71A International Power Adapter
  • 1x Country Specific AC Power Cord
  • 1x RS232 Mating Connector
  • 1x Default Values Label (to affix where desired)
  • 1x Quick Start Guide


• Warranty:

  • 2-Year Warranty
