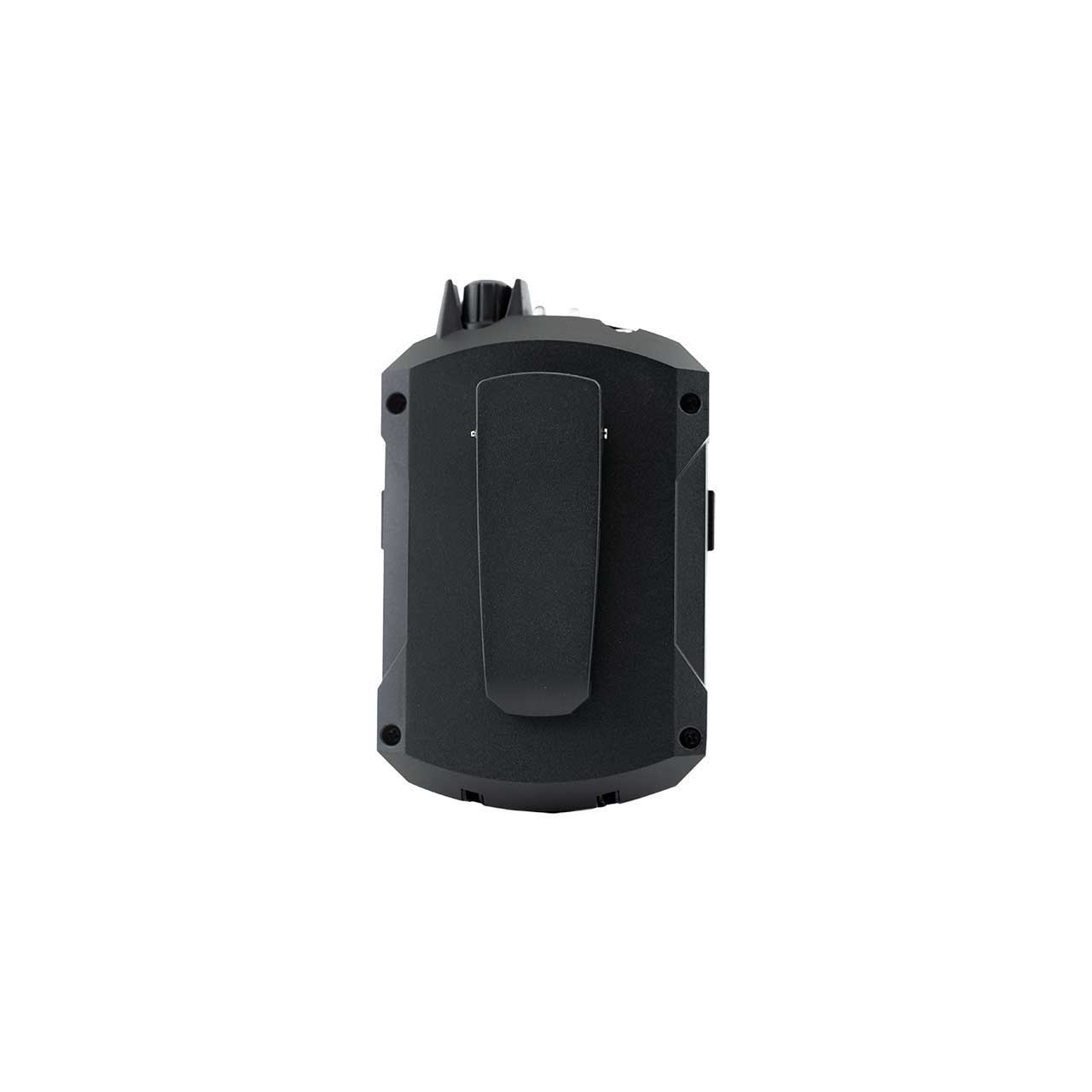

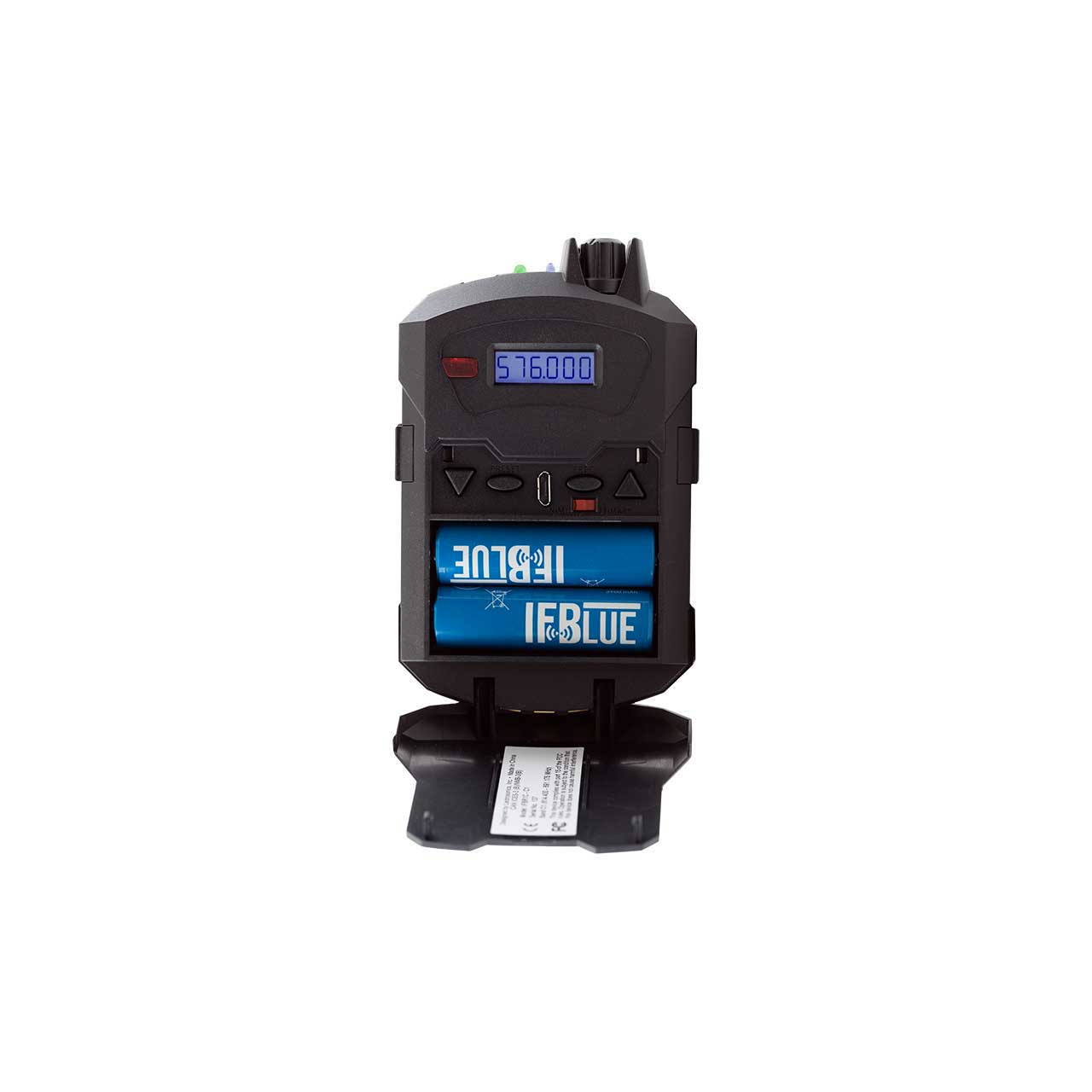

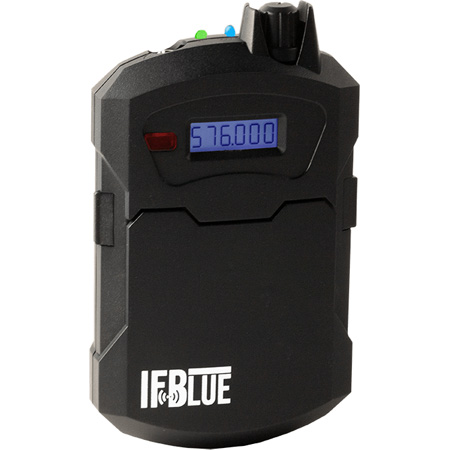

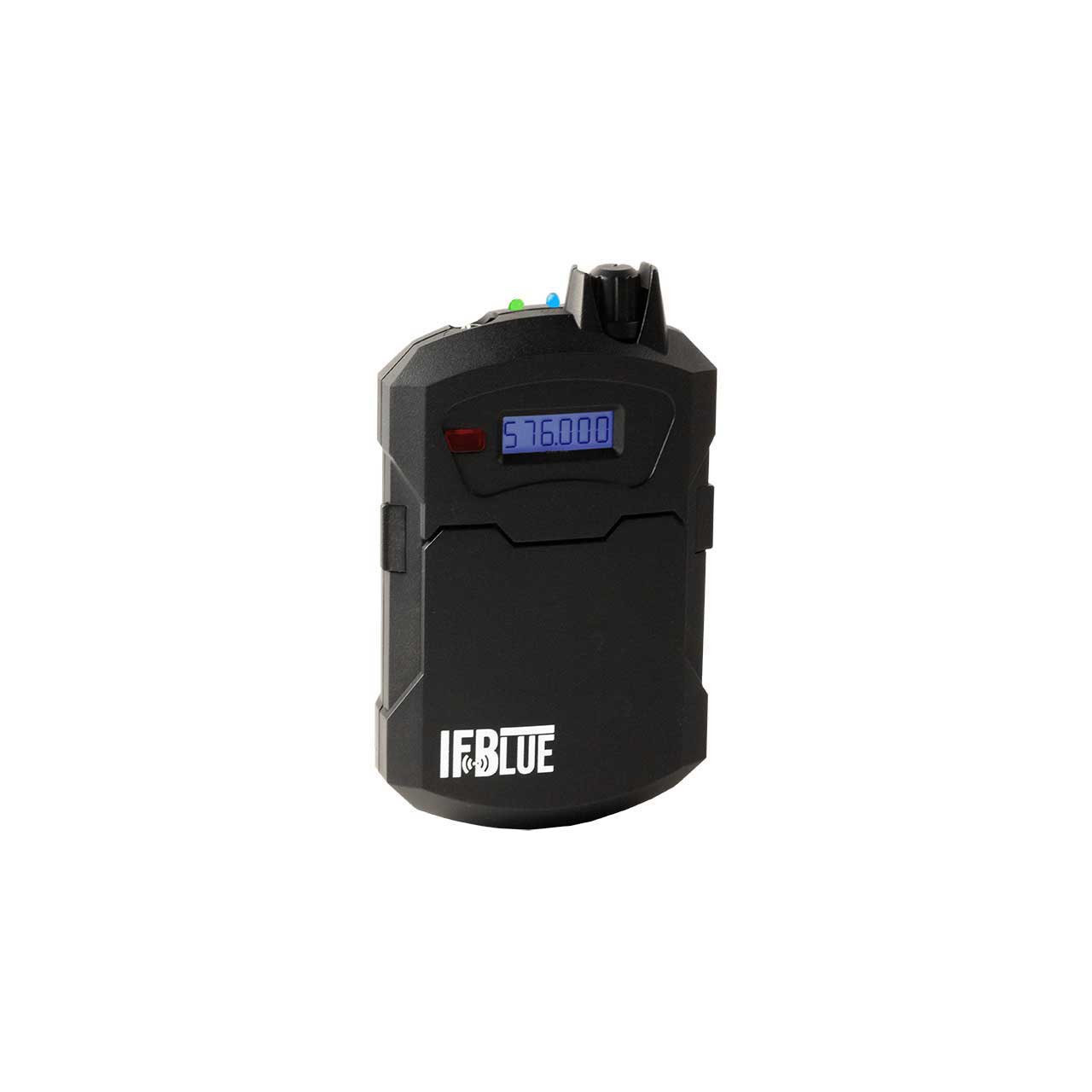

IFBlue IFBR1C UHF Multi-Frequency Belt-Pack IFB Wireless Mic Receiver - 174-216 MHz


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    IFBR1C-VHF - Overview

    The IFBlue IFBR1C receiver provides simplicity and flexibility in a tough package that is intuitive for untrained users to operate. In spite of its small size, the receiver pack offers excellent performance and convenience. The dock charging feature and supplied rechargeable batteries make daily use a snap, while 10 programmable preset frequencies give you excellent flexibility on set or in the studio.

    The design uses +/-20 kHz FM deviation for efficient use of the bandwidth, with a compandor noise reduction circuitry for an excellent signal to noise ratio. A ultrasonic Pilot Tone signal controls the audio output squelch to keep the receiver silent when no transmitter signal is being received. The incoming RF signal is filtered and amplified, then mixed down to the IF frequency with a microprocessor controlled synthesizer. If a monaural earpiece is connected, this condition is automatically accommodated, with no loss of audio output power or battery life. Full audio output power is available with either type of connector, without the power losses that result from a resistive circuit design. The headphone cable doubles as the receiving antenna.

    The receiver will drive a wide variety of earbuds, headphones, and induction neck loops at substantial levels, with loads from 16 Ohms to 600 Ohms.

    The receiver operates on AA batteries that will provide more than 12 hours of operation. The LED indicator changes color from green to red as the battery voltage declines to provide plenty of warning before operation ceases. Inside the battery door is a USB port for firmware updates in the field.

    The IFBR1C is housed in a durable, injection molded package. An attached beltclip is included and provides a secure mounting on a wide variety of belts, pockets and fabrics.

    The IFBlue receiver pack is offered in five different frequency ranges to match existing T4 transmitters: VHF (174-216 MHz), A1 (470-537 MHz), B1 (537-614 MHz), C1 (614-692 MHz) and 941 (941-960 MHz). Transmitters available from Lectrosonics include the IFBT4, IFBT4-VHF, or any Digital Hybrid Wireless transmitter in IFB compatibility mode.

    • Features:

      • Compatible with Lectrosonics IFB transmitters including Hybrid transmitters in IFB mode
      • Presets - Stores up to 10 frequency presets in memory
      • Interface - LCD interface for programming and operation
      • Range - High sensitivity for extended operating range indoors or outdoors
      • Connectivity - USB port for firmware updates
      • Durable - Compact, Rugged Injection Molded Abs Housing
      • Power - 2 AA batteries; alkaline, lithium, or NiMH rechargeables (supplied)
      • Attached battery door
    • Specifications:

      • Operating Frequencies (MHz)
      • Band A1: 470-537 MHz
      • Band B1: 537-614 MHz
      • Band C1: 614-692 MHz
      • Block 941: Locale 941-960 MHz
      • VHF: 174-216 MHz

      • Frequency Selection Steps: 25 kHz; VHF: 125 kHz
      • Sensitivity: 1 uv (20 dB SINAD)
      • Signal/Noise Ratio: 95 dB A-weighted
      • Squelch Quieting: 90 dB
      • AM Rejection: 50 dB, 10 uV to 100 mV
      • Modulation Acceptance: ±20 kHz
      • Spurious Rejection: Greater than 70 dB
      • Operating Temperature Range: -20 to 50 degrees C.
      • Third Order Intercept: 0 dBm
      • Frequency Response: 100 Hz to 10 kHz, (+/-1 dB)
      • Audio Output: 1V RMS into 50 ohms minimum
      • Antenna: Headphone cable
      • Min. Headphone Impedance: 16.0 Ohms
      • Programmable Memory: 10 frequencies can be stored as presets

      • Top Panel: Single knob controls Audio Output Level and Power On
      • Side Panel: Membrane switches with LCD interface for Frequency
      • Selection and Preset function

      • Indicators: Multi-color LED indicator for power on and battery status
      • Battery: Two AA batteries (+1.5 VDC each)
      • Battery Life: 10 hours (Alkaline) 12 hours (NiMh), 20 hours, 40 minutes (Lithium)
      • Current Consumption: 120 mA
      • Weight: 4.6 oz (130 g) with batteries
      • Size: 4.25 x 2.75 x 1.125 in.
    • Item Includes:

      • 1x IFBlue IFBR1C UHF Multi-Frequency Belt-Pack IFB Receiver - 174-216 MHz
