Ikan PT419W-PTZ-TM-PEDESTAL 19 Inch Widescreen SDI PTZ Teleprompter with Widescreen Talent Monitor/Pedestal and Dolly

ITEM #: IKAN-419WPTZTMP MFG #: PT419W-PTZ-TM-PEDESTAL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$7,599.00

Our Price:

$7,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT419W-PTZ-TM-PEDESTAL - Overview

Ikan's PT419W-PTZ-TM-PEDESTAL professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The included teleprompter hood fully encloses the PTZ camera allowing it to move freely inside the hood. The teleprompter features a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The widescreen monitor includes SDI, HDMI, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The widescreen monitor also features a wide viewing angle and a 19" widescreen SDI talent monitor with a built-in tally light.

PTZ Teleprompting

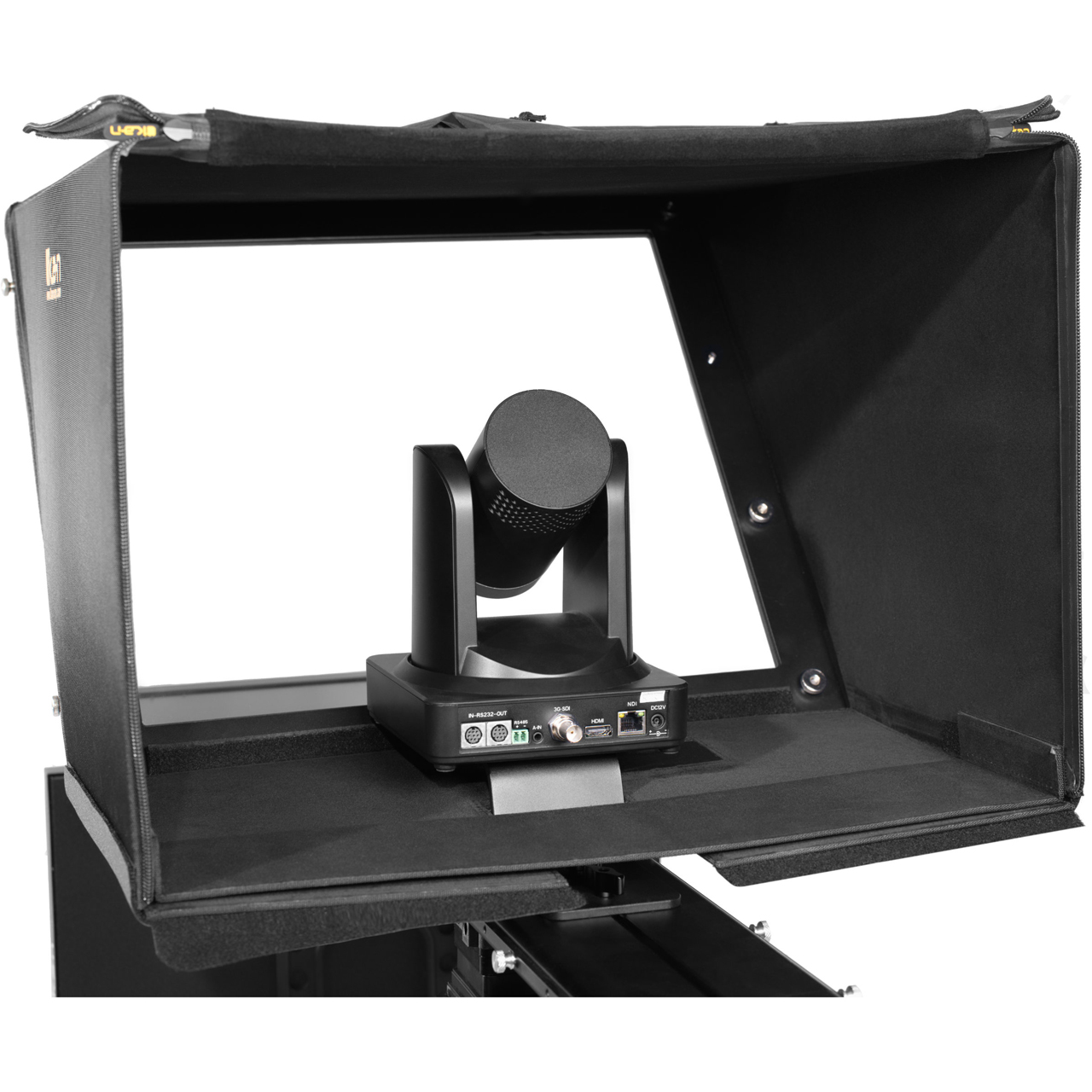

The Ikan PTZ Teleprompter system is a unique PTZ teleprompting system that enables the PTZ camera's pan, tilt and zoom capabilities while still behind the reflective teleprompter glass. You can easily pan the camera between multiple people reading from the same script.

High-Bright Widescreen Teleprompter Monitor
The 1000 nit high bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor. The widescreen monitor features SDI, HDMI, and VGA inputs. The native resolution is 1920 x 1080 and the max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly.

Widescreen Talent Monitor

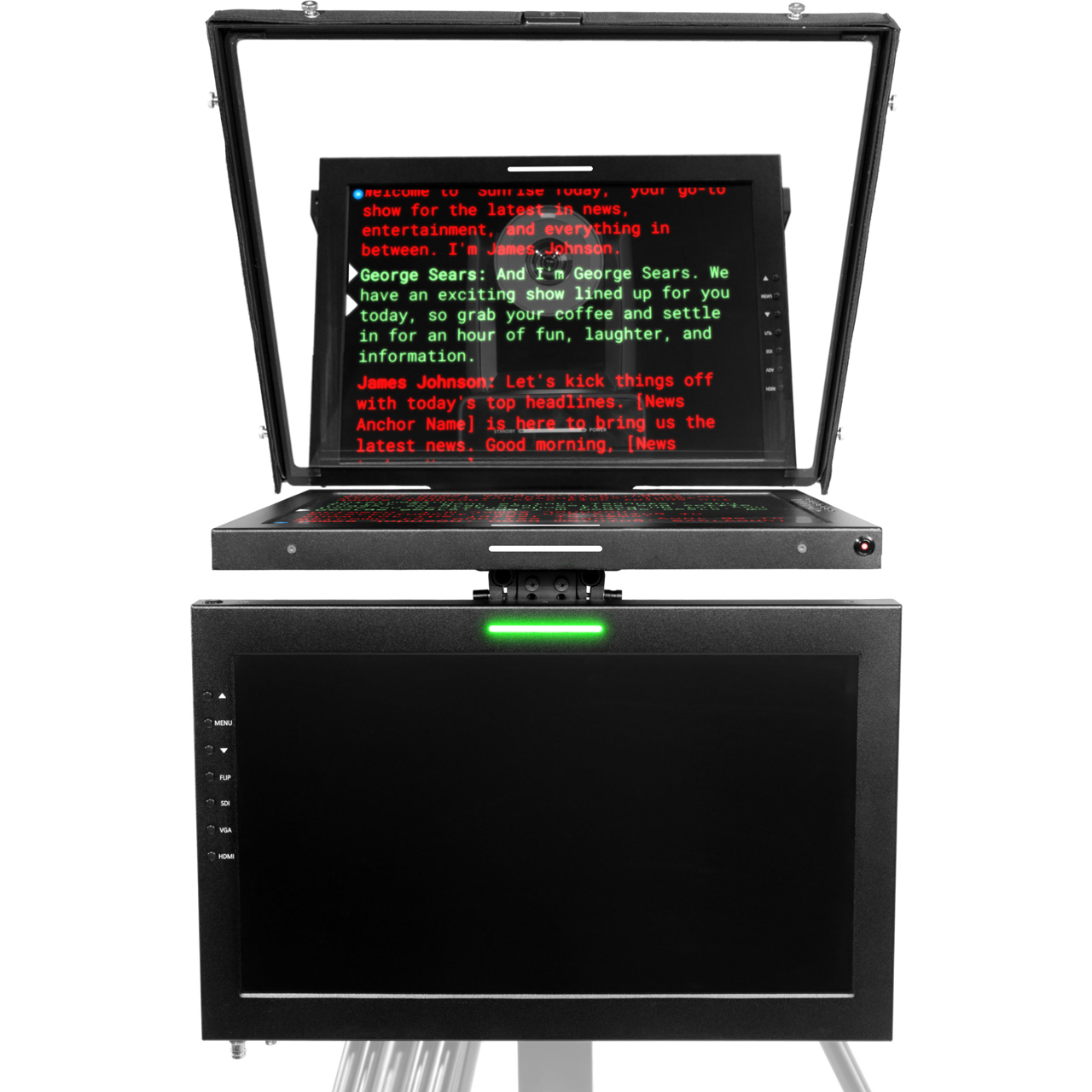

The 19-inch Widescreen Talent Monitor is designed to conveniently attach below the teleprompter to enable on-screen talent see their presentations live. The monitor features 3G-SDI, HDMI, and VGA, inputs. The native resolution is 1920 x 1080 HD and max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. When plugged into a compatible video switcher, the talent monitor utilizes a red/green tally light that lets you know when your camera is live. The talent monitor includes a 15mm mounting system that connects it to the teleprompter.

  • Features:

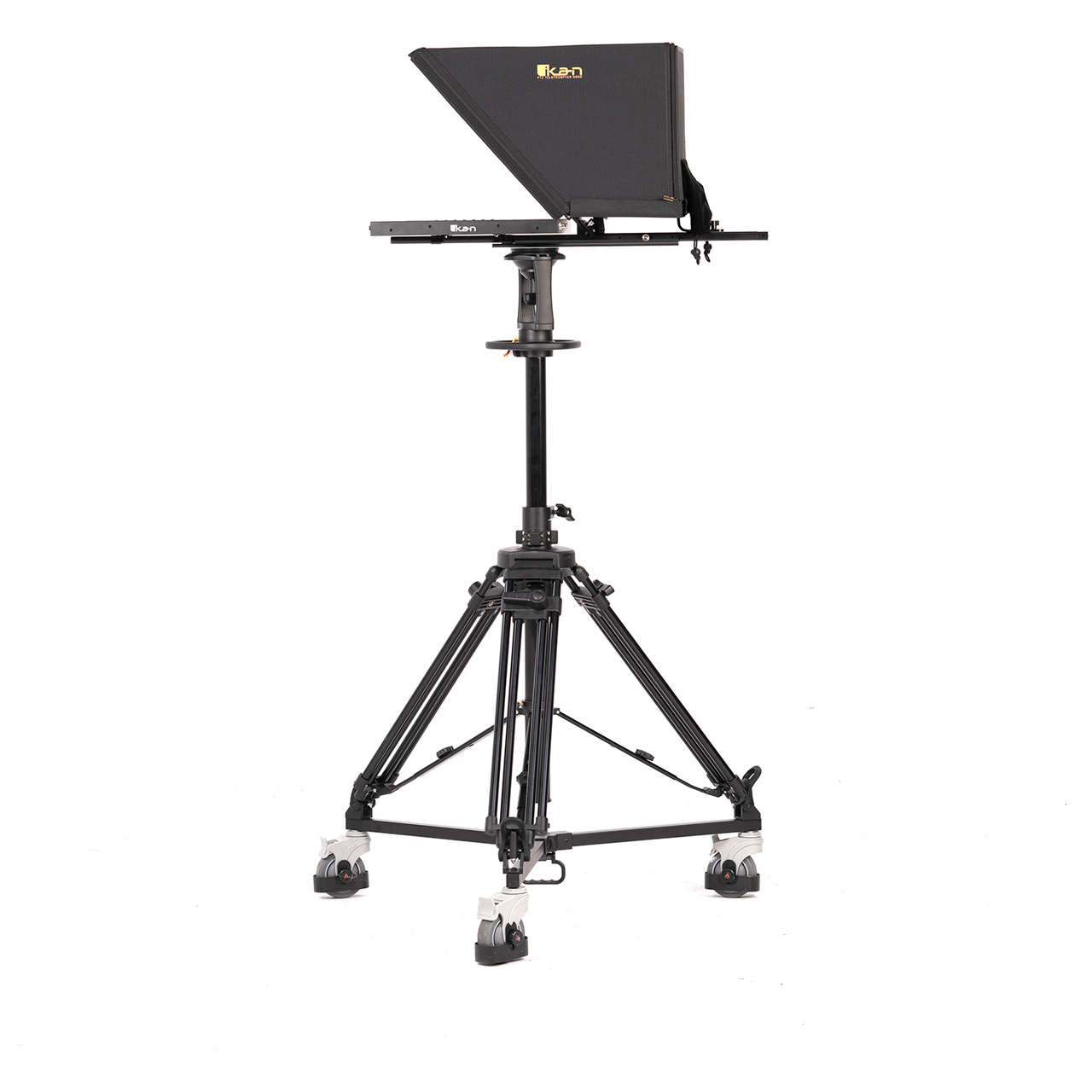

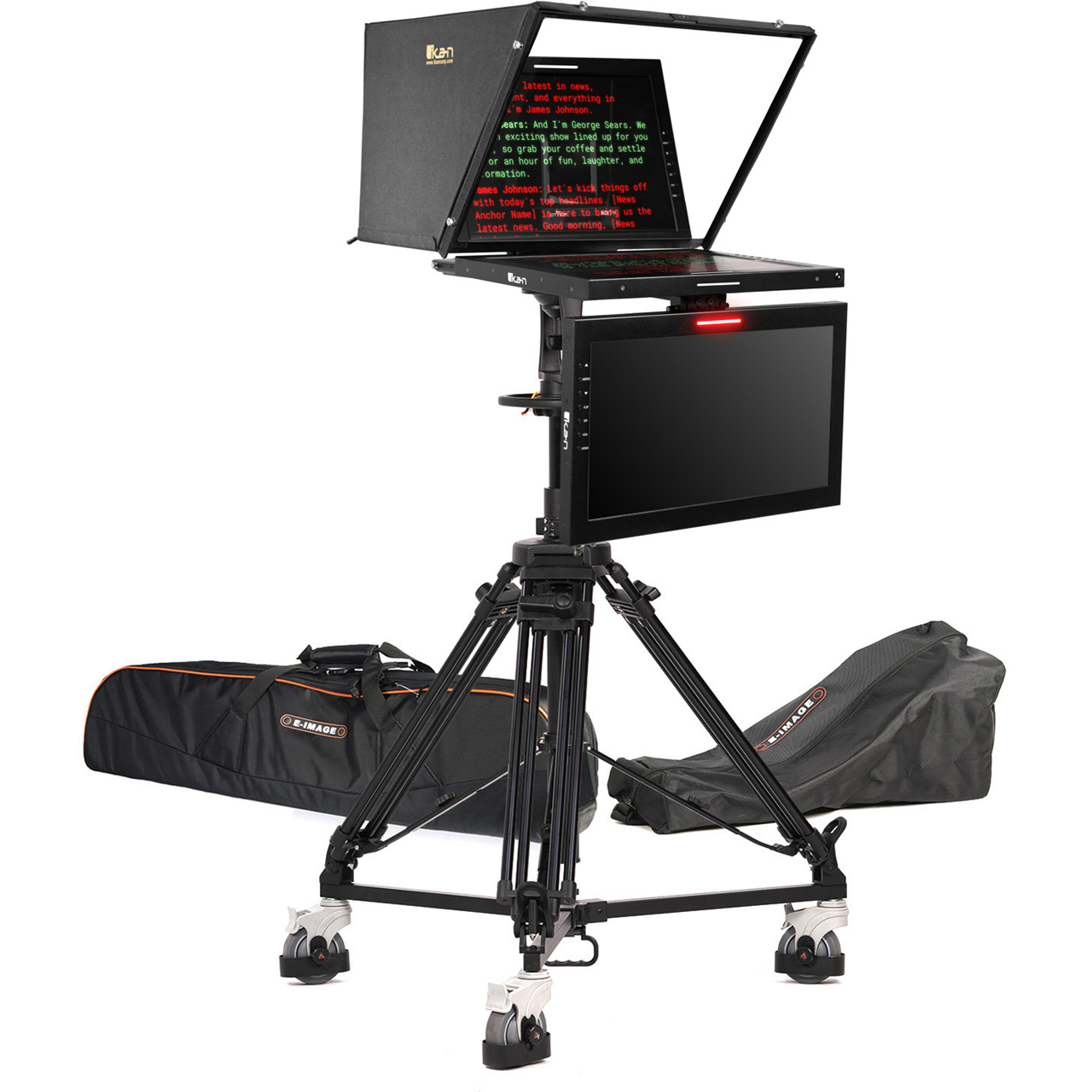

    • Includes 19" Widescreen PTZ Teleprompter & Talent Monitor, Pedestal, & Dolly
    • Widescreen Monitor w/ Dual Tally
    • Accommodates Camera Payloads up to 12.3 lbs
    • For Use in Studios, Live Events, & Virtual Productions

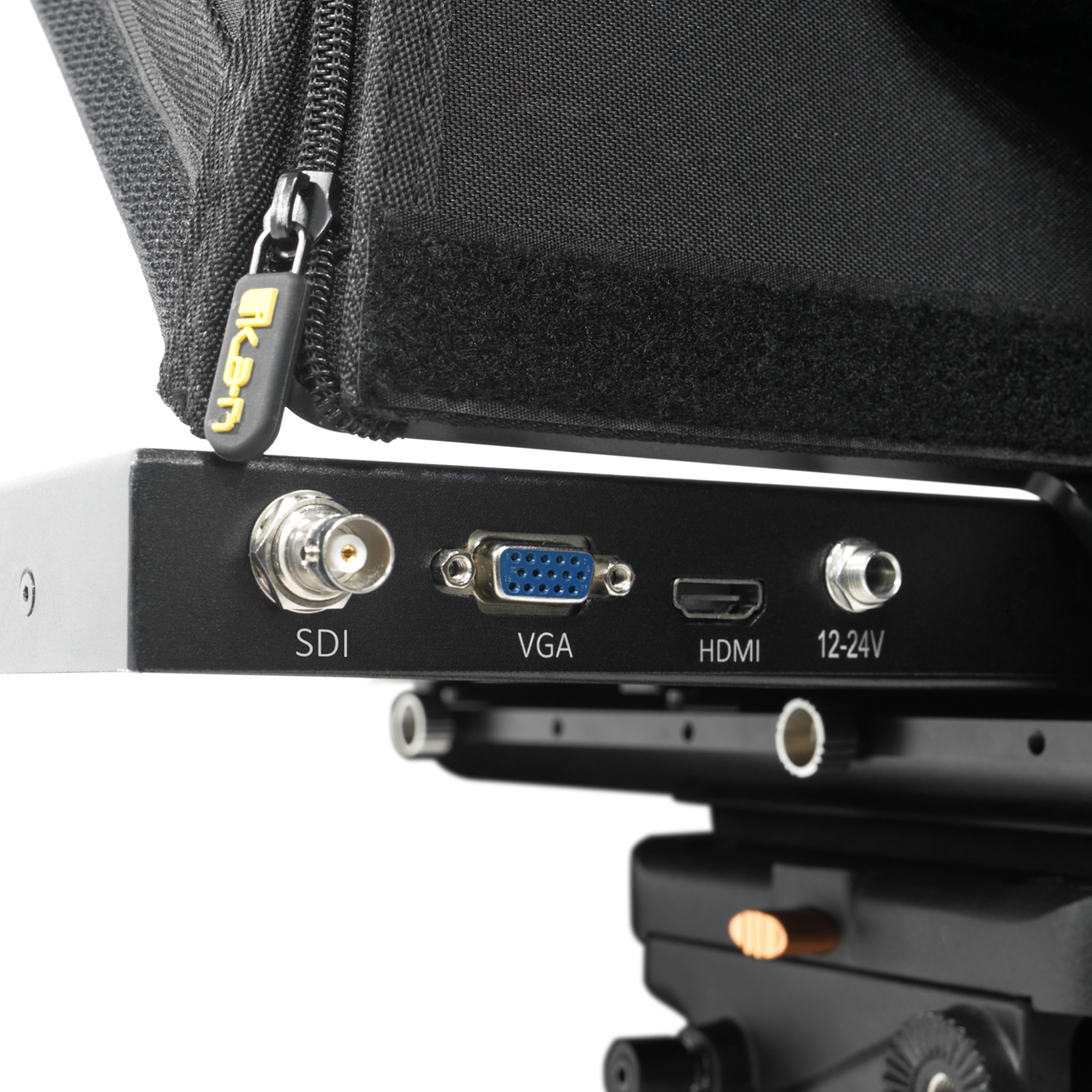

    • Video Inputs: HDMI, VGA, 3G-SDI
    • Dolly w/ Cable Guards
    • Ultra-Secure HoodCarrying Bags for Pedestal & Dolly
    • 55 Degree Angled Glass for Wider Field of View
    • Aluminum Chassis
    • Built-in Tally Light for On Air Status
    • Dual Tally Lights

  • Specifications:

    • Pedestal
    • Bowl Size: 100mm
    • Payload Capacity: 44 lbs (19.95 kg)
    • Height Range: 40.2" - 72.6" (102 cm - 184.5 cm)
    • Build Material: Aluminum
    • Net Weight: 34.8 lbs (15.8 kg)
    • On-Shot Stroke: 12.6" (32 cm)
    • Steering Ring Diameter: 7.67" (195 mm)

      Dolly
    • Net Weight: 15 lbs (6.8 kg)
    • Footprint Diameter: 39.4" (100 cm)
    • Cable Guard Diameter: 4.92" (12 cm)
    • Height: 6.7" (17 cm)
    • Radius: 19.7" (50 cm)
    • Wheel Width: 3.9" (100 mm)
    • Lockable Wheels: Yes
    • Build Material:
      - Legs: Aluminum
      - Wheels: Rubber
      - Screws: Steel
    • Payload: 132.3 lbs (60 kg.)

      Teleprompter Base System
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Reading Range: 25 ft. (7.62 m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts: 11" x 1/4" -20 Female / 9" x 3/8" -16 Female
    • Weight of Teleprompter Base: 16 lbs
    • Weight of Low Plate: 1 lbs
    • Weight of High Plate: 1.38 lbs
    • Weight of DSLR Plate: 0.748 lbs
    • Height of Teleprompter: 16.1" (411mm)
    • Country of Origin: Taiwan

      19 in Widescreen Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 5A
    • Power Consumption: 36W
    • Weight of Monitor: 5.73 lbs
    • Product Dimensions: 18.3" x 12.3" x 1.2"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Interface: RJ45

      19 in Widescreen Talent Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 5A
    • Power Consumption: 36W
    • Weight of Monitor: 5.73 lbs
    • Product Dimensions: 18.3" x 12.3" x 1.2"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Interface: RJ45

      PTZ Teleprompter Add-on Kit
    • Height of PTZ Riser: 51 mm
    • Weight of PTZ Riser: .58 lbs
    • Dimensions of PTZ Hood:
      - Top: 19.06" x 15.31"
      - Bottom 8.16" x 15.31"
      - Height: 12.56"
    • Material of Hood: Polyester Canvas
    • Material of PTZ Riser: Aluminum
    • Weight of PTZ Hood: 3.3 lbs
    • Net Weight of Full PTZ Add-on Kit: 3.88 lbs

  • Item Includes:

    • 1x Teleprompter Base
    • 1x 19 in SDI Widescreen Teleprompter Monitor
    • 1x 19 in SDI Widescreen Talent Monitor
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x PTZ Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 1x Power Supply
    • 1x Prompter Pro 4 Digital Download
    • 1x AT7903 Pedestal
    • 1x EI-7004B Dolly w/ Cable Guards
    • 1x T30 Tripod Carrying Bag
    • 1x 100BF Flat Base
    • 1x DB-01 Dolly Carrying Bag

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0847983036479
