Ikan PT4700-TK-V2-PEDESTAL 17 Inch HDMI VGA Composite Turnkey Teleprompter System with Pedestal Dolly & Hard Travel Case

ITEM #: IKAN-4700TKV2PED MFG #: PT4700-TK-V2-PEDESTAL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$13,849.00

Our Price:

$13,599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT4700-TK-V2-PEDESTAL - Overview

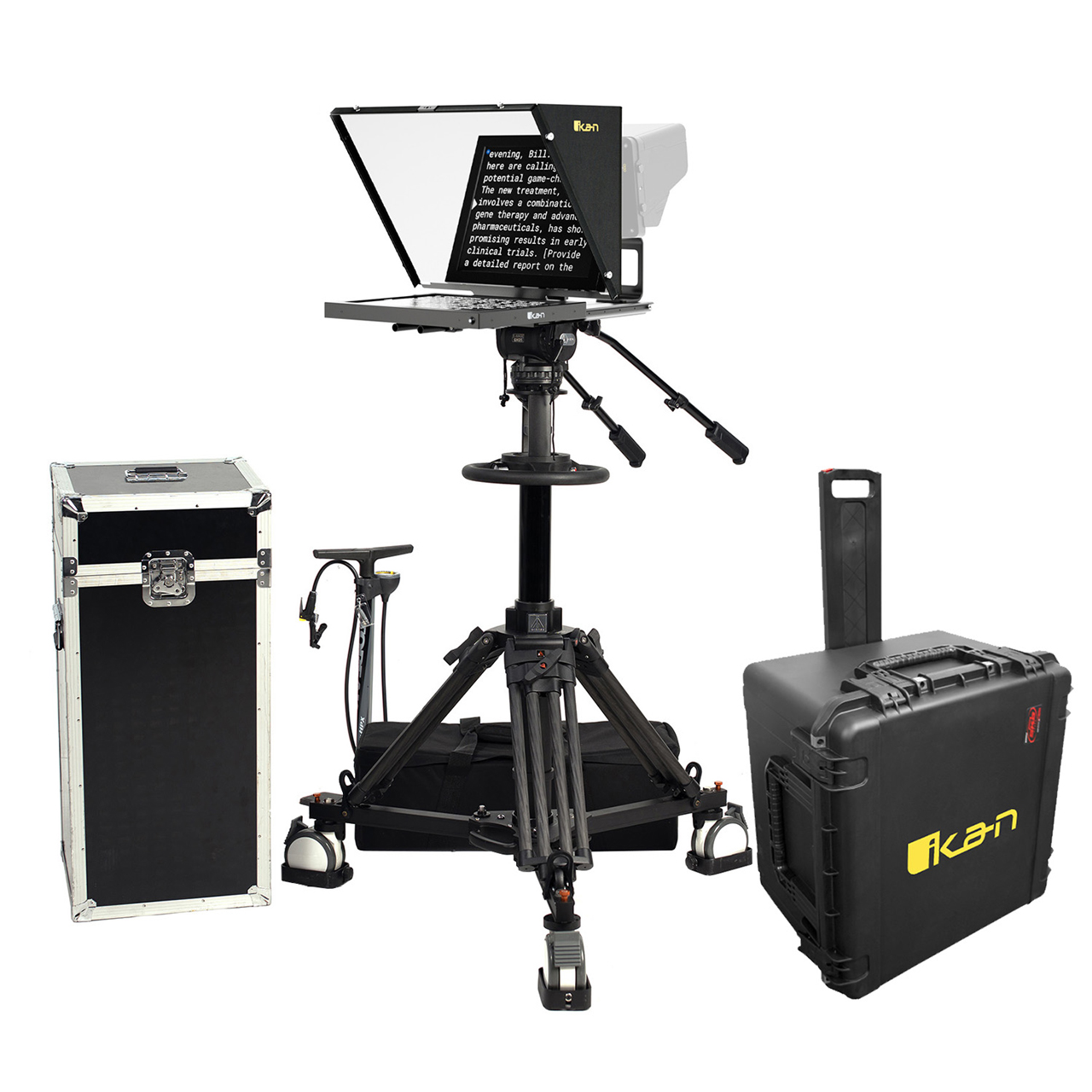

The Ikan PT4700-TK-V2-PEDESTAL includes everything you need for your professional camera setup. This solution includes a 17" teleprompter, pedestal, and dolly. All of the systems have been tested internally for payload compatibility. The remaining payload capacity, after mounting the full 17" teleprompter, can accommodate camera setups up to 39.4 lbs. This solution also includes a rolling hard case for the pedestal and a carrying bag for the dolly. It also includes a rolling hard case for the teleprompter system.

Pneumatic Pedestal
The EP880SK Pneumatic Pedestal Kit is a high-quality support system designed for location broadcast and studio camera operators seeking professional performance at an affordable price. It features the E-Image Mono-Lock leg design and an Easy Lock base plate system for quick and reliable setup. The fluid head includes 15-step adjustable counterbalance, 8-step pan and tilt dampening, and dual panhandles for precise shot control. With a 100mm bowl mount and a pneumatic pedestal capable of supporting up to 61.7 lbs, it provides excellent stability and versatility. The heavy-duty dolly with track lock wheels enables smooth dolly shots, including radial arcs, for dynamic camera movements.

17 Inch Teleprompter
This professional-grade teleprompter is designed for quick and efficient setup in studio and broadcast environments. It features a 17-inch high-bright monitor with HDMI, Composite, and VGA inputs, ensuring clear visibility in any lighting condition. The 65/35 beam splitter glass provides a high-quality reflection for presenters while maintaining color-neutral image capture for cameras. Built with a durable yet lightweight aluminum chassis, it includes multiple mounting points for tripods or pedestals and an adjustable base for easy balancing. Additional features such as an intuitive image flip button, a secure hood for larger lenses, and reusable custom-cut foam packaging make it a versatile and reliable solution for professional productions. This unit also comes with a rolling SKB case with custom cut foam for the entire teleprompter system.

  • Features:

    • GH25 Fluid Head Supports 61.7 lbs. Camera Payload
    • 100mm Riser Bowl
    • Pedestal Working Height Range 43.5 - 72"
    • Tripod Max Payload 61.1 lbs.
    • Pneumatic Telescoping Center Column
    • Collapsible Wheeled Spreader w/ Cable Guards
    • Dolly Spreader w/ Track Lock Wheels
    • Sliding Base Plate with Safety Lock
    • Positive Leg Locking System
    • Pan and Tilt Locks
    • Heavy Duty Telescoping Pan/Tilt Arms
    • Two-Stage Carbon Fiber Tripod Legs

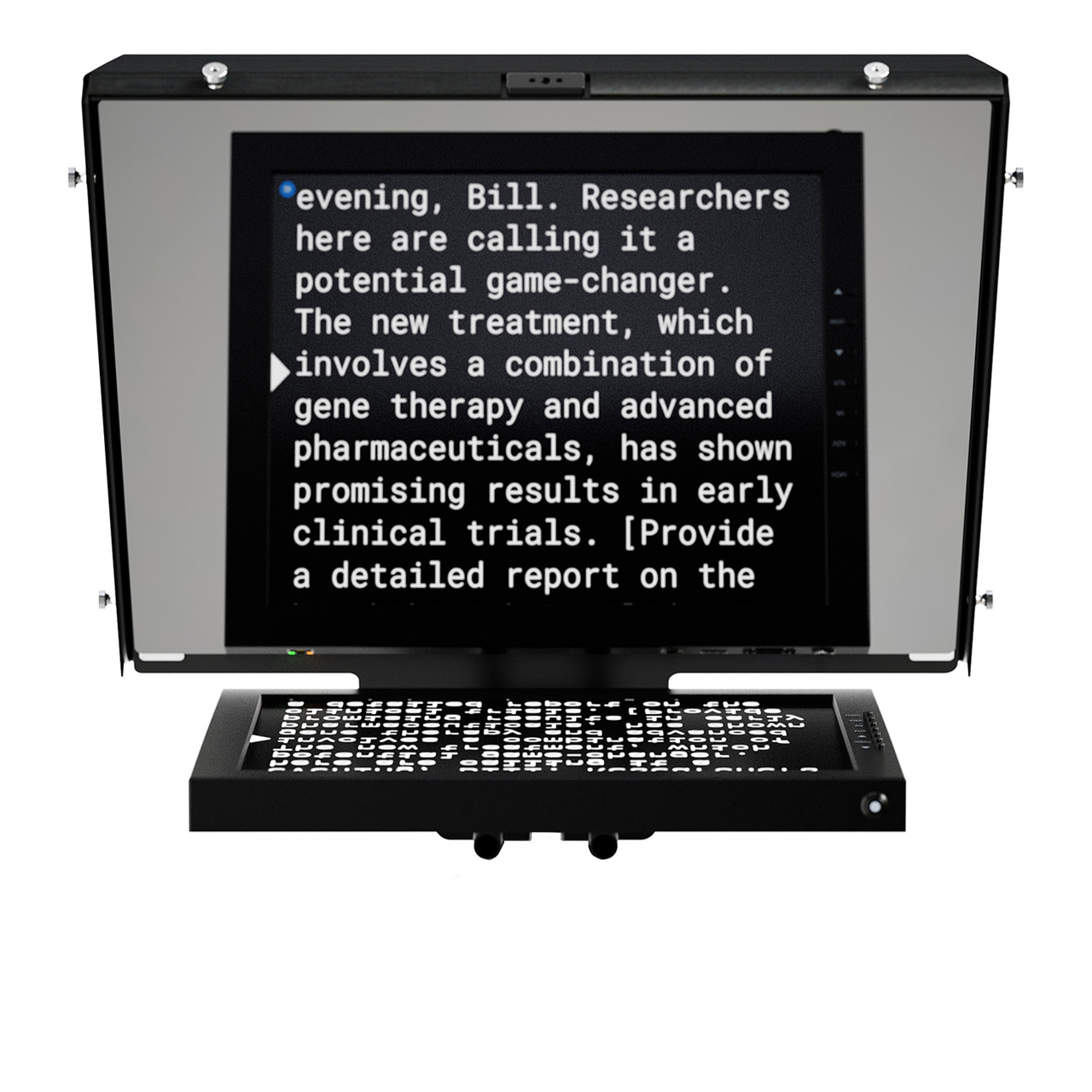

    • 17" Professional Teleprompter
    • Includes Hard Travel Case with Wheels

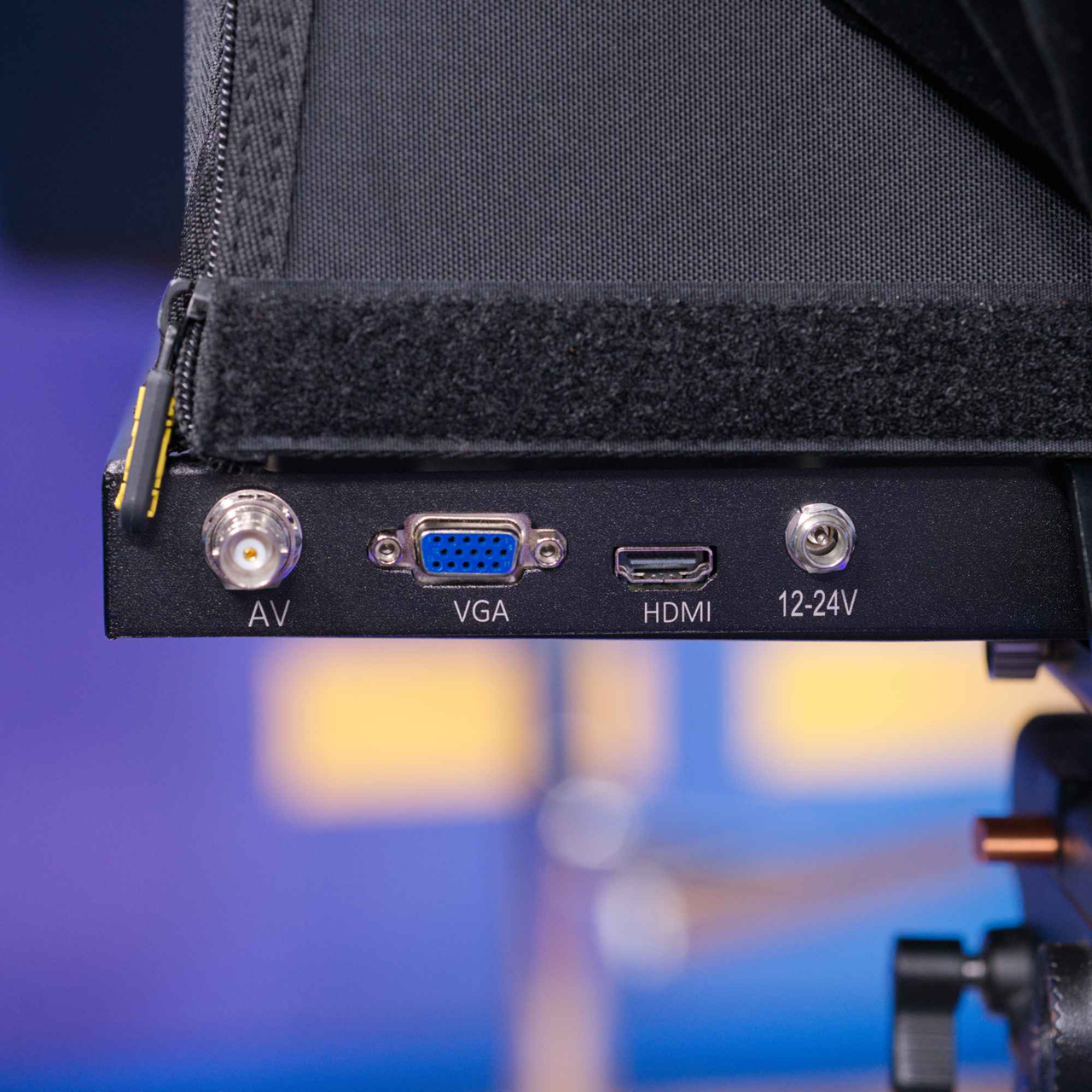

    • HDMI, Composite, & VGA Inputs
    • 1000-Nit High Bright Teleprompter Monitor
    • High-Quality American Made 65/35 Beam Splitter Glass
    • Screen Readable from up to 20'
    • Multiple Camera Mounting Options
    • Adjustable Base
    • Image Flip
    • PrompterPro Software for MAC & PC is FREE with this Teleprompter

  • Specifications:

      Pedestal
    • Bowl Size: 100mm
    • Payload Capacity: 66lbs (30kg)
    • Height Range: 40.4" - 71.1" (with GH25 Head)
    • Net Weight: 52.7lbs (23.9kg)
    • On-Shot Stroke: 15" (38cm)
    • Steering Ring Diameter: 12.04" (306mm)

      Fluid Head
    • Head Payload Capacity: 61.7lbs (28kg)
    • Bowl Size: 100mm
    • Counterbalance System: Stepped, 1-15
    • Pan Drag Settings: 0-7
    • Tilt Drag Settings: 0-7
    • Tilt Lock: Thumb Lock
    • Tilt Range: -80°/+90°
    • Bubble Level: Yes- Illuminated
    • Pan Handle Length Range: 16.7" - 24"
    • Net Weight: 9.2lbs (4.2kg)
    • Net Weight w/ Pan Handles: 11lbs (4.98kg)
    • Sliding Plate Range: 5.7" (145mm)
    • Temperature Range: -40°F - 194°F
    • Camera Plate Length: 6.3" (160mm)

      Dolly
    • Net Weight: 15lbs (6.8kg)
    • Footprint Diameter: 39.4" (100cm)
    • Height: 7.3" (18.5cm)
    • Radius: 19.7" (50cm)
    • Wheel Width: 3.9" (100mm)
    • Lockable Wheels: Yes
    • Payload: 220.5lbs (100.0kg)

      Teleprompter Base System
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Reading Range: 25ft (7.62m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts:
      - 11" x 1/4" -20 Female
      - 9" x 3/8" -16 Female
    • Weight of Teleprompter Base: 16lbs
    • Weight of Low Plate: 1lbs
    • Weight of High Plate: 1.38lbs
    • Weight of DSLR Plate: 0.748lbs
    • Height of Teleprompter: 16.1" (411mm)

      17" Teleprompter Monitor
    • Aspect Ratio: 4:3
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 17"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA, Composite
    • Input Voltage: DC 12V/4A
    • Power Consumption: 22W
    • Product Weight: 5lbs
    • Product Dimensions: 15.5" x 13.75" x 1"
    • Native Resolution: 1280 x 1024
    • Viewing Angle: 160° (H)/170° (V)
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes

      Travel Case
    • Exterior: Hard
    • Built In Wheels or Casters: Yes
    • Interior Dimensions (LxWxD): 24" x 24" x 14" (60.96cm x 60.96cm x 35.56 cm)
    • Interior Lid Depth: 2" (5.08cm)
    • Interior Base Depth: 12" (30.48cm)
    • Product Weight: 25.39lbs (11.51kg)
    • Exterior Dimensions (LxWxH): 26.75" x 26.5" x 15.63" (67.95cm x 67.31cm x 39.69cm)
    • Carton Dimensions (LxWxH): 27.5" x 27" x 16.5" (69.85cm x 68.58cm x 41.91cm)
    • Shipping Weight: 28.72lbs (13.02kg)
    • Max Temp: 180°F (82.22°C)
    • Min Temp: -69°F (-56.11°C)

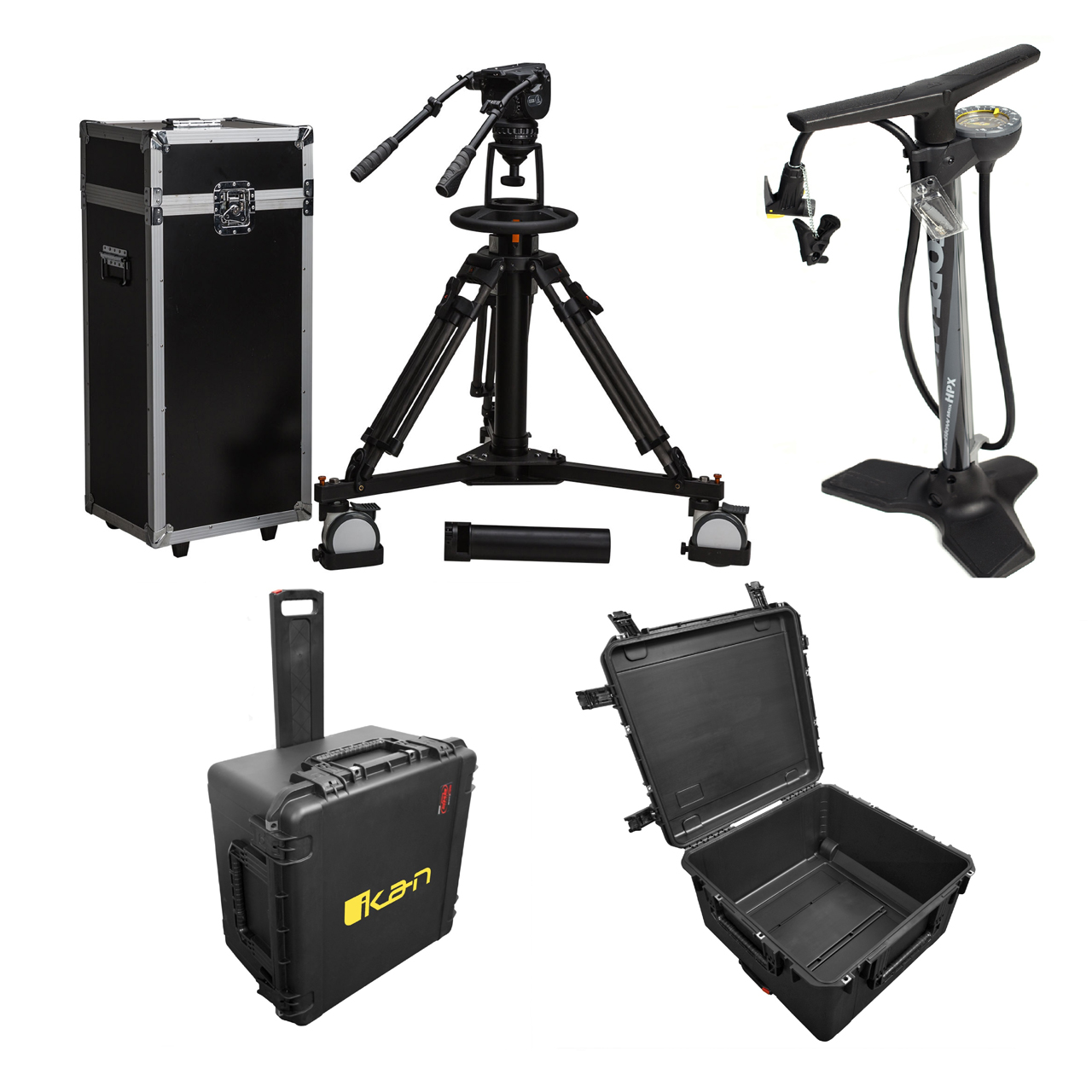

  • Item Includes:

    • 1x EP880S Pneumatic Pedestal Base
    • 1x GH25 Fluid Head
    • 1x EI-7007 Heavy Duty Dolly
    • 2x GB4 Panhandles
    • 1x Center Support Column
    • 1x Air Pump
    • 1x Rolling Hard Case for EP880S Pedestal
    • 1x Soft Carrying Case for EI-7007
    • 1x Allen Wrench Set
    • 1x Teleprompter Base
    • 1x 17 in. Teleprompter Monitor
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 1x Power Supply
    • 1x Prompter Pro 4 Digital Download
    • 1x SKB Rolling Hard Case for Teleprompter System

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0847983037452
