Ikan PT4900S-PTZ-TM-V2-PEDESTAL 19 Inch PTZ SDI Teleprompter with Widescreen Talent Monitor/Pedestal and Dolly

ITEM #: IKAN-4900SPTV2P MFG #: PT4900S-PTZ-TM-V2-PEDESTAL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$7,499.00

Our Price:

$7,399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT4900S-PTZ-TM-V2-PEDESTAL - Overview

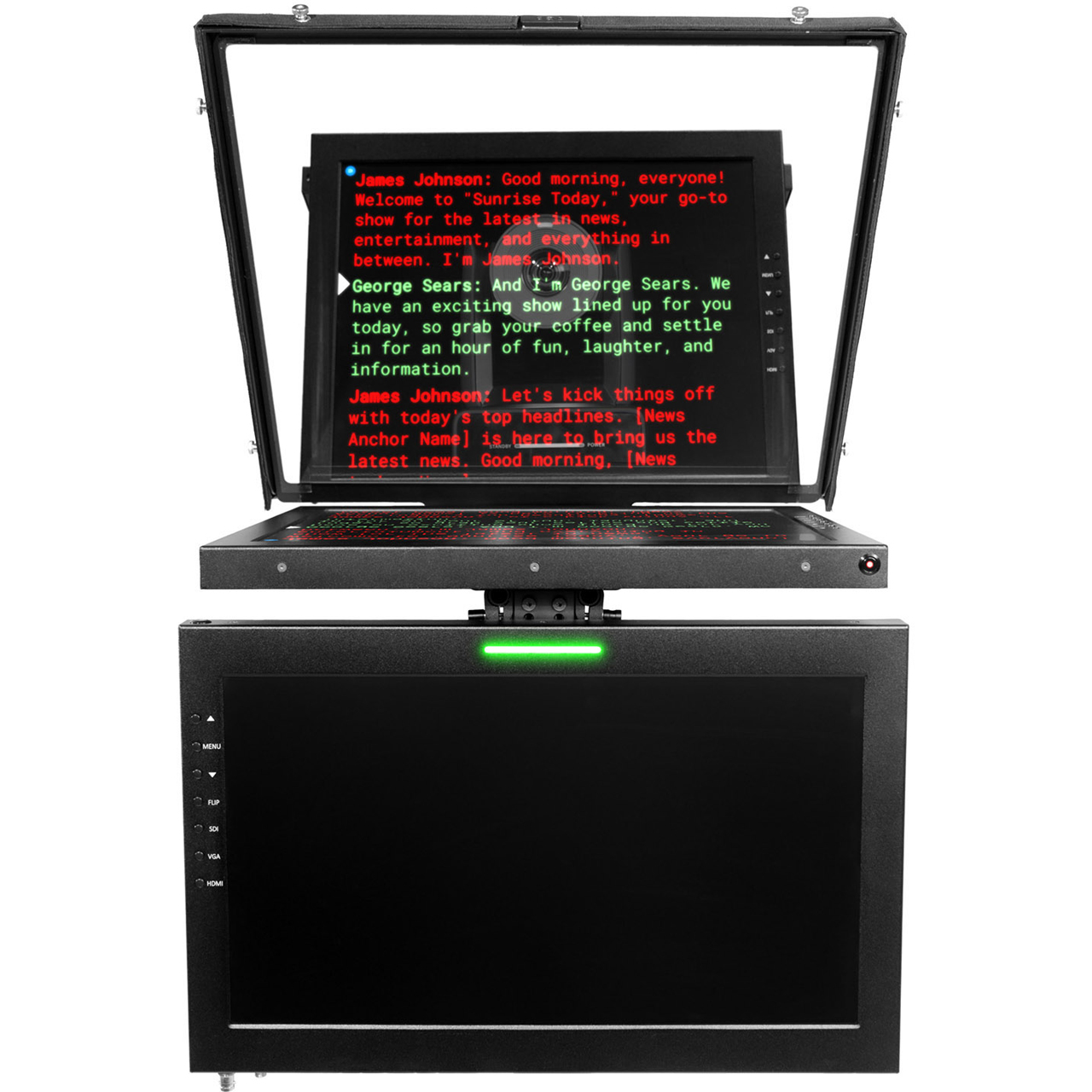

Ikan's PT4900S-PTZ-TM-V2-PEDESTAL professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The included teleprompter hood fully encloses the PTZ camera allowing it to move freely inside the hood. The teleprompter features a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The monitor includes HDMI, 3G-SDI, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The monitor also features a wide viewing angle and a 19" widescreen SDI talent monitor with a built-in tally light.

PTZ Teleprompting

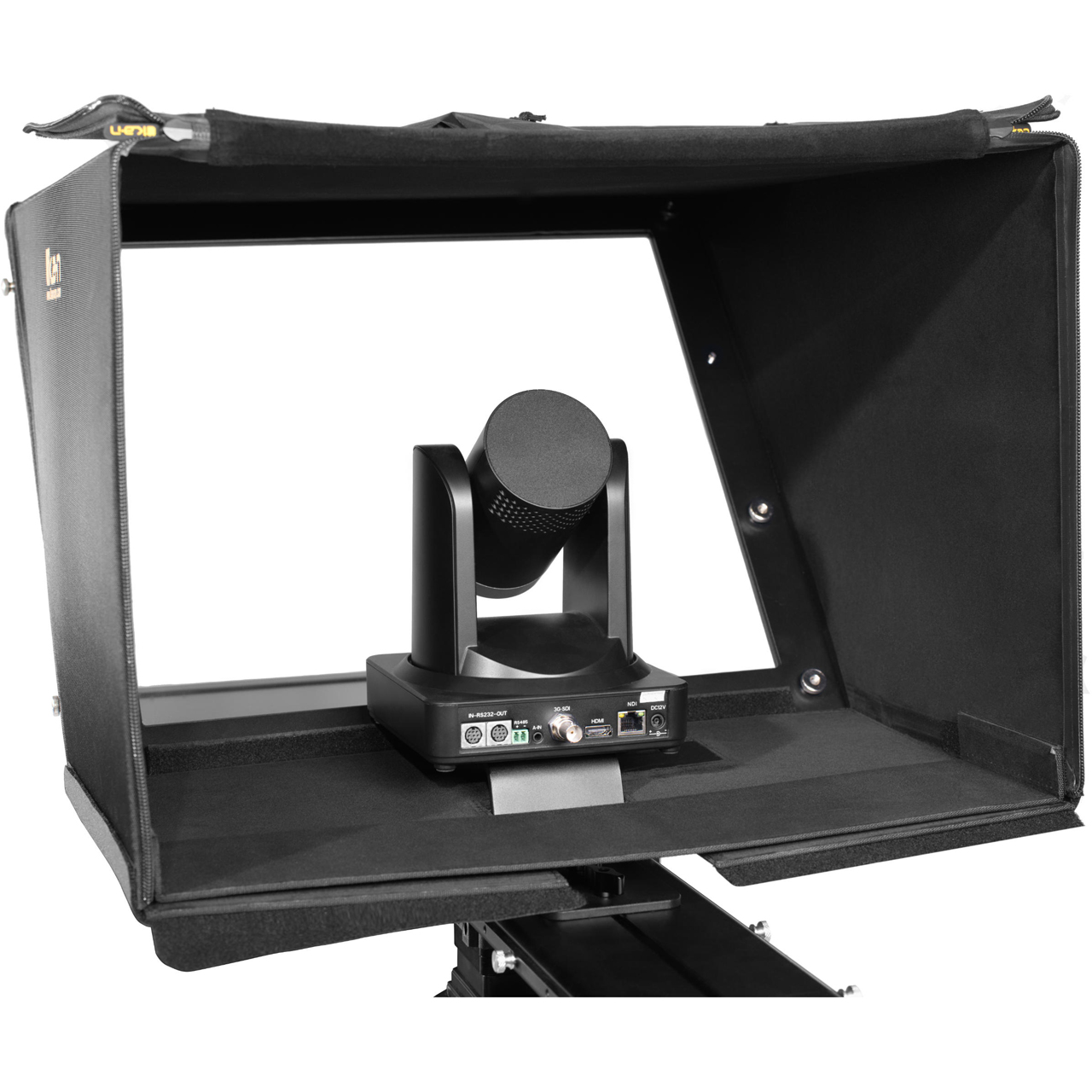

The Ikan PTZ Teleprompter system is a unique PTZ teleprompting system that enables the PTZ camera's pan, tilt and zoom capabilities while still behind the reflective teleprompter glass. You can easily pan the camera between multiple people reading from the same script.

High-Bright Teleprompter Monitor
The 1000 nit high bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor. The monitor features HDMI, VGA, and 3G-SDI inputs. The native resolution is 1280 x 1024 and the max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly.

Large Range of Camera Compatibility
Ikan's Teleprompter includes a large canvas hood, making it compatible with the vast majority of PTZ cameras.

Widescreen Talent Monitor
The 19-inch Widescreen Talent Monitor is designed to conveniently attach below the teleprompter to enable on-screen talent see their presentations live. The monitor features 3G-SDI, HDMI, and VGA, inputs. The native resolution is 1920 x 1080 HD and max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. When plugged into a compatible video switcher, the talent monitor utilizes a red/green tally light that lets you know when your camera is live. The talent monitor includes a 15mm mounting system that connects it to the teleprompter.

  • Features:

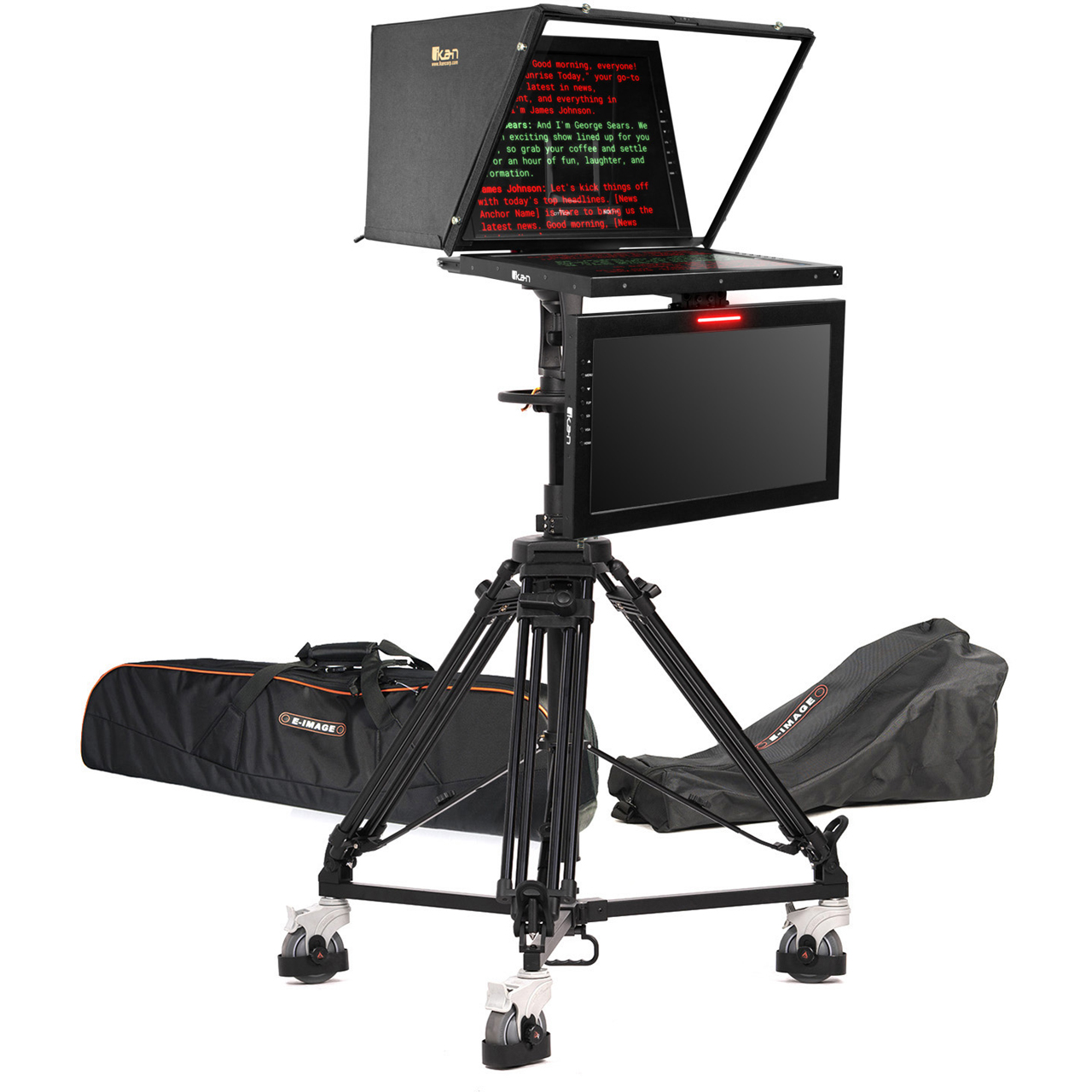

    • Includes 19" SDI PTZ Teleprompter, SDI Widescreen Talent Monitor Pedestal, & Dolly
    • Accommodates Camera Payloads up to 14 lbs
    • For Use in Studios, Live Events, & Virtual Productions

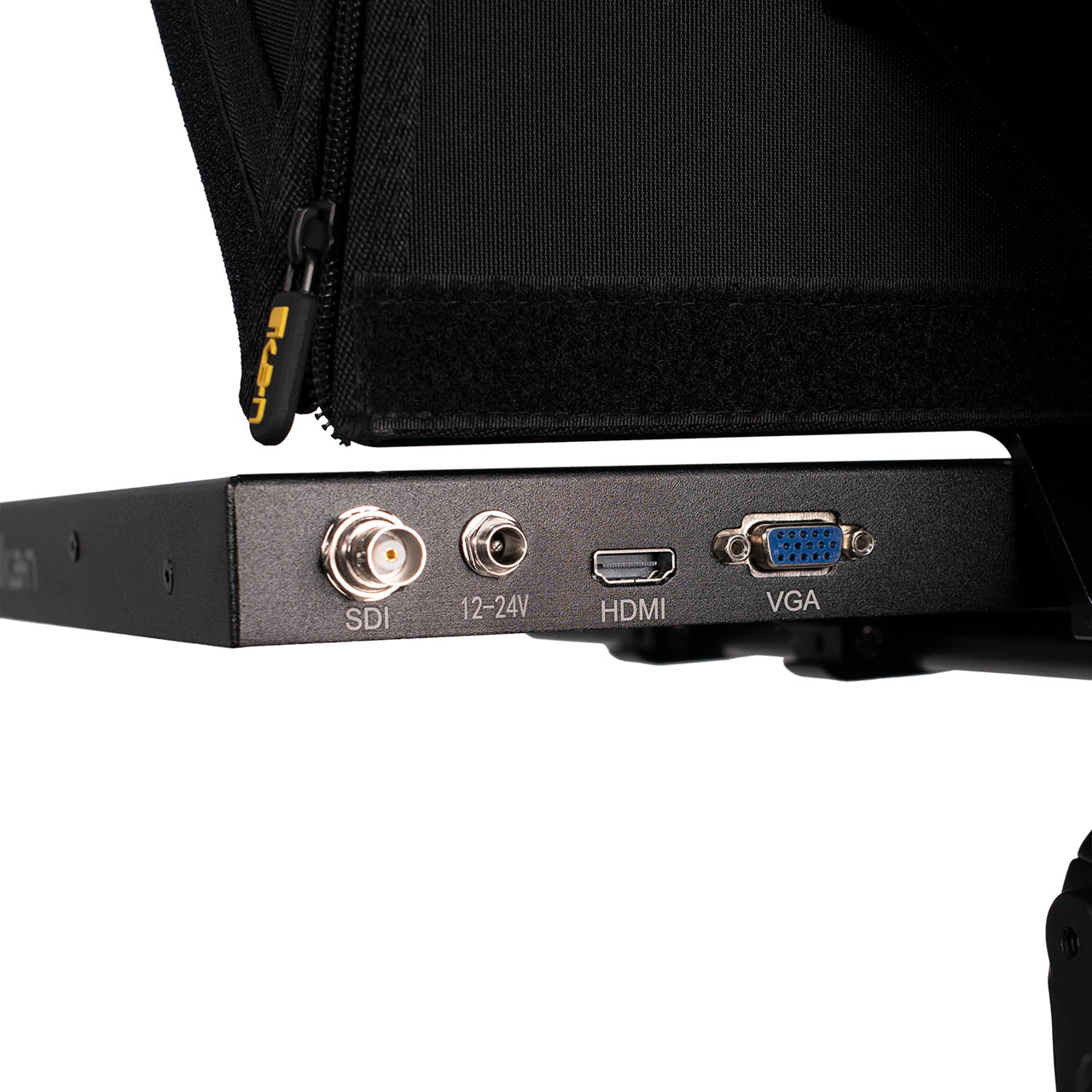

    • Video Inputs: HDMI, VGA, 3G-SDI
    • Dolly w/ Cable Guards
    • Ultra-Secure Hood
    • Aluminum Chassis
    • Built-in Tally Light for On Air Status
    • Dual Tally Lights
    • 2 Carrying Bags for Tripod & Dolly

  • Specifications:

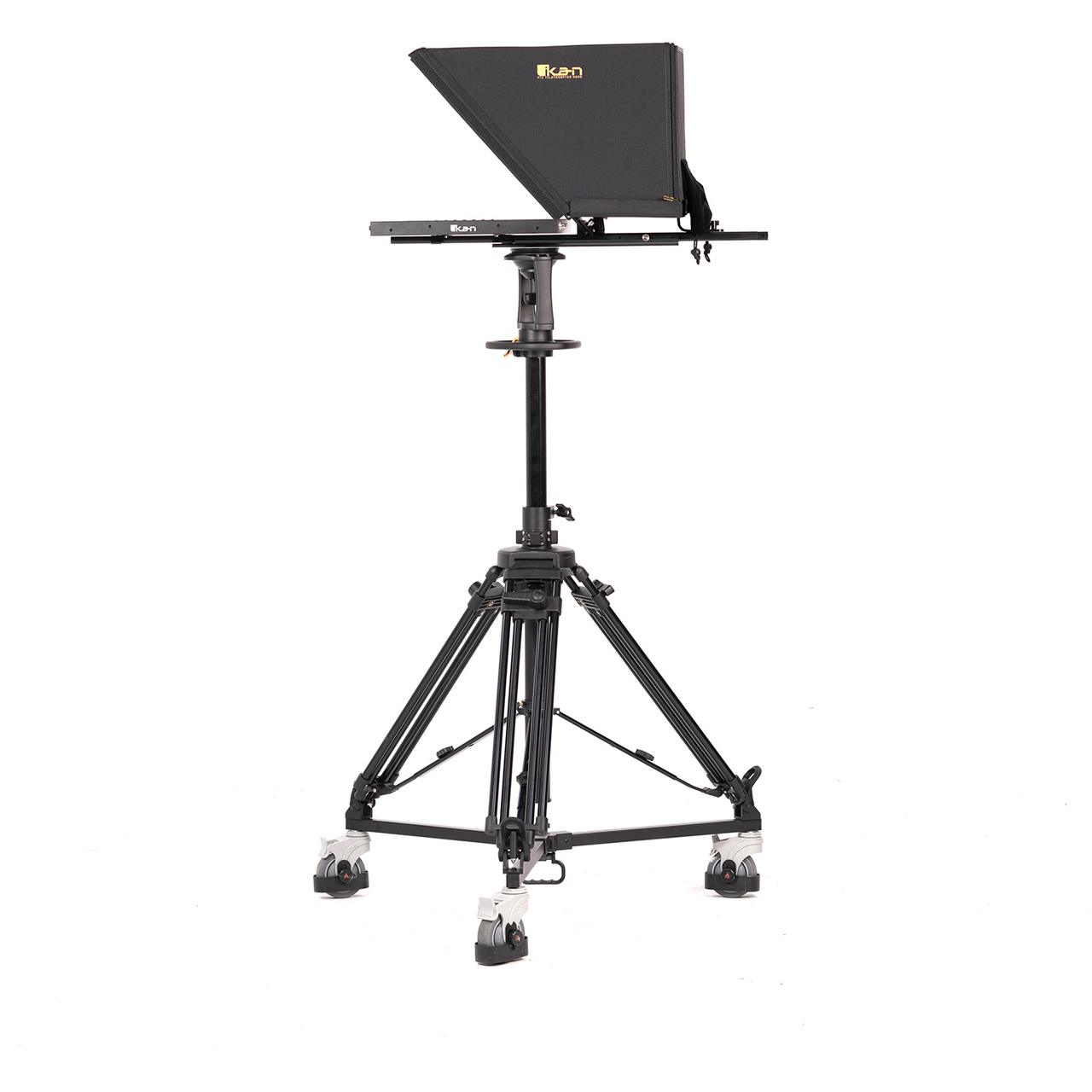

    • Pedestal
    • Bowl Size: 100mm
    • Payload Capacity: 44 lbs (19.95 kg)
    • Height Range: 40.2" - 72.6" (102 cm - 184.5 cm)
    • Build Material: Aluminum
    • Net Weight: 34.8 lbs (15.8 kg)
    • On-Shot Stroke: 12.6" (32 cm)
    • Steering Ring Diameter: 7.67" (195 mm)
    • Available Camera & Accessory Payload: 14 lbs

      Dolly
    • Net Weight: 15 lbs (6.8 kg)
    • Footprint Diameter: 39.4" (100 cm)
    • Cable Guard Diameter: 4.92" (12 cm)
    • Height: 6.7" (17 cm)
    • Radius 19.7" (50 cm)
    • Wheel Width: 3.9" (100 mm)
    • Lockable Wheels: Yes
    • Build Material:
      - Legs: Aluminum
      - Wheels: Rubber
      - Screws: Steel
    • Payload: 132.3 lbs (60 kg)

      Teleprompter Base System
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Reading Range: 25 ft. (7.62 m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts: 11 x 1/4" -20 Female / 9 x 3/8" -16 Female
    • Weight of Teleprompter Base: 16 lbs
    • Weight of Low Plate: 1 lbs
    • Weight of High Plate: 1.38 lbs
    • Weight of DSLR Plate: 0.748 lbs
    • Height of Teleprompter: 16.1" (411mm)
    • Country of Origin: Taiwan

      19 in SDI Teleprompter Monitor
    • Aspect Ratio: 4:3
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 19"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 4A
    • Power Consumption: 30W
    • Product Weight: 6 lbs
    • Product Dimensions: 17" x 15" x 1"
    • Native Resolution: 1280 x 1024
    • Viewing Angle: 160° (H) / 170° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes

      19 in Widescreen Talent Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 5A
    • Power Consumption: 36W
    • Weight of Monitor: 5.73 lbs
    • Product Dimensions: 18.3" x 12.3" x 1.2""
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip: Horizontal: Yes / Vertical: Yes
    • Tally Interface: RJ45

      PTZ Teleprompter Add-on Kit
    • Height of PTZ Riser: 51 mm
    • Weight of PTZ Riser: .58 lbs
    • Dimensions of PTZ Hood:
      - Top: 19.06" x 15.31"
      - Bottom 8.16" x 15.31"
      - Height: 12.56"
    • Material of Hood: Polyester Canvas
    • Material of PTZ Riser: Aluminum
    • Weight of PTZ Hood: 3.3 lbs
    • Net Weight of Full PTZ Add-on Kit: 3.88 lbs

  • Item Includes:

    • 1x Teleprompter Base
    • 1x 19 in SDI Teleprompter Monitor
    • 1x 19 in SDI Widescreen Talent Monitor
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x PTZ Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 1x Power Supply
    • 1x Prompter Pro 4 Digital Download
    • 1x AT7903 Pedestal
    • 1x EI-7004B Dolly w/ Cable Guards
    • 1x T30 Tripod Carrying Bag
    • 1x 100BF Flat Base
    • 1x DB-01 Dolly Carrying Bag

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0847983036417
