Ikan OTTICA-4K3-3PTZ Bundle - Three 4K NDI High Bandwidth PTZ Cameras with 30x Zoom and PTZ Controller

ITEM #: IKAN-OTTICA33PTZ MFG #: OTTICA4K3-3PTZ

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$6,399.00

Our Price:

$6,299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


OTTICA4K3-3PTZ - Overview

The Ikan OTTICA-4K3-3PTZ bundle includes 3x Full-HD NDI PTZ Cameras and 1x PTZ joystick controller.

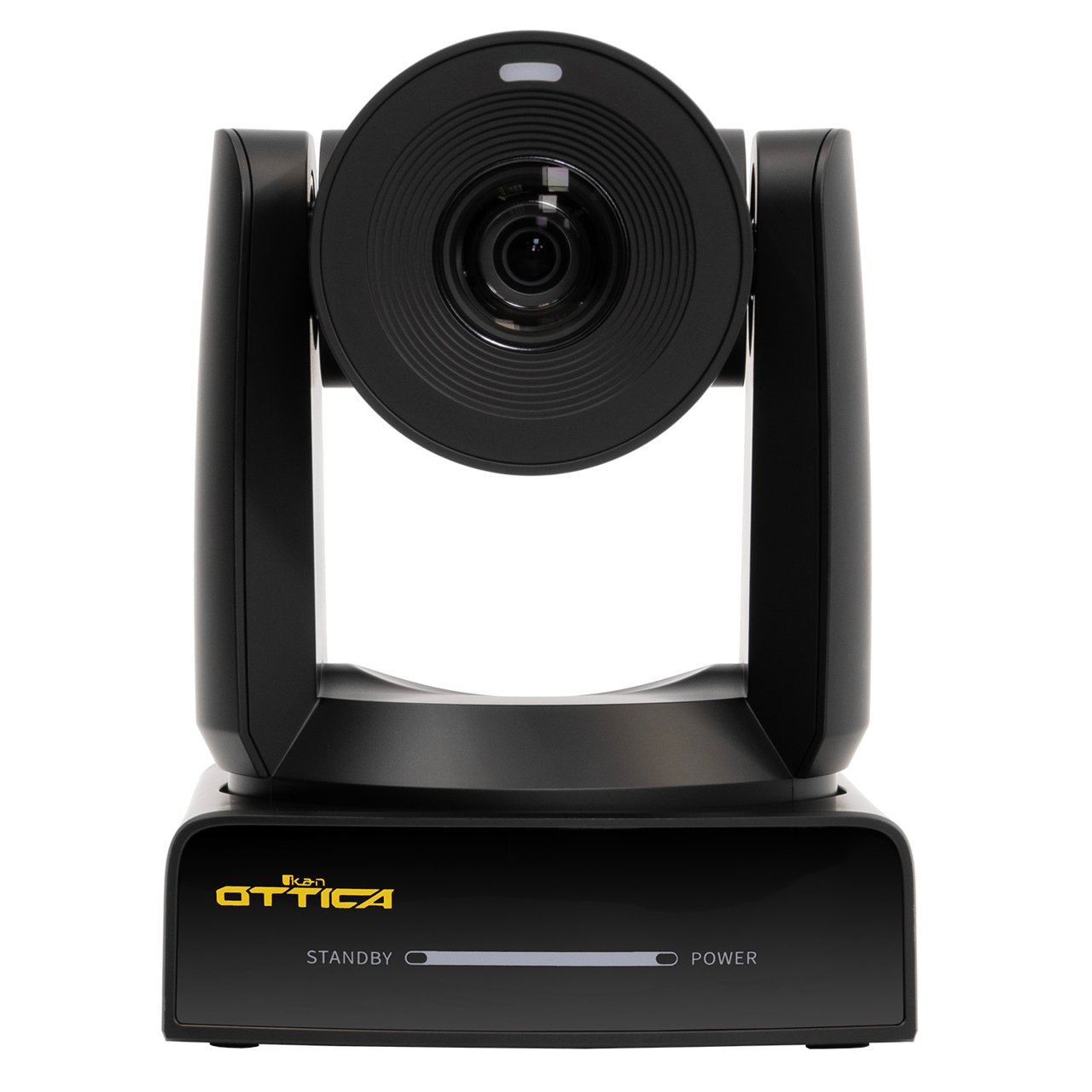

OTTICA-4K-30X
The Ikan OTTICA-4K-30X is a professional-grade 4K/60p camera with a 30x optical zoom and advanced AI-powered tracking for seamless subject focus in dynamic scenarios. It supports NDIr|HX3 for efficient, low-latency 4K video transmission, alongside multiple AVoIP modes, and features a tally light compatible with NDI and HTTP for streamlined multi-camera operations. The camera offers versatile connectivity through HDMI, 3G-SDI, USB 2.0, and network outputs, with control options including IP Visca, ONVIF, Pelco, and UVC, ensuring integration with various systems. Its Blackout Mode disables the tally light & indicator light to minimize glare for teleprompter use, and the silent PTZ motor ensures fast, stable, and accurate movements. Additionally, the camera's 1/1.8" CMOS sensor, advanced ISP algorithms, and low-light performance with 2D/3D noise reduction deliver exceptional image clarity and color accuracy across diverse lighting conditions.

OTT-CONTROLLER-V2
The OTT-CONTROLLER-V2 is a compact PTZ controller that effortlessly manages up to 10 cameras, supporting IP and analog protocols like IP VISCA, VISCA, and PELCO D/P, with the flexibility to use multiple protocols simultaneously. Its user-friendly design includes a large LED screen for network and menu navigation, paired with smaller LED screens and knobs for fine-tuning exposure and color settings such as focus, iris, and color temperature. Equipped with a 2-axis joystick and zoom rocker, it ensures precise pan, tilt, and zoom control, with a speed knob offering seven levels for customized PTZ and focus adjustments.

  • Features:

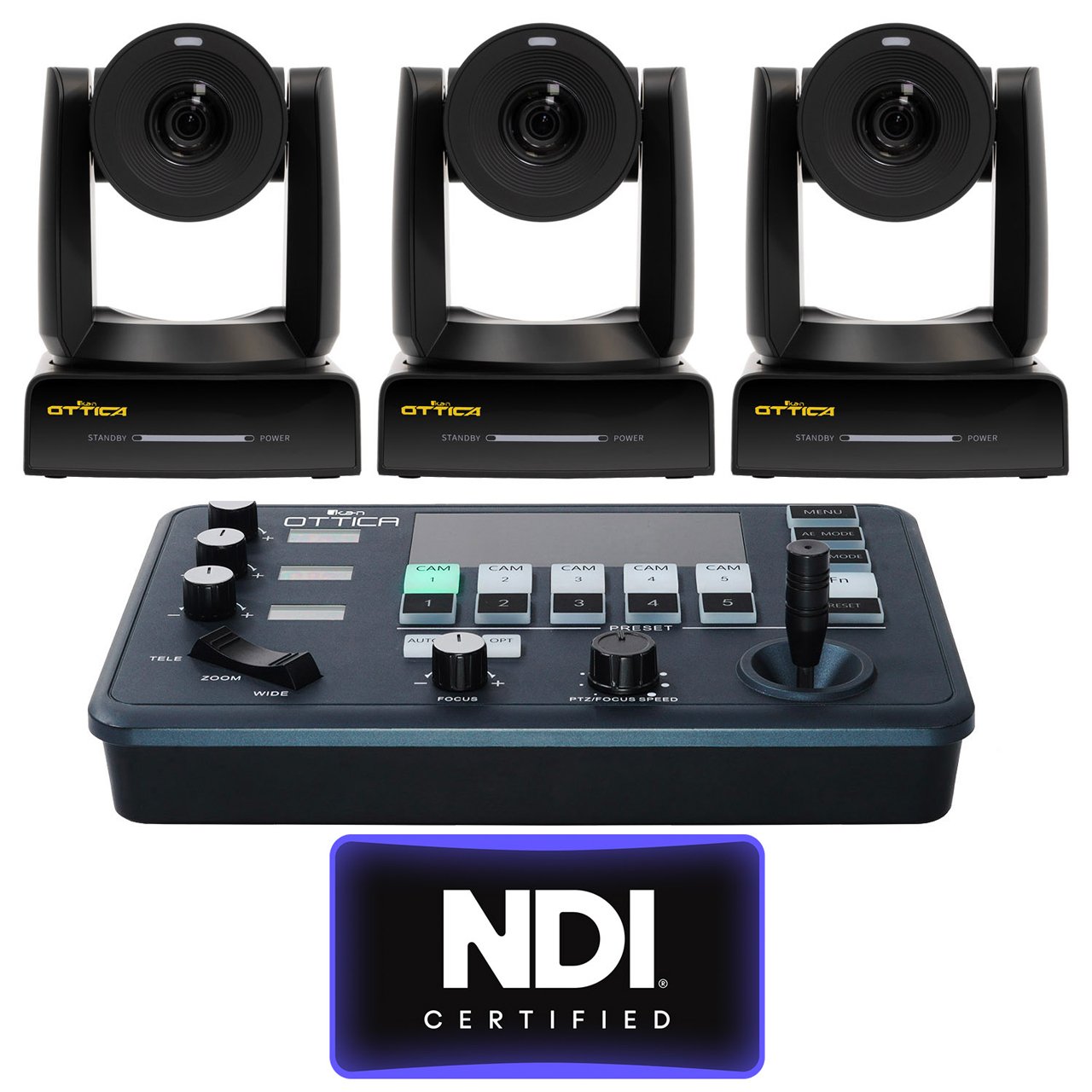

    • Bundle Includes 3x PTZ Cameras, 1x PTZ Controller
    • Includes Full License for NDI|HX3
    • 4K/60p Resolution/Frame Rate
    • AI Camera Tracking | Auto Framing
    • 30x Zoom with 7.1-210mm Varifocal Lens
    • Supported Control Protocols: Visca, IP Visca, Pelco D/P, Onvif, NDI, IR Remote, UVC
    • HDMI, SDI, RJ45, RS-232, RS-485, & Audio-in Connectivity
    • Controller Supports VISCA, IP VISCA, PELCO-D/P, RJ45, RS422, RS232, RS485
    • Control up to 10 Cameras
    • 3 Knobs Control Camera Parameters Displayed on Designated LED Screens

  • Specifications:

      OTTICA-4K-30X
    • HDMI: 4K60, 4K59.94, 4K50, 4K30, 4K25, 4K29.97, 1080p60, 1080p50, 1080i60, 1080i50, 1080p30, 1080p59.94, 1080i59.94, 1080p29.97, 720p60, 720p59.94;
    • 3G-SDI: 1080p/60, 1080p/50, 1080p/30, 1080p/29.97, 1080p/59.94, 1080p/25; 1080i/60, 1080i/50, 1080i/59.94; 720p/60, 720p/59.94
    • Sensor: 1/8", CMOS, Effective pixels: 8.42M
    • Scanning Mode: Progressive
    • Lens: 30x, f=7.1mm - 210mm, F1.61 - F5.19
    • Digital Zoom: 16x
    • Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
    • Shutter: 1/30s - 1/10000s
    • White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
    • Backlight Compensation: Support
    • Digital Noise Reduction: 3D Digital Noise Reduction
    • SNR: ≥55dB
    • Horizontal FOV: 59.2° - 2.5°
    • Vertical FOV: 34.6° - 1.4°
    • Pan Angle: ±170°
    • Tilt Angle: -30° - +90°
    • Pan Speed: 1.7° - 100°/s
    • Tilt Speed: 1.7° - 69.9°/s
    • Image Flip & Image Freeze: Support
    • 35mm Equivalent Focal Length: 30mm - 590mm
    • Preset Position: 255
    • Preset Accuracy: 0.1°

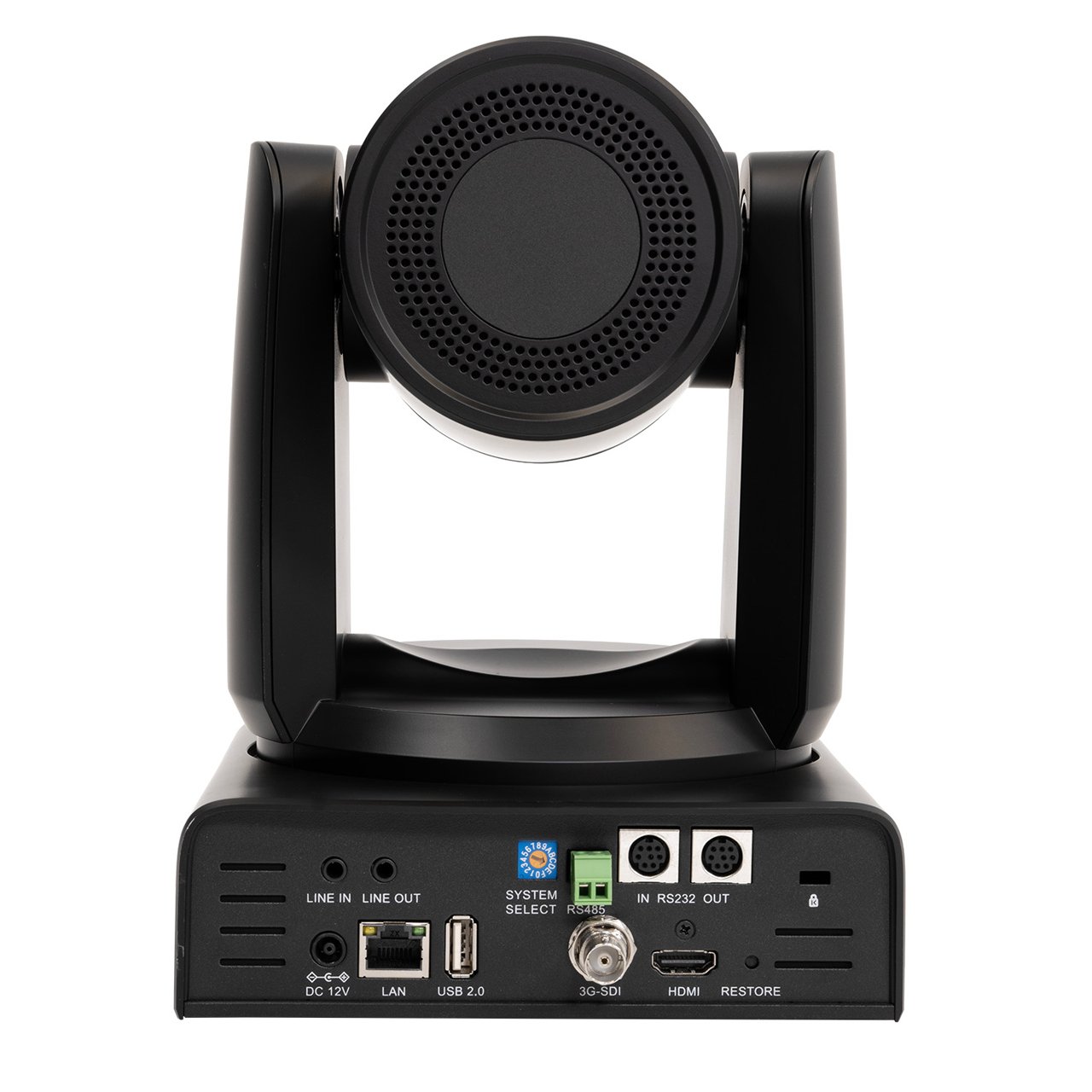

    • HD Output:
      - 1x HDMI: Version 2.0
      - 1x 3G-SDI: BNC, 800mVp-p, 75Ω, as per SMPTE 424M standard
    • Network Interface: 1x RJ45: 10M/100M/1000M adaptive Ethernet
    • Audio Interface:
      - 1x LINE IN: 3.5mm Jack
      - 1x LINE OUT: 3.5mm Jack
    • USB Interface:
      - 1x USB 2.0, Type-A
      - 1x USB 3.0, Type-B1
    • Control Interface:
      - 1x RS485: 2-pin phoenix port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
      - 1x RS232 IN: 8-pin Mini DIN, Max Distance: 30m,
    • Protocol: VISCA/Pelco-D/Pelco-P
      - 1x RS232 OUT: 8-pin Mini DIN, Max Distance: 30m, Protocol: VISCA only
    • RESTORE Button: Support
    • Power Interface: JEITA type (DC IN 12V)
    • Video Compression: H.265/H.264/MJPEG
    • Video Stream: First Stream, Second Stream
    • First Stream Resolution: 3840x2160,1920x1080,1280x720,1024x576 etc.
    • Second Stream Resolutio: 720x480, 320x240 etc.
    • Video Bit Rate First Stream: 32kbps - 51200kbps
    • Second Stream: 32kbps - 20480kbps
    • Bit Rate Control: VBR, CBR
    • Frame Rate:
      - 50Hz: 1fps - 50fps
      - 60Hz: 1fps - 60fps
    • Audio Compression: AAC?G711A
    • Audio Bit Rate: 96Kbps,128Kbps
    • Protocols: NDI HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s), Onvif, DHCP, GB/T 28181, Multicast, etc.
    • Color System/Compression: YUY2/H.264/MJPEG/H.265
    • Video Format:
      - YUY2: Max.1080p5 (USB 2.0)
      - YUY2: Max.1080p30 (USB 3.0
      - H.264 AVC: Max.2160p30
      - H.265 HEVC: Max.2160p30
      - MJPEG: Max.2160p30
    • USB Audio Support: Support
    • USB Video Communication Protocol: UVC 1.1~1.5
    • UVC PTZ Control: Support
    • Input Voltage: DC 12V/PoE+ (802.3at)
    • Input Current: 2A (Max.)
    • Power Consumption: 18W (Max.)
    • Dimensions (WxDxH): 6.7" x 7.7" x 9" (170mm x 196mm x 228mm)
    • Net Weight: 4.41lbs (2kg)

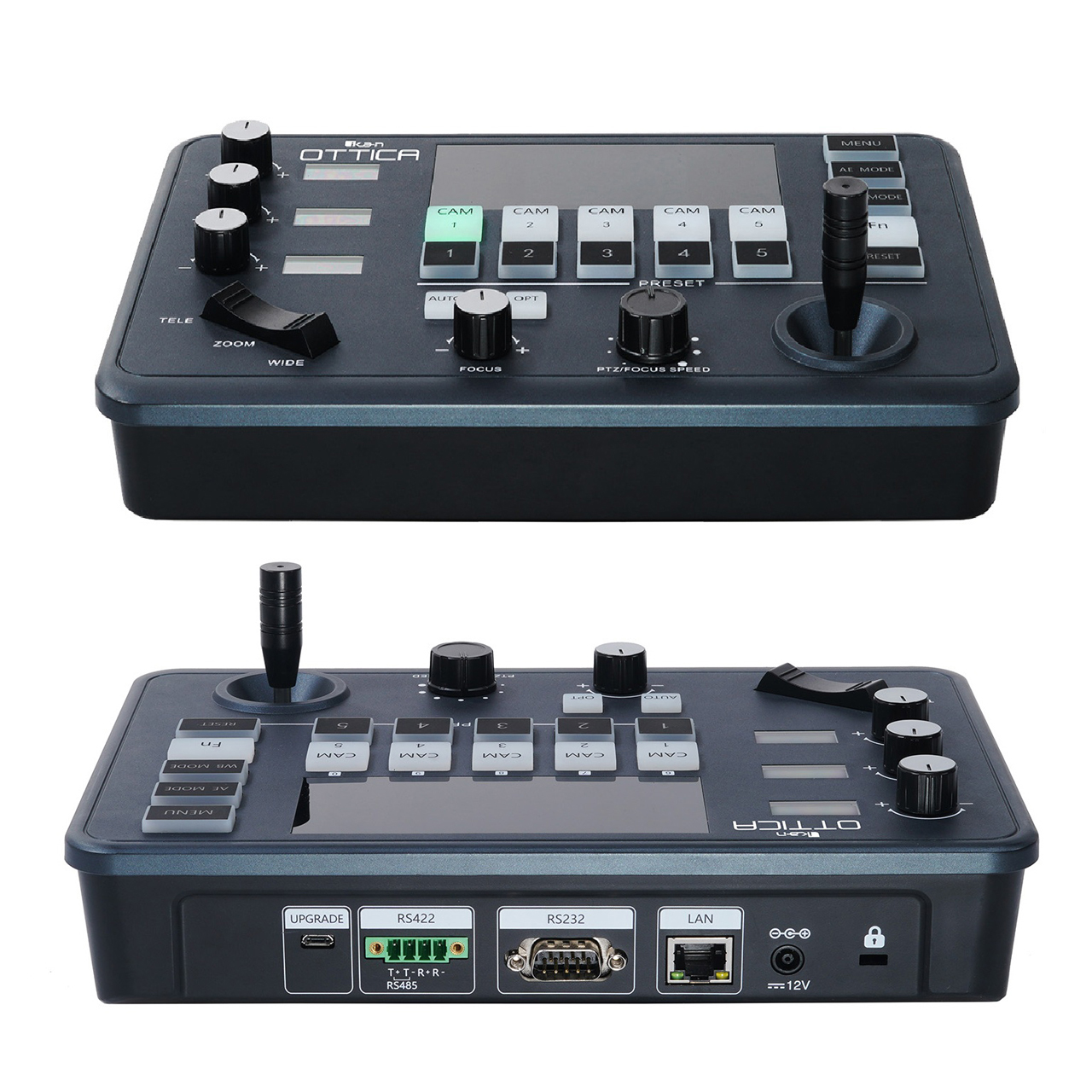

      OTT-CONTROLLER-V2
    • Controllable Cameras: 10
    • Communication Protocol: VISCA, PELCO P/D, UDP
    • Number of LED Displays: 4 Color LED Display Screens
    • Number of Camera Channels: 5
    • Variable Knobs: 4
    • Joystick: 2-Axis
    • Zoom Mode: Tele-Wide Bridge Keys
    • Buttons: 17 Silicon Buttons
    • Presets Short Keys: 5 Presets or Max 10 Presets for selection per channel
    • Focus Modes: Auto/Manual/OPT
    • Pan/Tilt Rotation Speed: 7-Level Adjustment
    • Zoom In/Out Speed: 7-Level Adjustment
    • Baud Rate: 2400bps, 4800bps, 9600bps, 19200bps, 38400bps
    • Data Bits: 8 Bit
    • Stop Bit: 1 Bit
    • Parity Bit: None
    • Internet Protocol: UDP/IP VISCA
    • Rated Voltage: DC 12V
    • Rated Current: 0.3A max
    • Max Power Consumption: 3.6W
    • Password Privacy Protection: Yes
    • Security Lock: Kingston's Security Lock
    • Working Environment: Indoors
    • Dimensions: 9.6" x 6.4" x 1.8" (244mm x 164mm x 48mm)
    • Weight: 2.4lbs (1.1kg)
    • RS422/RS485 Interface: Phoenix Contact 4-pin 3.81mm Terminal
    • RS232C Interface: DB9 Male Interface
    • LAN Interface: RJ45 Female Interface
    • Power Supply: 12V, 100V - 240V AC, 50-60Hz
    • Firmware Upgrade: Via Micro USB

  • Item Includes:

    • 3x OTTICA PTZ Camera
    • 3x Power Adapter
    • 3x Power Cable
    • 3x RS232 Cable
    • 3x Remote Control
    • 3x Wall Mount & Screws
    • 3x User Manual
    • 1x PTZ Controller
    • 1x Phoenix Contact 4 pin 3.81mm Terminal
    • 1x Power Adapter
    • 1x User Manual

  • Warranty:

    • 1 Year Limited Warranty
