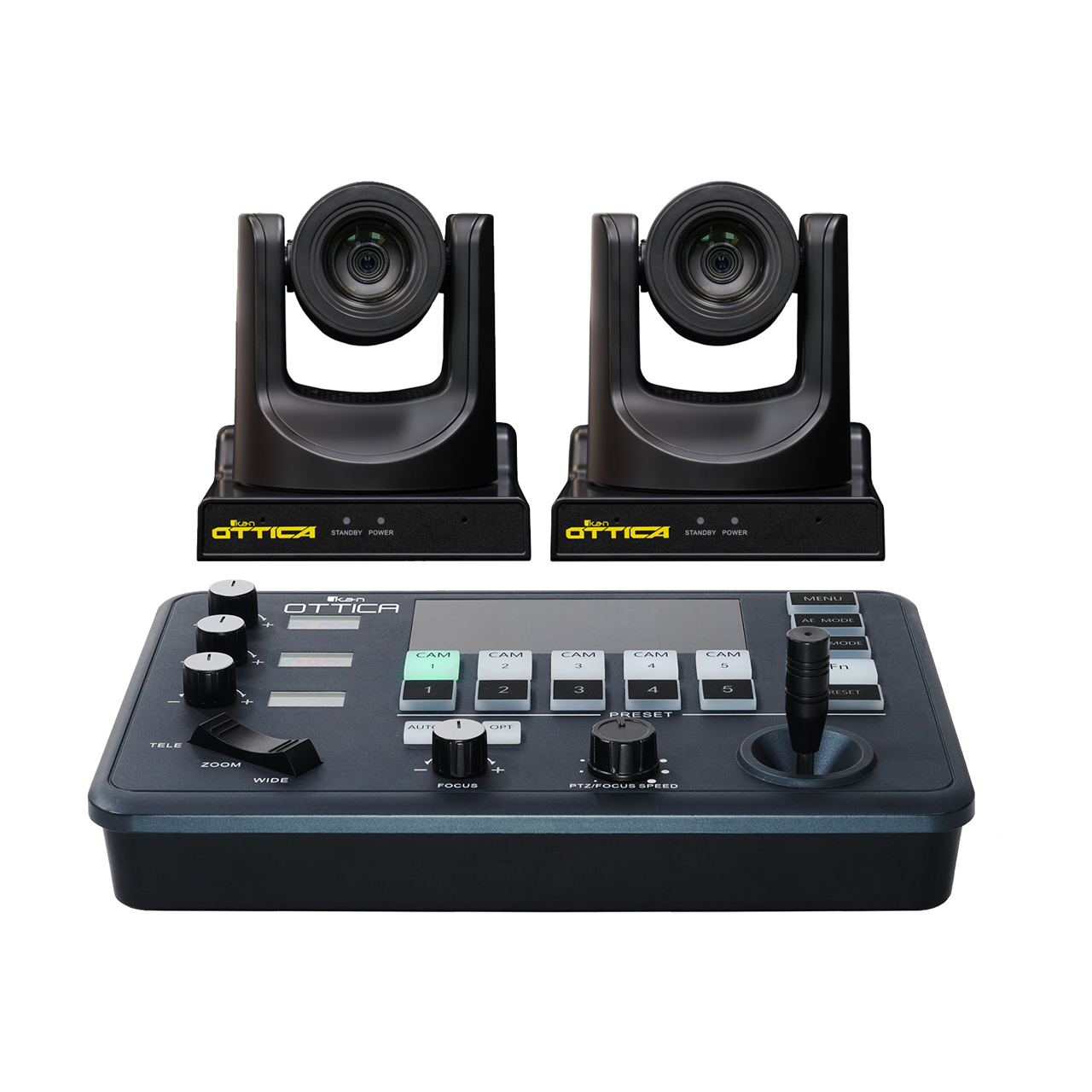

The Ikan OTTICAF2-2PTZ bundle includes 2 Full-HD NDI PTZ Cameras and one PTZ joystick controller.

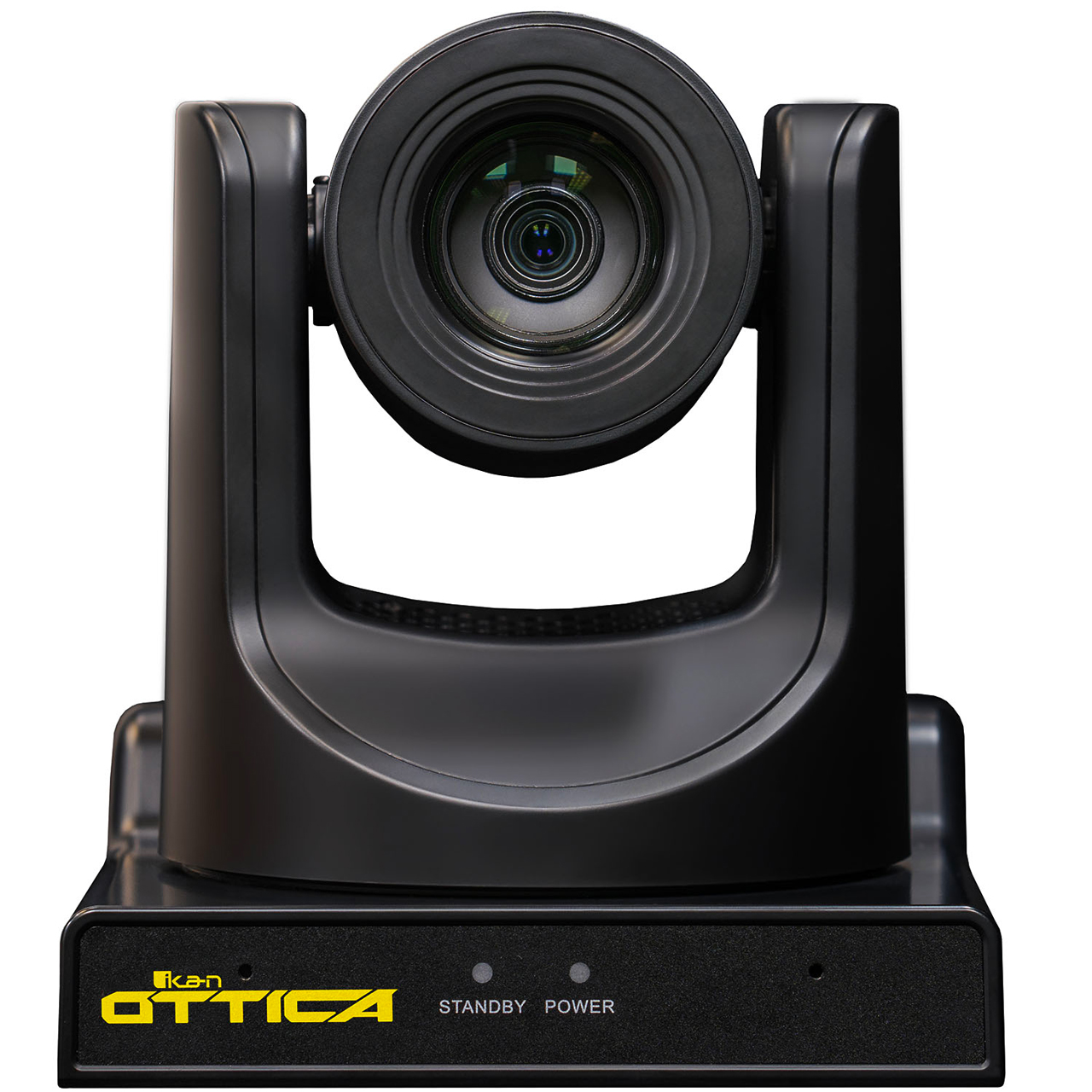

OTTICA-FHD-20X

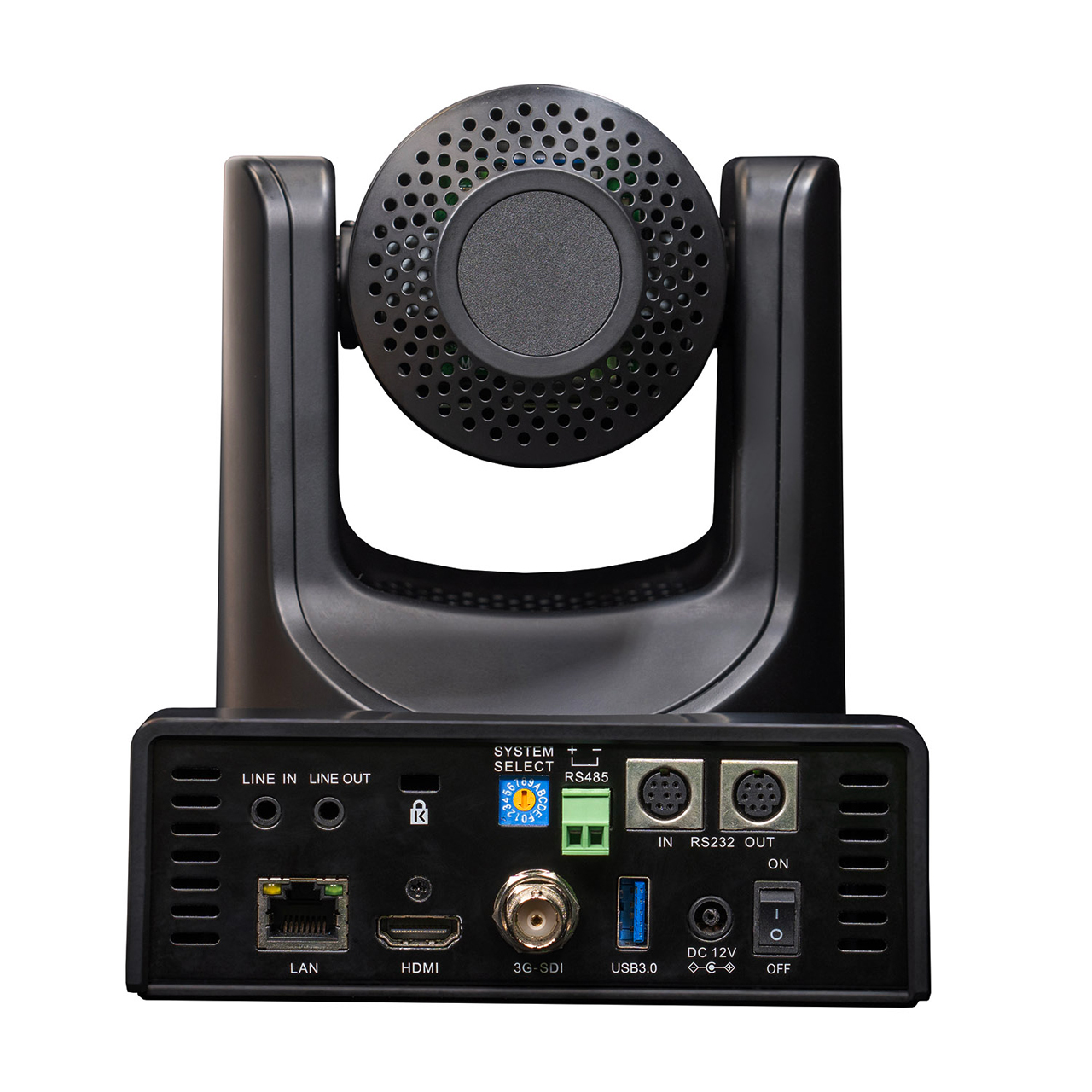

The OTTICA-FHD-20X delivers professional-grade performance with its 20x optical zoom and Full HD 1080p resolution at 60fps, ensuring exceptional image clarity and detail. It features selectable NDI High-Bandwidth and NDI HX3 modes for flexible, high-quality video transmission tailored to your workflow. With AI-powered tracking, the camera intelligently identifies and follows subjects, ensuring seamless focus during dynamic scenarios. The Blackout Mode allows users to turn off the indicator light, making it ideal for teleprompter use by reducing glare and distractions for the presenter. Additionally, the camera offers advanced control options, including an IP address selector via IR remote and compatibility with both analog and IP control protocols for seamless integration into almost any system. The camera outputs through 3G-SDI, HDMI 1.3, USB, and network connections simultaneously at 1080p60 with minimal latency. The uncompressed digital video output through HDMI and 3G-SDI meets broadcast standards.
Image Quality
The 1/2.8" CMOS sensor with 2.07 million effective pixels captures 1080p Full HD video. The ISP processing algorithm provides precise white balance and exposure control, delivering accurate color reproduction across varied lighting conditions. The 20x optical zoom lens features a 60.7° wide-angle view. This zoom range, equivalent to a 35mm focal length of up to 670mm, enables both room-wide coverage and detailed close-ups.

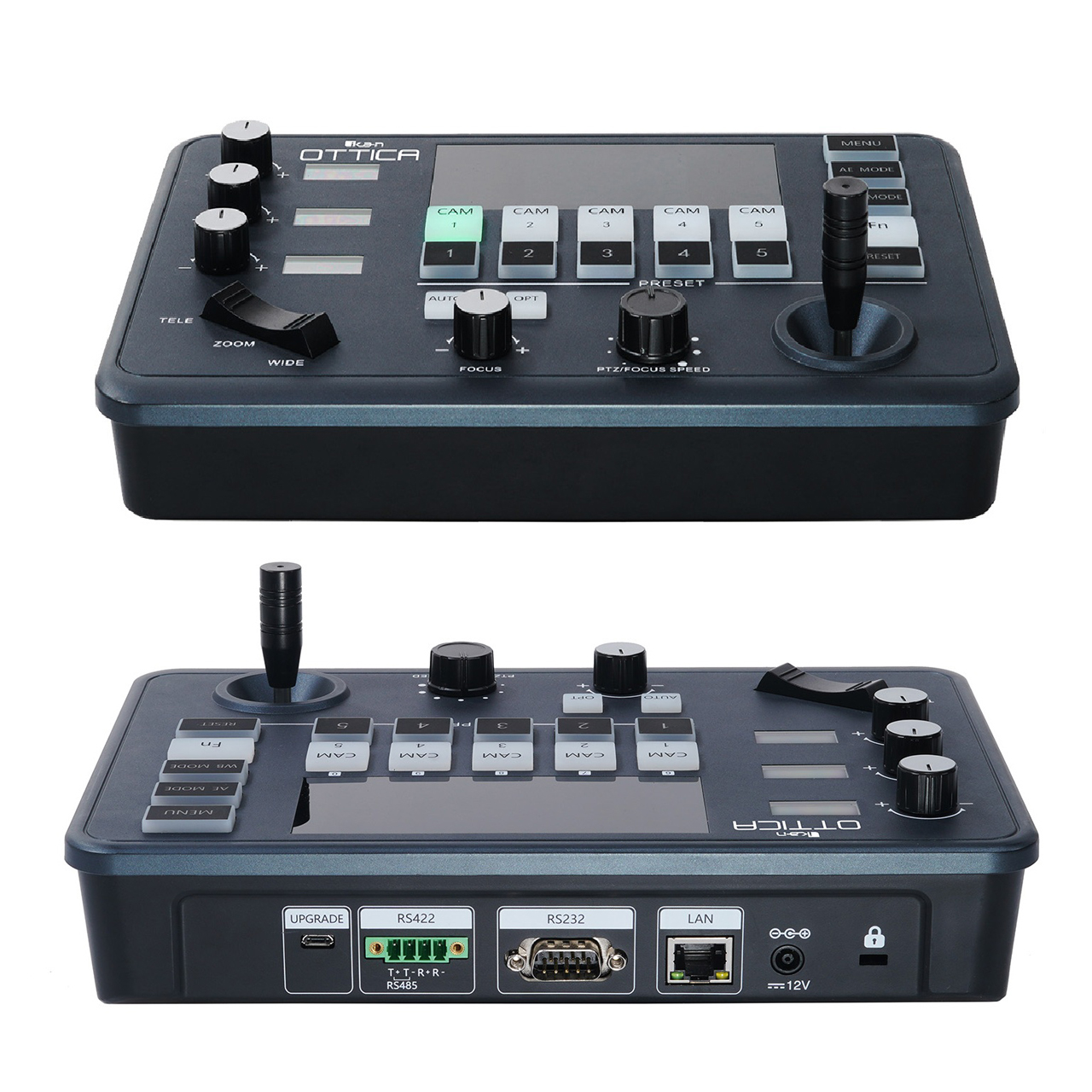

OTT-CONTROLLER-V2

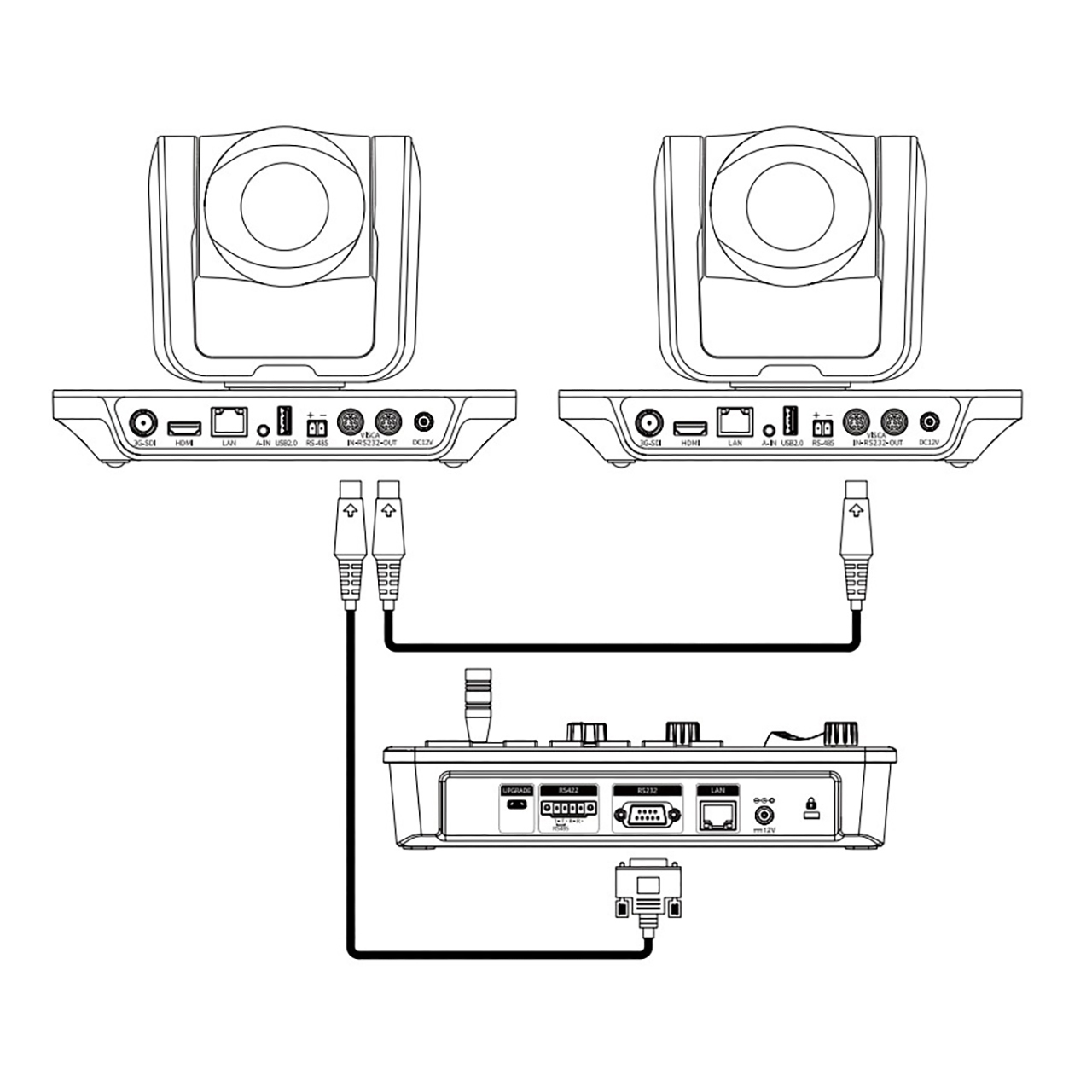

The OTT-CONTROLLER-V2 is a compact PTZ controller that effortlessly manages up to 10 cameras, supporting IP and analog protocols like IP VISCA, VISCA, and PELCO D/P, with the flexibility to use multiple protocols simultaneously. Its user-friendly design includes a large LED screen for network and menu navigation, paired with smaller LED screens and knobs for fine-tuning exposure and color settings such as focus, iris, and color temperature. Equipped with a 2-axis joystick and zoom rocker, it ensures precise pan, tilt, and zoom control, with a speed knob offering seven levels for customized PTZ and focus adjustments.
