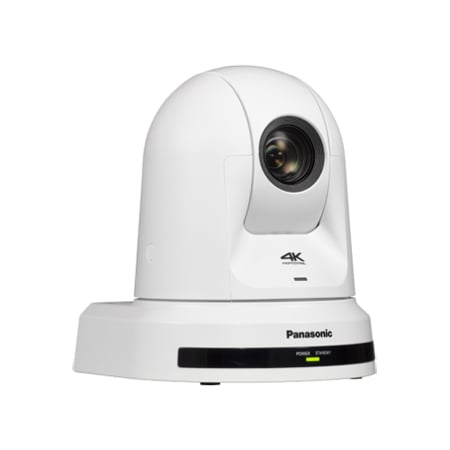

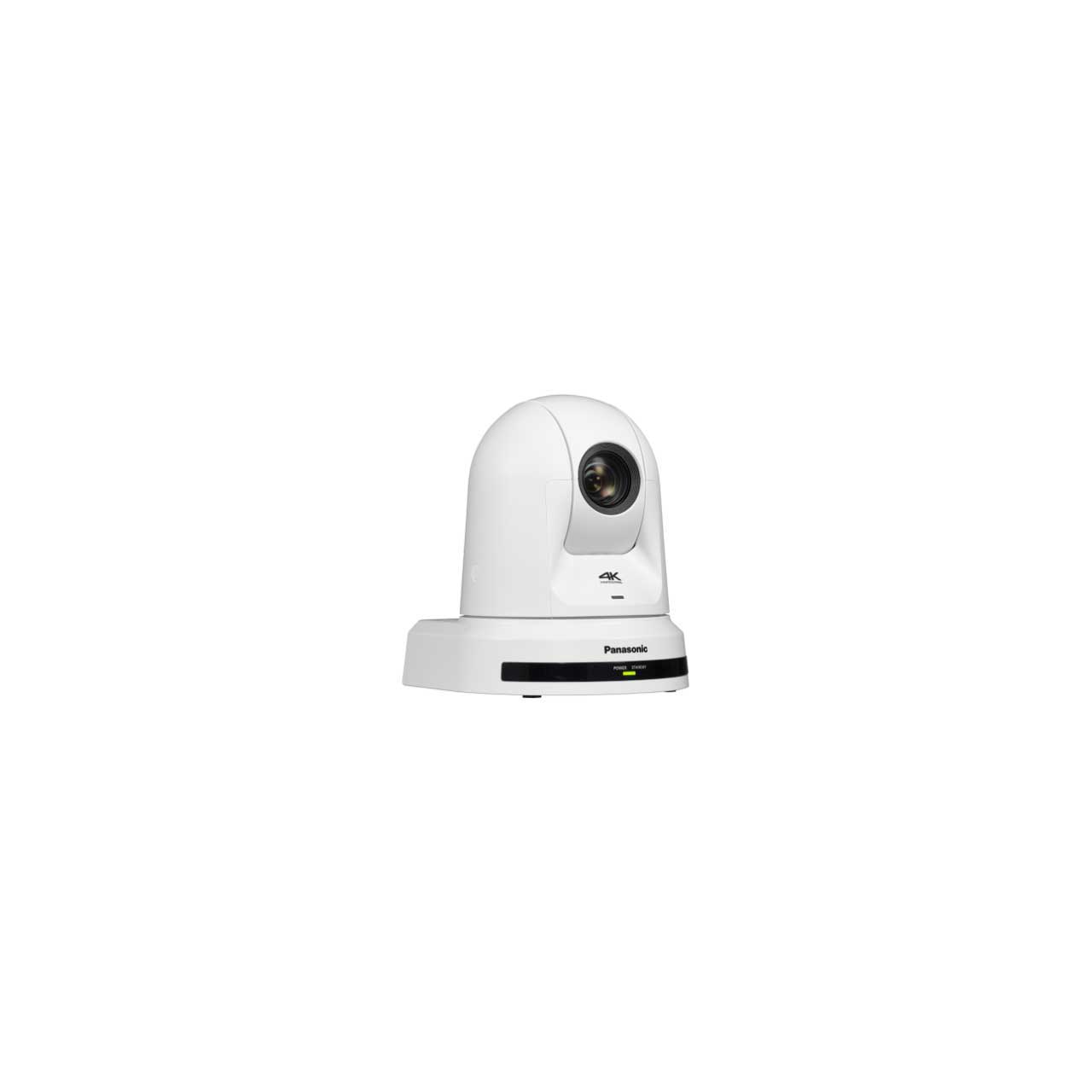

Panasonic AW-UE40 Motorized Optical 24x Zoom 4K PTZ Camera - White

ITEM #: PAN-AW-UE40WPJ MFG #: AW-UE40WPJ

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,305.00

Our Price:

$3,178.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AW-UE40WPJ - Overview

    Provides hybrid online/offline environment. Standard models suitable for use in online classes and briefing sessions
    Remote cameras enhance the visual communication in a variety of applications ranging from online classes to online seminars. The AW-UE50/UE40 supports a compact design to blend in with the surroundings and operates very quietly to permit flexible use in any video shooting locations or conditions. The AW-UE50/UE40 offers high security and it is easy to install and operate for capturing stable images, so even people unfamiliar with video shooting or camera operation can utilize it. The excellent flexibility of the product simplifies wiring and operation. Linkage with online conference software or online application is possible, so online video streaming is easy to initiate. The AW-UE50/UE40 is a standard model perfect for people who want to utilize online video streaming more frequently or enhance the quality of online video streaming.

    • Features:

      • Provides a stable hybrid environment for connecting online and offline
      • 4K resolution, wide angle and high-magnification zoom for delivering "the ambience of hall."
      • Auto Tracking Software for reliable following and capturing of the speaker.
      • Secure and stable streaming protocol for reduced risk of communication trouble.
      • Smooth playback of high-quality videos.
      • Unit size and quietness for flexible use at any video shooting sites
      • Compact dome-shape design blends in with the surroundings. Light weight and small size give added flexibility in camera installation.
      • Quiet operating sound allows the use of the camera in any situations.
      • Image stabilizer ensures stable video shooting.
      • Excellent system flexibility to achieve smart wiring and smooth operation
      • Easy installation and operation even for inexperienced staff or small staff.
      • Single PC or controller can manage and control multiple cameras.
      • Use as a USB camera.
      • Can upload video directly to live streaming service.

    • Specifications:

      • Power Requirements: 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
      • PoE+: IEEE802.3at compliant : DC42 to 57 V (Camera Input) (Software authentication (LLDP) is supported)
      • Current Consumption: 1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)
      • Ambient Operating Temp: 32° to 104°F
      • Allowable Humidity: 20 % to 90 % (no condensation)
      • Storage Temp: -4° to 122°F
      • Mass: Approx. 3.97 lbs (excluding ceiling mounting bracket) Approx. 4.52 lbs (including ceiling mounting bracket)
      • Dimensions (WxHxD): 6.2 x 7.5 x 6.5" (Excluding protrusions, cable cover, ceiling mounting bracket)
      • Compatible Controllers: AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1,2, AK-HRP1005*1,2, AK-HRP1015*2, AK-HRP250*2

        Camera
      • Image Sensors: 1/2.5-type 4K MOS x1
      • Effective Pixels: 8,490,000 pixel
      • Lens: Motorized Optical 24x zoom, F1.8 to F4.0 [f=4 5/32" to 3-29/32" 1-3/8" equivalent: 31/32" to 23-5/8"
      • Zoom:
        Optical zoom: 24x
        i.Zoom UHD 28x, FHD 36x
        Digital extender zoom: 1.4x, 2x
        Conversion Lens: Not supported
      • Angle of View Range:
        Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
        Vertical angle of view: 46.0° (wide) to 1.9° (tele)
        Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
        Focus: Switching between auto and manual
        Focus Distance: Entire zooming range: 1200 mm
        Wide End: 100 mm
        Color Separation Optical System: 1MOS
        Minimum Illumination: 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
        Horizontal Resolution: UHD: 1,500 Typ (Center area)
        FHD: 1,000 Typ (Center area)
        Gain Selection: Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
        Frame Mix: Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
      • Electronic Shutter Speed:
        59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
        29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
        23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
        50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
        25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
      • Synchro Scan:
        59.94p/59.94i: 60.0 Hz to 7200 Hz
        29.97p: 30.0 Hz to 7200 Hz
        23.98p/24p: 24.0 Hz to 7200 Hz
        50p/50i: 50.0 Hz to 7200 Hz
        25p: 25.0 Hz to 7200 Hz
        Gamma: HD / Normal / Cinema1 / Cinema2 / Still Like
      • White Balance:
        ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)
        AWB: AWB-A / AWB-B
        VAR (selectable between 2000 K and 15000 K by designating a value)
        Chroma Amount Variability: OFF, -99 % to 99 %
        Scene File: Full Auto, Scene1, Scene2, Scene3

    • GTIN:

      0885170388239
