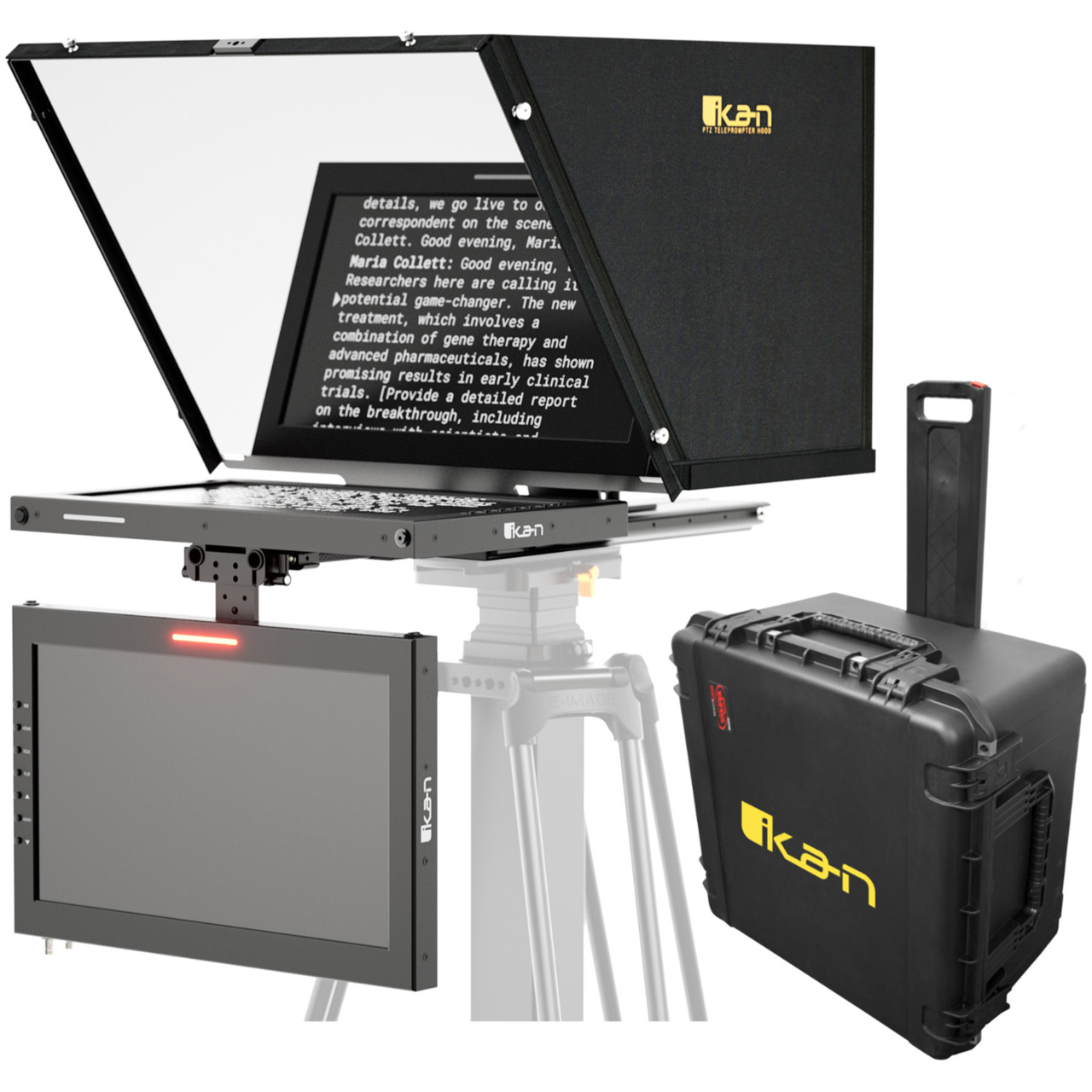

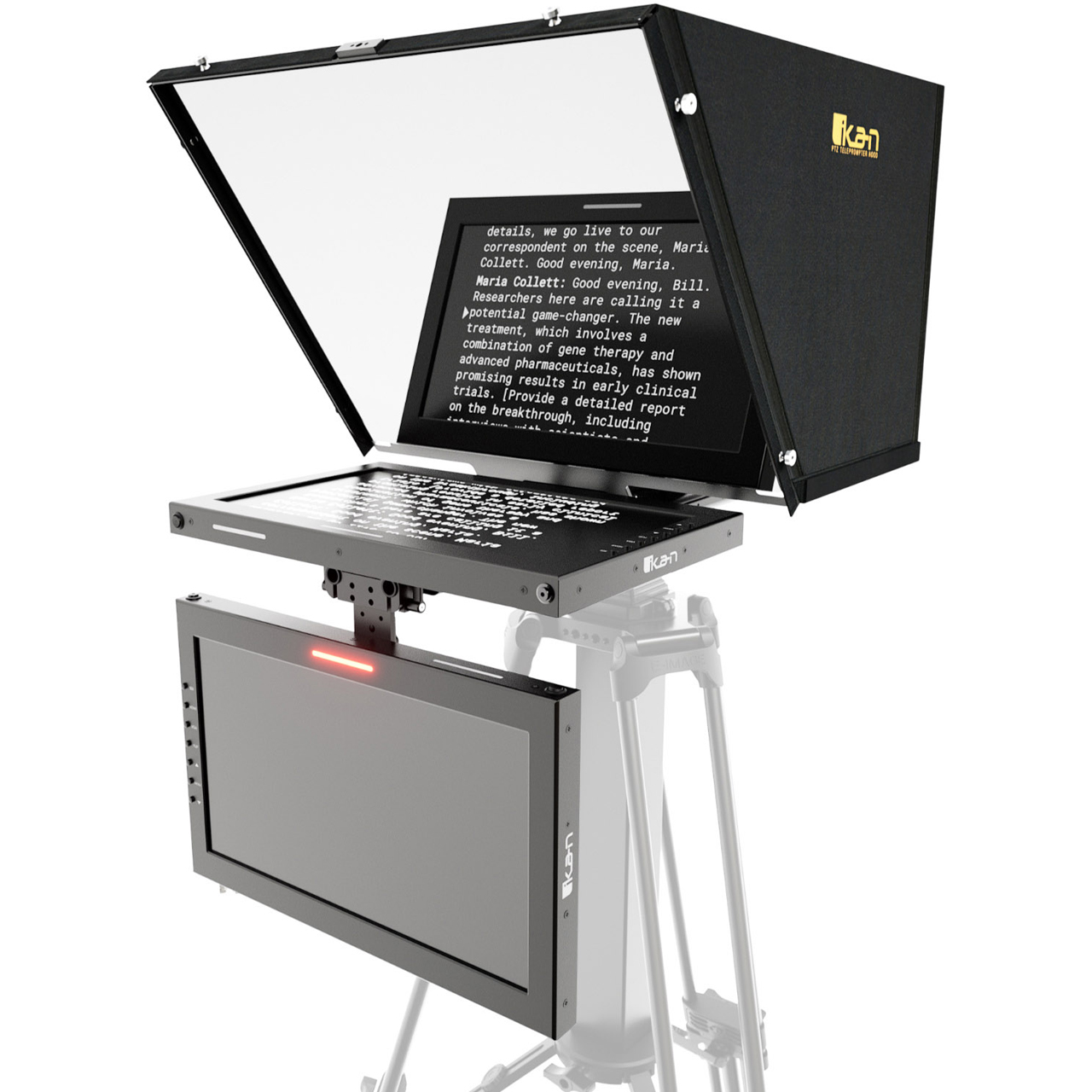

Ikan PT415W-PTZ-TM-TK 15 Inch PTZ Teleprompter with Widescreen Monitor/Talent Monitor and Travel Kit - SDI/HDMI/VGA

ITEM #: IKAN-PT415WPTMTK MFG #: PT415W-PTZ-TM-TK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,249.00

Our Price:

$4,149.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT415W-PTZ-TM-TK - Overview

Ikan's PT415W-PTZ-TM-TK professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The included teleprompter hood fully encloses the PTZ camera allowing it to move freely inside the hood. The teleprompter features a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The widescreen monitor includes SDI, HDMI, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The widescreen monitor also features a wide viewing angle and a 15" widescreen SDI talent monitor with a built-in tally light and a durable hard case w/ wheels and custom cut foam.

PTZ Teleprompting

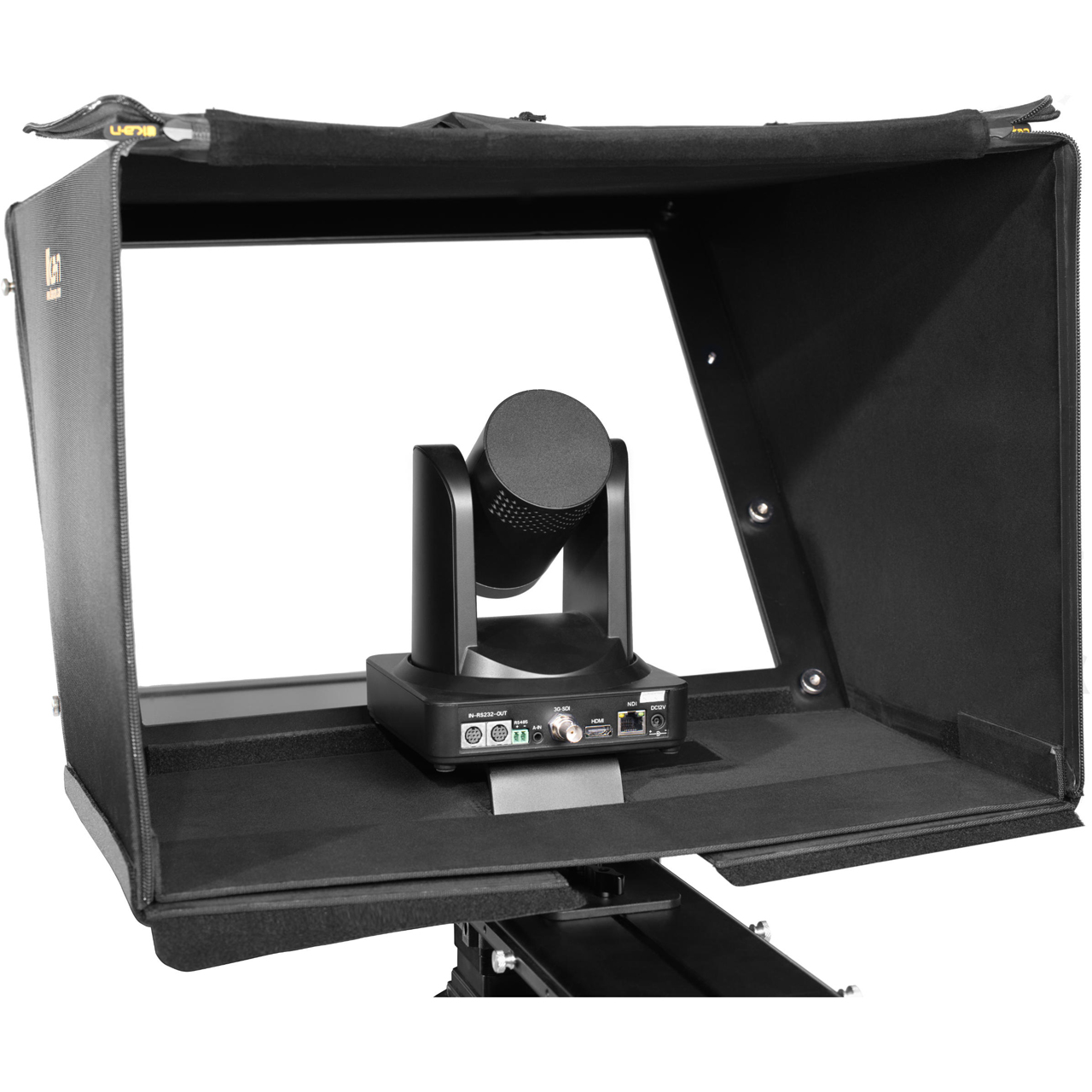

The Ikan PTZ Teleprompter system is a unique PTZ teleprompting system that enables the PTZ camera's pan, tilt and zoom capabilities while still behind the reflective teleprompter glass. You can easily pan the camera between multiple people reading from the same script.

Large Range of Camera Compatibility

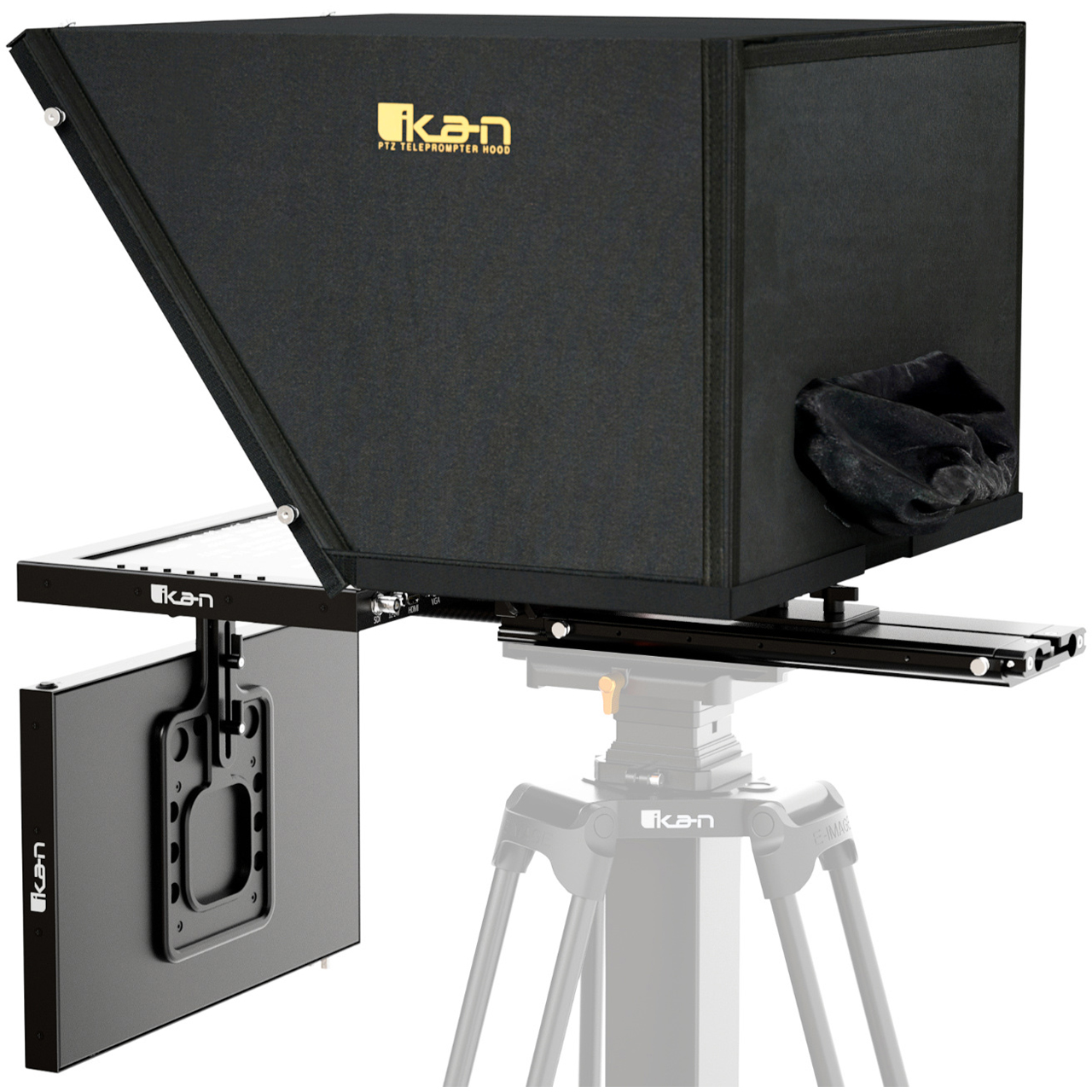

Ikan's Teleprompter includes a large canvas hood, making it compatible with the vast majority of PTZ cameras.

Widescreen Talent Monitor
The 19-inch Widescreen Talent Monitor is designed to conveniently attach below the teleprompter to enable on-screen talent see their presentations live. The monitor features 3G-SDI, HDMI, and VGA, inputs. The native resolution is 1920 x 1080 HD and max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. When plugged into a compatible video switcher, the talent monitor utilizes a red/green tally light that lets you know when your camera is live. The talent monitor includes a 15mm mounting system that connects it to the teleprompter.

  • Features:

    • PTZ Hood Fully Encloses Camera Allowing it to Move Freely
    • Includes 15" SDI Widescreen Talent Monitor w/ Tally Lights
    • Includes Hard Travel Case w/ Wheels
    • Compatible with Most PTZ Cameras
    • Widescreen Teleprompter Monitor features SDI, HDMI, & VGA Inputs
    • 1000-Nit High Bright Monitors
    • High-Quality American Made 65/35 Beam Splitter Glass
    • Screen Readable from up to 17'
    • Multiple Camera Mounting Options
    • Easy Balancing with Adjustable Base
    • Lightweight and Compact Design
    • Ships in Reusable Foam for Easy Transport
    • Monitors Support Image Flip
    • Built-in Tally Light for On Air Status
    • Dual Tally Lights
    • Ultra-Secure Hood
    • Aluminum Chassis
    • PrompterPro Software for MAC & PC is FREE with this Teleprompter

  • Specifications:

    • Teleprompter Base System
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Reading Range: 25 ft (7.62 m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts: 11 x 1/4" -20 Female / 9 x 3/8" -16 Female
    • Weight of Teleprompter Base: 16 lbs
    • Weight of Low Plate: 1 lbs
    • Weight of High Plate: 1.38 lbs
    • Weight of DSLR Plate: 0.748 lbs
    • Height of Teleprompter: 16.1" (411mm)
    • Country of Origin: Taiwan

      15 in Widescreen Teleprompter Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 15"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v
    • Power Consumption: 26.5W
    • Product Weight: 3.73 lbs
    • Product DimensionsL 15.7" x 10.6" x 1.1"
    • LCD Panel Dimensions: 13.5" x 7.7"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Input Port: RJ45 (3-Pin)

      15 in Widescreen Talent Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 15"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v
    • Power Consumption: 26.5W
    • Product Weight: 3.73 lbs
    • Product Dimensions: 15.7" x 10.6" x 1.1"
    • LCD Panel Dimensions: 13.5" x 7.7"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Input Port: RJ45 (3-Pin)

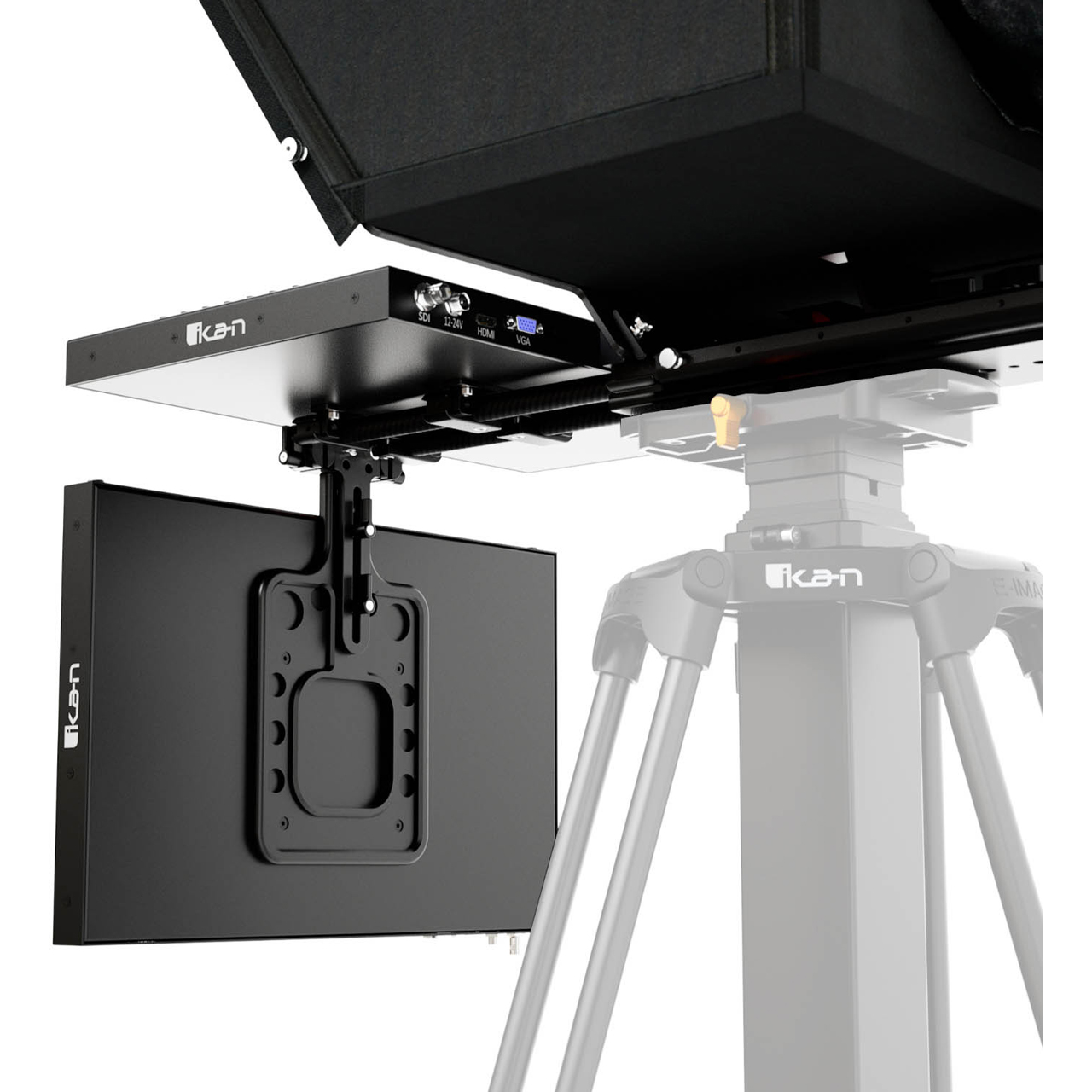

      Talent Monitor Mount
    • Mounting System: 15mm Rod, 100mm VESA
    • Length of Height Adjustment: 1.2"
    • Weight of Mounting Bracket: 1 lbs
    • Dimensions of VESA Mount: 6" x 9.5" x .5"
    • Dimensions of 15mm Mount: 5" x 5.2" x 1"

      PTZ Teleprompter Add-on Kit
    • Height of PTZ Riser: 51 mm
    • Weight of PTZ Riser: .58 lbs
    • Dimensions of PTZ Hood:
      - Top: 19.0" x 15.31"
      - Bottom 8.16" x 15.31"
      - Height: 12.56"
    • Material of Hood: Polyester Canvas
    • Material of PTZ Riser: Aluminum
    • Weight of PTZ Hood: 3.3 lbs
    • Net Weight of Full PTZ Add-on Kit: 3.88 lbs

  • Item Includes:

    • 1x Teleprompter Base
    • 1x 15 in SDI Widescreen Teleprompter Monitor
    • 1x 15 in SDI Widescreen Talent Monitor
    • 1x Hard Travel Case w/ Wheels
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x PTZ Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 1x Power Supply
    • 1x Prompter Pro 4 Digital Download

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0847983036707
