Ikan VXF7-HB 4K HDMI/3G SDI On-Camera Tally Field Monitor Kit with Sunhood/Cables/Mounts - 7 Inch

ITEM #: IKAN-VXF7-HB MFG #: VXF7-HB

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$759.99

Our Price:

$729.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VXF7-HB - Overview

    The Ikan VXF7-HB features a beautifully sharp 2000 nits high bright, full HD 1920 x 1200 IPS LCD panel. It comes with many features such as waveforms, peaking, false color, zooming, pixel-to-pixel mapping and histogram levels. This type of quality ensures you will capture your desired shot on the first try and makes the monitor the ideal workhorse for any production environment.

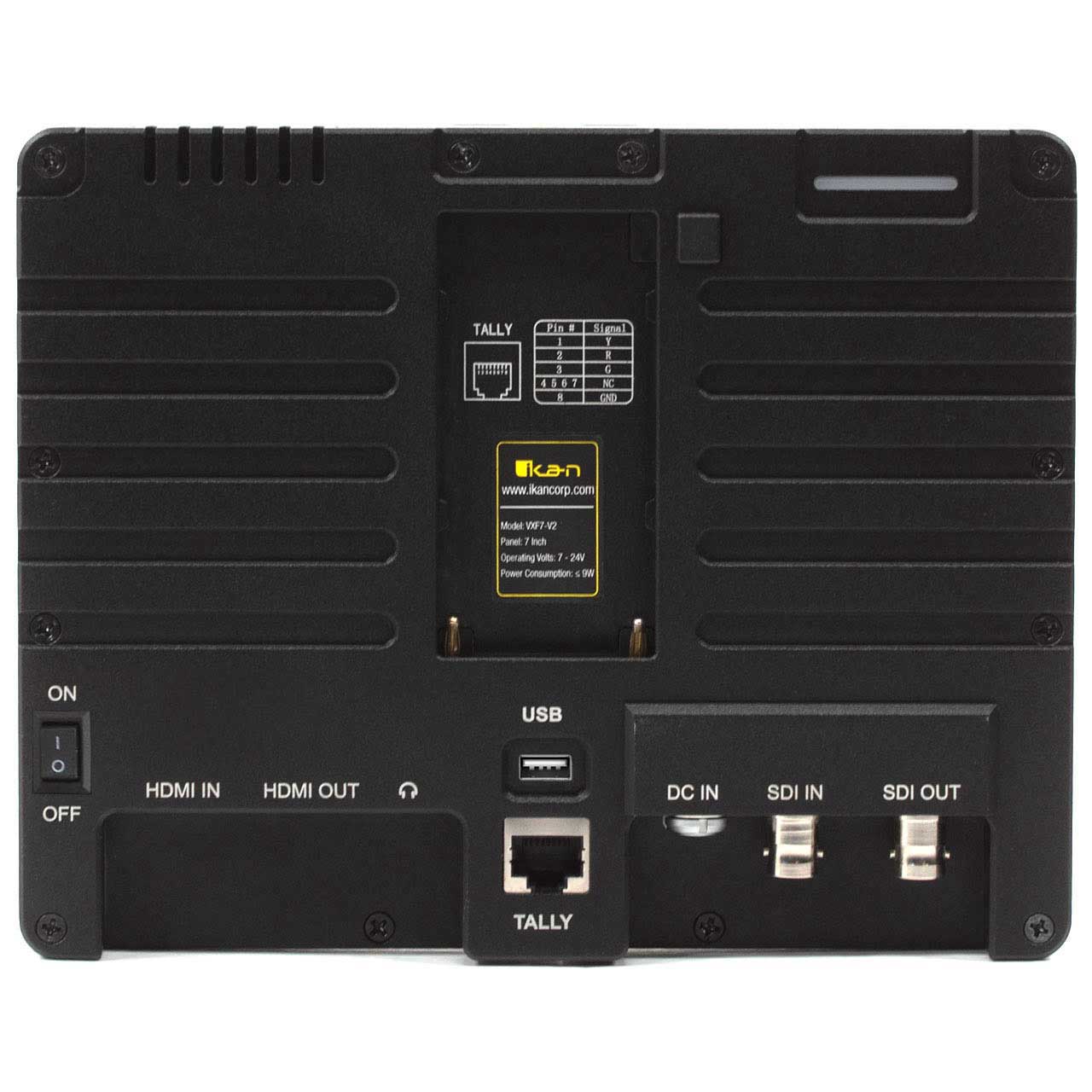

    Tally Light Indicators - Incorporating a tally connector and three tally lights on the front and back, the monitor fits well into a switched multi-camera production. You can access the tally connector pin key by removing the interchangeable battery plate.

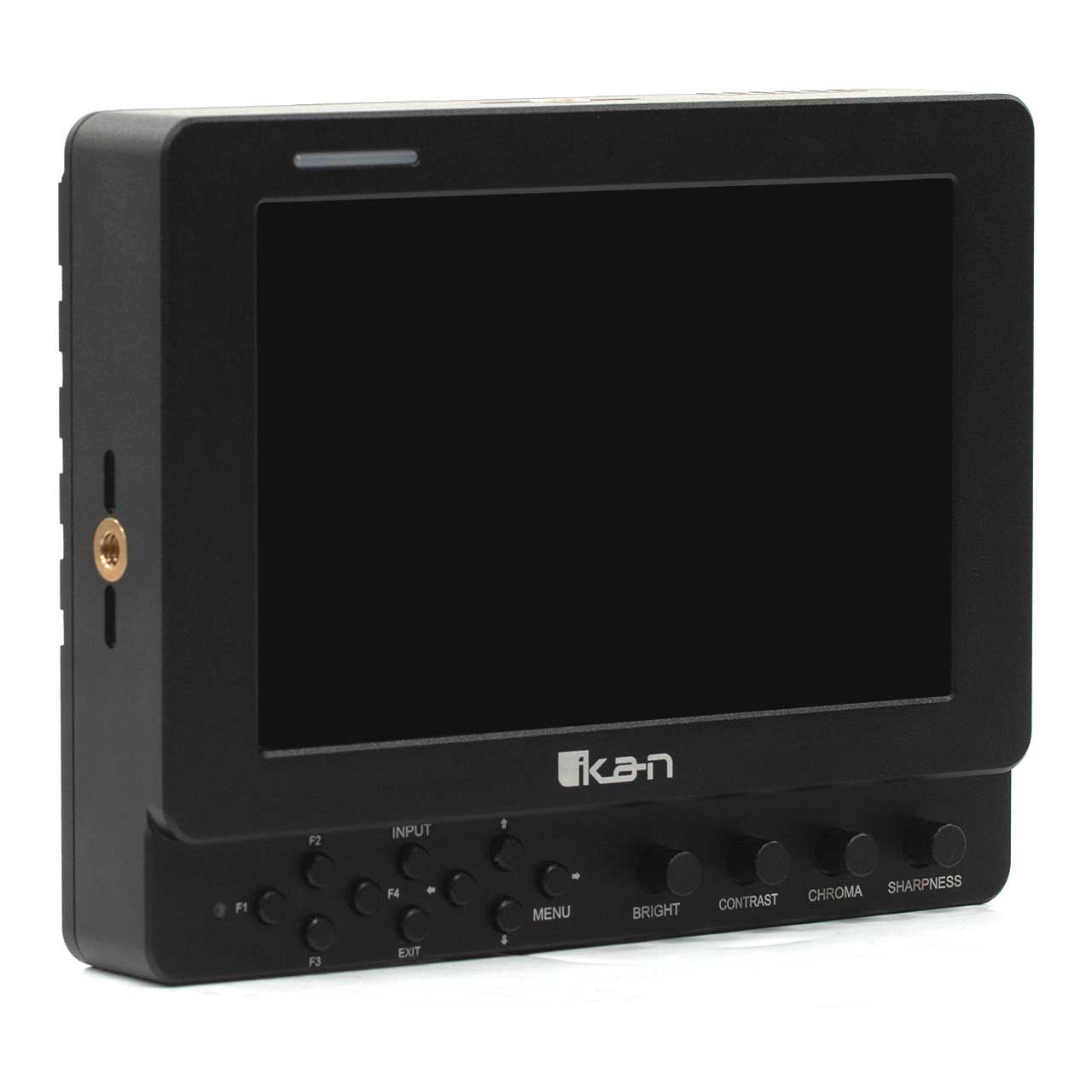

    Made for Professionals - The VXF7-HB is a professional tool designed for the working professional. The ergonomics and button layout provides ease of use in the field. Four knobs on the front make it easy to adjust settings such as brightness, contrast and color. The front and back are equipped with tally lights. A locking power input is also included so you never have to worry about losing power with a loose connection.

    Rugged & Strong - The VXF7-HB updates the classic VXF7 with aluminum to increase durability. All four 1/4-20" threads are also outfitted to work with anti rotation locating pins such as ARRI locating pins.

    • Features:

      • 2000 nits 1920 x 1200 IPS panel
      • 4K@60 support via HDMI
      • Three color tally indicator LED on the front and rear of the Chassis (green, red, yellow)
      • Waveform, false color, peaking, zebra, pixel-to-pixel, zooming, clip guides, audiometer
      • Rugged aluminum enclosure for durability
      • Supports Anamorphic de-squeeze in real-time with a squeeze of 1.33x
      • 3G-SDI Input with loop through
      • HDMI Input with loop through
      • Supports L Series type battery

    • Specifications:

      • Aspect Ratio: 16:10
      • Backlight: LED
      • Brightness: 2000 cd/m2
      • Build Material: Aluminum
      • Color Depth: 16.7 Million
      • Color System: PAL/NTSC/SECAM (Auto-Detected)
      • Contrast Ratio: 1000:1
      • Input Voltage: DC 7V - 24V
      • Inputs: 3G-SDI, HDMI, RJ45 (Tally)
      • Operating Temperature: 0 deg C ~ 50 deg C (32 deg F ~122 deg F)
      • Outputs: 3G-SDI, HDMI, 3.5mm Audio Port
      • Power Consumption: 12W
      • Resolution: 1920 x 1200
      • Screen Size: 7 in.
      • Viewing Angle: 178 degrees horizontal/178 degrees vertical

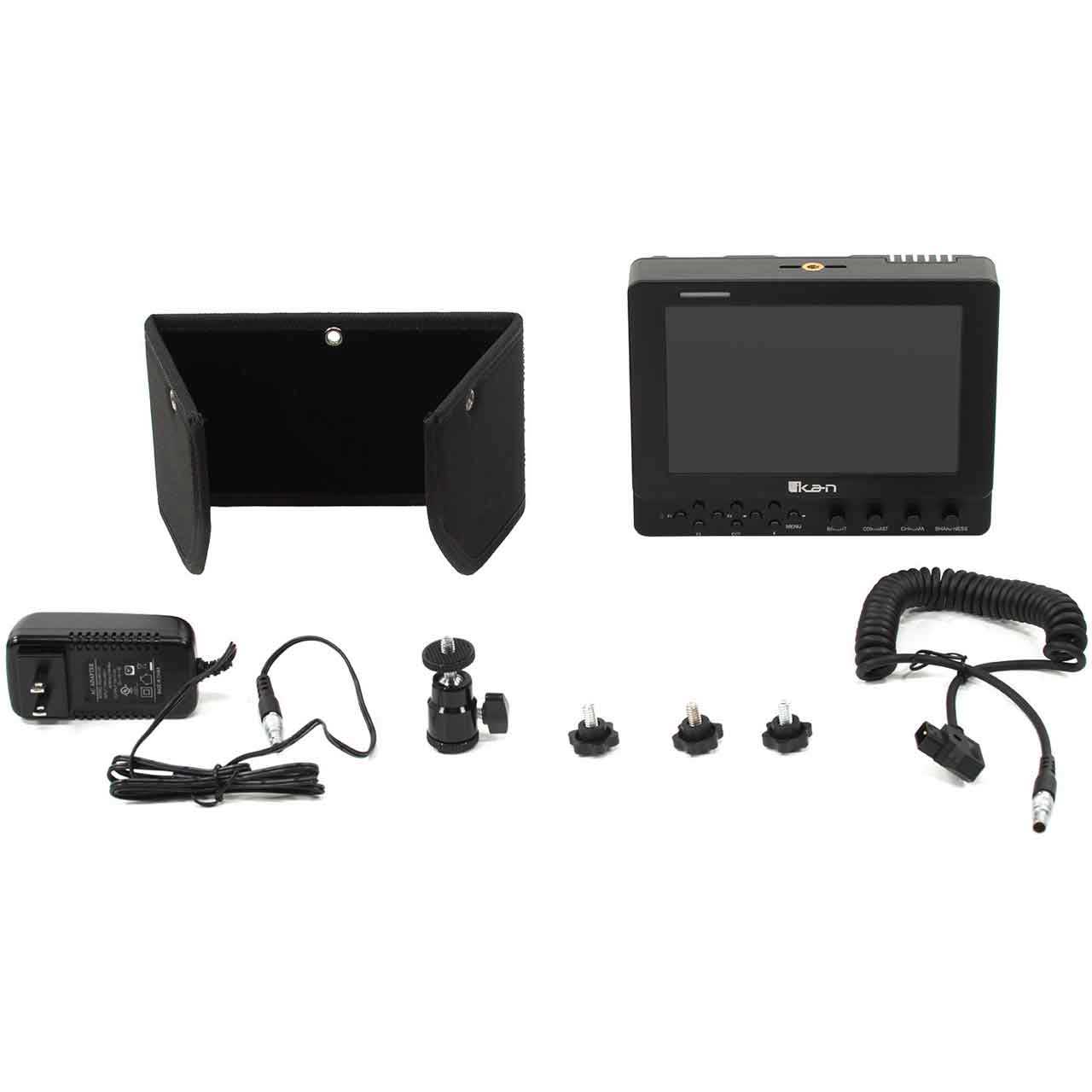

    • Item Includes:

      • 1x Ikan VXF7-HB
      • 1x Sunhood
      • 1x Power Adapter
      • 1x D-Tap Cable
      • 1x Shoe Mount

    • Warranty:

      • 1-Year Limited Warranty

    • GTIN:

      0847983035090
