ikan VXF7 7 Inch 4K Full HD HDMI / 3G-SDI On-Camera Monitor

ITEM #: IKAN-VXF7 MFG #: VXF7

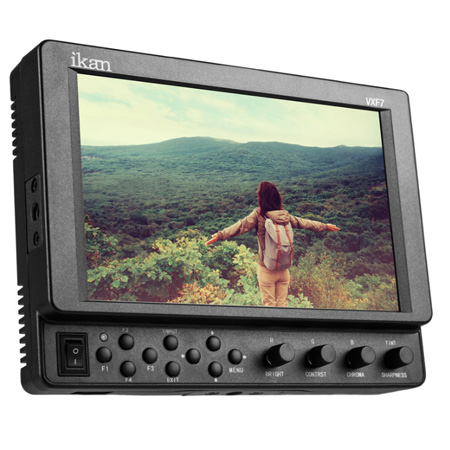

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the IKAN-VXF7

VXF7 - Overview

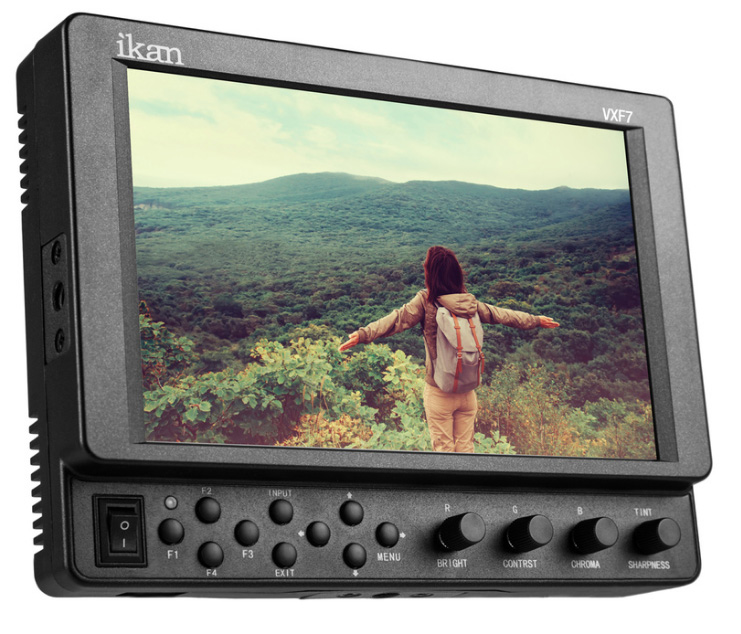

Outstanding 4K image quality is now available for the VX monitor series! The ikan VXF7 features a beautifully sharp, full HD 1920 x 1200 IPS LCD panel. It comes with many standard features such as peaking, false color, zooming, pixel-to-pixel mapping and histogram levels. This type of quality ensures you will capture your desired shot on the first try and makes the VXF7 monitor the ideal workhorse for any production environment. With the deluxe kit everything you need to get up and running is included.

Full HD Panel
The VXF7's full HD panel is incredibly sharp and pristinely clear. Blacks are deep, colors are amazingly accurate and the viewing angles are nearly perfect on the 1920 x 1200 (screen) resolution. Incorporating the IPS LCD panel eliminated many issues such as bad viewing angles and color rendition that occurred with standard TFT LCD panels. What you get with this on-camera monitor is nothing less than stellar image quality.

Made for Professionals

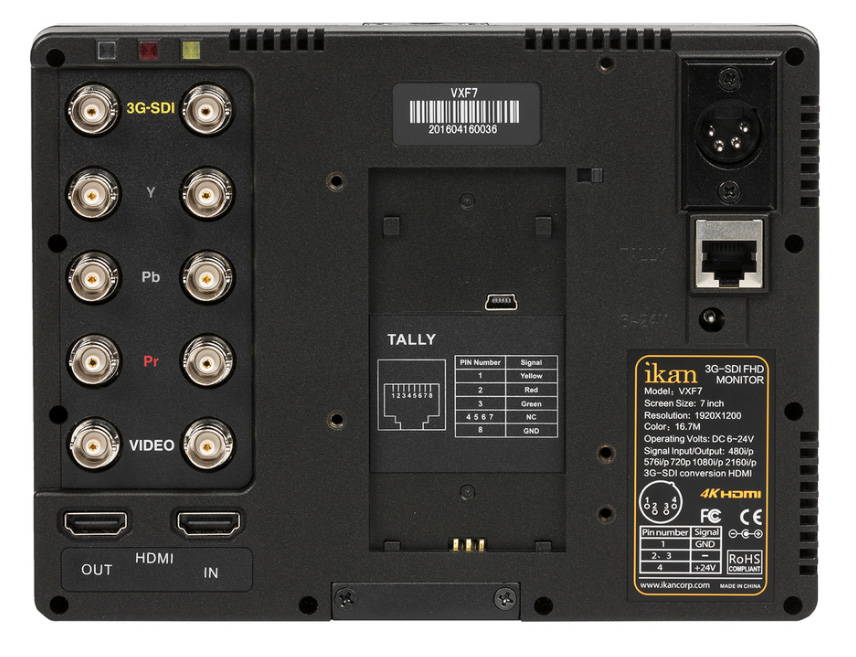

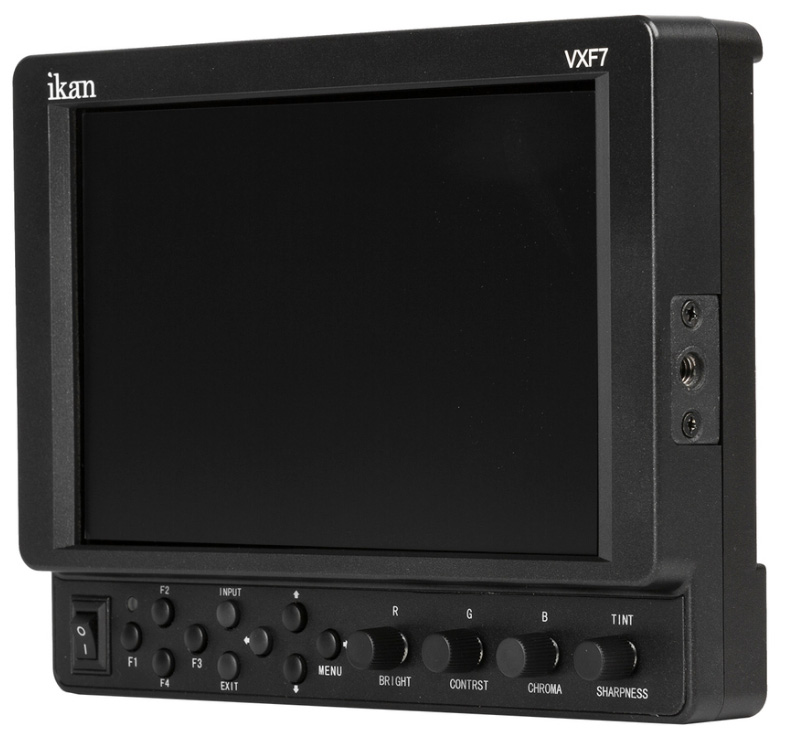

The VXF7 is a professional tool designed for the working professional. The ergonomics and button layout provides ease of use in the field. Four knobs on the front make it easy to adjust settings such as brightness, contrast and color. The back of the monitor is equipped with professional BNC connectors to keep your cables in place. A locking 4-pin XLR power input is also included so you never have to worry about losing power with a loose connection.

4K & Ultra HD Support
The VXF7 pairs perfectly with your current or future 4K compatible camera. It supports both the Ultra HD 3840 x 2160 resolution and Full 4K 4096 x 2160 pixel resolution. To help you focus with such high resolutions, we included the Pixel-to-Pixel mapping feature, which provides a 1:1 pixel representation of the 4K image coming through your camera lens.

  • Features:

    • Resolution of 1920 x 1200
    • DCI 4K & Ultra HD Support via HDMI
    • SDI to HDMI Signal Conversion
    • IPS LCD Panel for Better Color and Viewing Angles
    • Histogram for Getting the Perfect Exposure
    • 3G-SDI Input with Loop Through
    • HDMI Input with Loop Through
    • False Color, Peaking, & Clip Guides
    • DSLR Scaling
    • Front and Rear Three Color Tally Light Display

  • Specifications:

    • Supported Video Signal

      3G-SDI:
    • 1920x1080p @ 50, 59.94, 60 Hz

    • HD-SDI:
    • 1280x720p @ 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.97, 24, 25, 29.97, 30 Hz

      SD-SDI:
    • 720x480i @ 60Hz
    • 720x576i @ 50Hz

      HDMI:
    • 720x480i & 720x480p @ 59.94, 60 Hz
    • 720x576i & 720x576p @ 50 Hz
    • 1280x720p @ 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
    • 3840x2160p @ 24, 25, 30 Hz
    • 4096x2160p @ 24 Hz

      Component:
    • 720x480i @ 60 Hz
    • 720x576i @ 50 Hz
    • 1280x720p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.97, 24, 25, 29.97, 30 Hz

      Composite:
    • NTSC-M, NTSC-J, NTSC 4.43
    • PAL B/G H I D, PAL M, PAL N
    • SECAM

    • Aspect Ratio: 16:10
    • Backlight: LED
    • Brightness: 300 cd/m2
    • Build Material: Heavy Duty Plastic
    • Color Depth: 16.7 Million
    • Color System: PAL/NTSC/SECAM (Auto-Detected)
    • Contrast Ratio: 800:1
    • Dimensions: 7.36 x 5.6 x 1.3 in
    • Dimensions Metric: 187 x 142 x 33mm
    • Fixture Weight: 1 lb / .45 kg (monitor only)
    • Input Voltage: DC 6V - 24V
    • Inputs: 3G-SDI, HDMI, Component, Composite
    • Operating Temperature: 0 deg C ~ 50 deg C (32 deg F ~122 deg F)
    • Outputs: 3G-SDI, HDMI, Component, Composite
    • Pixel Pitch: 0.07875 - 0.07875 (mm)
    • Power Consumption: 11W
    • Resolution: 1920 x 1200
    • Response Time: 20ms
    • Viewing Angle: 178 degrees horizontal/178 degrees vertical
    • Shipping Weight (lbs): 3
    • Shipping Dimensions (in): 3 x 14.75 x 7.75 in.
    • Product Weight (lbs): 1
    • Product Dimensions (in): 7.36 x 5.6 x 1.3 in.

  • Item Includes:

    • USB Drive
    • Screen Protector
    • Screen Cleaning Wipe
    • Mini to Standard USB Adapter
    • DV Battery Plate
    • DV Battery Charger
    • Cold Shoe Mount
    • AC Adapter
    • VXF7 Monitor
    • Slim 1.5 Ft HDMI Cable (Micro To Standard)
    • Slim 1.5 Ft HDMI Cable (Mini To Standard)
    • Hard Case

  • GTIN:

    0847983018062
