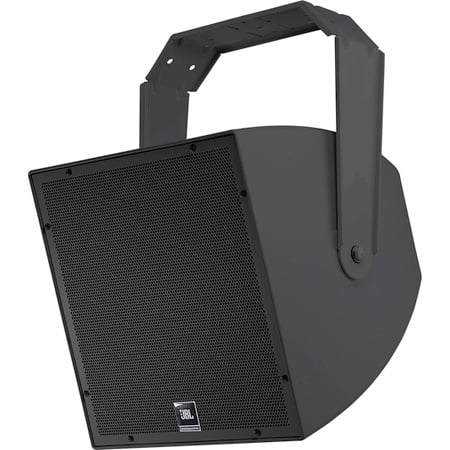

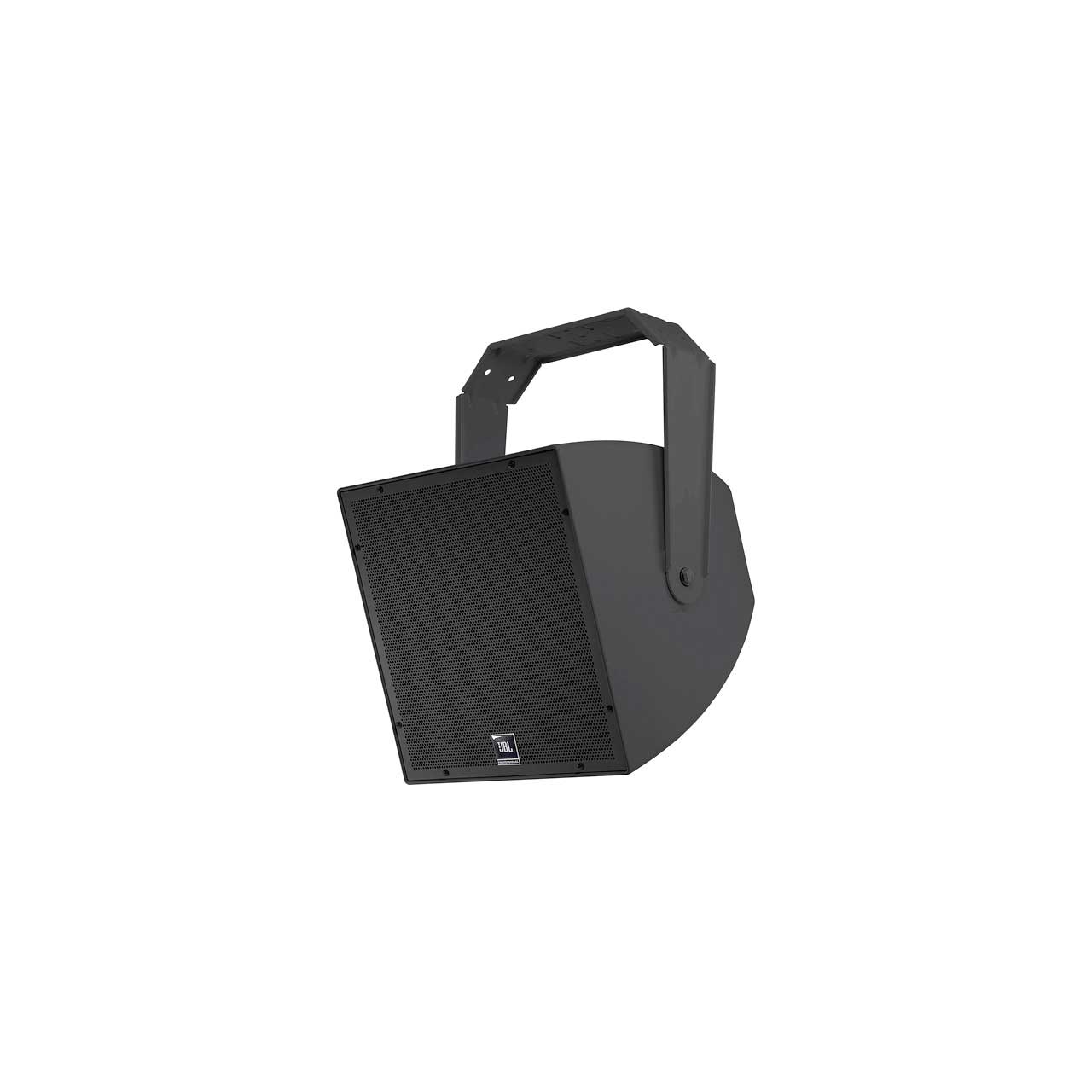

JBL AWC129-BK All-Weather Coax 12-Inch 2-way Black (Each)

ITEM #: JBL-AWC129-BK MFG #: AWC129-BK

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,173.45

Our Price:

$942.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    AWC129-BK - Overview

    The JBL AWC129-BK All-Weather Coax 12 inch 2-way is a highly weather-resistant full-range loudspeaker system professionally designed for speech, music and a wide variety of other applications. The AWC129 features a compact, coaxial-driver with a 300 mm (12 in) Kevlar-reinforced woofer, a 75 mm (3 in) voice coil, a 25 mm (1 in) compression driver and a high-temp polymer diaphragm. A sure bet for outdoor background music, paging systems and more it's perfect for sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, practically any outdoor situation. The JBL AWC129-BK sports 90 degree by 90 degree broadband control, 400 watt power handling (1600 watt peaks), 55hz to 20khz frequency range, overload HF protection and excellent clarity due to the extended frequency response.

    • Features:

      • Highly weather-resistant IP56 rating
      • Consistent 90° x 90° broadband pattern control
      • Extraordinary clarity for speech, with extended frequency response for music.
      • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
      • 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
      • High-power passive crossover network.
      • Overload protection
      • 55 Hz - 20 kHz frequency response.
      • 200 Watt 70V/100V multi-tap (built-in transformer)
      • direct 8 ohm low-impedance
        Components:
      • 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
      • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.

    • Specifications:

      • Frequency Range (-10 dB): 55 Hz - 20 kHz
      • Frequency Response (±3 dB): 80 Hz - 20 kHz
      • Coverage Pattern: 90° x 90°
      • Directivity Factor (Q): 10.1 (1 k - 16 kHz)
      • Directivity Index (DI): 9.5 dB (1k - 16 kHz)
      • Long-Term System Power Rating (IEC): 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs;
      • Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz - 20 kHz)
      • Maximum SPL Direct 8O: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB
      • Crossover Network: 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
      • Nominal Impedance: 8 ohms
      • Transformer Taps 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
      • Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
      • High Frequency Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.

        HF Driver Protection
      • Minimum audibility SonicGuardT HF overload protection

        Enclosure
      • ABS with Glass enclosure, heavily braced
      • Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
      • Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.

        Input Connection
      • CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")

        Environmental
      • IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs)

    • GTIN:

      0050036904209
