    CSMA180 - Overview

    CSMA 180/1120

    The JBL CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown's DriveCore technology enables significantly reduced size and weight - all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

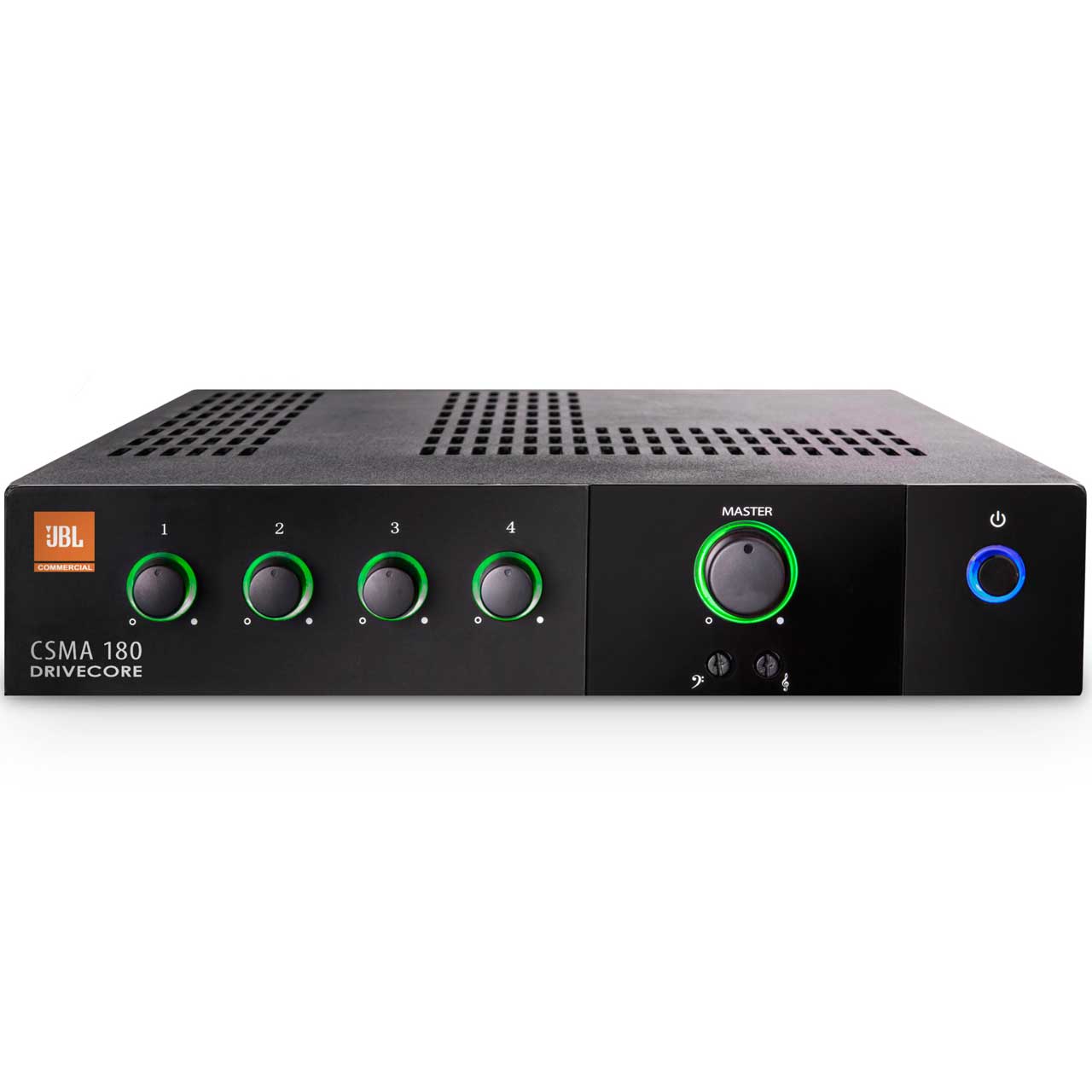

    The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

    JBL Commercial mixer/amps are manufactured under HARMAN's GreenEdge environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation - up to 80 percent more efficient than previous designs.

    • Features:

      • 4 inputs with 1 output of 80 or 120-watts of power
      • Ideal for commercial and industrial use
      • Fanless, space-saving 1U design
      • Sleek industrial look with illuminated rings, making them easy to see and operate
      • Euro-block type mic/line input connectors and output connectors
      • Independent Bass and Treble controls for each output channel
      • Supports 70V and 100V distributed audio systems without the need for a separate transformer
      • Remote volume control capability using JBL CSR-V module and standard Ethernet cable
      • Priority muting
      • Configurable output routing
      • Utilizes Crown's DriveCore technology providing excellent audio performance with high efficiency
      • Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
      • Includes rack mounting kit
      • Energy Star Certified
    • Specifications:

      • Output: 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%)
      • Frequency Response: +/- 1dB (@1W into 4 or 8 Ohms)
      • Load Impedance: Stable from 2 - 16 Ohms
      • Sensitivity: 1.4Vrms
      • Signal to Noise Ratio: Greater than 100 dB - 1kHz, A-weighted
      • Input Impedance: Balanced 20K Ohms/Unbalanced 10K Ohms
      • Max Input: +20dBu Typical
      • Dimensions: 8.2" x 1.7" x 7" (209 mm x 44 mm x 178 mm)
      • Shipping Weight: 2.9 Lbs (1.3 Kg)
    • Item Includes:

      • Rack mounting kit
    • Warranty:

      • Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
    • GTIN:
