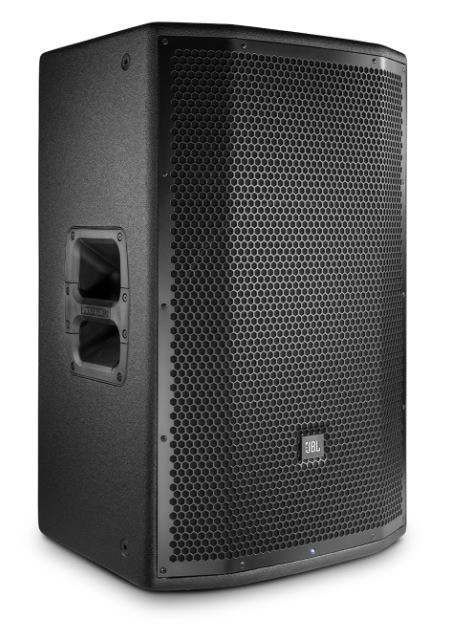

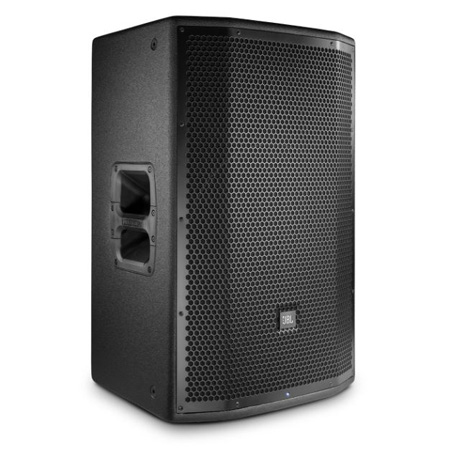

JBL PRX815W 15 Inch Two-Way Full-Range Main System/Floor Monitor Wi-Fi EQ Control

ITEM #: JBL-PRX815W MFG #: PRX815W

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the JBL-PRX815W

PRX815W - Overview

15" Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

The JBL PRX815W is a full-range speaker designed for main system and floor monitor applications. Featuring a 15", two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX815W delivers incredible volume in a lightweight and compact form factor.

The 2-way 15" offers the perfect balance between size and performance. The PRX815W truly is an exception; it's small, light weight, versatile and powerful with remote Wi-Fi control of onboard DSP EQ parameters. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ's when portability is key, or when hung by the suspension points, an exceptional lightduty installation speaker. All PRX800 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX815W delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX800 sub-woofer the system becomes an efficient, full-range sound system.

The PRX815W is comprised of 15" 275G Differential Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 9&de; by 50° horn, all driven by 1500 watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL's tour proven DuraFlexT finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

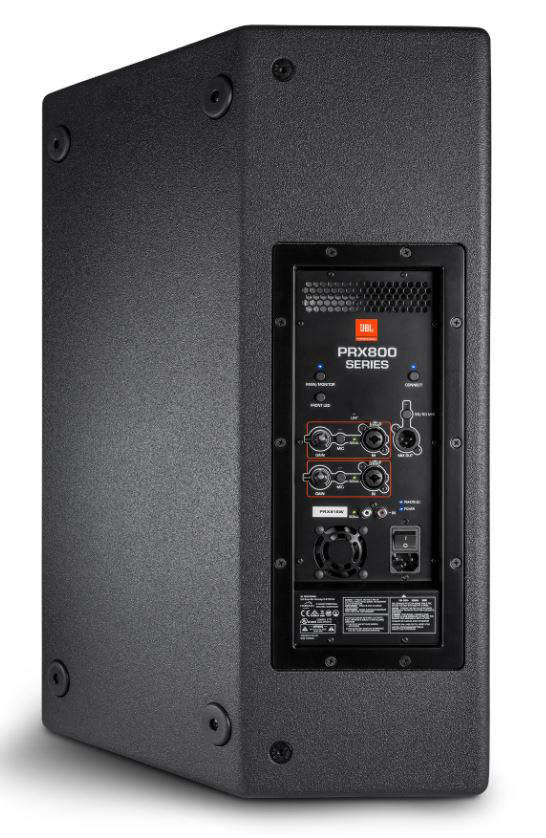

The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.

  • Features:

    • Maximum SPL Output 137 db Peak
    • 15" Differential Drive® low-frequency driver for low-distortion and higher SPL
    • 1.5" diameter next generation JBL neodymium compression driver
    • 1500W (dual 750 watt) highly efficient Class-D amplifier
    • Optimized EQ for monitor or front-of-house applications
    • DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
    • Wireless remote control of its onboard DSP EQ parameters via Wi-Fi. Control and configure your show from anywhere
    • Professional XLR-G" combination inputs, RCA inputs, and XLR loop-through
    • Integrated 36 mm pole mount socket with angle down tilt
    • Integrated 12 x M10 suspension points
    • Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL's tour proven DuraFlex™ finish

  • Specifications:

    • System:
    • System Type: Self Powered 15", two-way, bass-reflex
    • Maximum SPL Normal: 137 dB
    • Boost: 137 dB
    • Frequency Range (-10 dB) Main: 50-20k
    • Monitor: 46-20k
    • Frequency Response (±3 dB) Main: 56-20k
    • Monitor: 56-19k
    • Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
    • Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
    • Signal indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting, Signal: Green LED indicates signal present, Power: Blue indicates system has power and ready to pass audio
    • EQ: User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
    • Dynamic Control (Input): dbx Type IV™ limiter circuit
    • Crossover Frequency: 2.0 kHz
    • Amplifier:
    • Design: Highly efficient Class-D amplifier
    • Power Rating: 1500W (750W x 2)
    • AC Power Input: 100V - 240V ~ 50/60 Hz
    • Speaker:
    • LF Driver: 1 x JBL 275G (15 in) woofer
    • HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
    • Coverage Pattern: 90° x 50° nominal
    • Directivity Index (DI): 10.2 dB
    • Directivity Factor (Q): 10.4
    • Enclosure: Asymmetrical, 18 mm, plywood
    • Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points
    • Transport: 1 x injection molded handle with backing cup
    • Finish: Obsidian DuraFlexT finish
    • Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
    • Dimensions (H x W x D): 701 mm x 446 mm x 359 mm (27.6 in x 17.5 in x 14.1 in)
    • Net Weight: 21.6 kg (47.5 lb)
    • Gross Weight: 26.3 kg (58.0 lb)

  • Item Includes:

    • PRX815W
    • IEC Cable
    • User's Guide

  • GTIN:

    0691991005350
