Remote Control Monitor
While the CQ Series products can be remotely activated with any contact closure, Juice Goose produces RC-5 accessory line is an economical remote control and monitor device. The RC5 operates any Juice Goose CQ Series of sequenced power distribution devices.

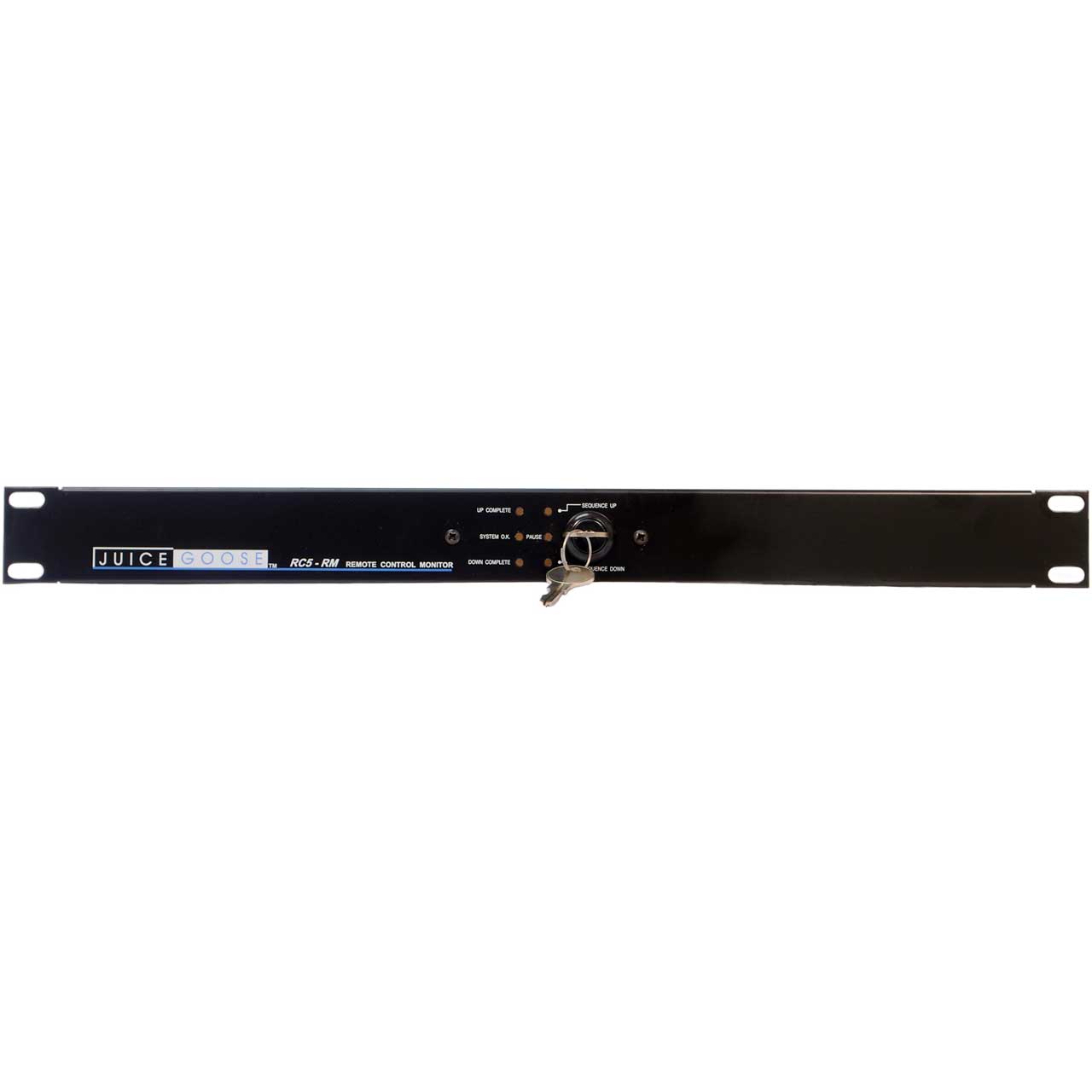

The RC5 is available in rack or wall mount designs. It requires no secondary power supply. Power is supplied by the CQ Series product to which it is connected. The rack mount RC-DM3 requires connection to a 120VAC power source. In a typical CQ system the RC5 will be connected to the first CQ device in a chain of sequencing products. Use of the RC5 will be the initial step in activating the system. Using an RCDM3, one control point may be at the "front-of-house" while a second is at an on-stage location and a third is elsewhere. The system can be sequenced up or sequenced down from any location, regardless of where the previous control was initiated.
For installations where securing the sequence controller against unauthorized operation is not an issue Juice Goose introduces the RC5-RS which provide all the functionality of the existing key switch devices, but with the convenience of a simple rotary switch control.
The RC5 requires no external power supply and connects with the same simple RJ-12 cable that is used to connect the CQ units.
Made in America
