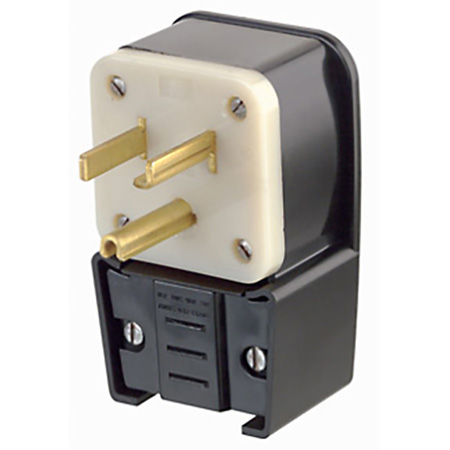

Leviton 9530-P Electrical Plug

9530-P - Overview

9530-P - Overview

9530-P - Details

• Features:

  • NEMA: 5-30P
  • Color: Black
  • Warranty: 10 Year Limited


• Specifications:

  • Amperage: 30 A
  • Voltage: 125 VAC
  • Pole: 2
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Limiting: Full Rated Current
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40C to 60C
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Terminal Accom.: Up to 4 AWG
  • Product ID: Ratings are permanently marked on device
  • Cord Range: .625 - 1.375
  • Wire Gauge: 10-4 AWG
  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40°C to 60°C


• Warranty:

  • 10 Year
