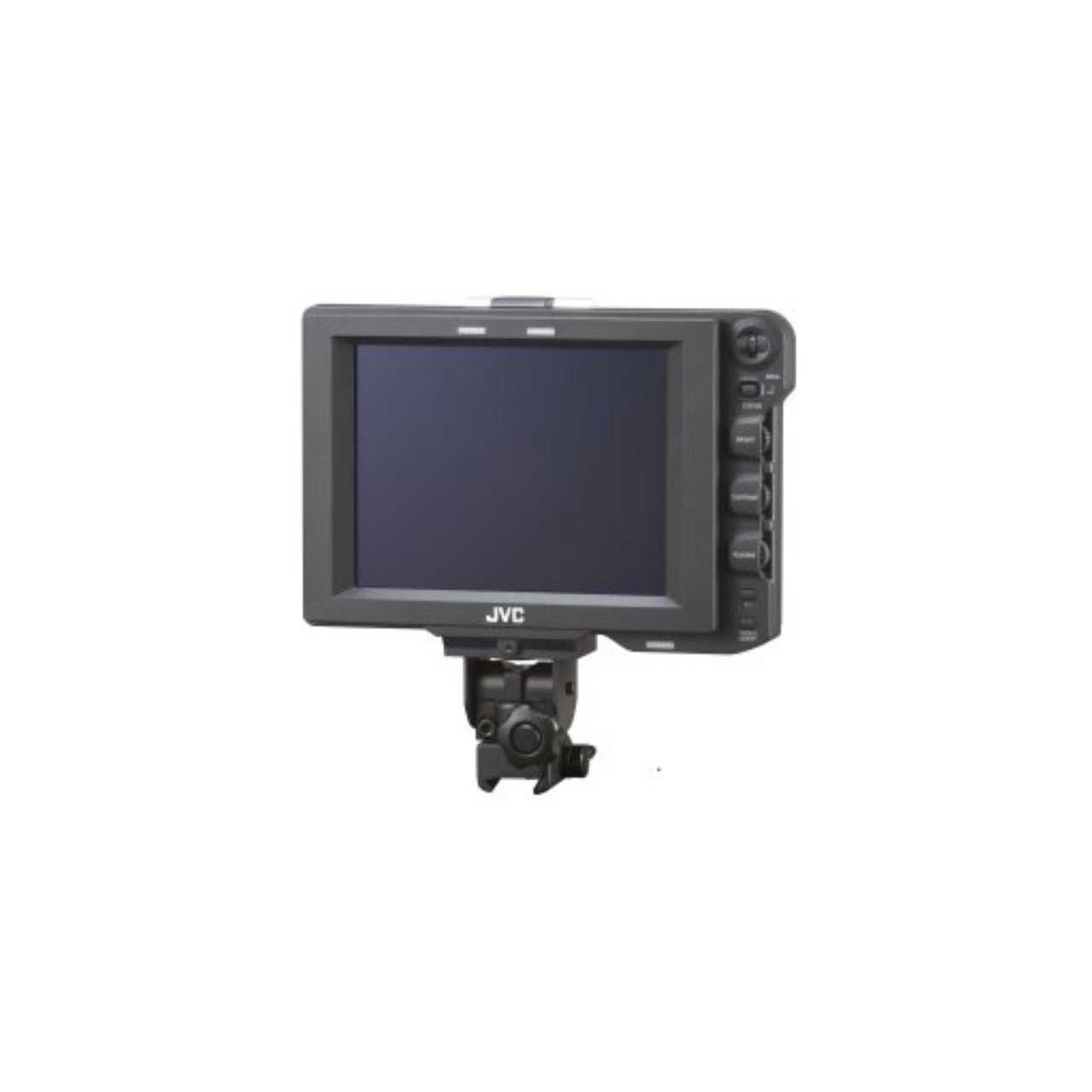

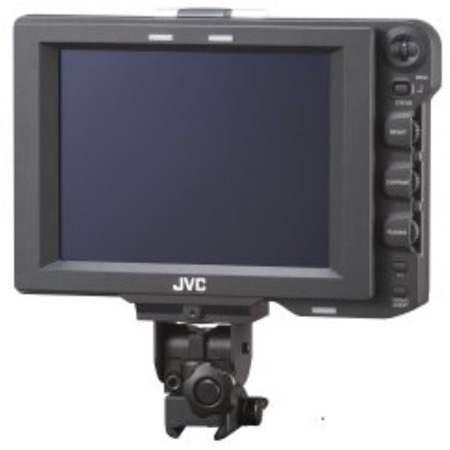

JVC VF-HP790G 8.4-Inch LCD HD/SD Studio Viewfinder with Camera Menu Control

VF-HP790G - Overview

• Features:

  • High Resolution - The VF-HP790G is a large viewfinder with an 8.4-inch XGA (1024 x 768) LCD panel.
  • Multi Scan - Supports YPbPr input of HD (1080i 50/60, 720p 50/60) and SD (480i 60, 576i 50).
  • SDI Input Terminal - In addition to the camera's viewfinder image, SDI image can be input to this viewfinder.
  • Rich Marker - Equipped with Safety Zone display, two types of Zebra display and Focus Assist function, all of which are highly useful in the studio.
  • Screen Menu Function - You can display the menu on the screen to set or adjust the most appropriate monitor settings for the connecting system. You can make settings to the menus of this viewfinder and the GY-HM790 series camera (except for some parts).


• Specifications:

  • General
  • Connecting Device: GY-HM790 series
  • Power Supply: 12 V DC (11 V DC to 18 V DC)
  • Power Consumption: Approx. 11 W and below
  • Ambient Temperature: 0 °C to 40 °C
  • Allowable Operating Humidity: 30 % RH to 80 % RH
  • Mass: 1.6 kg (excluding hood), 1.9 kg (including hood)

    LCD Specifications
  • Screen Size: 8.4 inch
  • Aspect Ratio: 4:3
  • LCD Panel: TFT-LCD
  • Resolution: 1024 x 768 dots (XGA)
  • Display Color: Approx. 16.77 million colors
  • View Angle (Standard): 60°/50°/65°/65° (Top/Bottom/Left/Right)
  • Brightness: 300 cd/m²
  • Contrast Ratio: 400:1

    Input Terminal
  • SDI Input: HD/SD SDI video signal input, BNC (unbalanced)
  • HD-SDI : Compliant with SMPTE 259 M
  • SD-SDI: Compliant with SMPTE 292 M


• Item Includes:

  • 1x JVC VF-HP790G 8.4-Inch LCD Studio Viewfinder Video Monitor
  • 1x Instructions
  • 1x Warranty Card (For USA & Canada)
  • 1x VF Cable
  • 1x Hood Cove
