Hollyland SYSCOM 421S-2TX1RX 1800 Foot Range SDI/HDMI Wireless Video/Audio System - 2 Transmitters and 1 Receiver

ITEM #: HL-SYSCOM421S2T1 MFG #: HL-SYSCOM 421S-2TX1RX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Hollyland
Free Shipping with $49 Minimum Order
Availability: Sold Out
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    HL-SYSCOM 421S-2TX1RX - Overview

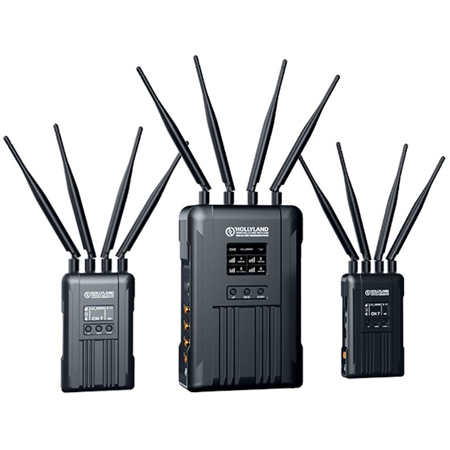

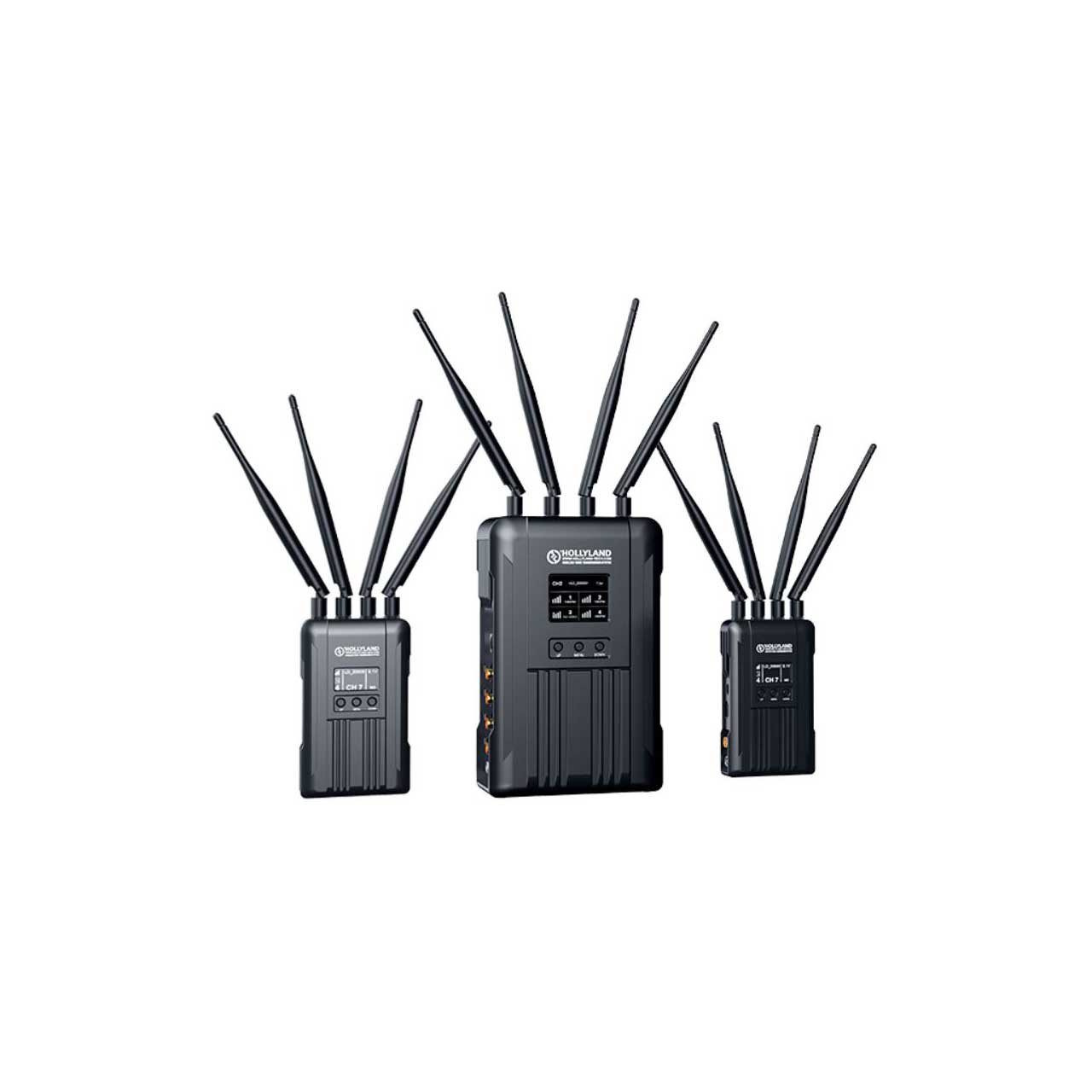

    Hollyland SYSCOM 421S is the wireless HD Video transmission system which can achieve 4 transmitters on the same RF Channel with strong anti-interference capability. The lowest latency is 0.07s. It has a transmission range about 1800ft with a clean line of sight (LOS) when the receiver is connected to 4 transmitters at most. SYSCOM 421S supports up to 1080P 60Hz image resolution. The transmitters are equipped with L-series battery plate and the receiver is equipped with V-mount large capacity battery. Both transmitters and receiver also can power by DC adapter.

    Typical Applications
    Weddings
    Music Concerts
    Sports Events
    Church Services
    Exhibitions
    Conferences
    Government/Corporate Events
    Government Meetings
    School Celebrations/Ceremonies

    • Features:

      • 1800ft Transmission Range
      • The Lowest Achievable Latency without Interference is under 0.1s
      • 5.1-5.9 GHz Band Width, Supports Frequency Configuration for Different Territories

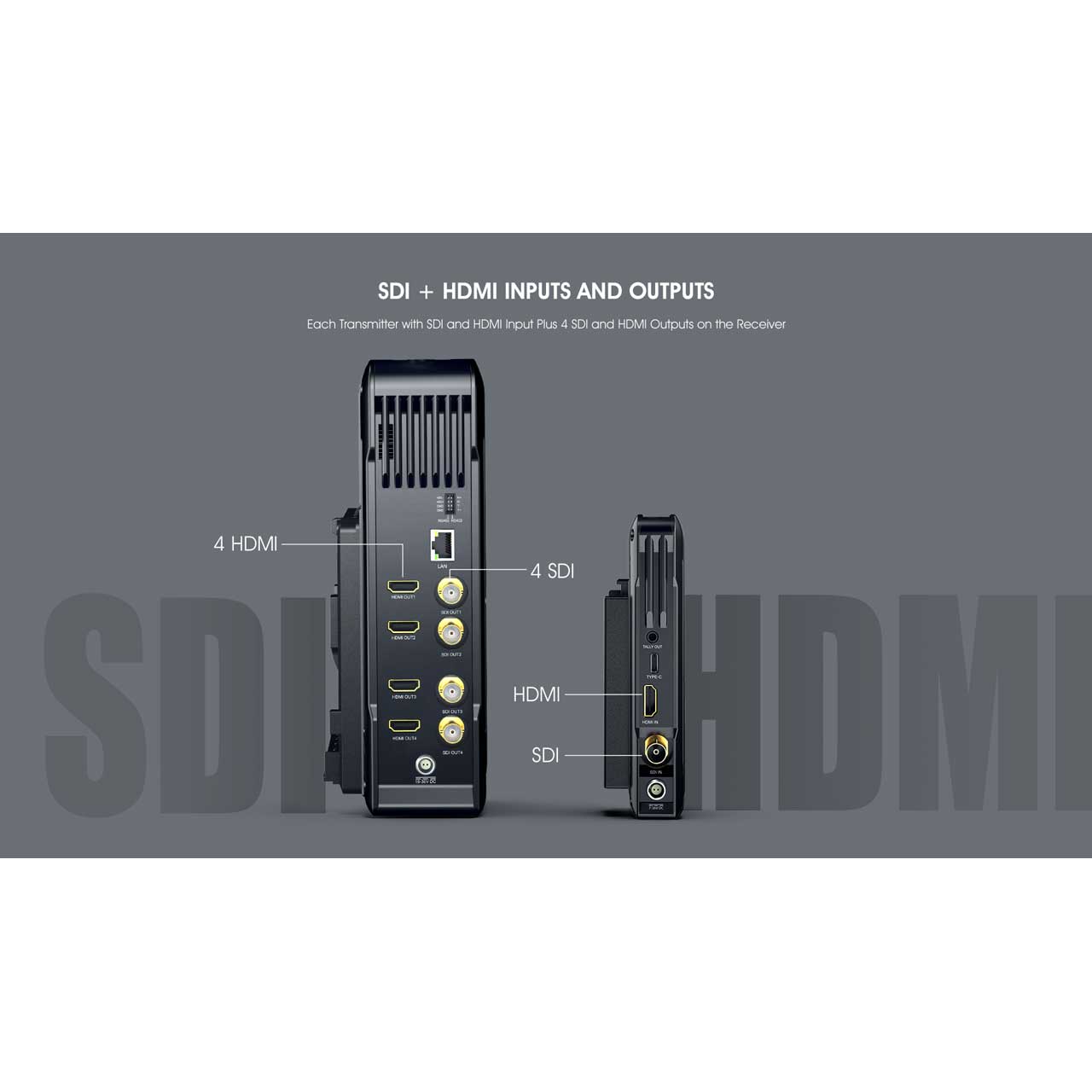

      • Supports 4 SDI Input and HDMI Input, 4SDI Output and HDMI Output

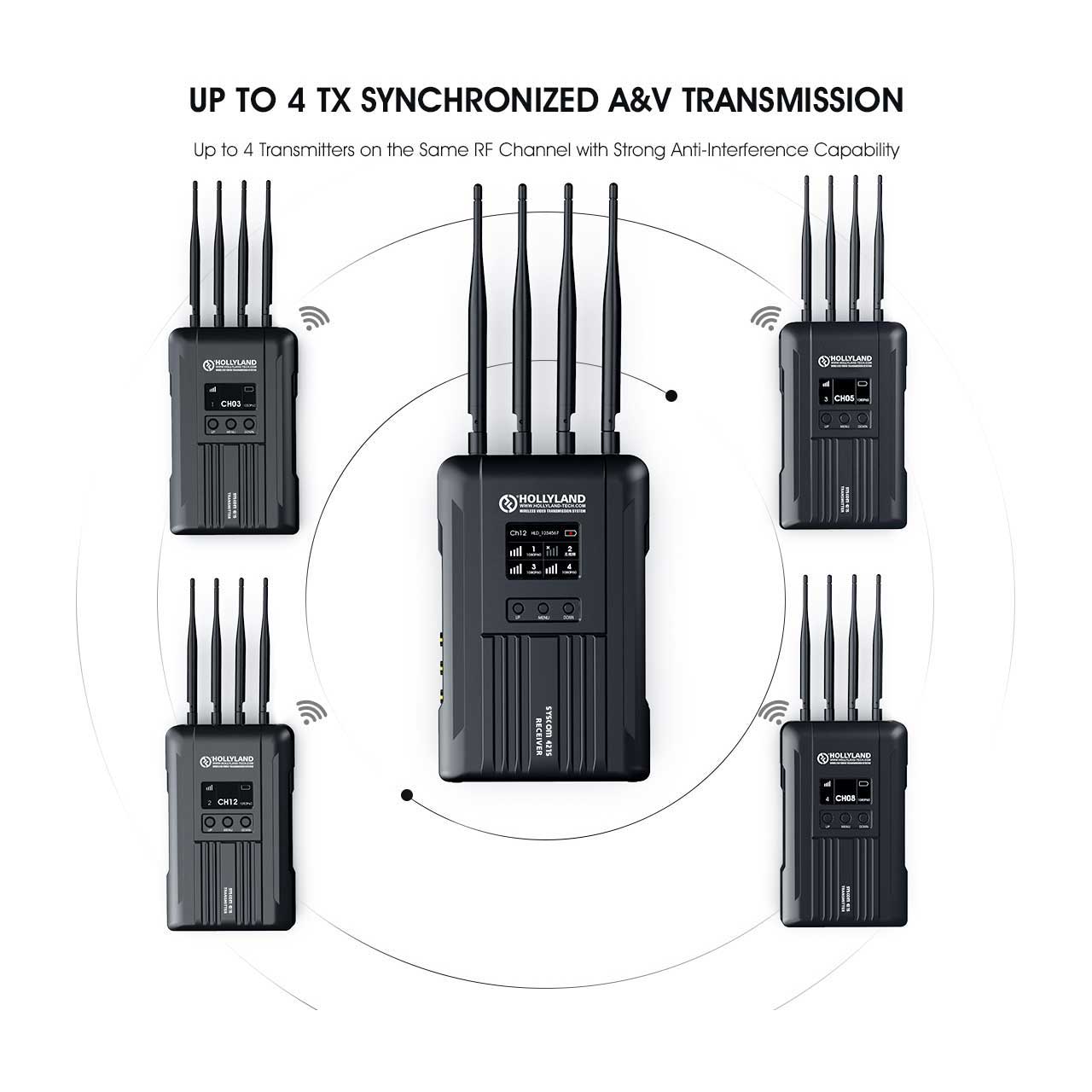

      • 4 Transmitters Use the Same Wireless Channel with Strong Anti-Interference Ability

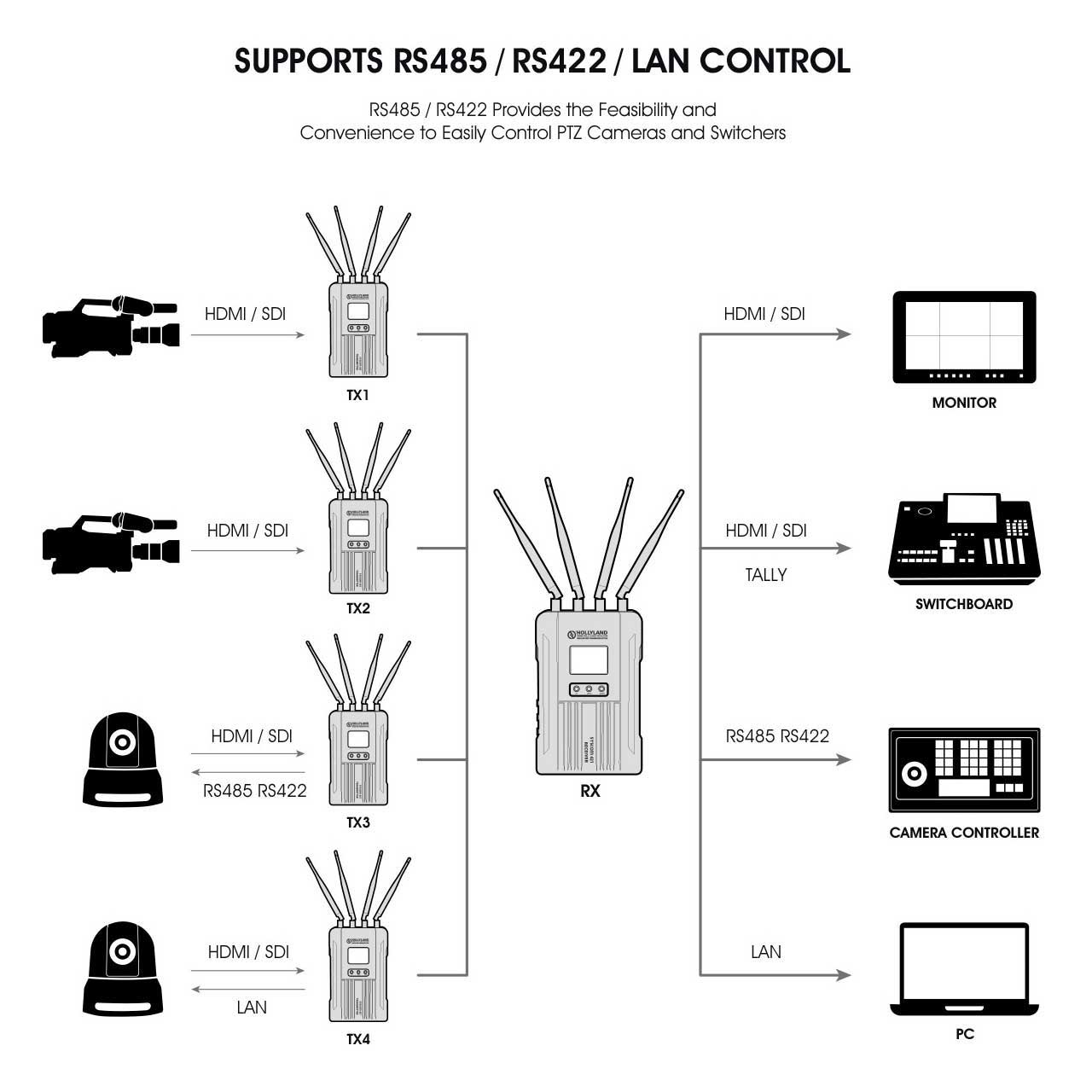

      • Supports TALLY and RS485/RS422 Control
      • Transmitter Supports 7-36V DC Wide Voltage Input
      • Receiver Supports 18-36V DC Wide Voltage Input
      • Stable & Reliable Industrial Metal Case

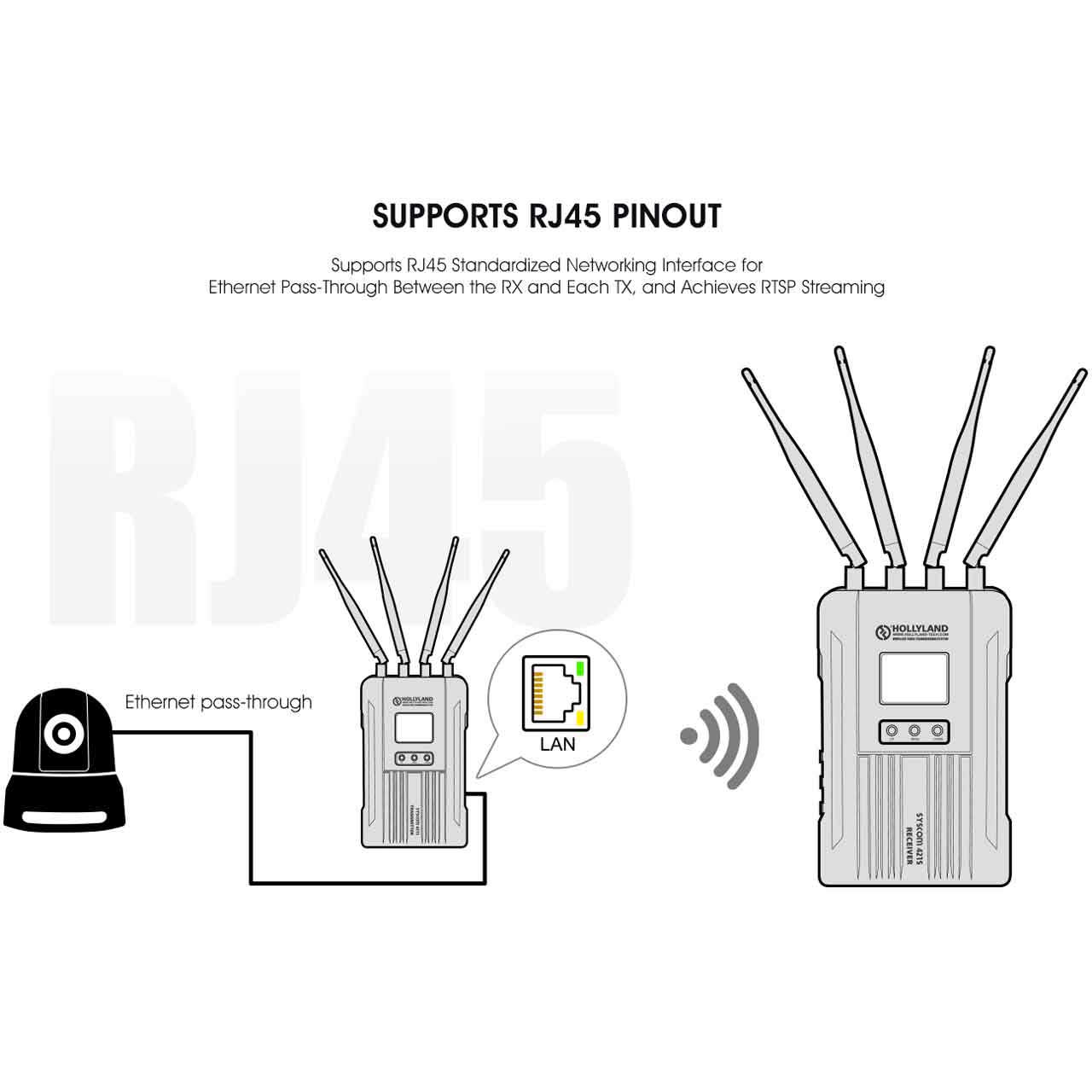

      • With RJ45 Interface, Supports Network Pass Through between Transmitter and Receiver, and Achieves RTSP Pull and Push Streaming


    • Specifications:

      • Transmitter
      • Interface
      • SDI Input (BNC Female)
      • HDMI Input (Type A Female)
      • 3.5mm TALLY Output
      • Antenna Interface x4 (RP-SMA Male)
      • DC Power Input
      • USB Type-C
      • LAN
      • RS485/RS422

        Input/Output Video Format
      • HDMI: 480p60Hz, 576p50Hz, 720p50/60Hz, 1080p24/25/30/50/60Hz
      • SDI: 720p50/60Hz, 1080i50/60Hz, 1080p24/25/30/50/60Hz

      • Bandwidth: 40MHz
      • Lowest Transmission Latency: <0.1s
      • Receiver Sensitivity: -90dBm
      • Transmission Power: Max 22dBm
      • Frequency: 5.1~5.9HGz
      • Power: 7~36V DC
      • Power Consumption: <12W
      • Weight: 431.5g (without antenna)
      • Dimensions: 88 x 30 x 144mm (without antenna)

        Receiver
      • Interface
      • SDI Output (BNC Female) x4
      • HDMI Output (Type A Female) x4
      • Antenna Interface x4 (RP-SMA Male )
      • DC Power Input
      • USB Type-A
      • LAN
      • RS485/RS422

        Input/Output Video Format
      • HDMI: 480p60Hz, 576p50Hz, 720p50/60Hz, 1080p24/25/30/50/60Hz
      • SDI: 720p50/60Hz, 1080i50/60Hz, 1080p24/25/30/50/60Hz

      • Bandwidth: 40MHz
      • Lowest Transmission Latency: <0.1s
      • Receiver Sensitivity: -90dBm
      • Transmission Power: Max 22dBm
      • Frequency: 5.1~5.9HGz
      • Power: 18~36V DC
      • Power Consumption: <32W
      • Weight: 1621g (without antenna)
      • Dimensions: 148 x 62 x 242mm (without antenna)


    • Item Includes:

      • 2x Transmitter
      • 1x Receiver
      • 15x 5GHz Antenna
      • 1x User Manual
      • 2x 7-Inch Magic Arm
      • 1x OTG Cable
      • 2x DC Conversion Cable
      • 3x RS485/RS422 Interface Cable
      • 1x Power Adapter


    • GTIN:

      0191460001406
