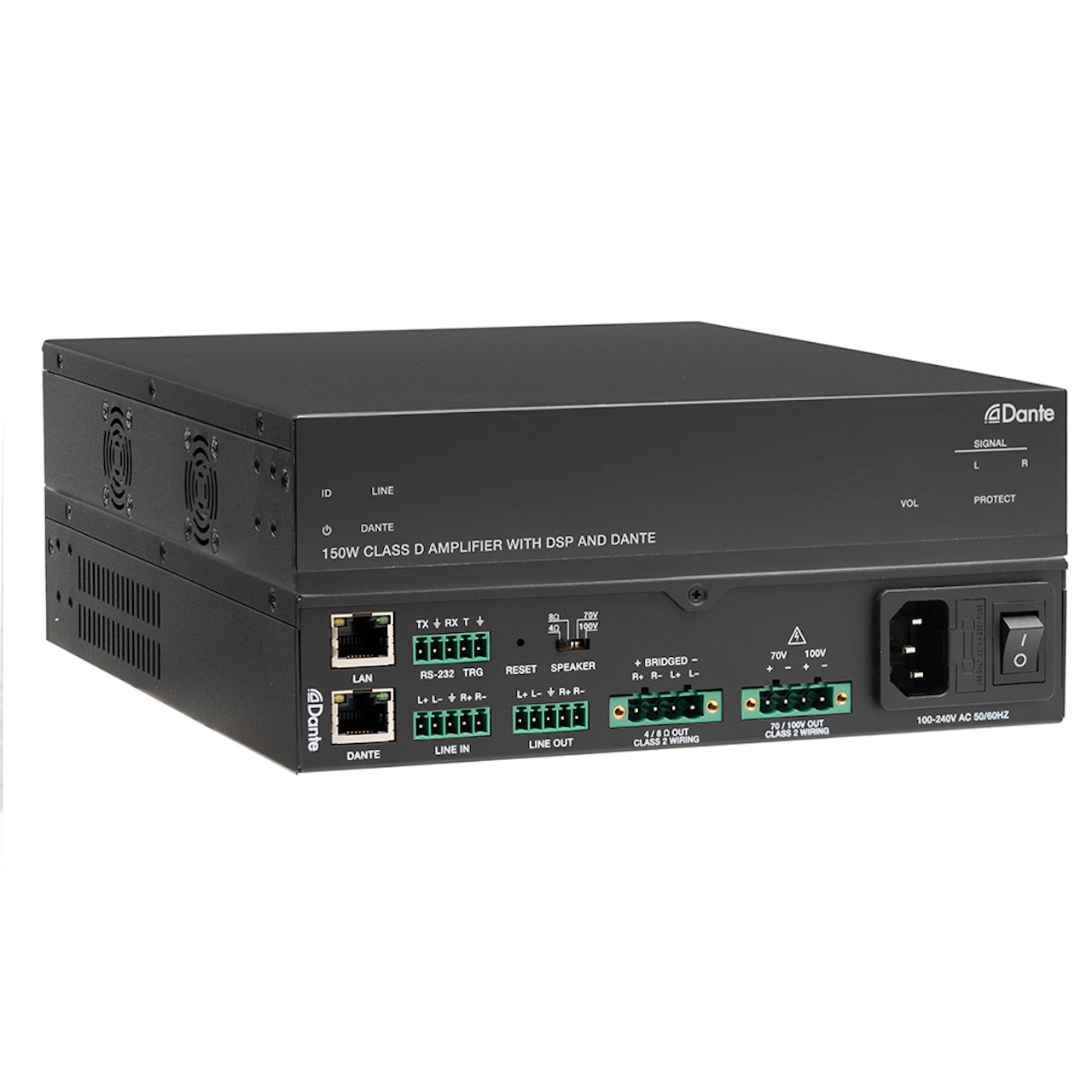

KanexPro AUD-DTE-2CHAMP Dante Networked 2-Channel Amplifier with DSP and Lo-Z/Hi-Z Output Modes

Name: KanexPro AUD-DTE-2CHAMP Dante Networked 2-Channel Amplifier with DSP and Lo-Z/Hi-Z Output Modes
Brand: KanexPro
SKU: KAN-AUDDTE2CHAMP
Price: 999.95 USD
Availability: Backorder

ITEM #: KAN-AUDDTE2CHAMP MFG #: AUD-DTE-2CHAMP

KanexPro

Our Price:

$999.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AUD-DTE-2CHAMP - Overview

Deliver Network Audio Directly to Speakers with a Compact, DSP-equipped Class D Amplifier

The KanexPro AUD-DTE-2CHAMP is a 150W Class D amplifier that decodes Dante network audio and drives low-impedance (4Ω/8Ω) stereo speakers or constant-voltage (70V/100V) distributed speaker lines - with balanced analog line-level I/O for legacy integration.

Built-in DSP provides 31-band graphic EQ, per-output delay (0ms - 50ms), independent input gain and volume control, and five recallable presets. The amplifier accepts Dante PCM 2-channel audio at up to 96KHz/24-bit alongside balanced stereo line input. A rear-panel speaker impedance switch selects Lo-Z stereo (2x 75W @ 4Ω/8Ω), bridged mono (1x 150W @ 8Ω), or Hi-Z constant voltage (1x 150W @ 70V/100V). Control via RS-232, LAN, and Web GUI. 5-12V trigger input and auto standby for energy-efficient installations. Half-rack/full-rack mountable.

Features:
- Dante 2-channel digital audio input and output (PCM, 44.1kHz - 96kHz, 16/24-bit) for seamless networked audio distribution
- Balanced or unbalanced stereo line-level analog input and output (max 2Vrms) for integration with legacy analog sources and processors
- Class D amplifier delivers 2x 75W @ 4Ω/8Ω stereo, 1x150W @ 8Ω bridged mono, or 1x 150W @ 70V/100V constant voltage
- Rear-panel speaker impedance switch selects Lo-Z (4Ω/8Ω) or Hi-Z (70V/100V) output mode without reconfiguration
- Built-in DSP with 31-band graphic EQ (-10dB - +10dB), per-output delay (0ms - 50ms), independent input gain and master volume control
- Five recallable presets store complete audio configuration for rapid scene switching in multi-use spaces
- 5V - 12V trigger input for external mute control; auto standby (0 min - 120 min) for energy-efficient operation
- Control via RS-232 (115200 baud), LAN (Web GUI), and TCP/IP (port 8000) - half-rack/full-rack mountable
Specifications:
- Amplifier Type: Class D, 150W max
- Output Power:
  - 2x 75W @ 4Ω/8Ωx150W @ 8Ω bridged
  - 1x 150W @ 70V/100V
- Input Sensitivity: Full power @ 0.775V (0dBu)
- Max Voltage Gain: 27dB - 30dB SE/39dB - 42dB BTL
- Frequency Response: 20Hz - 20kHz @ ±3dB
- Signal to Noise Ratio: 87dB, 20Hz - 10kHz
- THD+N: 0.04% (1kHz @ 1W)
- Audio Format:
  - Line In: Analog, Balanced 2CH, Max 2Vrms
  - Line Out: Analog, Balanced 2CH, Max 2Vrms
  - Dante: Digital 2x2 in/out, PCM 2CH 44.1kHz - 96kHz, 16/24-bit
  - AMP Out: Analog, Balanced 2CH, Max 24.5Vrms
  - 70V/100V AMP Out: Analog, Unbalanced 1CH
- Control: RS-232, Web GUI, LAN (TCP/IP)
- ESD Protection: ±8kV (air-gap)/±4kV (contact) - Human-body Model

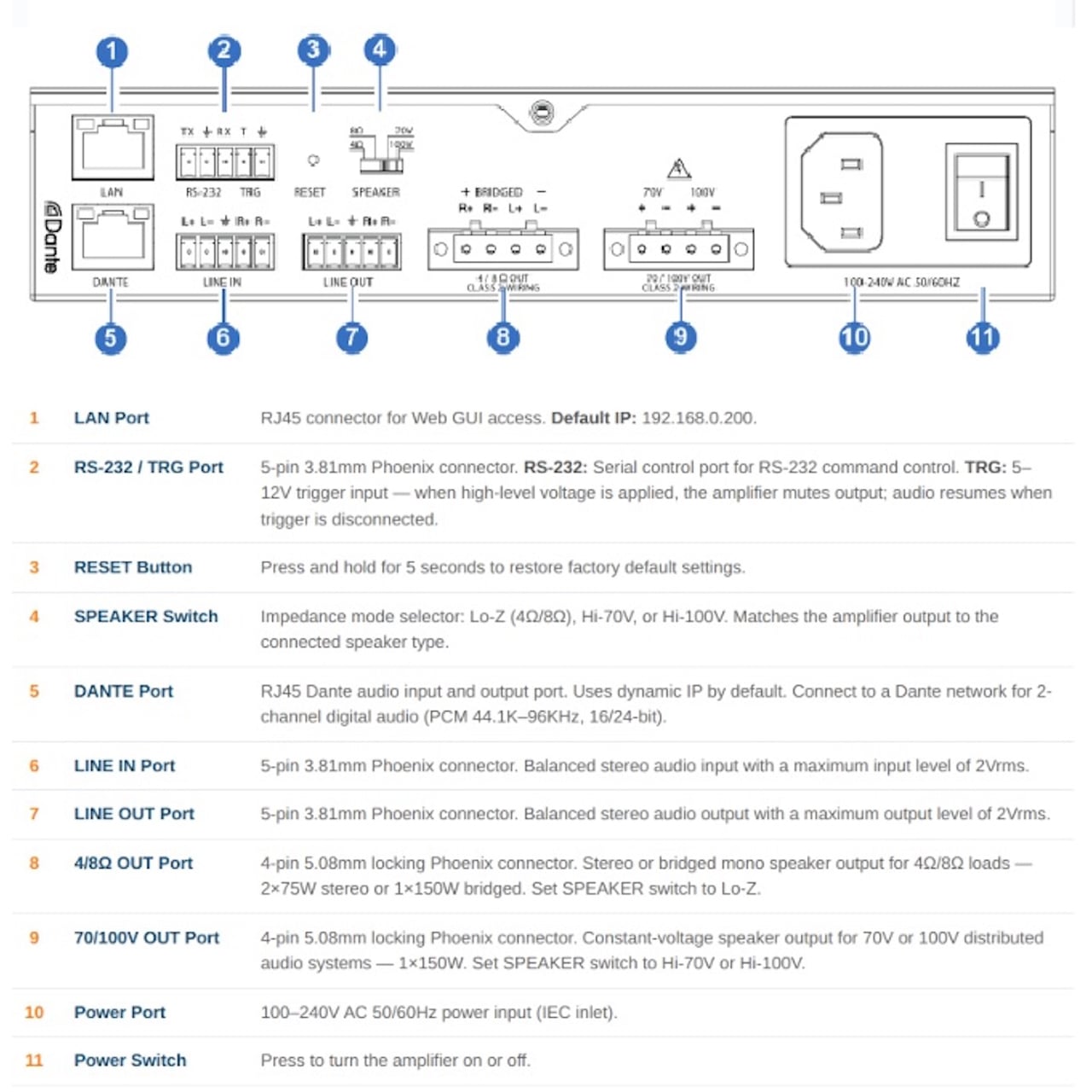

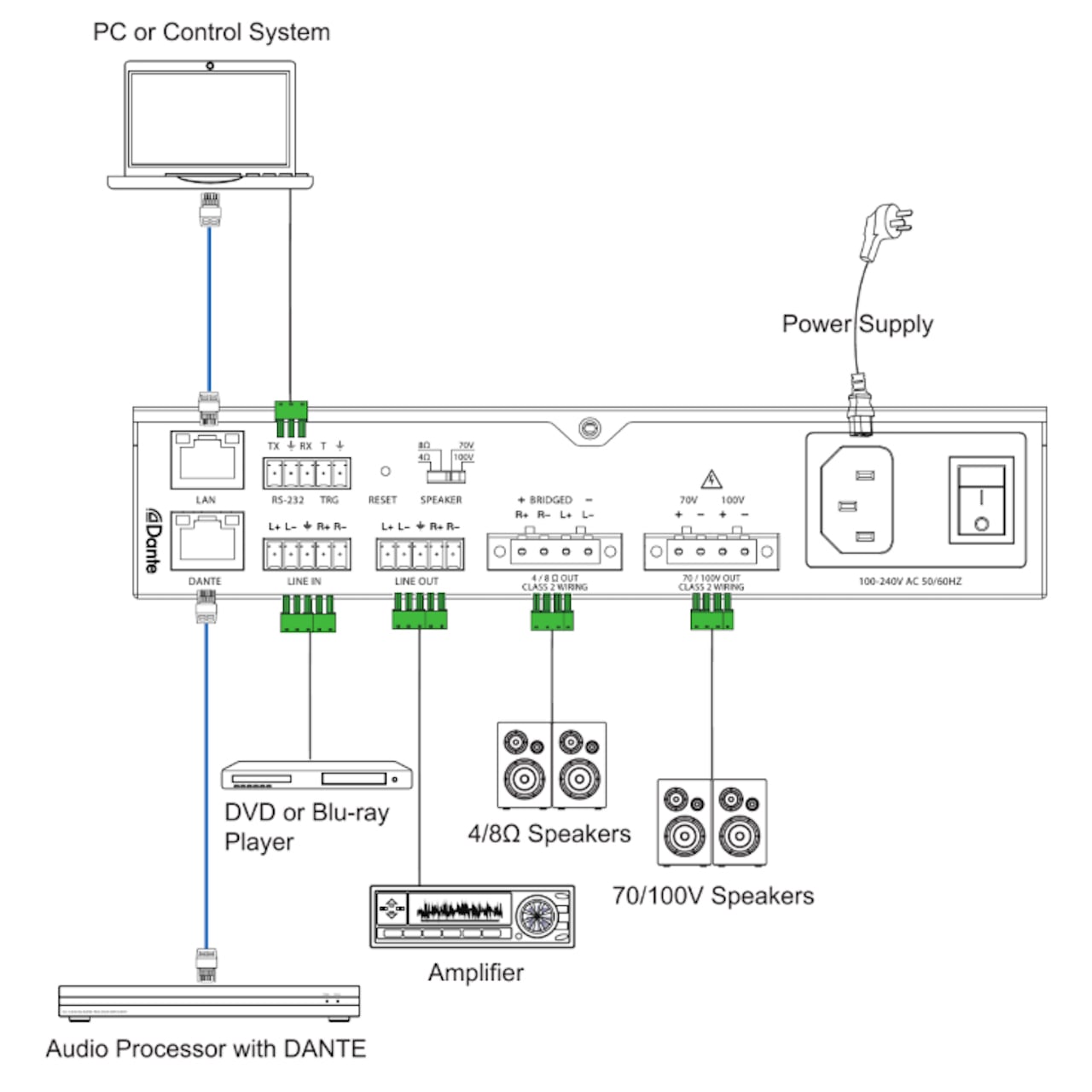

  Connection
- Input:
  - 1x Line In (5-pin 3.81mm Phoenix)
  - 1x DANTE (RJ45)
- Output:
  - 1x Line Out (5-pin 3.81mm Phoenix)
  - 1x 4Ω/8Ω AMP OUT (4-pin 5.08mm locking Phoenix)
  - 1x 70V/100V AMP OUT (4-pin 5.08mm locking Phoenix)
- Control:
  - 1x RS-232/TRG (5-pin 3.81mm Phoenix)
  - 1x LAN (RJ45)

  Mechanical
- Housing:
  - Front: Aluminum
  - Rear: Metal Enclosure, Black
- Dimensions: 9.45" x 8.27" x 1.73" (240.2mm x 210mm x 44mm)
- Weight: 4.14lbs (1.9kg)

  Power
- Power Supply: AC 100V - 240V, 50/60Hz
- Power Consumption: 240W (Max)
Item Includes:
- 1x 150W Class D Amplifier
- 3x 5-pin 3.81mm Phoenix Connectors (male)
- 2x 4-pin 5.08mm Phoenix Connectors (male)
- 6x Mounting Ears
- 24x Machine Screws
- 1x AC Power Cord (100-240V, 1.5m)
- 1x Product Manual
Warranty:
- 1 Year Limited Warranty
