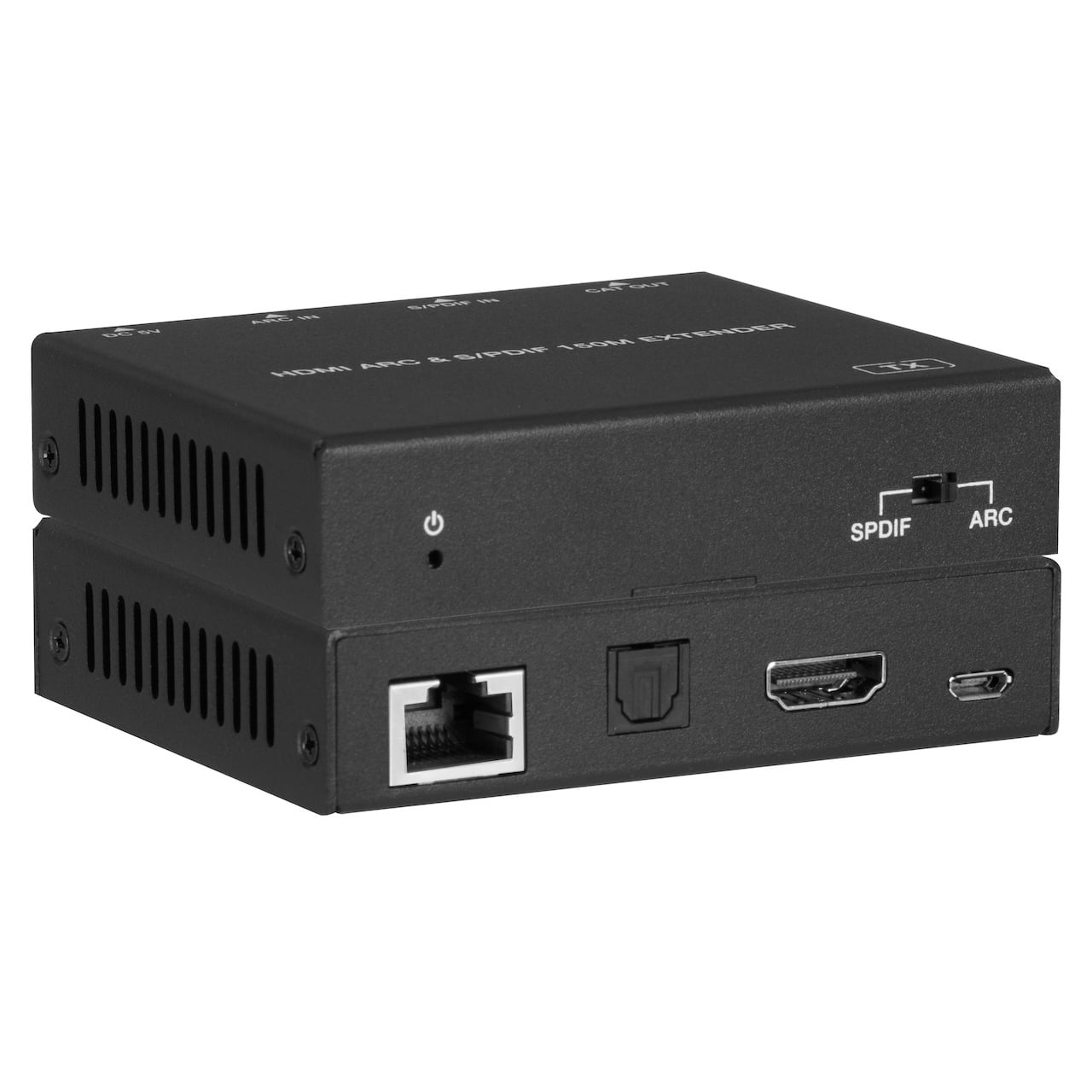

KanexPro AUD-EXT-ARC150M Long-Range ARC Audio Extender over CAT5e/6/7 - Dual Input TX / RX Kit

AUD-EXT-ARC150M - Overview

• Features:

  • Extends HDMI ARC or optical S/PDIF audio up to 492ft (150m) over a single CAT5e/6/7 cable - no signal repeaters or dedicated audio cabling required

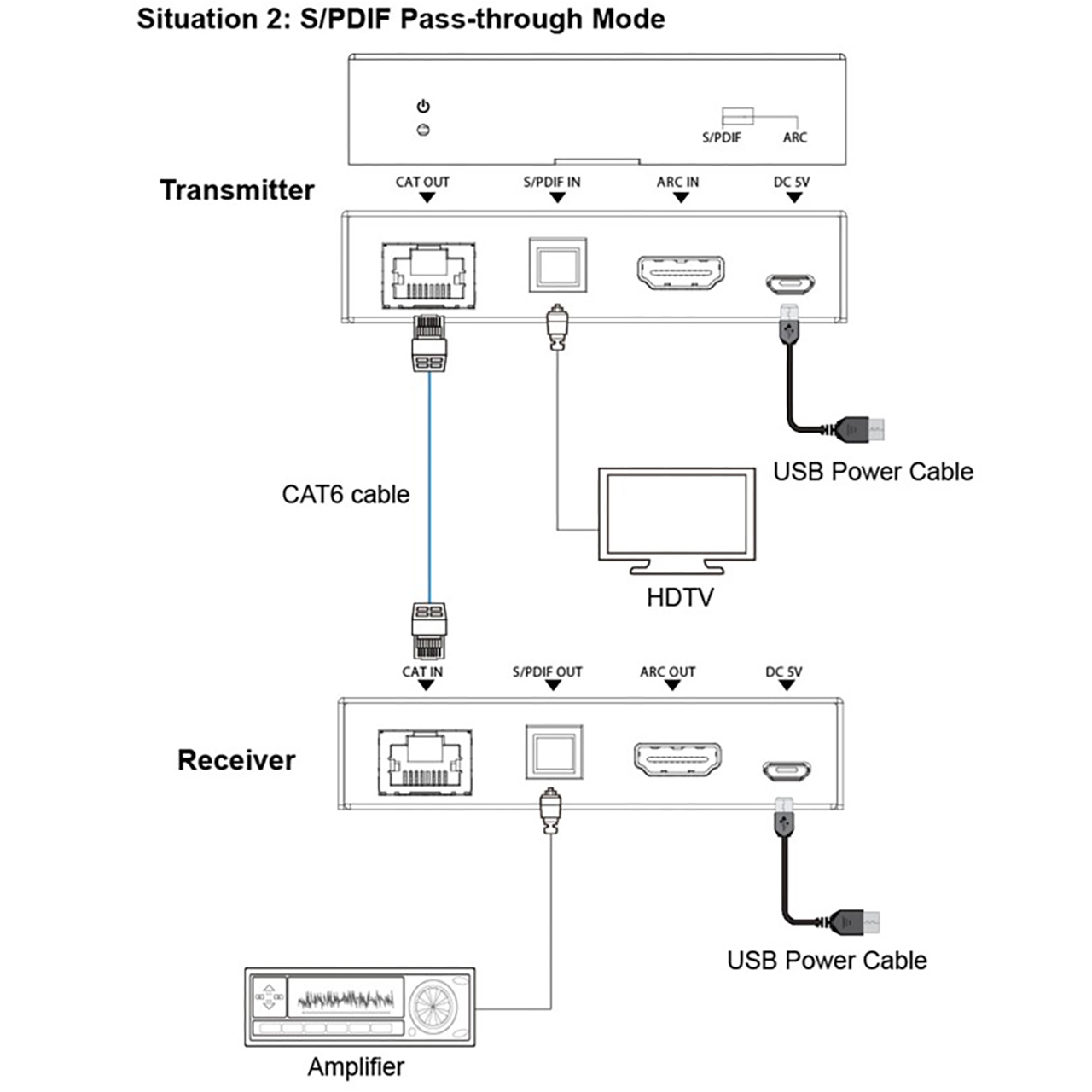

  • Selectable input at transmitter - switch between HDMI ARC and optical S/PDIF to accommodate ARC-capable displays and legacy sources in the same kit
  • High-resolution audio support up to 192kHz; 492ft (150m) reach at 96kHz, 295ft (90m) at 192kHz for installations requiring extended sample rates
  • CEC pass-through in ARC mode - TV remote volume control is preserved end-to-end without additional control infrastructure
  • Supports PCM 2.0, Dolby Digital 5.1, and DTS 5.1 - compatible with standard surround formats used in commercial and residential AV systems
  • Metal-housed TX and RX units with ESD protection (±8kV air-gap/±4kV contact) - built for installation in ceiling spaces, wall cavities, and AV racks
  • Plug-and-play operation - no drivers or software required; 5V Micro USB power on both units


• Specifications:

  • Supported Audio Formats: PCM 2.0ch, Dolby Digital 5.1ch, DTS 5.1ch
  • Maximum Sample Rate: 192kHz
  • ESD Protection: ±8kV air-gap discharge/±4kV contact discharge
  • ARC Audio - 96kHz: 495ft (150m)
  • ARC Audio - 192kHz: 295ft (90m)
  • S/PDIF Audio - 96kHz: 495ft (150m)
  • Cable Type: CAT5e/CAT6/CAT7 (straight-through, T568B)
  • Transmitter Inputs:
    - 1x ARC IN (HDMI Type-A, 19-pin female)
    - 1x S/PDIF IN (Optical Audio Jack)
    - 1x Micro-USB
  • Transmitter Output: 1x CAT OUT (RJ45)
  • Transmitter Input Select: Front-panel S/PDIF/ARC toggle switch
  • Receiver Inputs:
    - 1x CAT IN (RJ45)
    - 1x Micro-USB
  • Receiver Outputs:
    - 1x ARC OUT (HDMI Type-A, 19-pin female)
    - 1x S/PDIF OUT (Optical Audio Jack)
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 3.5" x 2.83" x 0.79" (90mm x 72mm x 20mm)(TX & RX)
  • Weight: 0.39lbs (175g)(TX & RX)
  • Power Supply: DC 5V/1A (Micro USB)
  • Power Consumption:
    - Transmitter: 0.35W (max)
    - Receiver: 0.7W (max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (non-condensing)


• Item Includes:

  • 1x HDMI Audio Extender (Transmitter)
  • 1x HDMI Audio Extender (Receiver)
  • 2x USB Shielded Cable (USB-A to Micro USB, 1m)
  • 2x 5V/1A Power Adapter
  • 1x User Manual


• Warranty:

  • 2 Year Warranty
