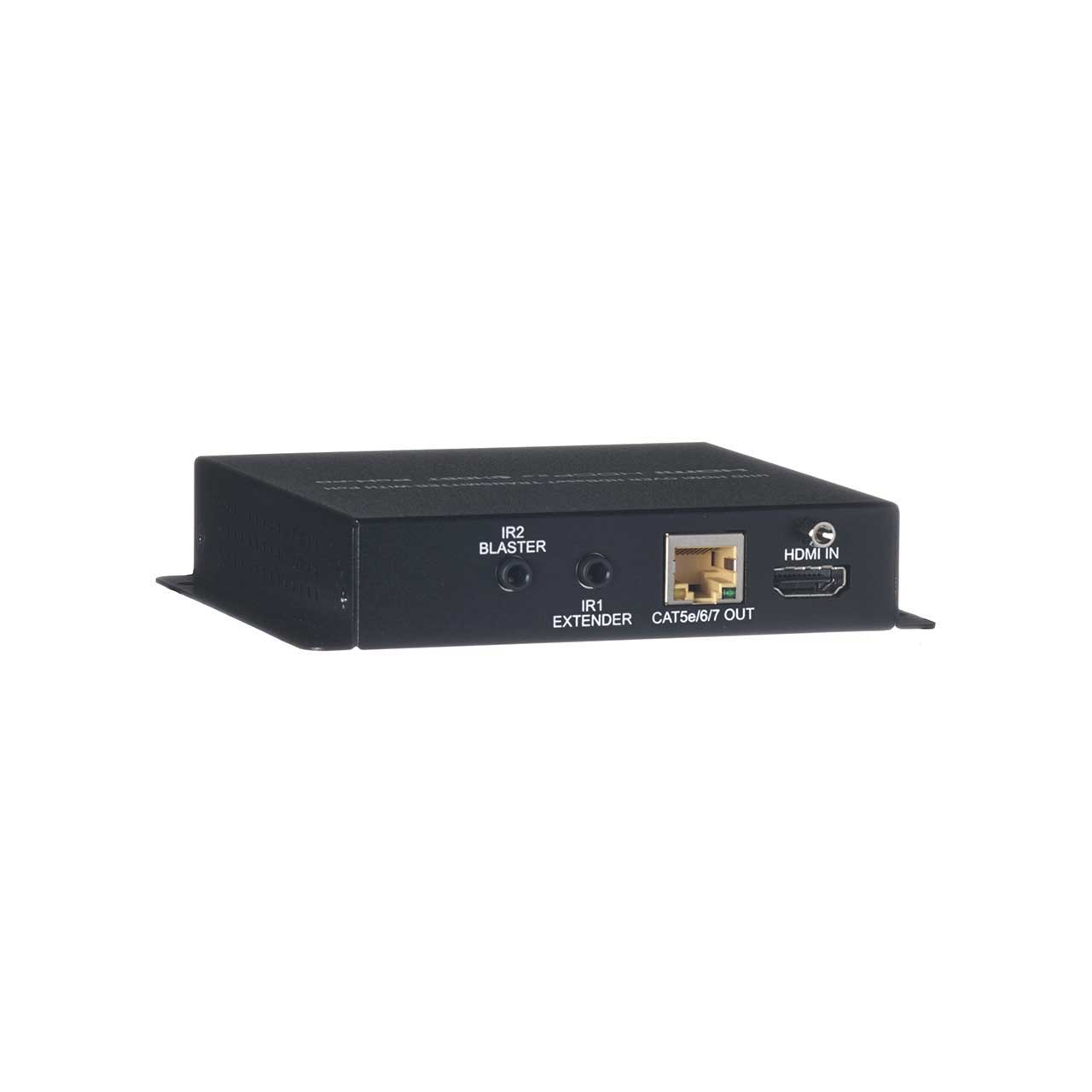

KanexPro Input (TX) Extender for HDSC92D-4K Scaler HDMI over CAT5e/6/6a Transmitter LAN/IR/RS-232/PoE

HDSC92D-4KTX - Overview

• Features:

  • HDMI with 3D & 4K support, DVI 1.0 compatible
  • HDCP 2.2 and HDCP 1.x compliant
  • Supports resolutions up to 4K@50/60Hz (4:2:0,8-bit)
  • Supports CEC bypass
  • Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable at 1080p60and70m/230ft at4K
  • HDBaseT feature support: HD Video and Audio, 100BaseTEthernet, 48VPoH, and Control(bidirectional IR/RS-232 pass-through)
  • Supports standard 48V PoH from Receiver (PSE) to Transmitter(PD)(compatible Transmitters only)
  • Notes: The 48V PoH function is designed to power compatibleTransmitter units only. Non-PoH Transmitters will need their own power supply.Other brands of Transmitter may not be compatible.
  • The use of "Premium High Speed HDMI" cables is highly recommended for displaying 3D and 4K content and compatible display equipment is required.


• Specifications:

  • Video Bandwidth: 340Hz/10.2Gbps
  • Input Port: 1x HDMI
  • Output Port: 1x Cat.5e/6/6a

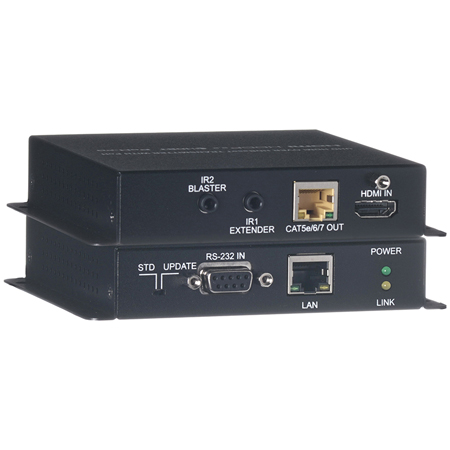

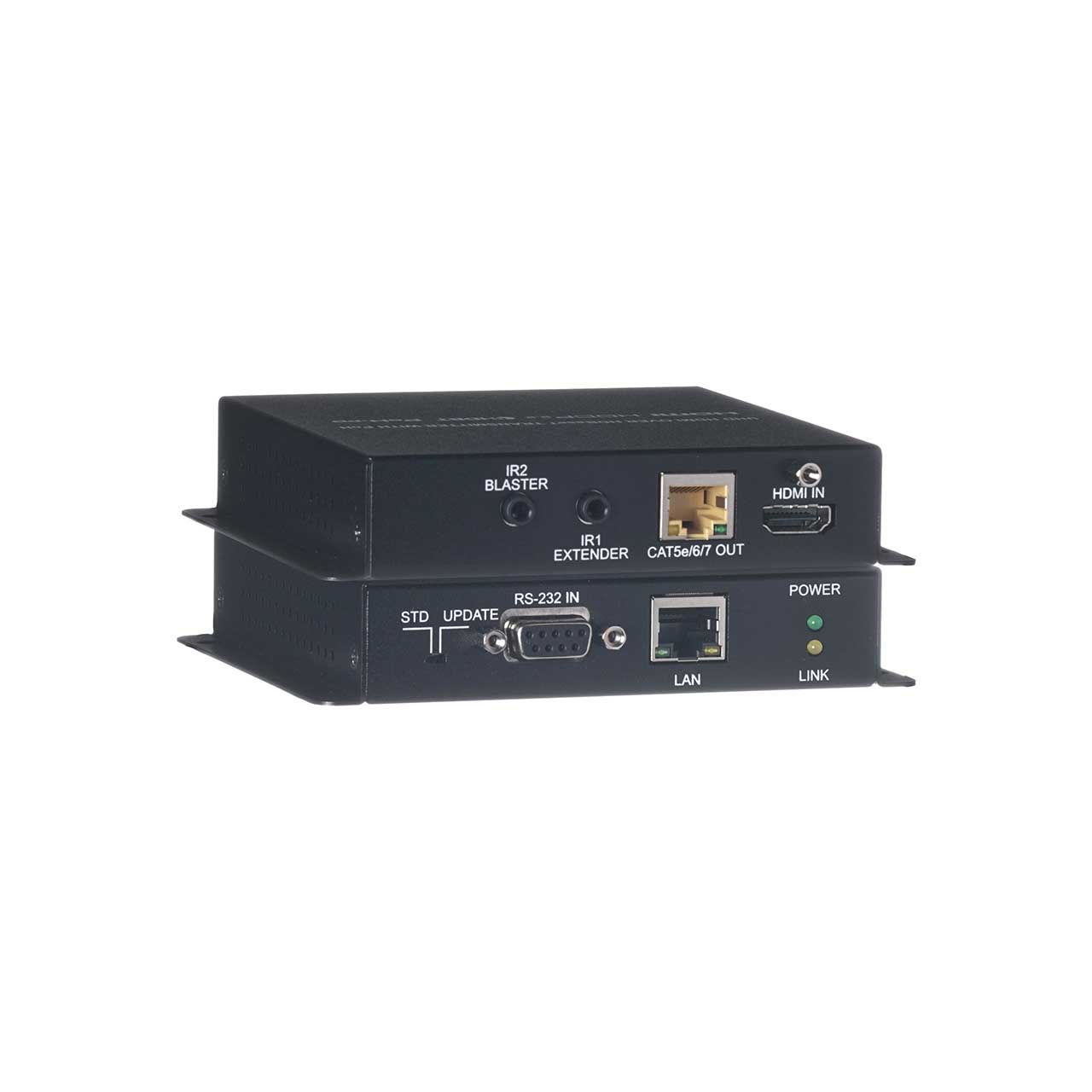

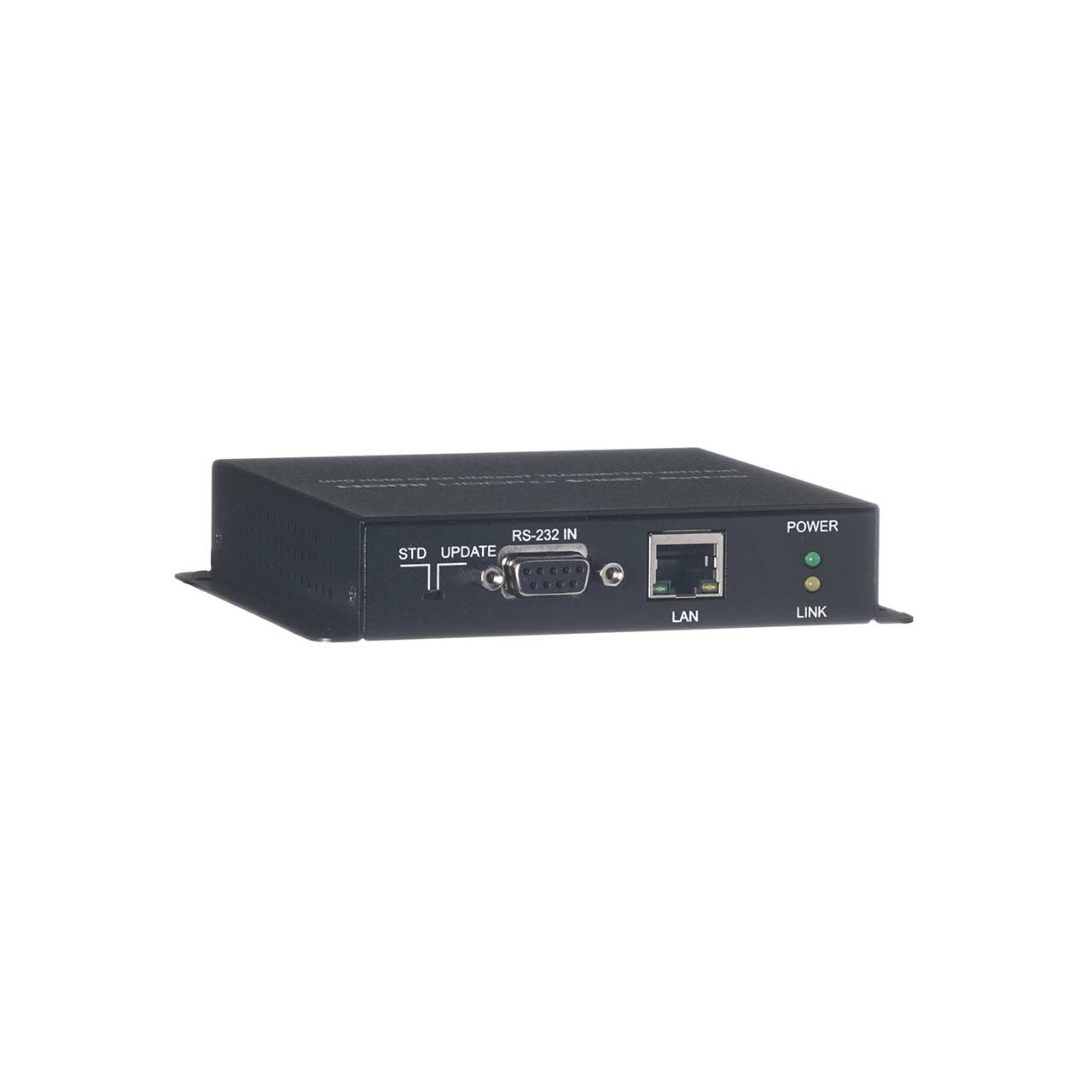

  • Pass-through Ports:
  • 1x IR Extender [3.5mm]
    1x IR Blaster[3.5mm]
    1x RS-232 [9-pinD-sub]
    1x LAN [RJ45]
  • Supported Resolutions:
    480i@60Hz - 4K@60Hz (4:2:0,8-bit)
    VGA@60Hz - WUXGA@60Hz(RB)
  • HDMI Cable Length:
    10m (1080p@60Hz, 12-bit)
    5m (4K@60Hz, 4:4:4,8-bit)
  • CAT5e/6 Cable Length:
    100m (1080p@60Hz,12-bit)
    70m (4K@60Hz, 4:2:0,8-bit)
  • IR Frequency: 30 - 50kHz (30 - 60kHz under ideal conditions)
  • Baud Rate: Up to 115200bps
  • Power Supply: 48V PoH
  • ESD Protection:
  • Human Body Model:
    ±8kV (Air Discharge)
    ±4kV (Contact Discharge)
  • Dimensions (WxHxD):
    Case Only: 5.03 x 0.98 x 4.25" (128 x 25 x 108mm)
    All Inclusive: 5.03 x 0.98 x 4.60" (128 x 25 x 117mm)
  • Weight: 0.81Lbs (370g)
  • Chassis Material: Metal
  • Silkscreen Color: Black
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Relative Humidity: 20 - 90% RH(Non-condensing)
  • Power Consumption: 4.71W


• Warranty:

  • Backed by KanexPro 3-Year Parts & Labor Warranty


• GTIN:

  0813982022836
