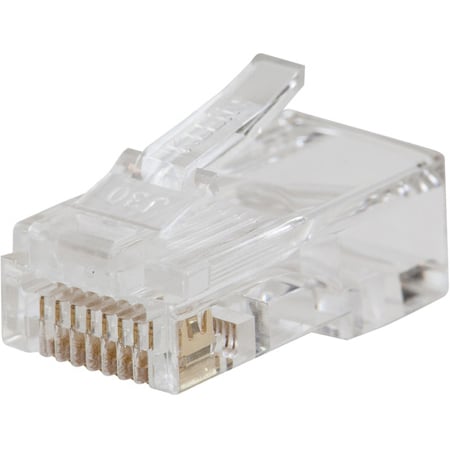

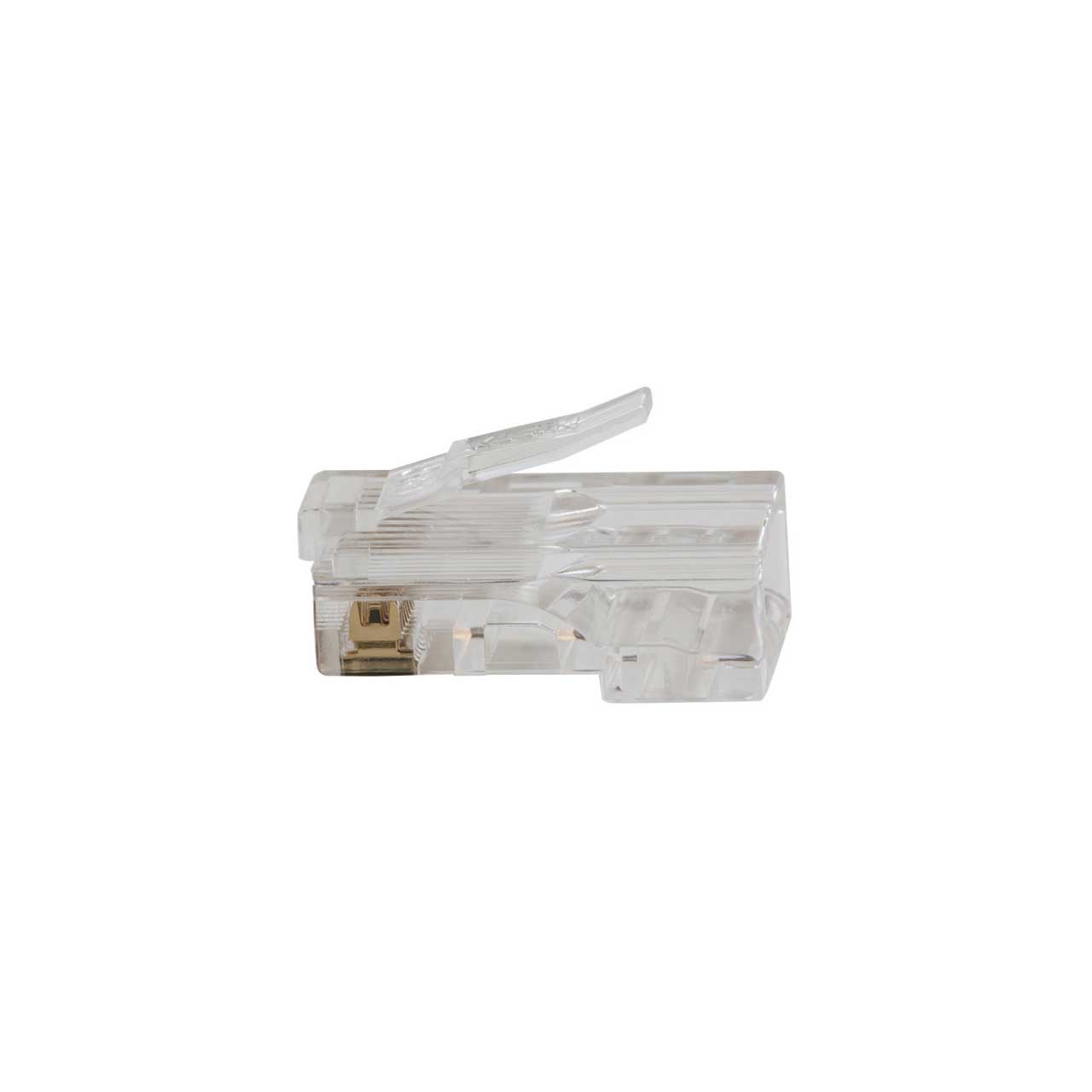

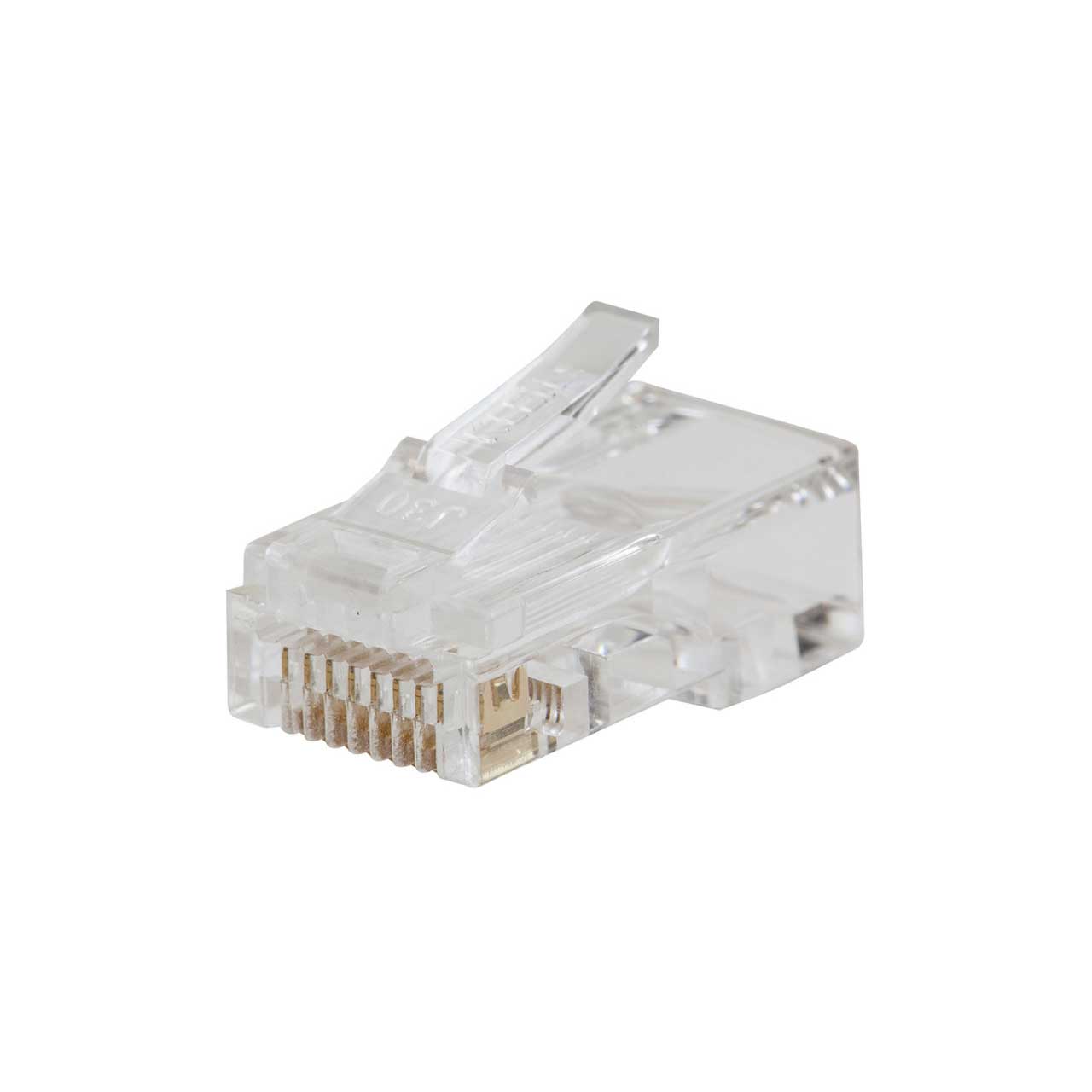

Klein Tools VDV826-729 Pass-Thru Modular Data Plug - CAT5E - 10 Pack

VDV826-729 - Overview

• Features:

  • Features Klein's exclusive pass-through design for fast, reliable and consistent connector installations
  • CAT6 cable easily passes through connector and trims flush to end face
  • Comes in a 10-piece package
  • These CAT6 connectors meet or exceed all Power over Ethernet (PoE) standards
  • Use with Klein Tools Pass-Thru Modular Crimper VDV226-110
  • Also available in a 50-piece pack (Cat. No. VDV826-703), or a 200-piece pack (VDV826-763)


• Specifications:

  • Type: Modular
  • Application: Voice and Data
  • Special Features: Pass-Thru Technology; Compliant with all PoE Standards
  • Overall Length: 7/8'' (22.2 mm)
  • Overall Height: 29/64'' (11.5 mm)
  • Overall Width: 3/32'' (2.4 mm)
  • Material: PVC Plastic; Gold Plated Contacts
  • Connector Type: RJ45
  • Cable Type: CAT6
  • Position & Contacts: 8P 8C
  • Connector Color: Clear
  • Solid Conductor Wire: Yes
  • Stranded Conductor Wire: Yes
  • Package Quantity: 50
  • Weight: 0.10 oz (2.7 g)


• GTIN:

  0092644690921
