Klein Tools VDV826-762 Pass-Thru Modular Data Plugs - RJ45-CAT5e - 200-Pack

VDV826-762 - Overview

• Features:

  • Klein exclusive Pass-Thru Connectors provide fast, reliable connector installations for data applications

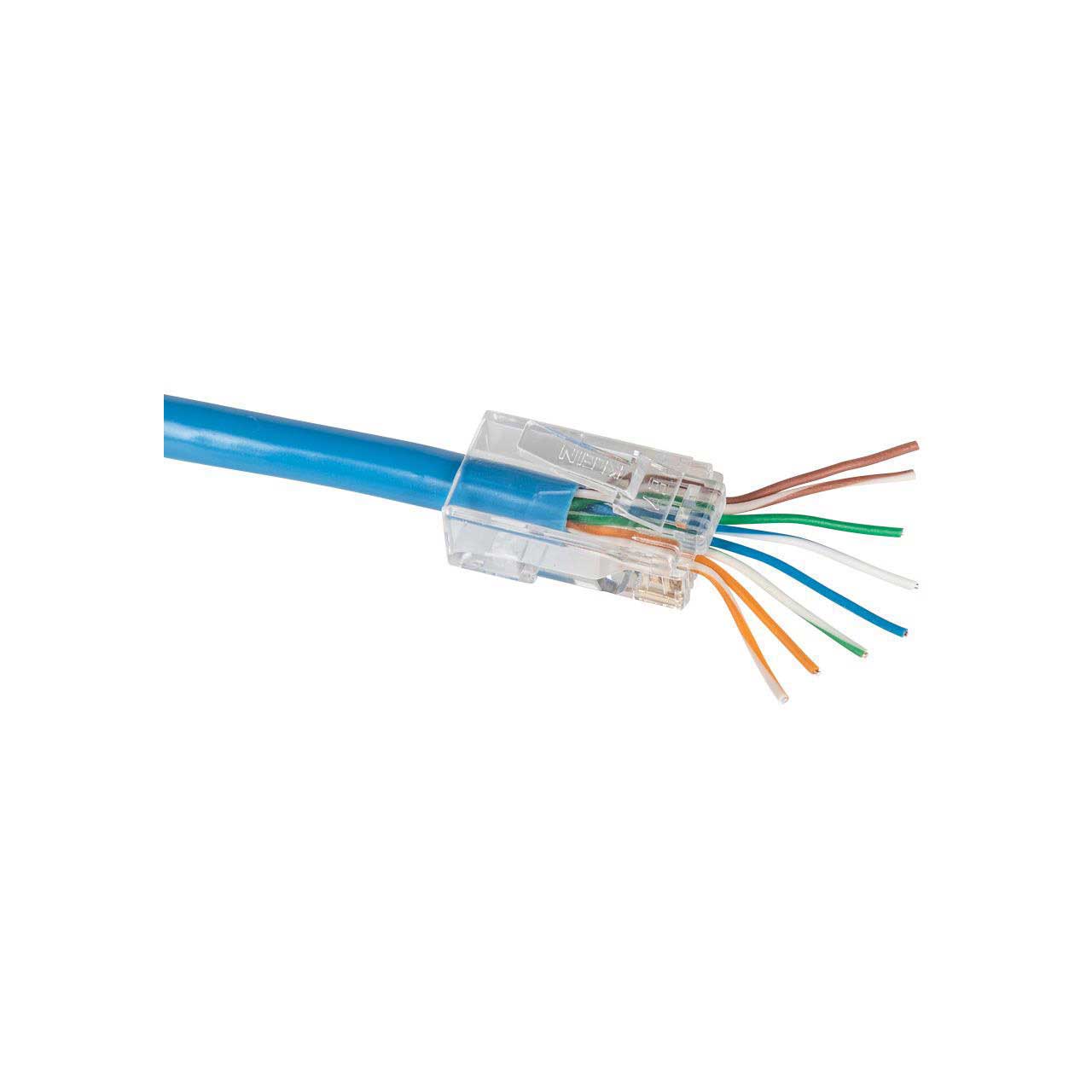

  • CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
  • 50µ inch gold plating on all contact surfaces
  • Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant

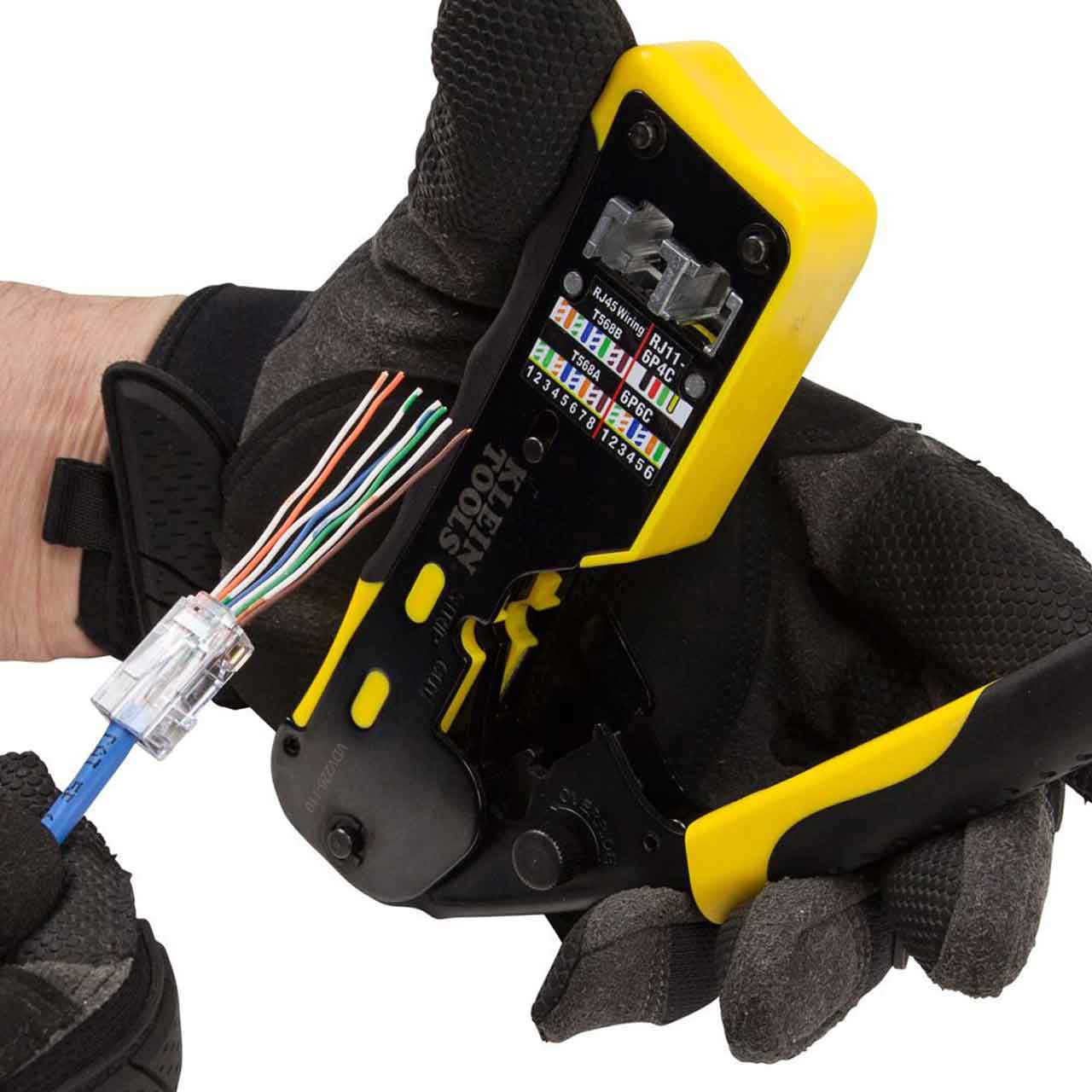

  • For use with Klein Tools Pass-Thru Modular Crimper VDV226-110

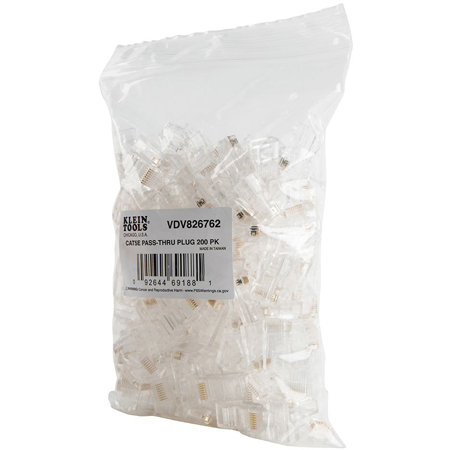

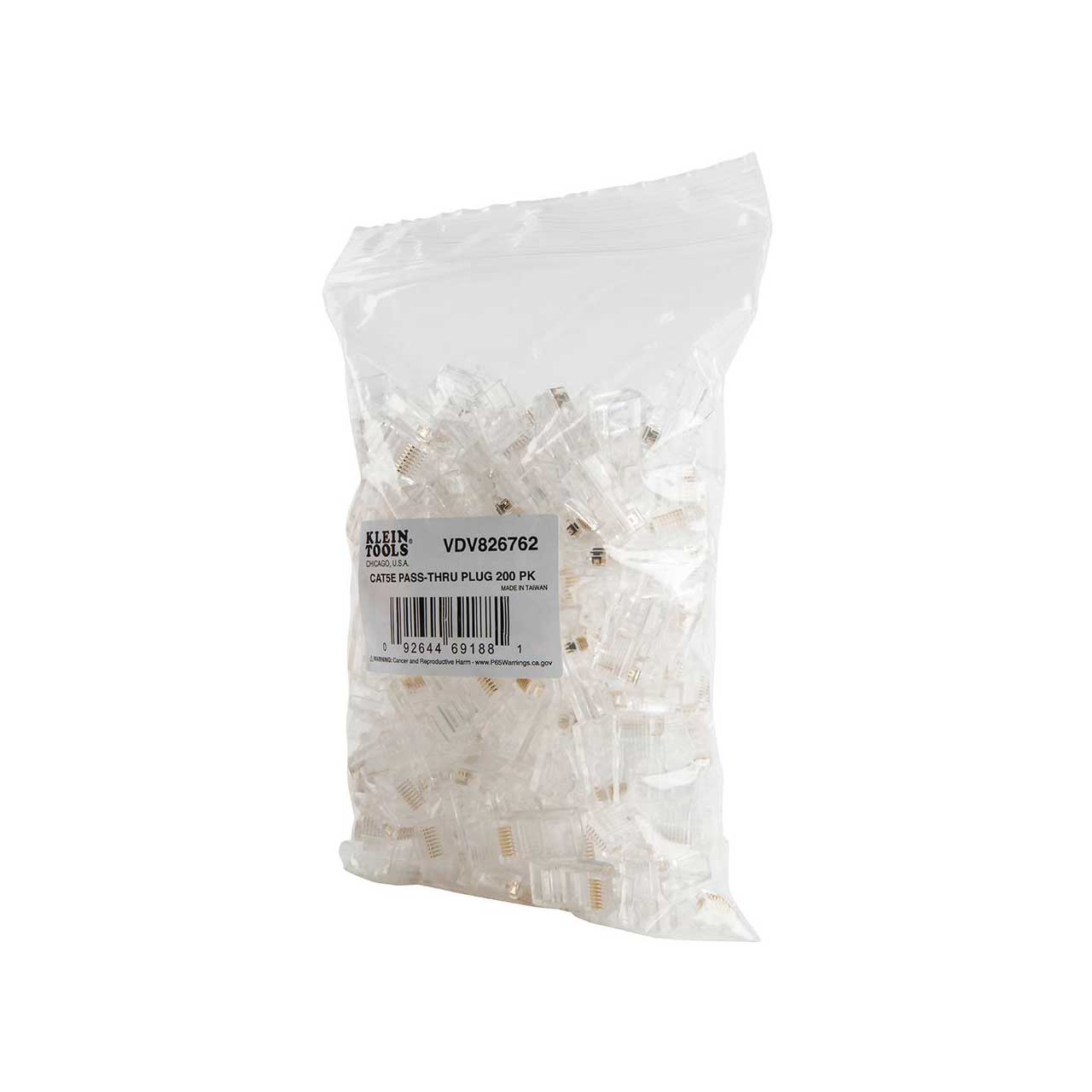

  • 200-Pack

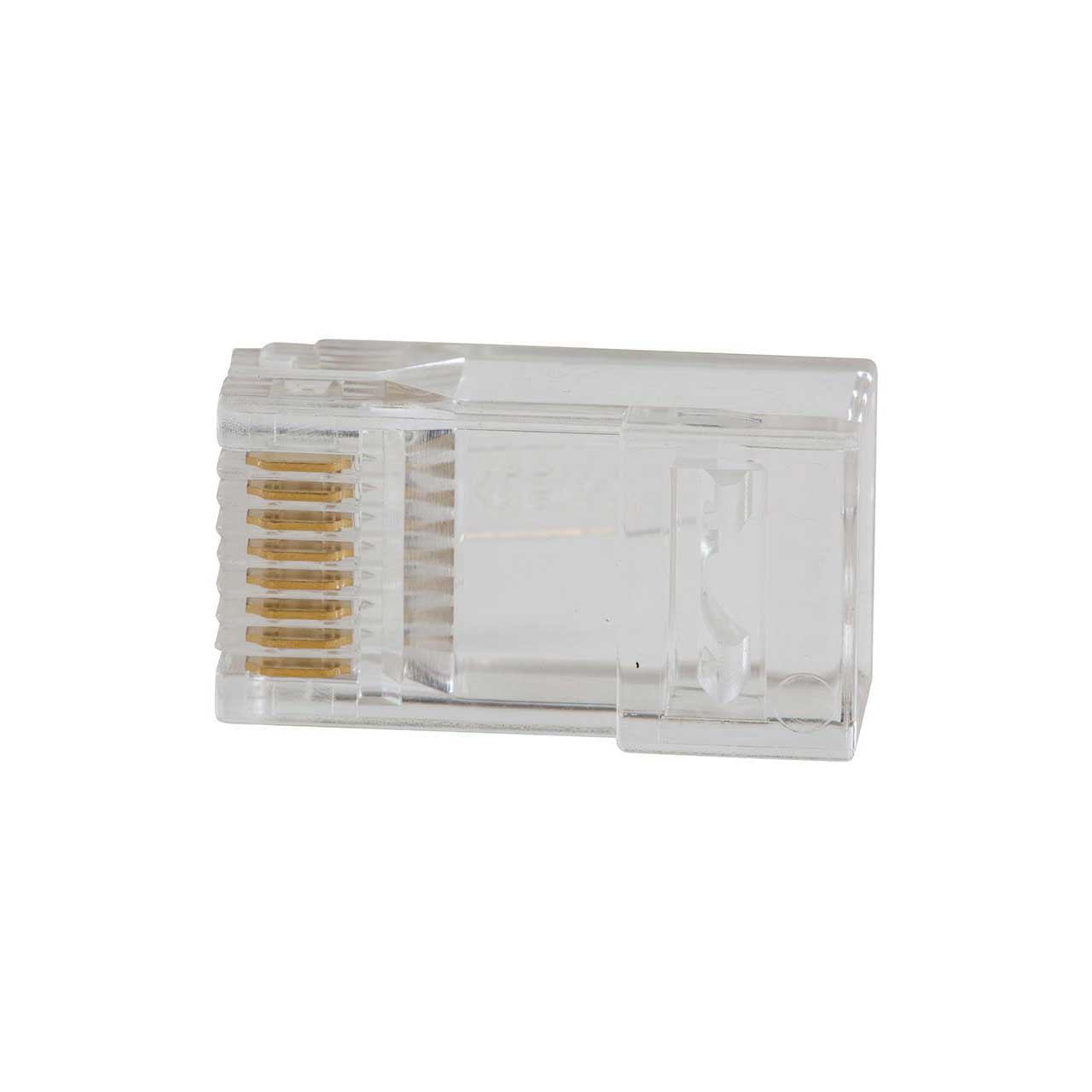

  • 8 position, 8 contact Pass Through style data plug for solid or stranded cable

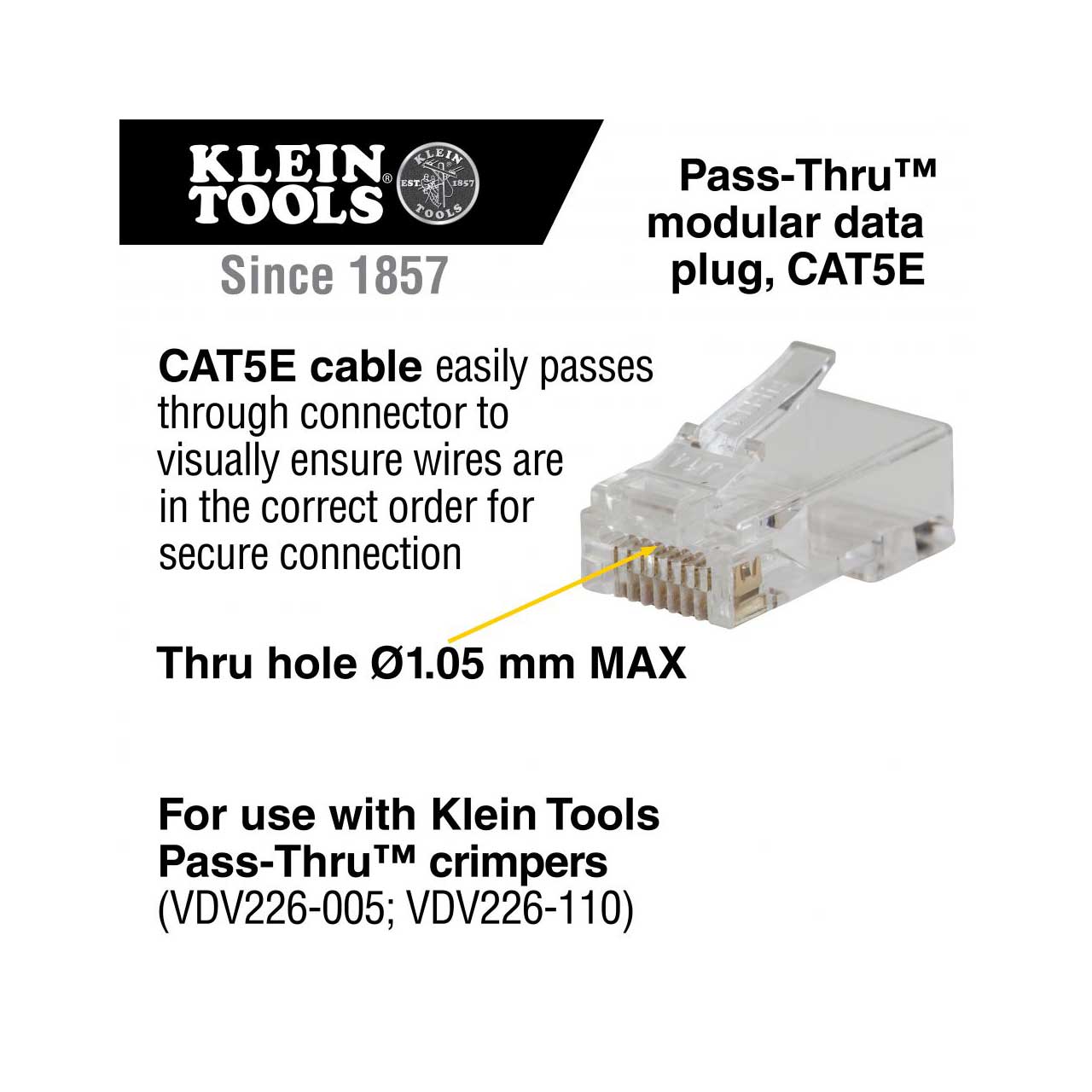

  • Max diameter for CAT5E Pass-Thru Connectors is 0.04-Inch (1.01 mm)


• Specifications:

  • Type: Modular
  • Application: Voice and Data
  • Special Features: Pass-Thru Technology
  • Overall Length: 0.875"
  • Overall Height: 0.453"
  • Overall Width: 0.094"
  • Material: PVC Plastic; Gold Plated Contacts
  • Connector Type: RJ45
  • Cable Type: CAT5e
  • Position & Contacts: 8P 8C
  • Connector Color: Clear
  • Solid Conductor Wire: Yes
  • Stranded Conductor Wire: Yes
  • Package Quantity: 200
  • Weight: 9.8 oz.


• GTIN:

  0092644691881
